Whakatane: North Details

PropertyValue
Rupture Count3,199
Ruptures Above Sect Min Mag3,194
Ruptures w/ Nonzero Rates47
Magnitude Range[6.63, 8.40]
Length Range[16, 687] km
Total Rate0.0010590807 /yr
Multi-Fault Rate6.4985896E-4 /yr (61.36%)
Directly-Connected Faults8
All Co-Rupturing Faults90

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

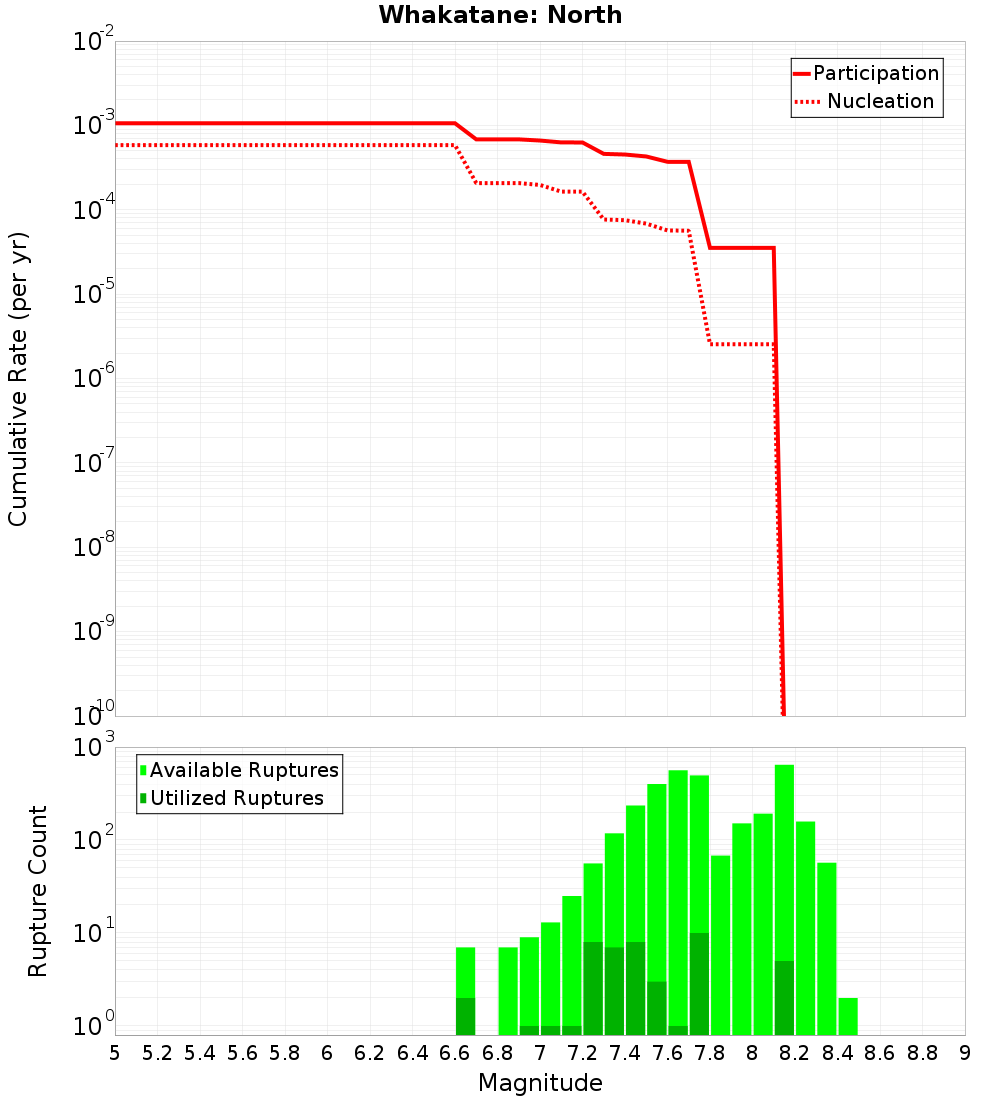

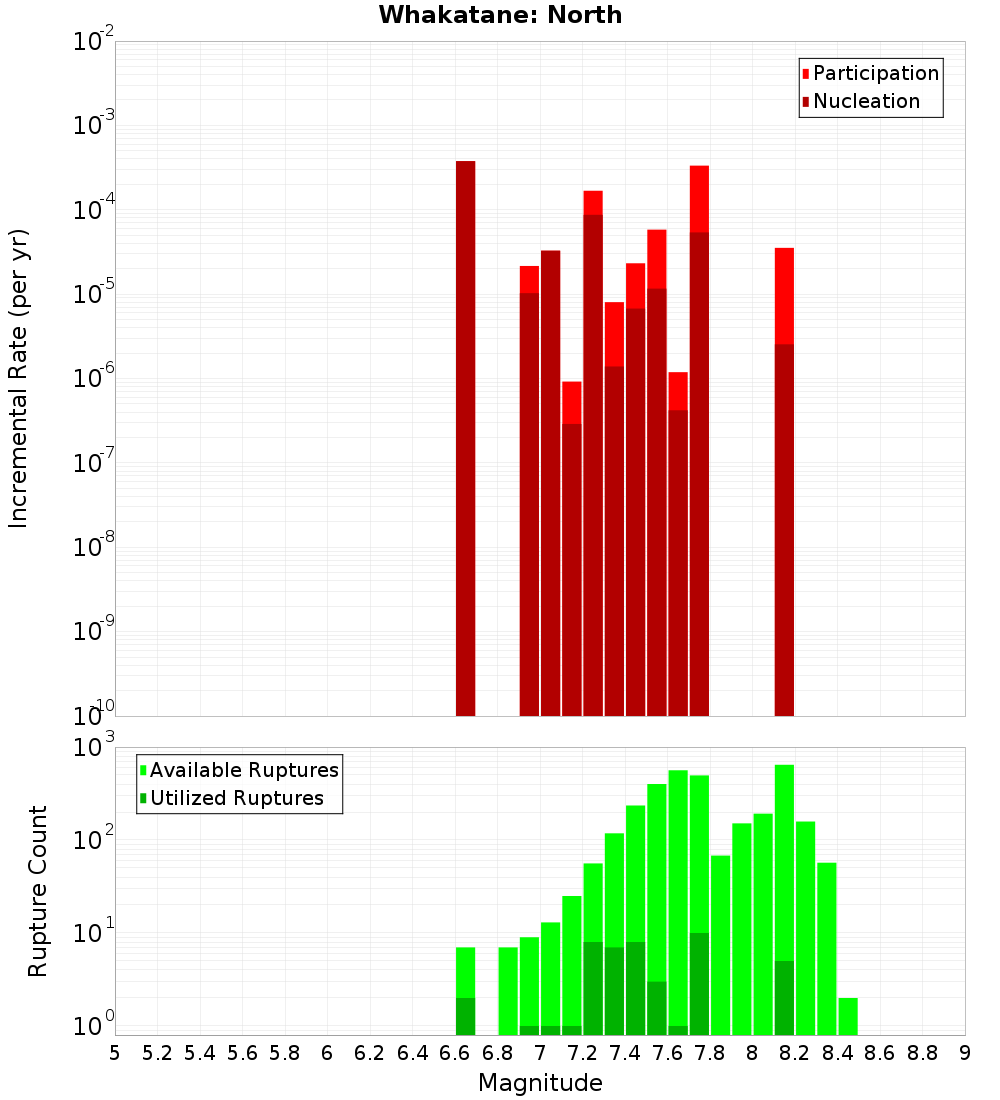

Incremental PlotCumulative Plot

Along-Strike Values

(top)

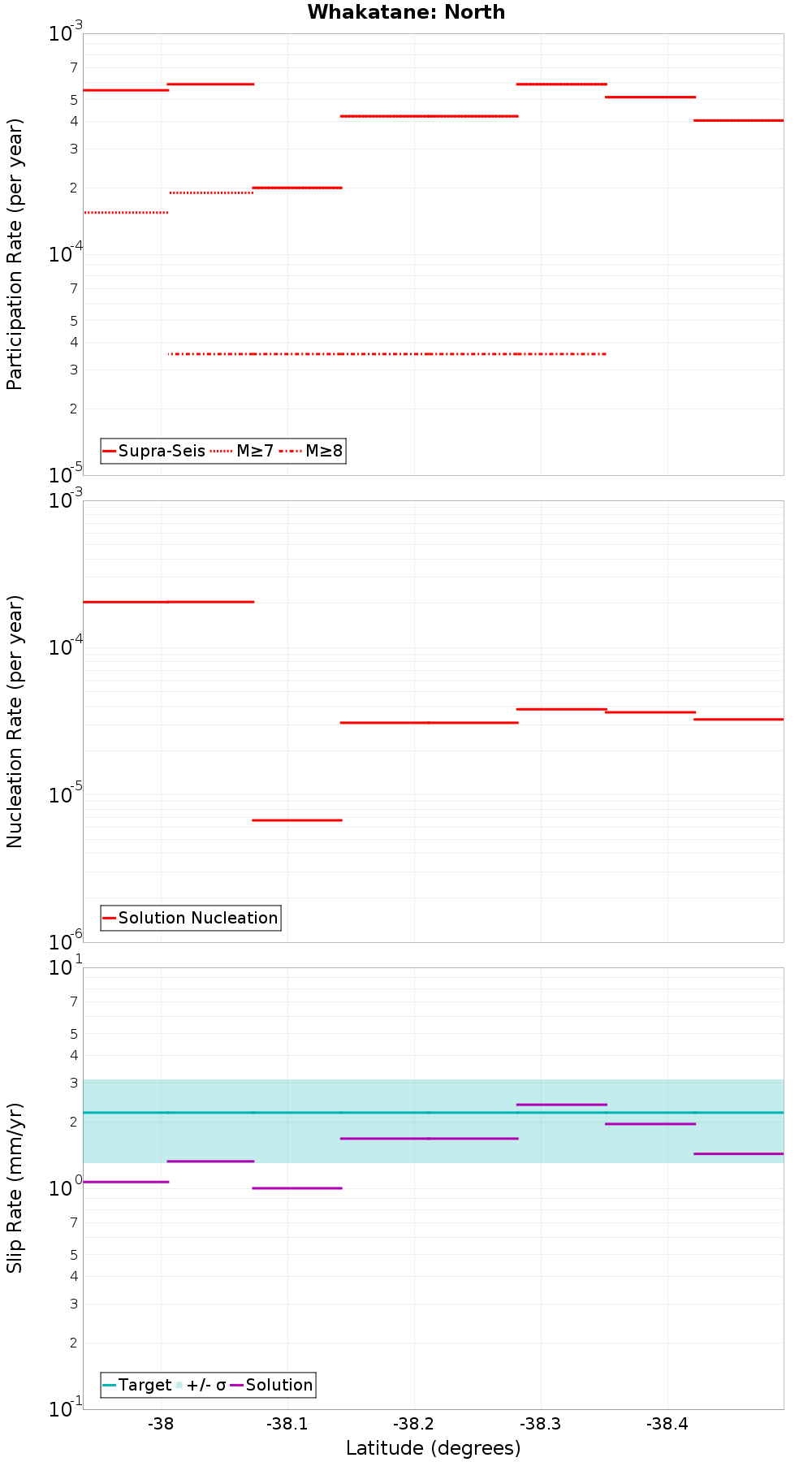

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakatane: South, 0 km awayWaiotahi: North, 10.4 km away
Otakiri, 0.17 km awayWaiohau: South, 10.71 km away
Matata, 1.44 km awayWaiotahi: South, 10.84 km away
White Island 1, 3.09 km awayRangitaiki 1, 11.12 km away
Edgecumbe Coastal, 3.09 km awayWaiohau: North, 12.32 km away
Braemar, 4.83 km awayTe Whaiti North, 13.65 km away
Edgecumbe 1987, 7.15 km awayTe Whaiti South, 14.65 km away
Waimana: North, 7.34 km awayRangitaiki 2, 16.94 km away
Awakeri, 7.56 km awayWheao: North, 17.55 km away
Waimana: South, 8.55 km awayWaimanawa - Waikaremoana, 18.17 km away

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?true
Co-rupture Count940
Co-rupture Rate2.4062888E-4

Otakiri, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?true
Co-rupture Count60
Co-rupture Rate1.20632125E-4

Matata, 1.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate3.2671778E-6

White Island 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?true
Co-rupture Count1,466
Co-rupture Rate1.2635128E-5

Edgecumbe Coastal, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?true
Co-rupture Count202
Co-rupture Rate1.2660323E-4

Braemar, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate3.16243E-5

Edgecumbe 1987, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate3.4845074E-5

Waimana: North, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?true
Co-rupture Count119
Co-rupture Rate1.1112274E-4

Awakeri, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 8.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?true
Co-rupture Count639
Co-rupture Rate1.8174866E-4

Waiotahi: North, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate0.0

Waiotahi: South, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count145
Co-rupture Rate9.1758164E-5

Waiohau: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?true
Co-rupture Count194
Co-rupture Rate6.487955E-6

Te Whaiti North, 13.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate3.3323176E-6

Te Whaiti South, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate3.3323176E-6

Rangitaiki 2, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count679
Co-rupture Rate4.501291E-5

Wheao: North, 17.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count59
Co-rupture Rate0.0

Waimanawa - Waikaremoana, 18.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMHlQZHFl
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate1.1112274E-4
