Whakatane: North Details

PropertyValue
Rupture Count3,802
Ruptures Above Sect Min Mag3,795
Ruptures w/ Nonzero Rates106
Magnitude Range[6.63, 8.40]
Length Range[16, 687] km
Total Rate6.663247E-4 /yr
Multi-Fault Rate6.362704E-4 /yr (95.49%)
Directly-Connected Faults8
All Co-Rupturing Faults90

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

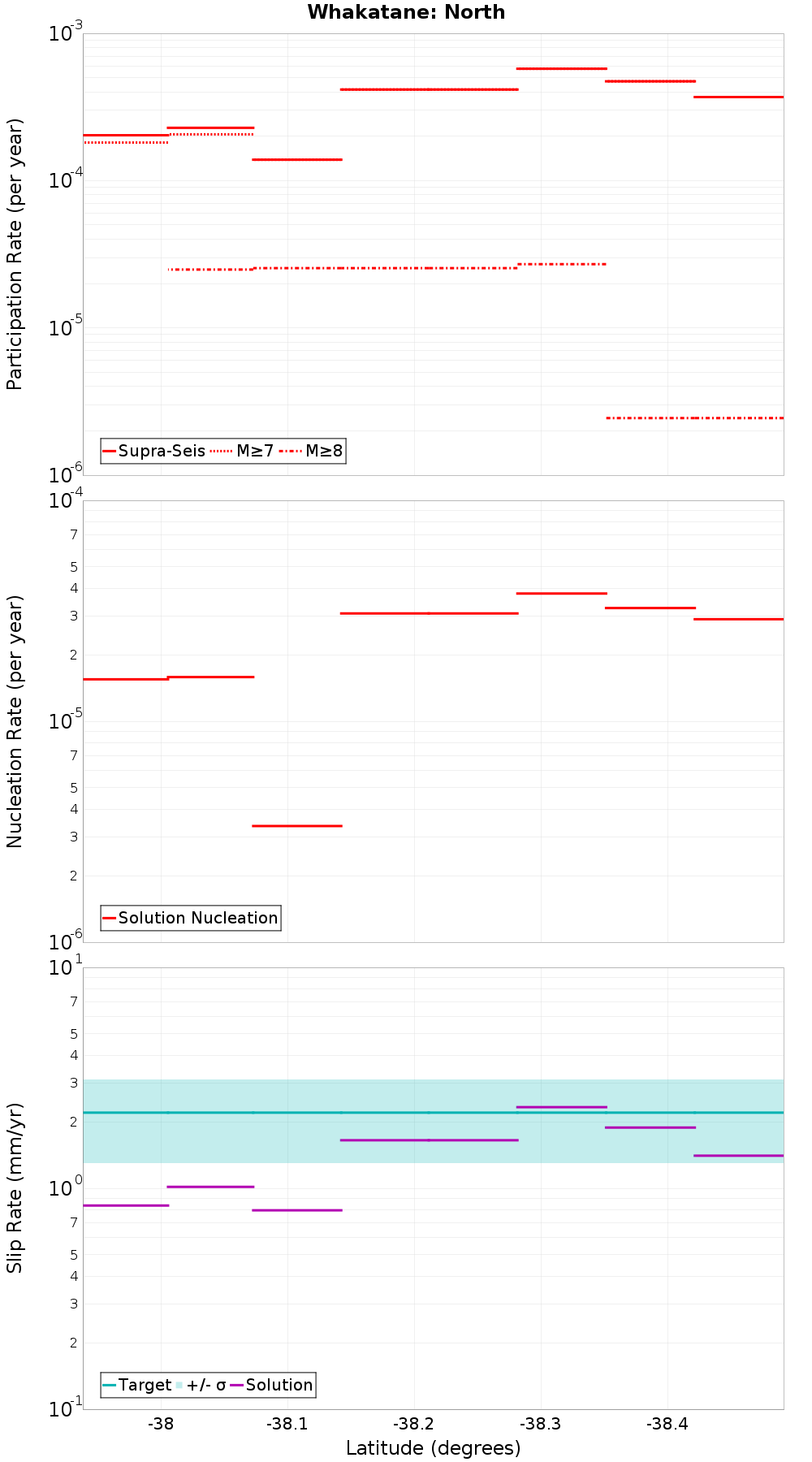

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakatane: South, 0 km awayWaiotahi: North, 10.4 km away
Otakiri, 0.17 km awayWaiohau: South, 10.71 km away
Matata, 1.44 km awayWaiotahi: South, 10.84 km away
White Island 1, 3.09 km awayRangitaiki 1, 11.12 km away
Edgecumbe Coastal, 3.09 km awayWaiohau: North, 12.32 km away
Braemar, 4.83 km awayTe Whaiti North, 13.65 km away
Edgecumbe 1987, 7.15 km awayTe Whaiti South, 14.65 km away
Waimana: North, 7.34 km awayRangitaiki 2, 16.94 km away
Awakeri, 7.56 km awayWheao: North, 17.55 km away
Waimana: South, 8.55 km awayWaimanawa - Waikaremoana, 18.17 km away

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?true
Co-rupture Count1,039
Co-rupture Rate2.626401E-4

Otakiri, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?true
Co-rupture Count61
Co-rupture Rate1.1412569E-4

Matata, 1.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count80
Co-rupture Rate2.6310786E-6

White Island 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?true
Co-rupture Count1,970
Co-rupture Rate7.529E-5

Edgecumbe Coastal, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?true
Co-rupture Count227
Co-rupture Rate1.2882167E-4

Braemar, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate2.7952909E-5

Edgecumbe 1987, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate2.892315E-5

Waimana: North, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate1.02726226E-4

Awakeri, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 8.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?true
Co-rupture Count1,082
Co-rupture Rate1.6280821E-4

Waiotahi: North, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count73
Co-rupture Rate0.0

Waiotahi: South, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count153
Co-rupture Rate9.711846E-5

Waiohau: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?true
Co-rupture Count230
Co-rupture Rate3.6013207E-6

Te Whaiti North, 13.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate2.6548676E-6

Te Whaiti South, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate2.6548676E-6

Rangitaiki 2, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count778
Co-rupture Rate5.5323166E-5

Wheao: North, 17.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate0.0

Waimanawa - Waikaremoana, 18.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyOTIuMGRHRWhp
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate1.02726226E-4
