Ihaia Details

PropertyValue
Rupture Count284
Ruptures Above Sect Min Mag283
Ruptures w/ Nonzero Rates4
Magnitude Range[6.74, 7.93]
Length Range[14, 208] km
Total Rate1.0425608E-4 /yr
Multi-Fault Rate1.0425608E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults14

Table Of Contents

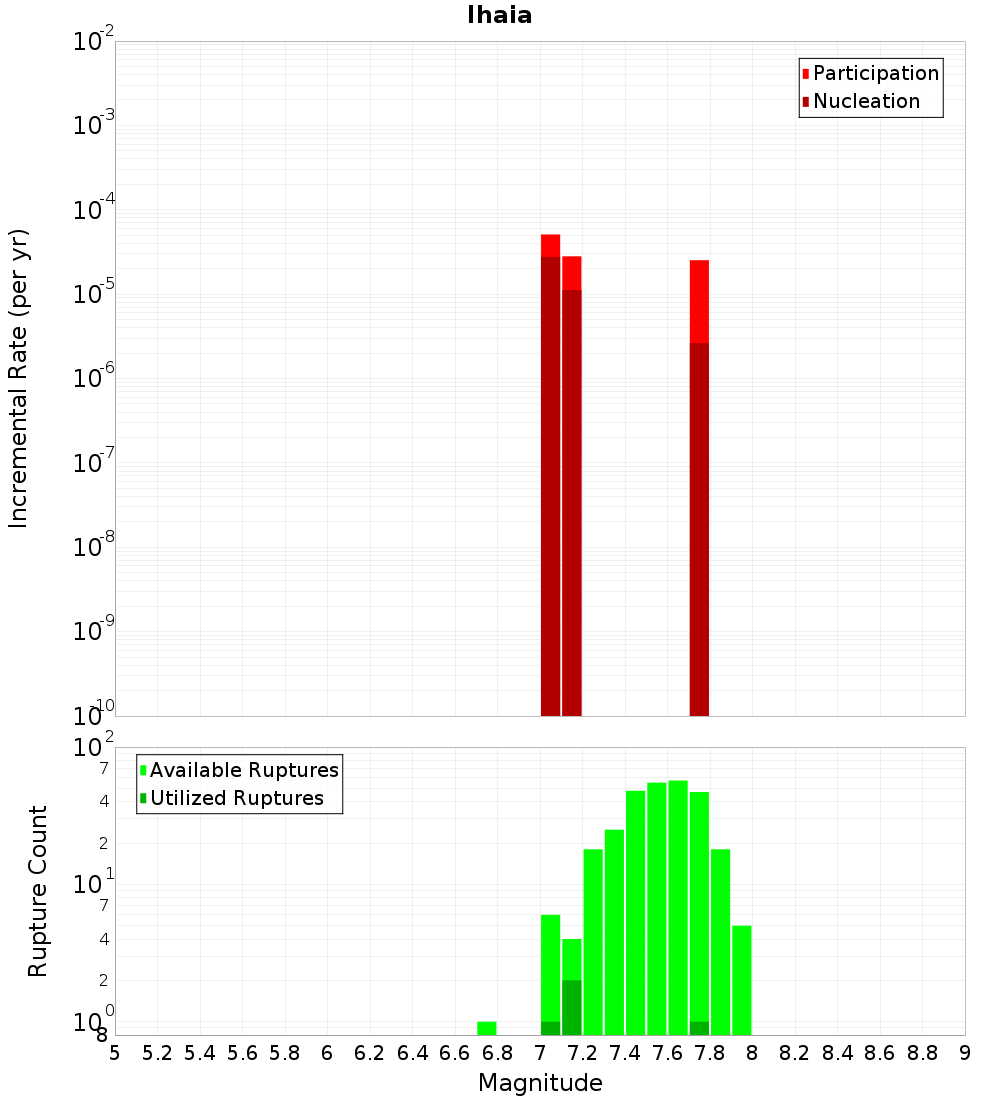

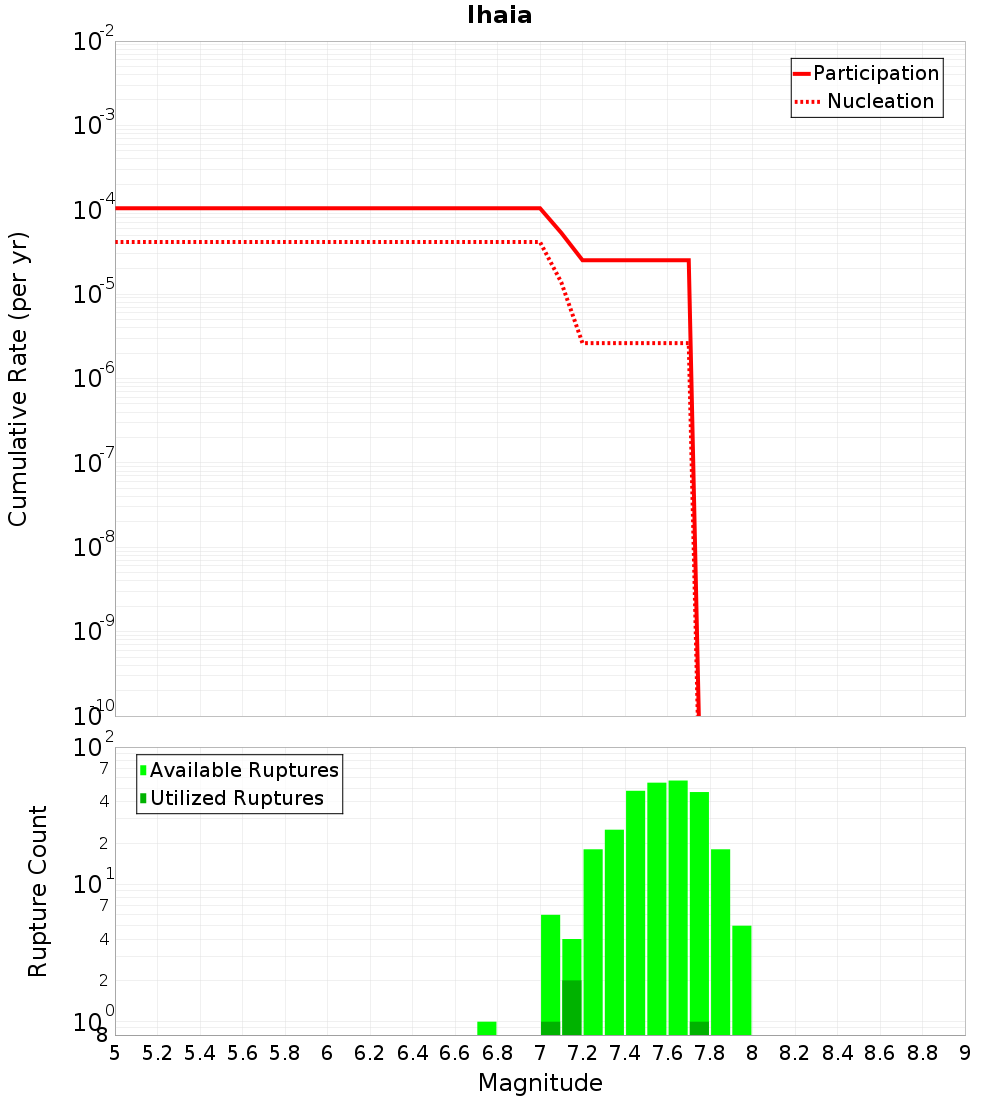

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

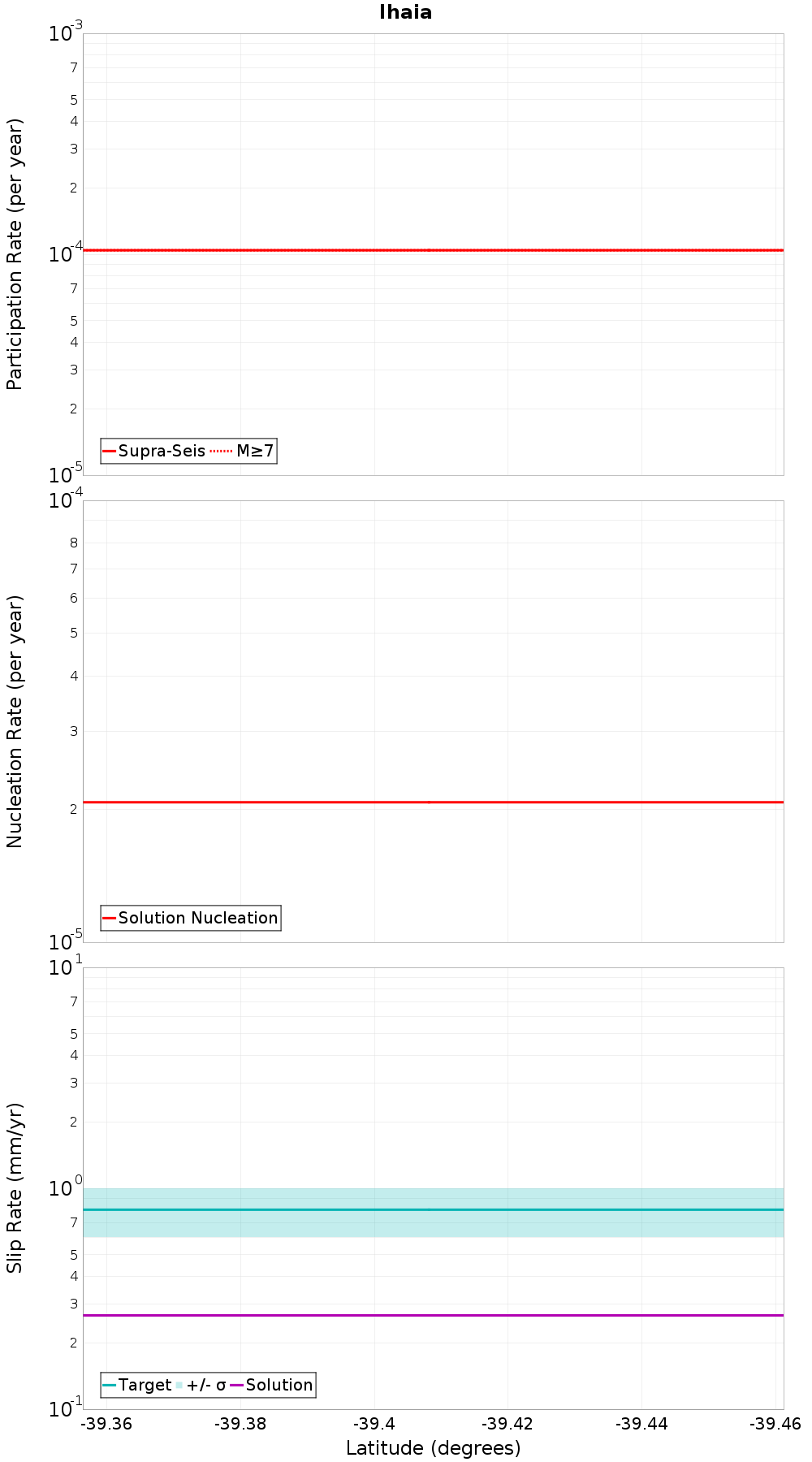

Along-Strike Values

(top)

Along-strike plot

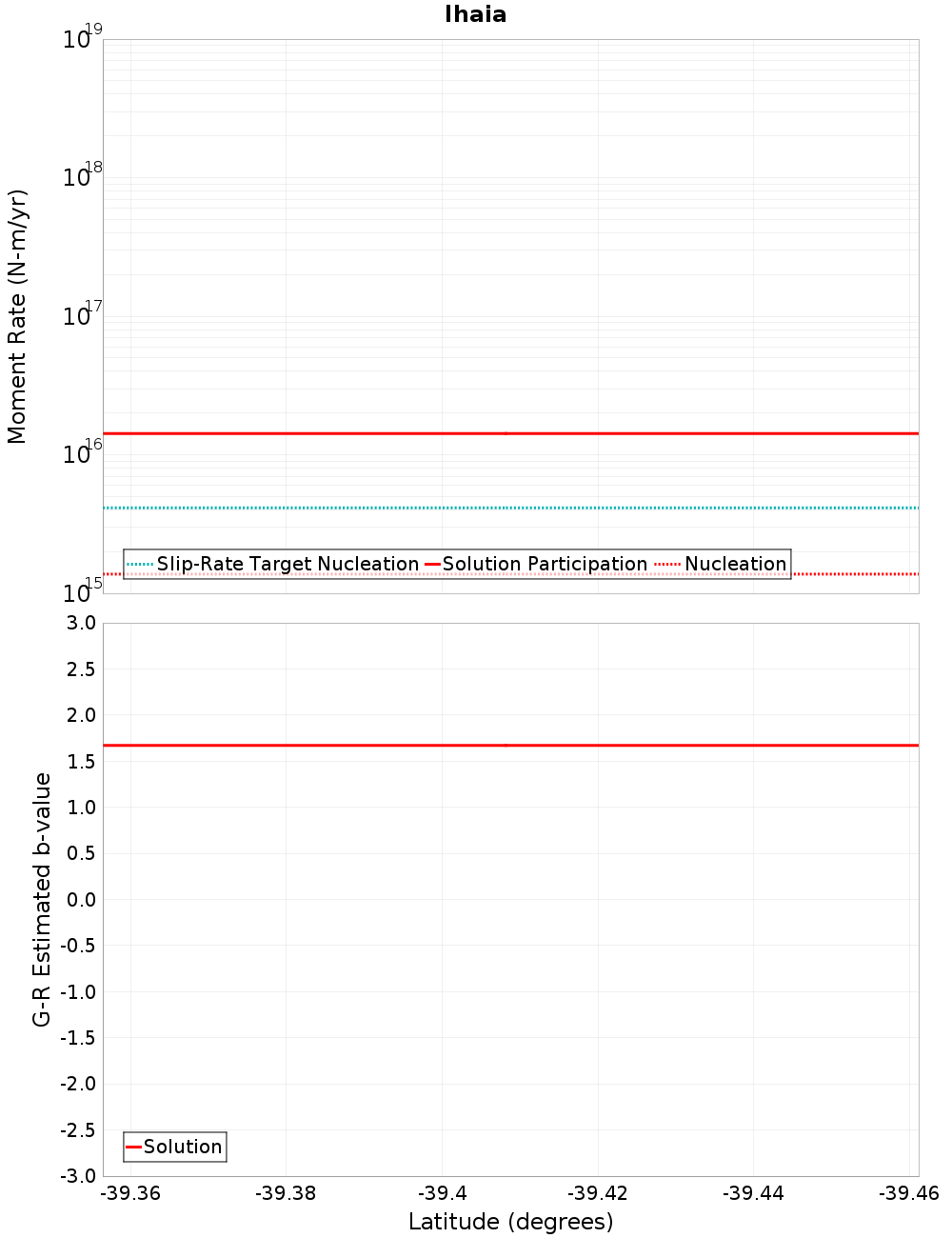

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Warea, 0.33 km away
Manahi 2, 0.43 km away
Rahotu, 0.43 km away
Cape Egmont: North, 0.48 km away
Manahi 1, 0.72 km away
Kiri, 4.13 km away
Oaonui, 5.28 km away
Pihama, 6.14 km away
Cape Egmont: Central, 10.6 km away
Cape Egmont: South, 18.91 km away

Warea, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count234
Co-rupture Rate2.5234674E-5

Manahi 2, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate5.0958166E-5

Rahotu, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Cape Egmont: North, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count133
Co-rupture Rate2.583132E-5

Manahi 1, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count107
Co-rupture Rate2.2319225E-6

Kiri, 4.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate2.8063243E-5

Oaonui, 5.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Pihama, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate0.0

Cape Egmont: Central, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count142
Co-rupture Rate0.0

Cape Egmont: South, 18.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count144
Co-rupture Rate0.0
