Puketerata North Details

Property	Value
Rupture Count	1,666
Ruptures Above Sect Min Mag	1,663
Ruptures w/ Nonzero Rates	163
Magnitude Range	[6.22, 7.80]
Length Range	[10, 210] km
Total Rate	6.6541013E-4 /yr
Multi-Fault Rate	6.6541013E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

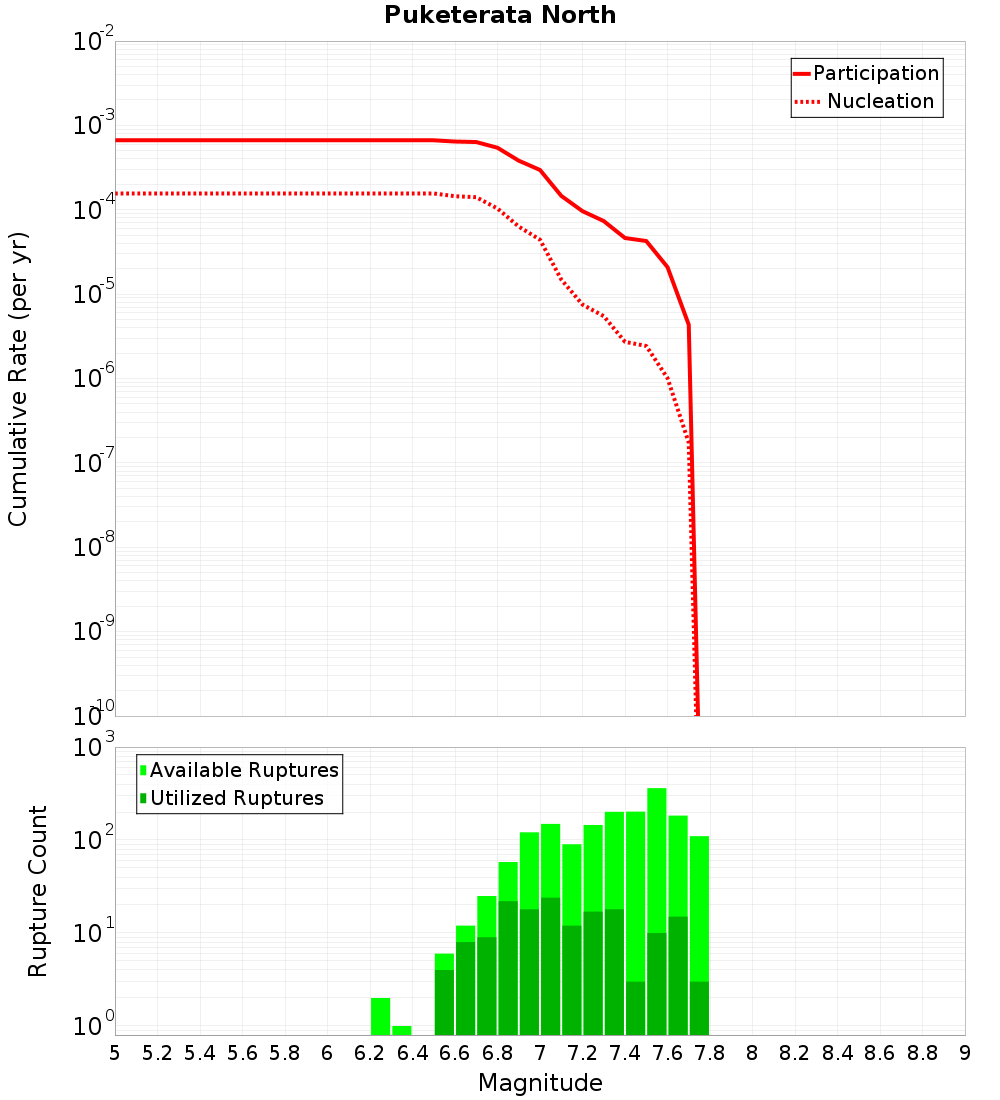

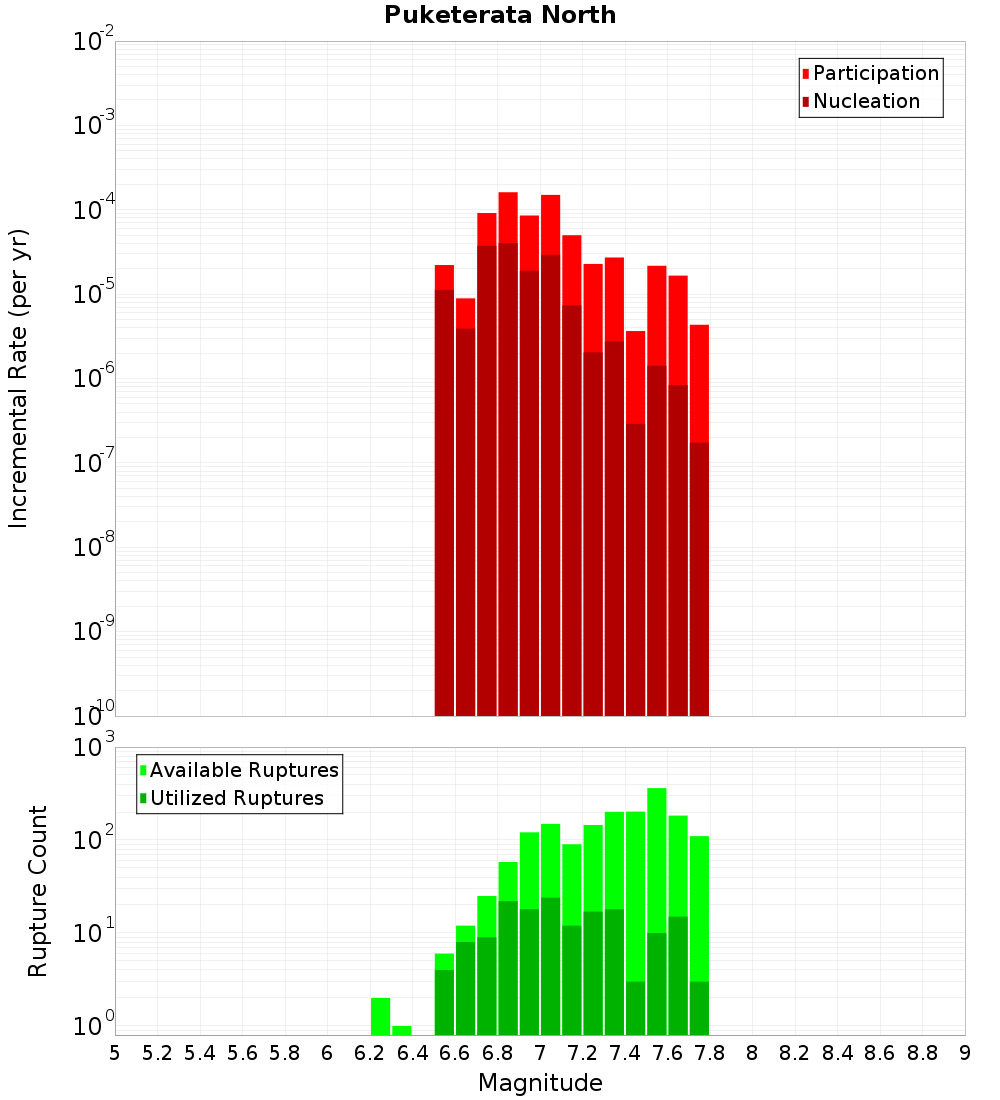

Magnitude-Frequency Distribution

Incremental	Cumulative

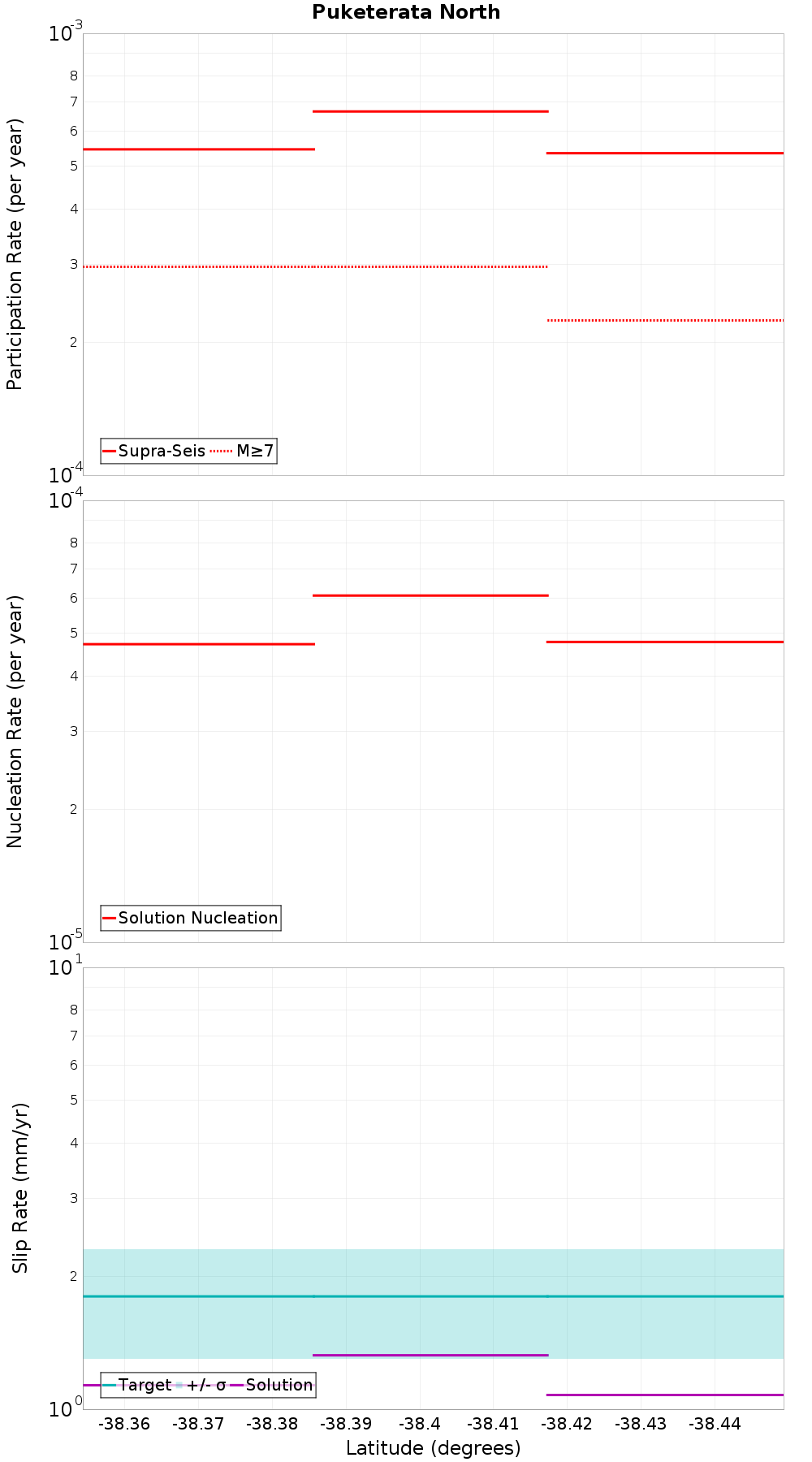

Along-Strike Values

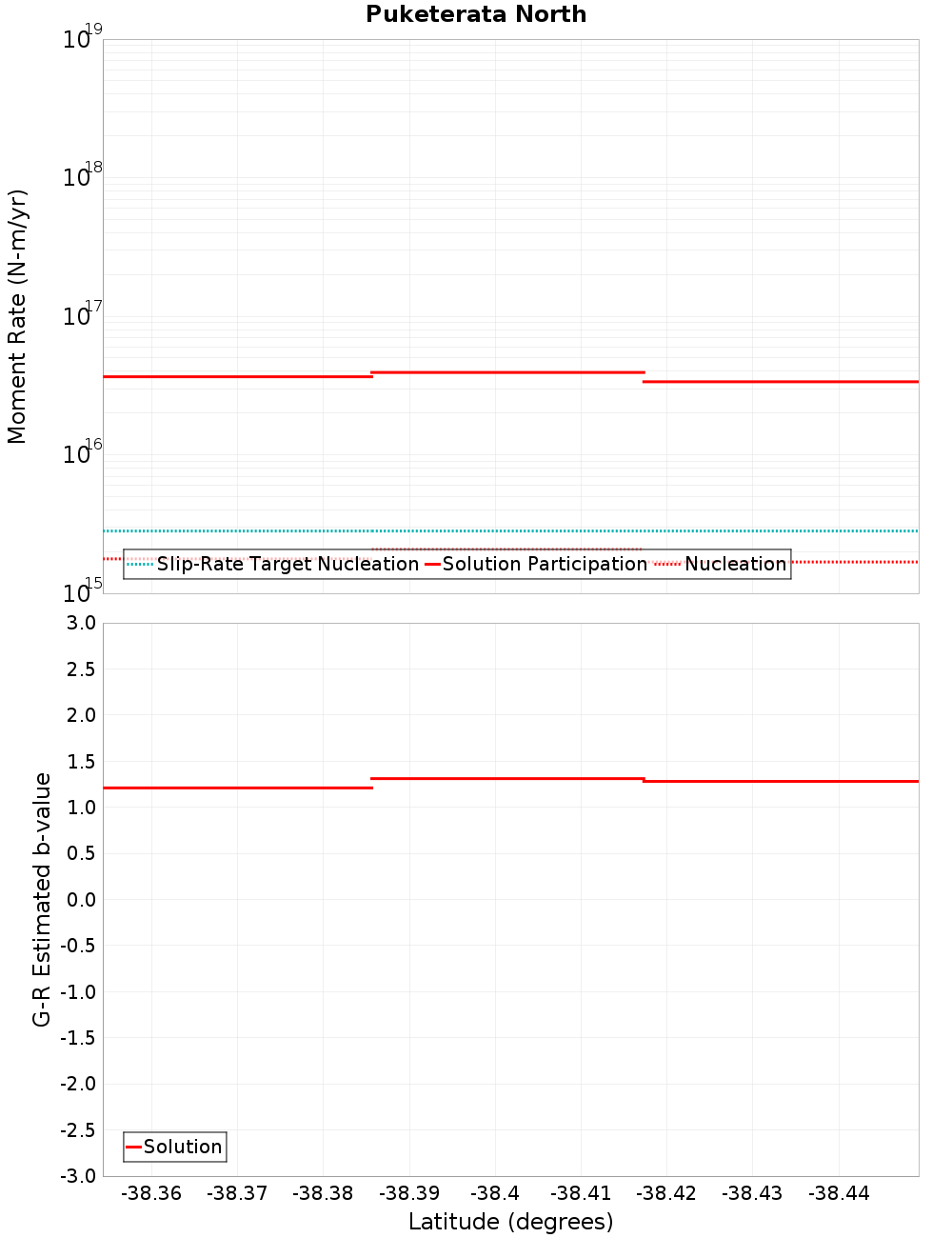

Moment-Rates and b-Values

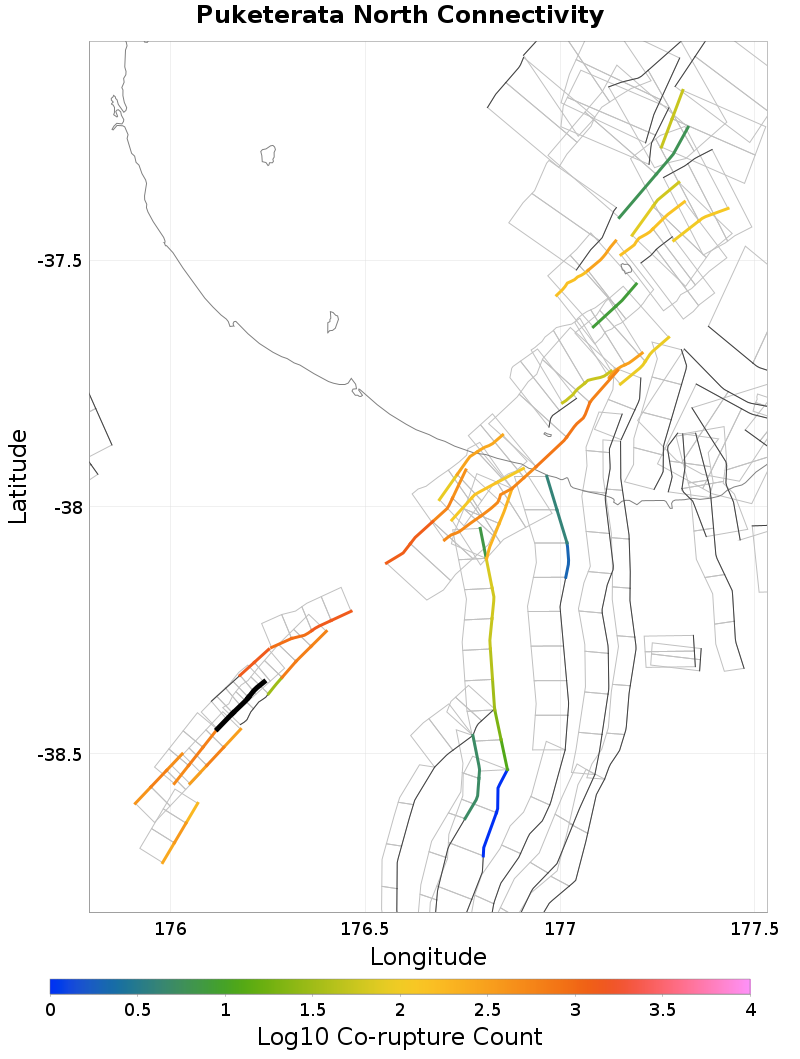

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.1 km away
Maleme, 0.15 km away
Paeroa, 2.13 km away
Orakeikorako, 3.3 km away
EarthquakeFlat - Tumunui, 7.65 km away
Whangamata West, 9.6 km away
Kaiapo, 17.13 km away

Puketerata, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	true
Co-rupture Count	657
Co-rupture Rate	2.9551153E-4

Maleme, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	true
Co-rupture Count	1,356
Co-rupture Rate	2.1626973E-4

Paeroa, 2.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	true
Co-rupture Count	688
Co-rupture Rate	3.4863994E-4

Orakeikorako, 3.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	true
Co-rupture Count	604
Co-rupture Rate	3.0872034E-4

EarthquakeFlat - Tumunui, 7.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	false
Co-rupture Count	1,411
Co-rupture Rate	2.5596793E-4

Whangamata West, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	false
Co-rupture Count	615
Co-rupture Rate	2.979174E-4

Kaiapo, 17.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	false
Co-rupture Count	358
Co-rupture Rate	3.7920199E-4
