Te Whaiti North Details

Property	Value
Rupture Count	582
Ruptures Above Sect Min Mag	580
Ruptures w/ Nonzero Rates	17
Magnitude Range	[6.37, 8.37]
Length Range	[8, 634] km
Total Rate	1.1548871E-4 /yr
Multi-Fault Rate	1.1548871E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	74

Table Of Contents

Magnitude-Frequency Distribution

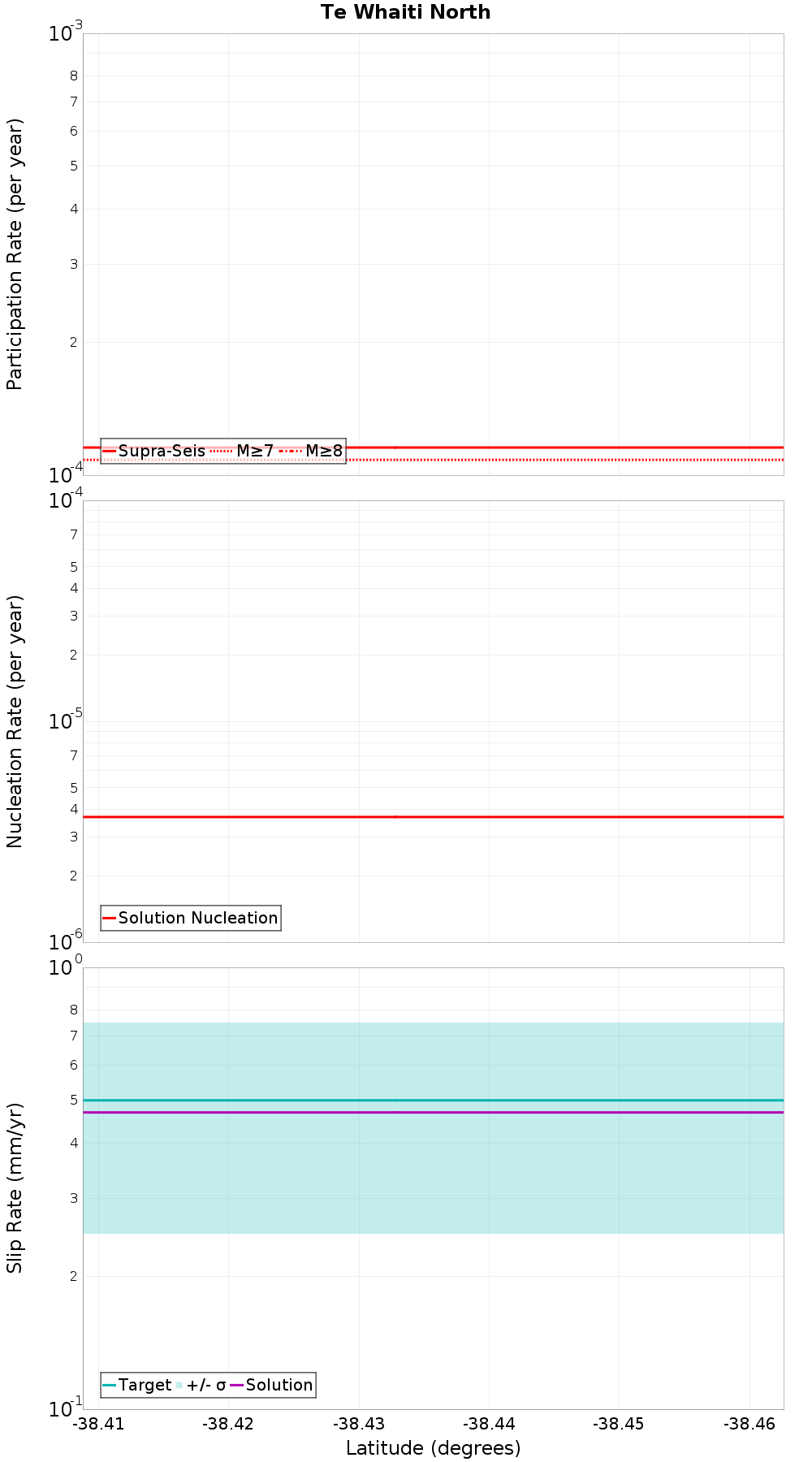

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

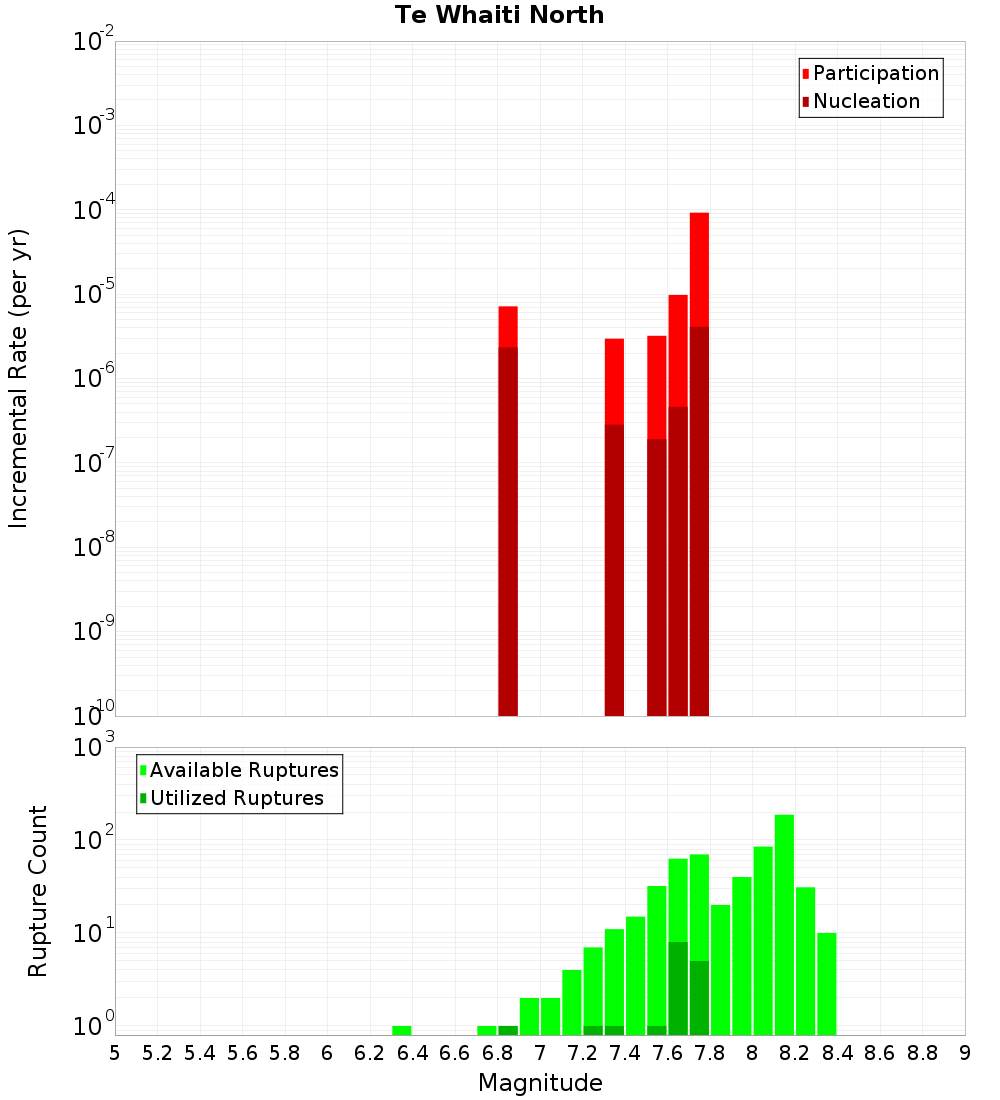

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Te Whaiti South, 0 km away
Wheao: North, 0 km away
Waiohau: North, 0.16 km away
Waiohau: South, 10.36 km away
Wheao: South, 11.11 km away
Whakatane: North, 13.65 km away
Whakatane: South, 18 km away

Te Whaiti South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	true
Co-rupture Count	398
Co-rupture Rate	9.63917E-5

Wheao: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiohau: North, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	true
Co-rupture Count	165
Co-rupture Rate	1.9097015E-5

Waiohau: South, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	false
Co-rupture Count	66
Co-rupture Rate	0.0

Wheao: South, 11.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 13.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	true
Directly Connected?	true
Co-rupture Count	80
Co-rupture Rate	1.4084796E-5

Whakatane: South, 18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
