Whakaari 4 Details

PropertyValue
Rupture Count11,487
Ruptures Above Sect Min Mag11,487
Ruptures w/ Nonzero Rates170
Magnitude Range[6.80, 7.80]
Length Range[18, 210] km
Total Rate1.9190954E-4 /yr
Multi-Fault Rate1.9190954E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults51

Table Of Contents

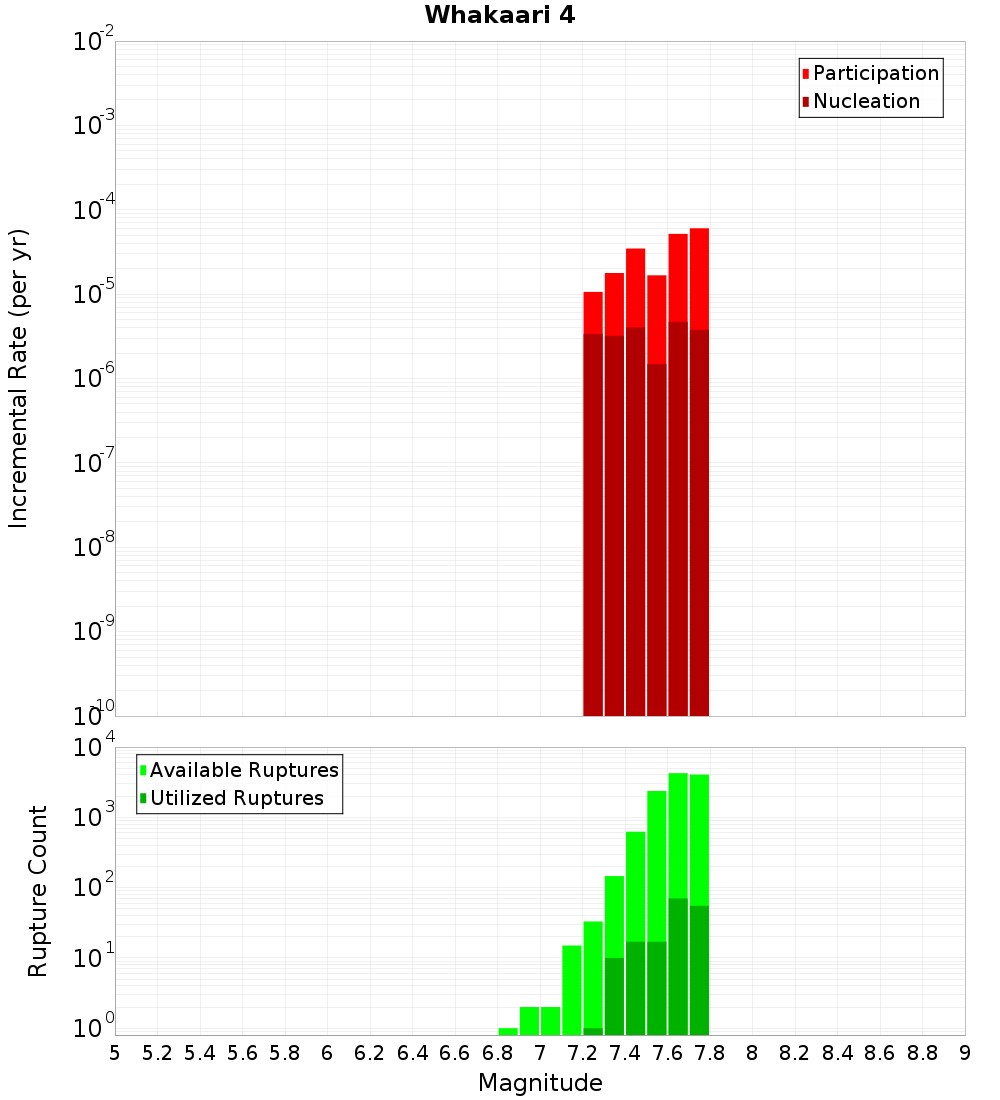

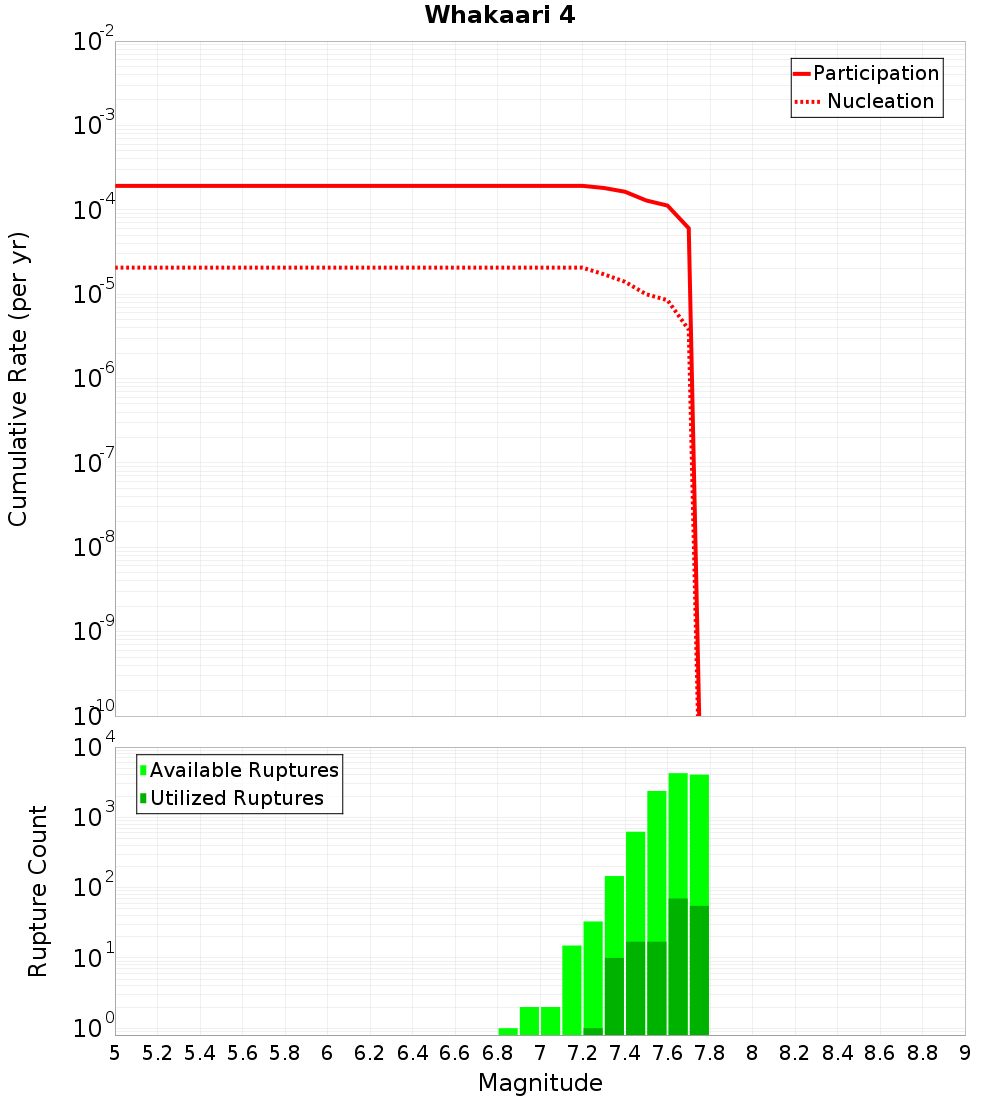

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

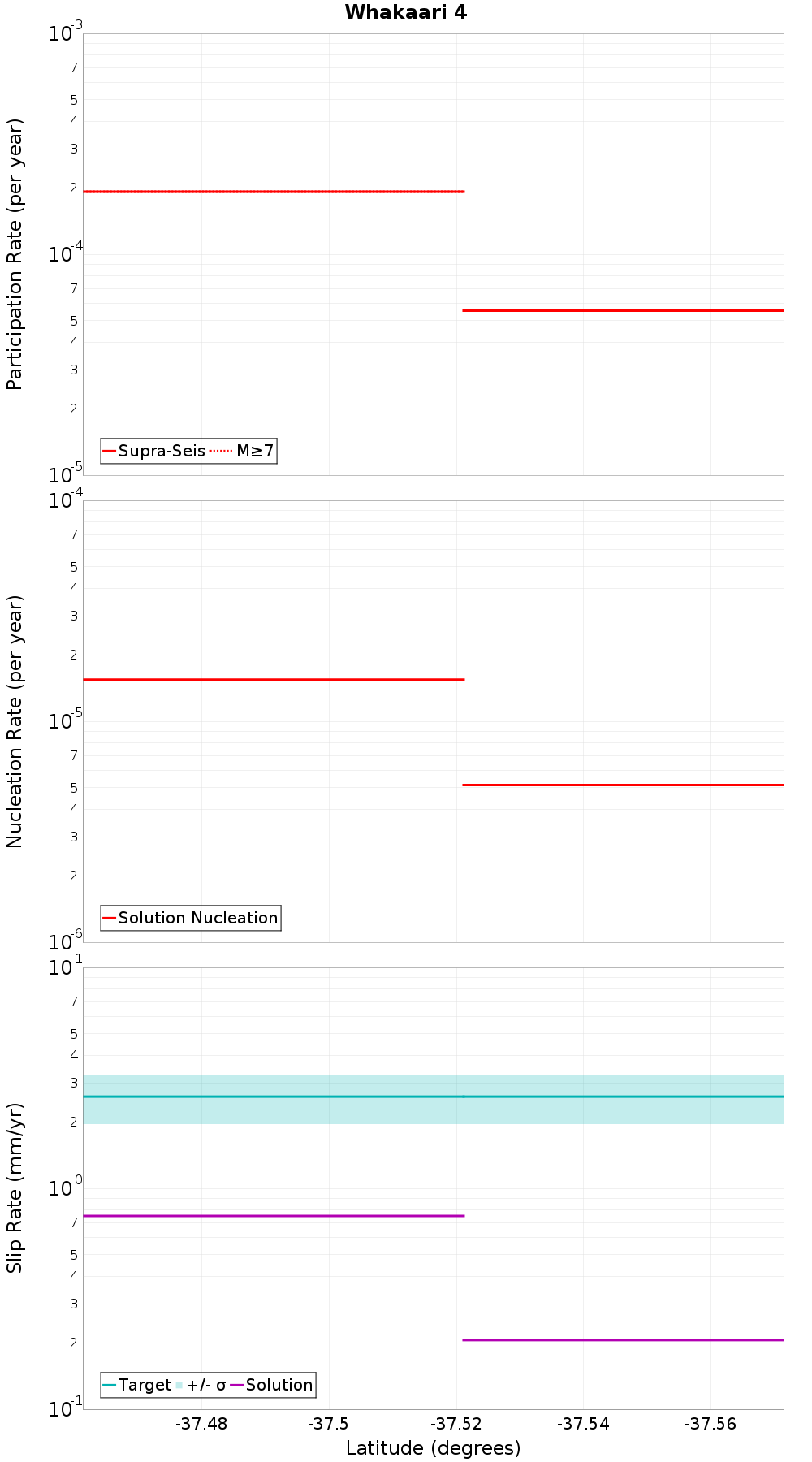

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohiwa 1, 0.14 km awayWaimanawa - Waikaremoana, 7.01 km away
Calypso 2, 0.2 km awayOpotiki 3, 8.08 km away
Rangitaiki 2, 0.45 km awayRangitaiki 1, 10.86 km away
White Island 2, 0.45 km awayTuatoru 2, 11.04 km away
White Island 1, 1.52 km awayTe Arawa 3, 14.7 km away
Volkner 3, 1.58 km awayWaimana: North, 15.48 km away
Te Arawa 1, 2.25 km awayHariki, 17.21 km away
Te Arawa 2, 3.86 km awayOhae 1, 17.38 km away
Volkner 4, 5.31 km awayOtara West 1, 18.82 km away
Tuatoru 1, 5.84 km away

Ohiwa 1, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count5,143
Co-rupture Rate1.5464351E-4

Calypso 2, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count406
Co-rupture Rate8.9745945E-6

Rangitaiki 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count4,502
Co-rupture Rate1.2142084E-4

White Island 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count560
Co-rupture Rate5.448469E-6

White Island 1, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count9,981
Co-rupture Rate7.834576E-5

Volkner 3, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count646
Co-rupture Rate0.0

Te Arawa 1, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count4,141
Co-rupture Rate6.37729E-5

Te Arawa 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count2,927
Co-rupture Rate3.8353217E-5

Volkner 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count1,987
Co-rupture Rate0.0

Tuatoru 1, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?true
Co-rupture Count1,322
Co-rupture Rate6.0911916E-5

Waimanawa - Waikaremoana, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 8.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count216
Co-rupture Rate2.2324448E-10

Rangitaiki 1, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count1,302
Co-rupture Rate1.08098684E-4

Tuatoru 2, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count4,259
Co-rupture Rate3.4506007E-5

Te Arawa 3, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count1,056
Co-rupture Rate4.0035568E-5

Waimana: North, 15.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 17.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?true
Directly Connected?false
Co-rupture Count165
Co-rupture Rate4.8968736E-9

Ohae 1, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 18.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMDUuMHczZXVT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
