Braemar Details

Property	Value
Rupture Count	2,998
Ruptures Above Sect Min Mag	2,996
Ruptures w/ Nonzero Rates	122
Magnitude Range	[6.59, 7.50]
Length Range	[14, 143] km
Total Rate	5.0188275E-4 /yr
Multi-Fault Rate	4.6374908E-4 /yr (92.40%)
Directly-Connected Faults	7
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

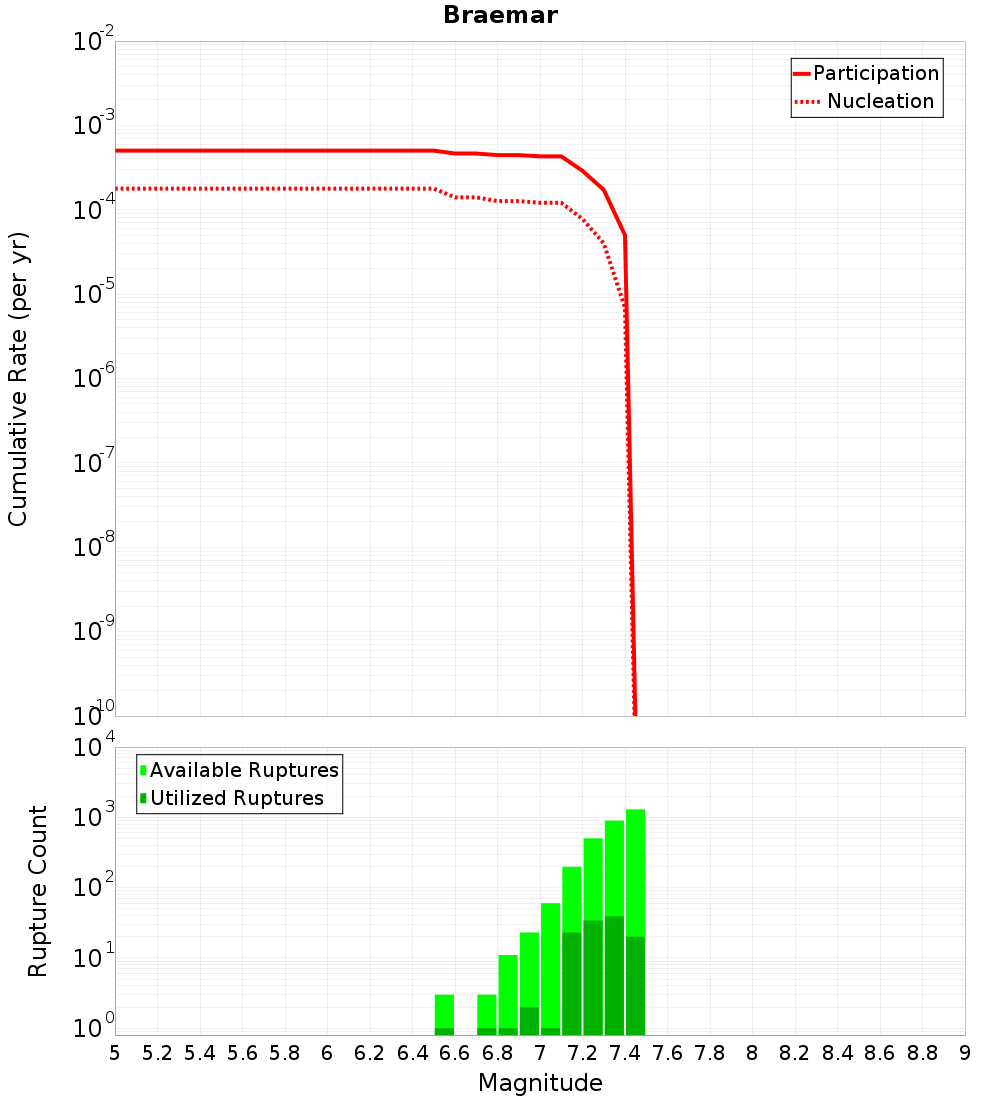

Magnitude-Frequency Distribution

Incremental	Cumulative

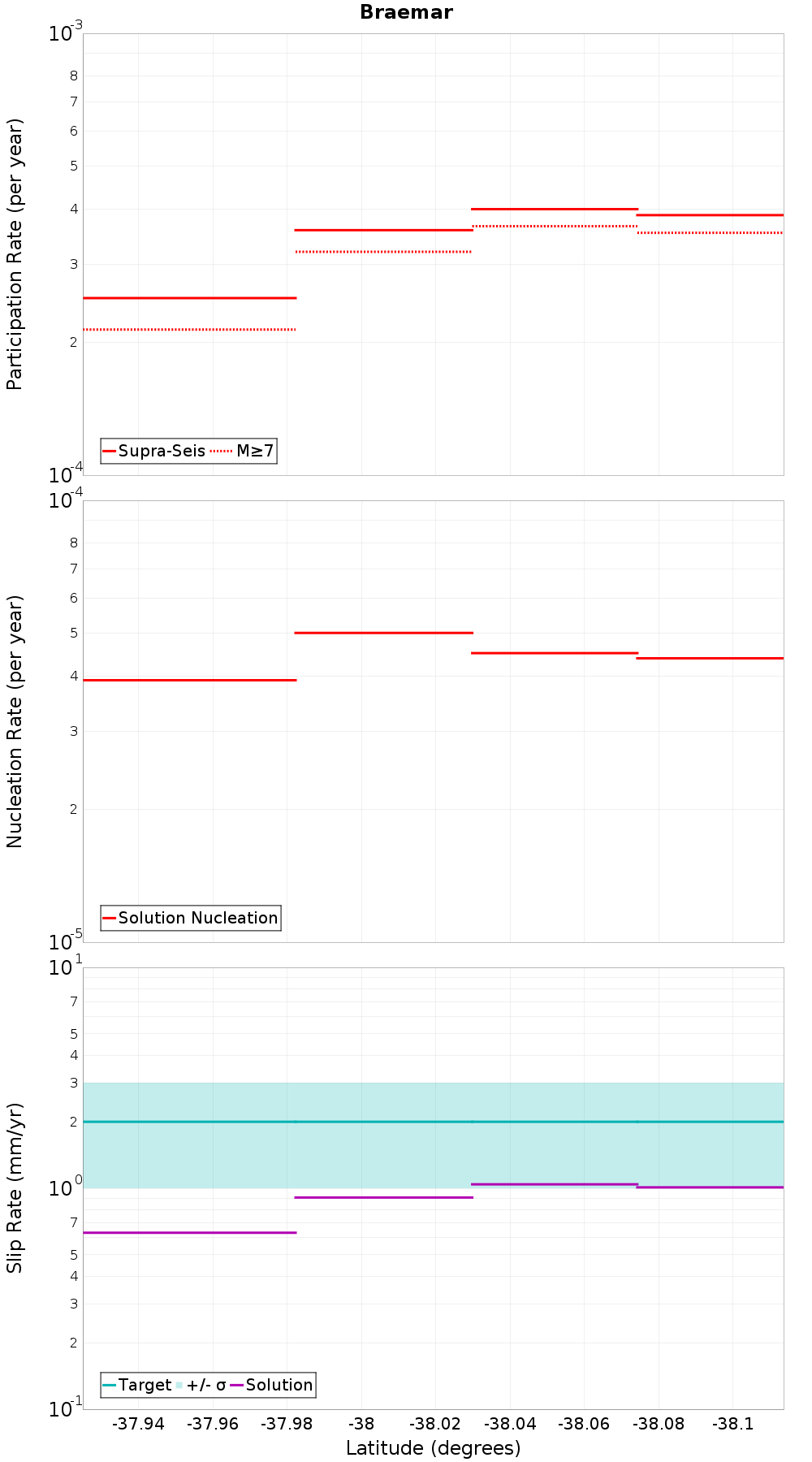

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awakeri, 0.1 km away
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 18.49 km away

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	true
Co-rupture Count	627
Co-rupture Rate	9.332981E-6

Waiohau: North, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	true
Co-rupture Count	501
Co-rupture Rate	3.6284157E-5

Otakiri, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	true
Co-rupture Count	433
Co-rupture Rate	6.6271416E-5

Edgecumbe 1987, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	true
Co-rupture Count	819
Co-rupture Rate	4.7749792E-5

Matata, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	true
Co-rupture Count	827
Co-rupture Rate	1.5392186E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	true
Co-rupture Count	1,079
Co-rupture Rate	7.798165E-5

Whakatane: North, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	false
Co-rupture Count	50
Co-rupture Rate	2.3513074E-5

White Island 1, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	false
Co-rupture Count	1,126
Co-rupture Rate	8.693214E-6

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	true
Co-rupture Count	2,401
Co-rupture Rate	3.8716503E-4

Waimana: North, 18.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTAuMDh2NmdU
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	3.397144E-5
