Hundalee Details

PropertyValue
Rupture Count2,868
Ruptures Above Sect Min Mag2,866
Ruptures w/ Nonzero Rates45
Magnitude Range[6.65, 8.50]
Length Range[16, 877] km
Total Rate3.1912333E-4 /yr
Multi-Fault Rate3.1912333E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults69

Table Of Contents

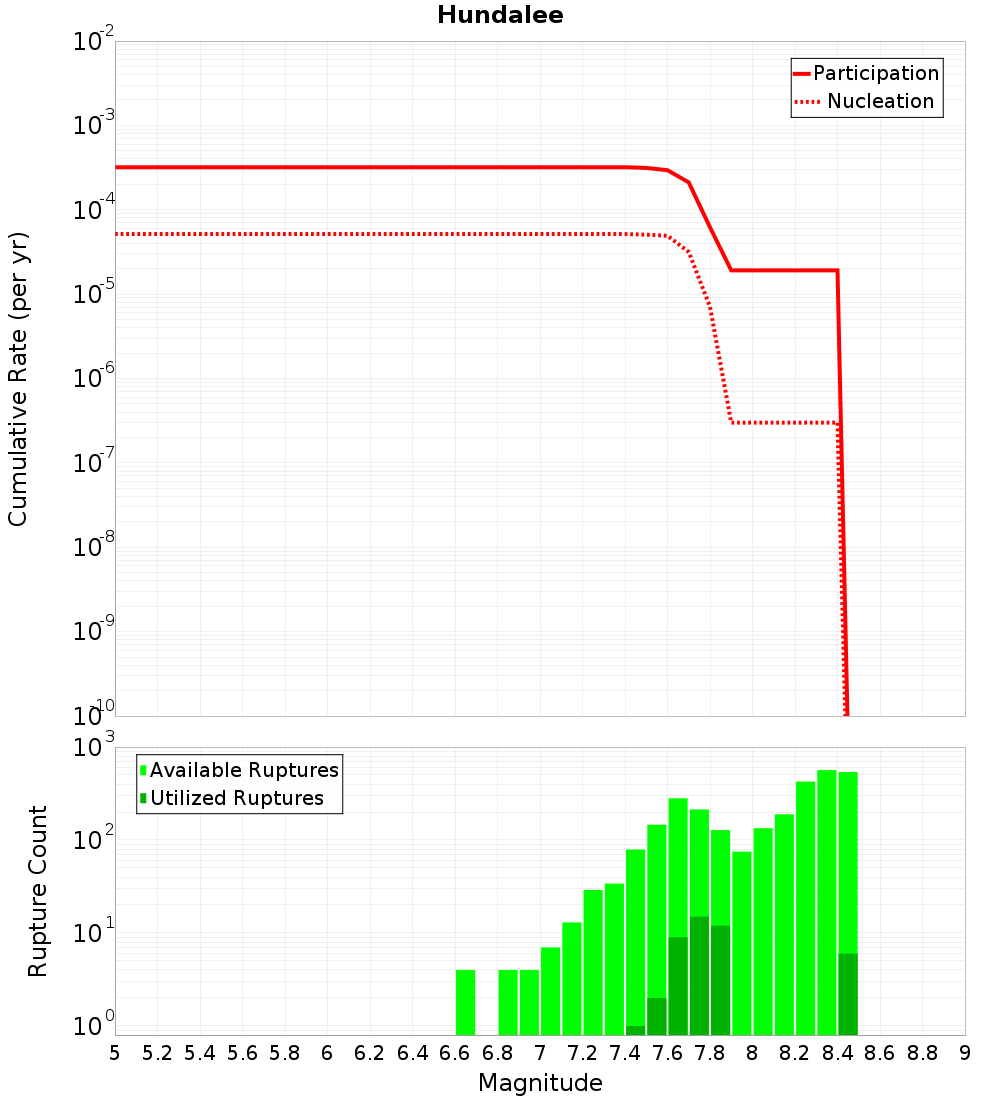

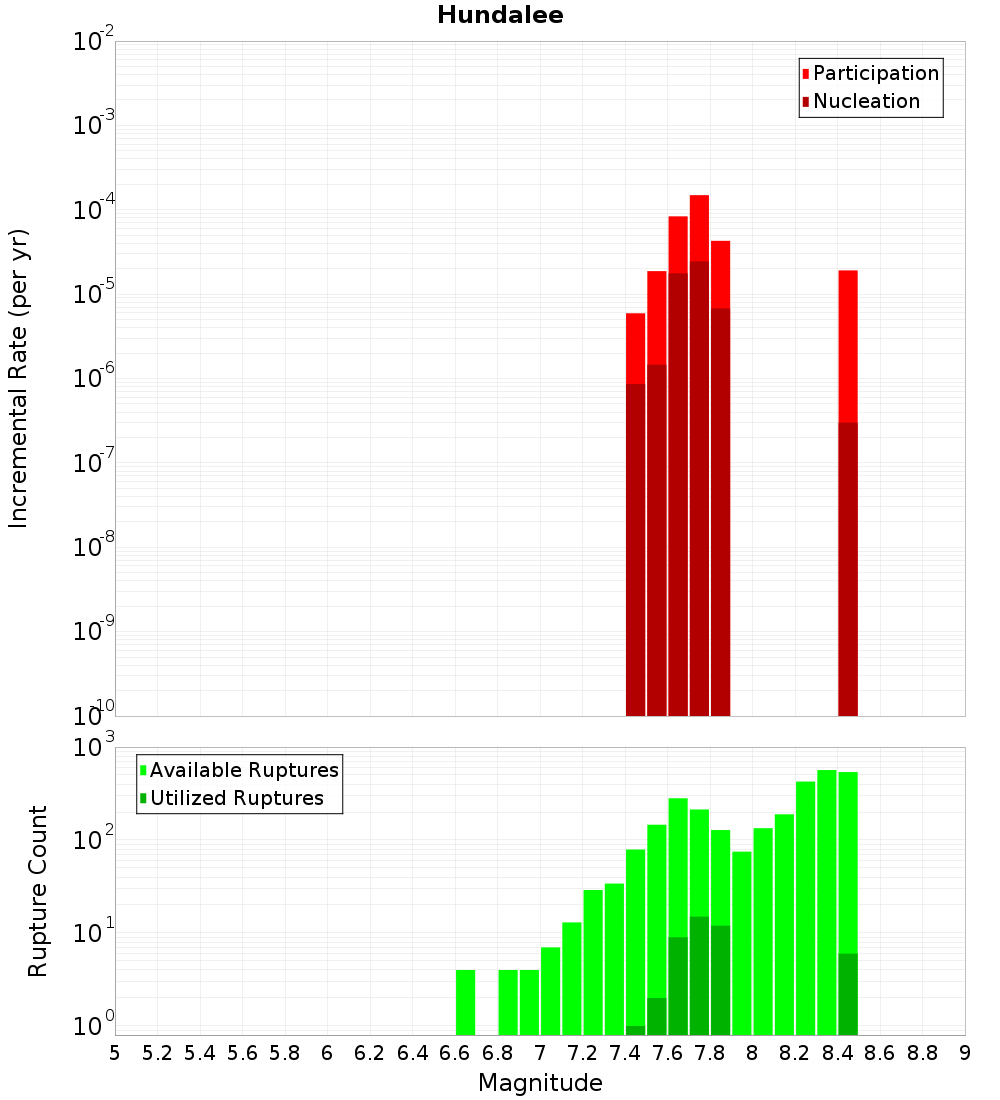

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

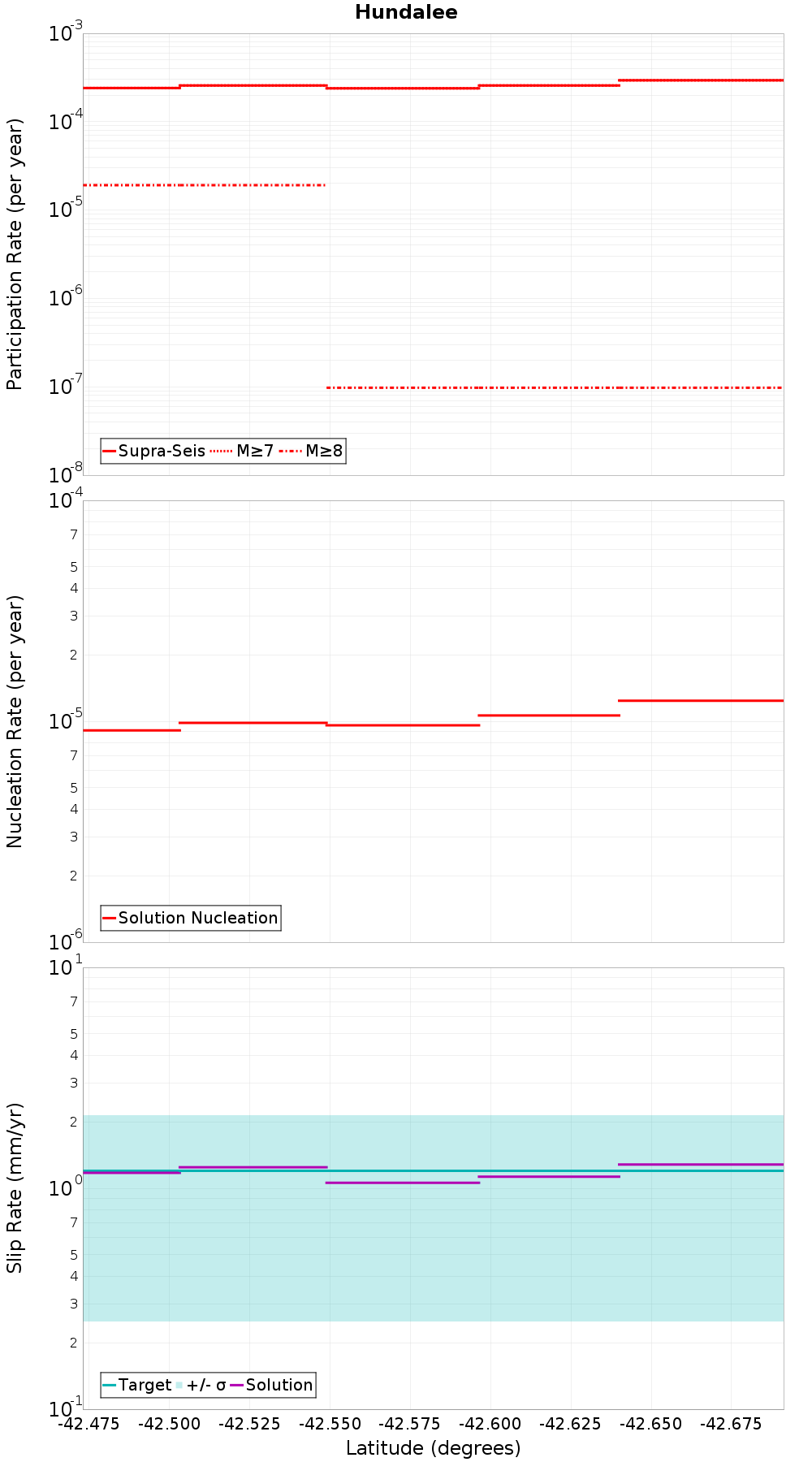

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

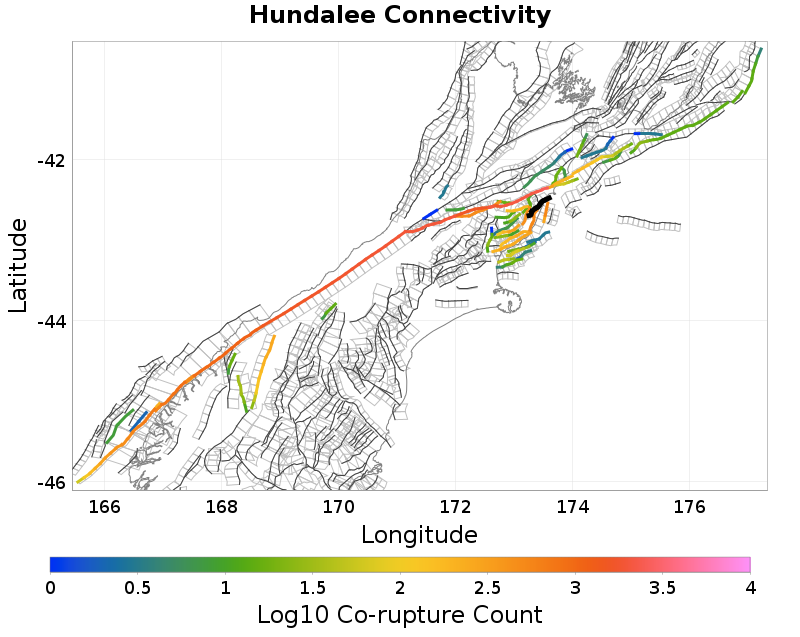

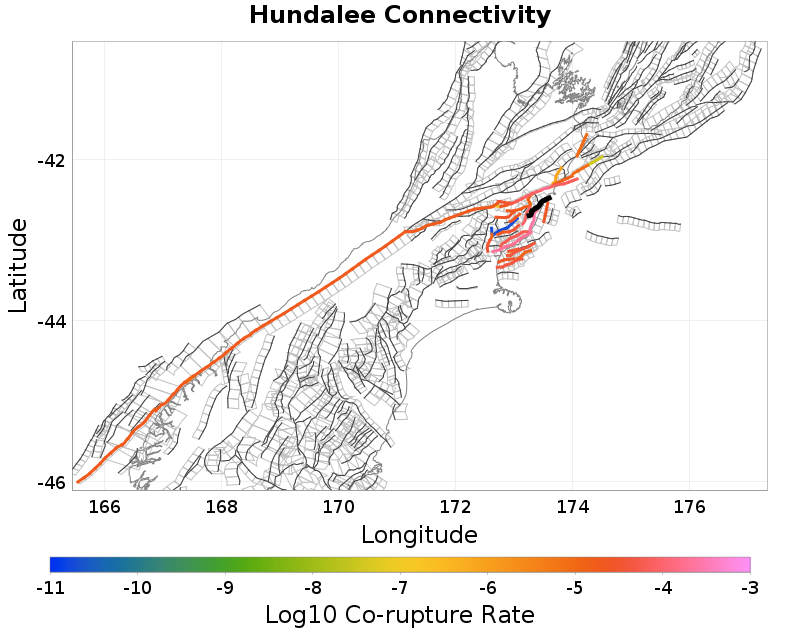

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Leader: Central, 0.1 km awayLeader: North, 12.74 km away
StoneJug, 0.16 km awayJordan, 15.34 km away
The Humps, 0.25 km awayHope: Seaward, 15.41 km away
Hawkswood, 0.87 km awayLowry, 15.48 km away
Kaiwara North, 3.47 km awayConway Trough East, 15.71 km away
Conway Trough West, 5.24 km awayMt Culverden, 16.45 km away
Leader: South, 5.67 km awayKaikoura - Mangamaunu, 17.62 km away
Hope: Conway, 7.09 km awayHanmer, 18.66 km away
Leonard Mound, 9.87 km awayAlexander, 19.86 km away

Leader: Central, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate1.2378595E-5

StoneJug, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate1.8207209E-5

Hawkswood, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?true
Co-rupture Count540
Co-rupture Rate2.3618822E-4

Kaiwara North, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?true
Co-rupture Count453
Co-rupture Rate8.292572E-5

Conway Trough West, 5.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?true
Co-rupture Count533
Co-rupture Rate2.5462296E-5

Leader: South, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate0.0

Hope: Conway, 7.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?true
Co-rupture Count2,551
Co-rupture Rate1.6929164E-4

Leonard Mound, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate2.492653E-5

Leader: North, 12.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate1.2378595E-5

Jordan, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate7.754175E-7

Hope: Seaward, 15.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count206
Co-rupture Rate1.5047209E-5

Lowry, 15.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate1.9487169E-11

Conway Trough East, 15.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 16.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate2.8623741E-5

Kaikoura - Mangamaunu, 17.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate7.101869E-5

Hanmer, 18.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate3.0971918E-5

Alexander, 19.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMTMuMDRWTDZT
Connected?true
Directly Connected?false
Co-rupture Count302
Co-rupture Rate3.5305184E-5
