Glenbrook Details
| Property | Value |
|---|---|
| Rupture Count | 7 |
| Ruptures Above Sect Min Mag | 7 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.57, 7.16] |
| Length Range | [12, 47] km |
| Total Rate | 2.9876954E-5 /yr |
| Multi-Fault Rate | 6.359968E-6 /yr (21.29%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

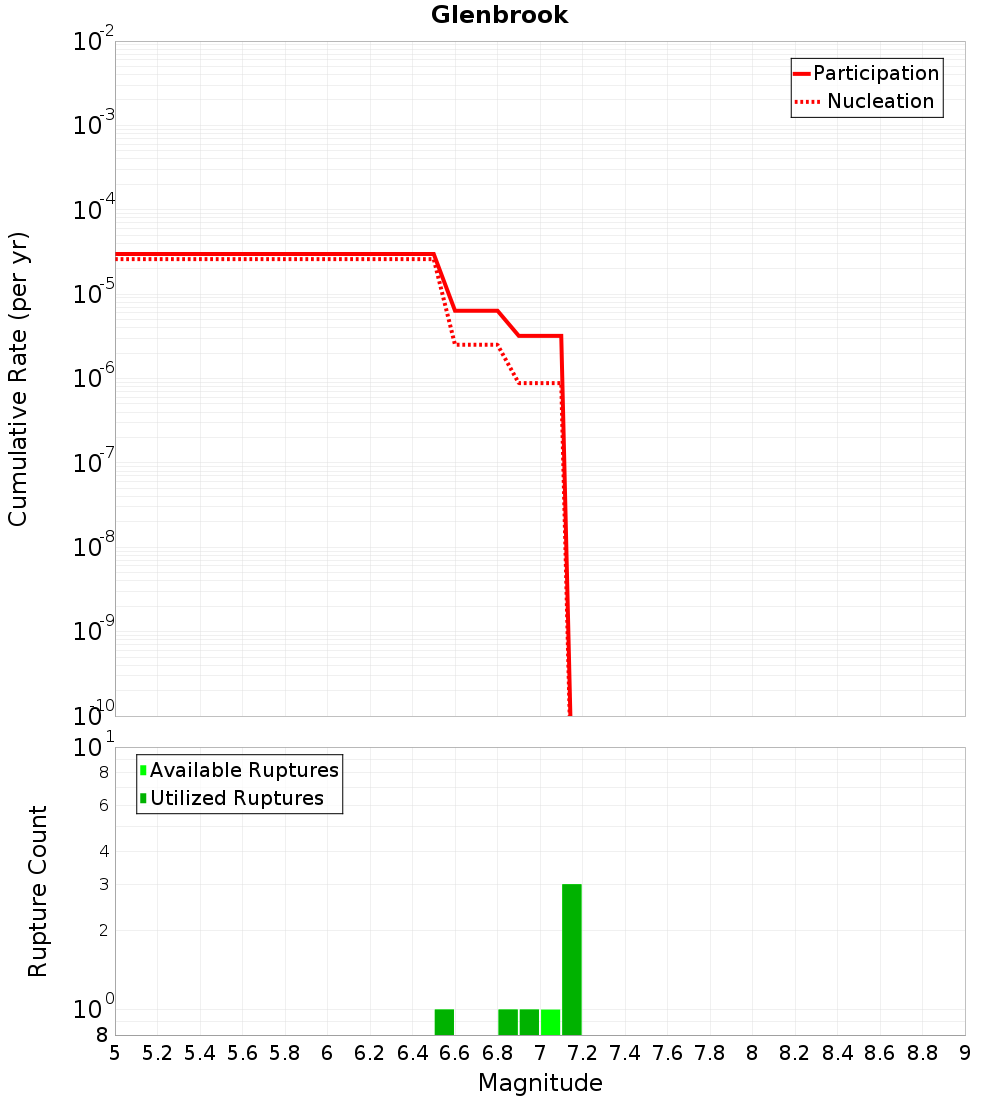

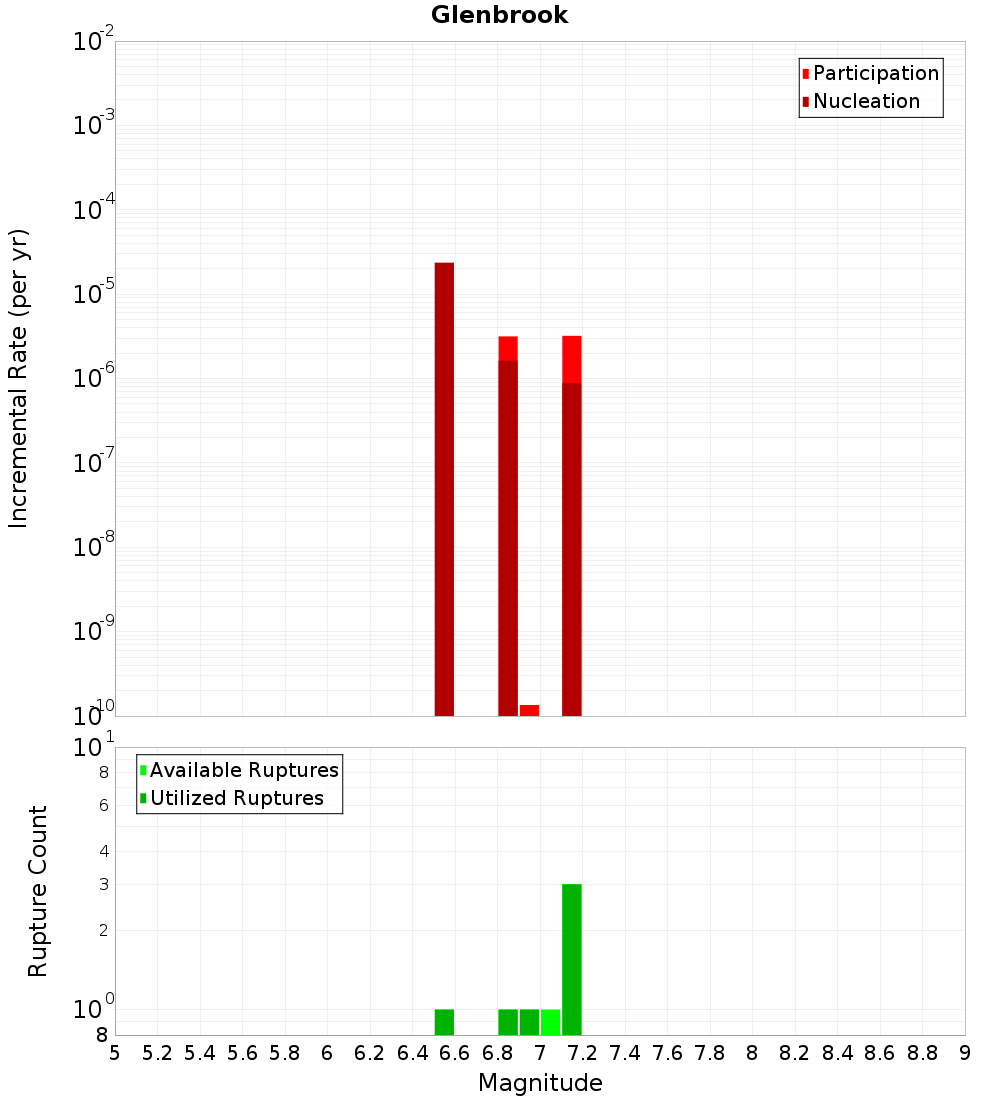

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

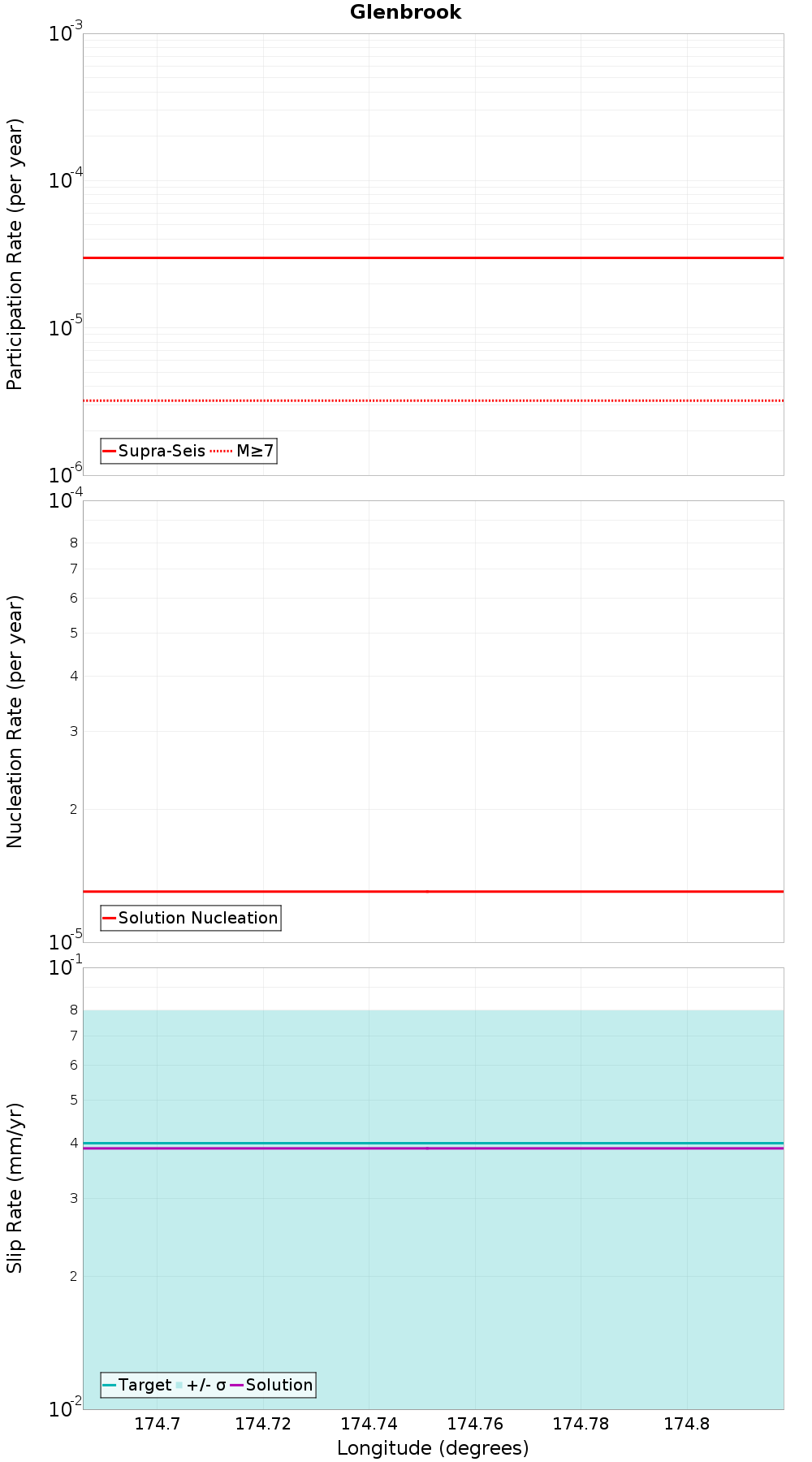

Along-Strike Values
Moment-Rates and b-Values

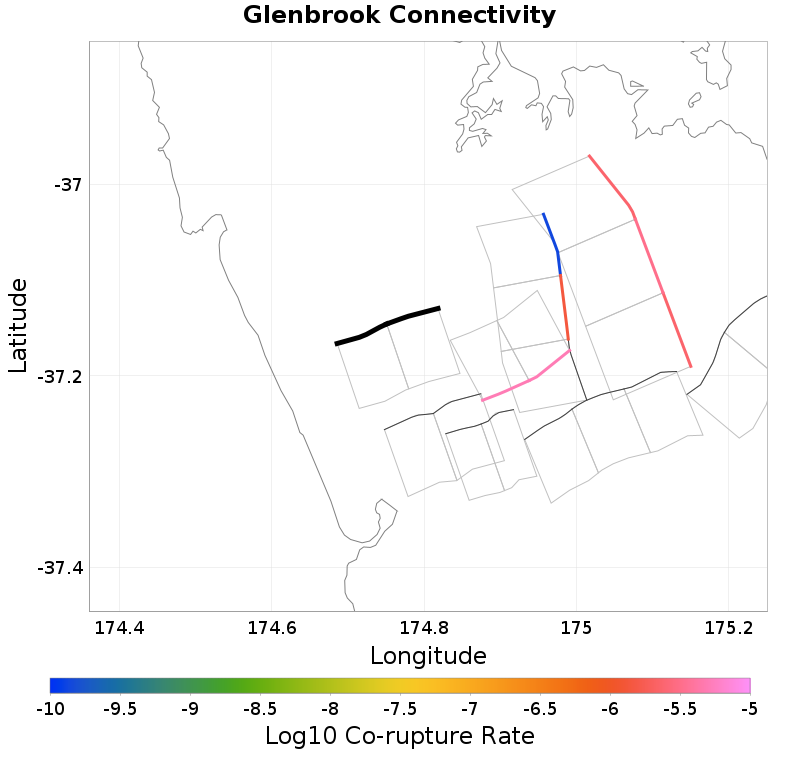

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| St Stephens, 0.54 km away |
| Drury, 5.17 km away |
| Pukekohe, 9.86 km away |
| Aka Aka, 12.76 km away |
| Wairoa North, 15.61 km away |
| Pokeno, 16.68 km away |
St Stephens, 0.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMjcuMHpnb0xS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 4.987917E-6 |
Drury, 5.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMjcuMHpnb0xS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.3720515E-6 |
Pukekohe, 9.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMjcuMHpnb0xS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Aka Aka, 12.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMjcuMHpnb0xS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairoa North, 15.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMjcuMHpnb0xS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 3.205138E-6 |
Pokeno, 16.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMjcuMHpnb0xS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
