Lachlan 1 & 2 Details
| Property | Value |
|---|---|
| Rupture Count | 10 |
| Ruptures Above Sect Min Mag | 8 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.72, 7.11] |
| Length Range | [18, 44] km |
| Total Rate | 0.0010356734 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 0 |
| All Co-Rupturing Faults | 0 |
Table Of Contents

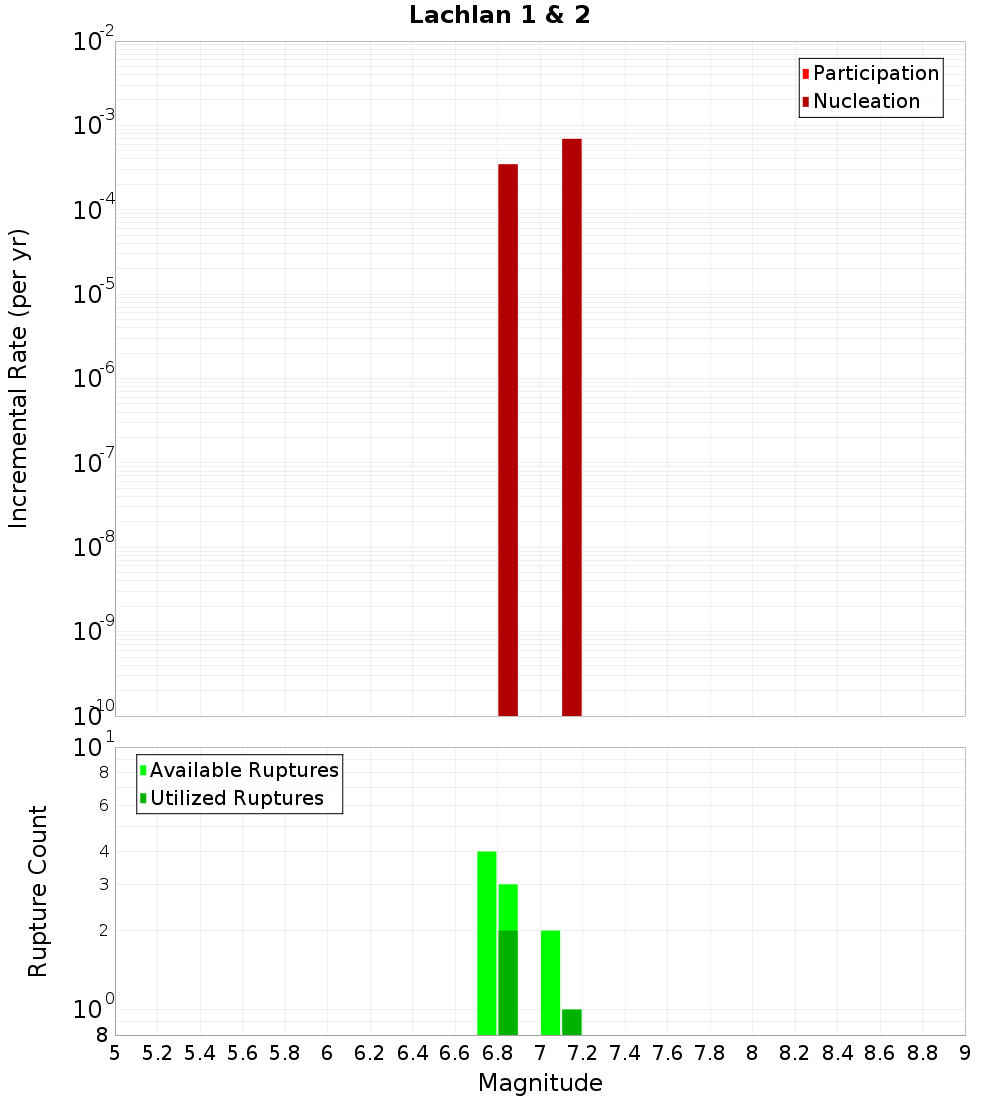

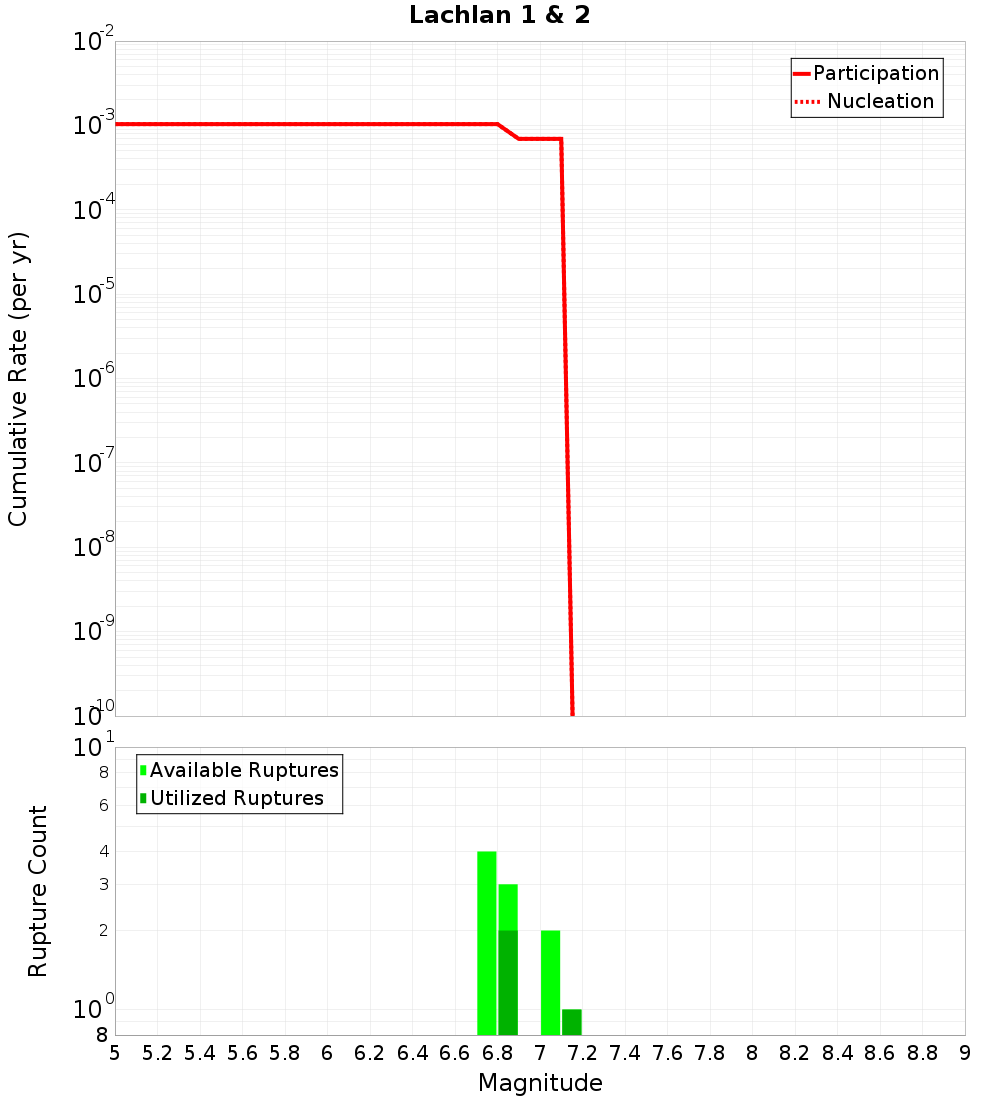

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

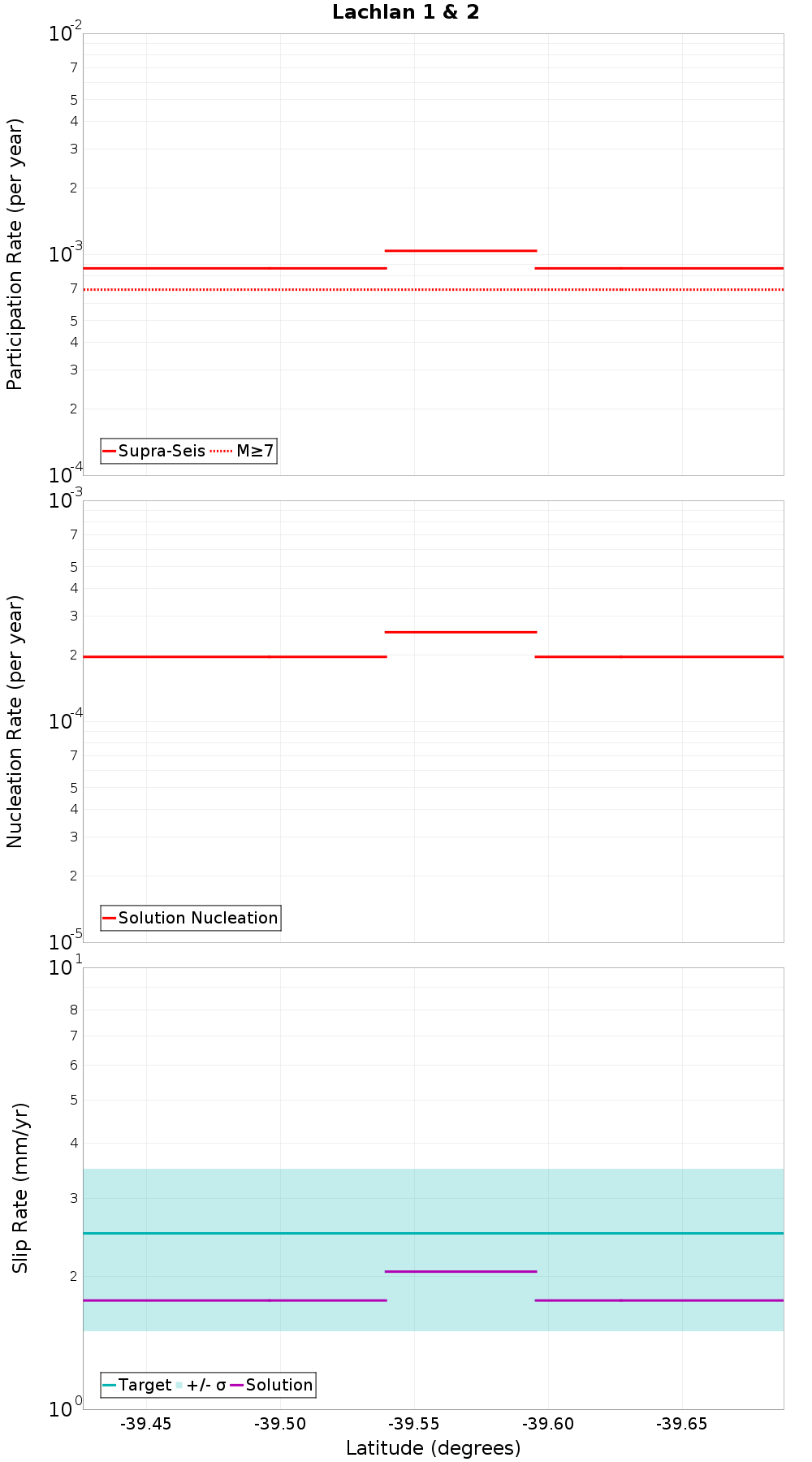

Along-Strike Values

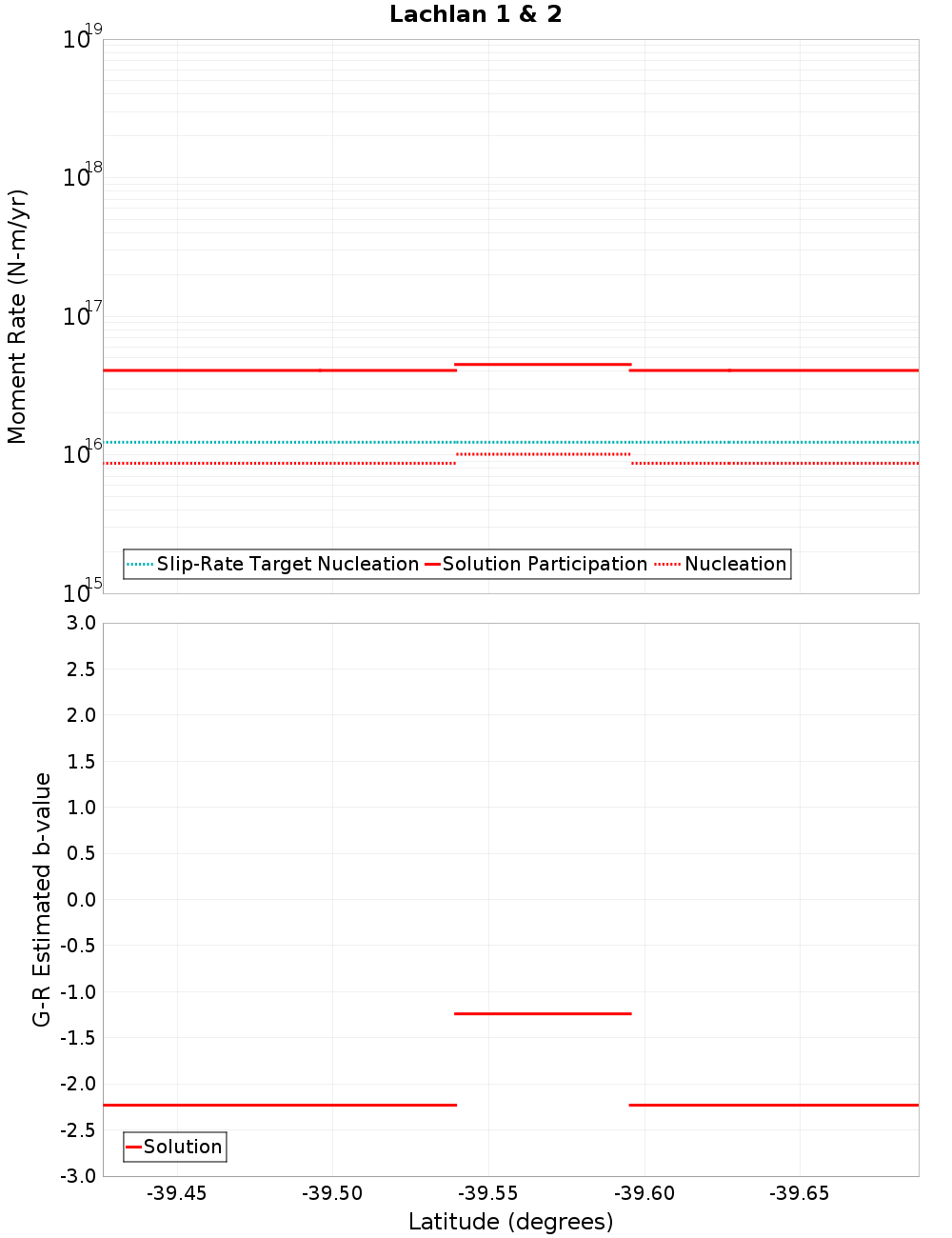

Moment-Rates and b-Values

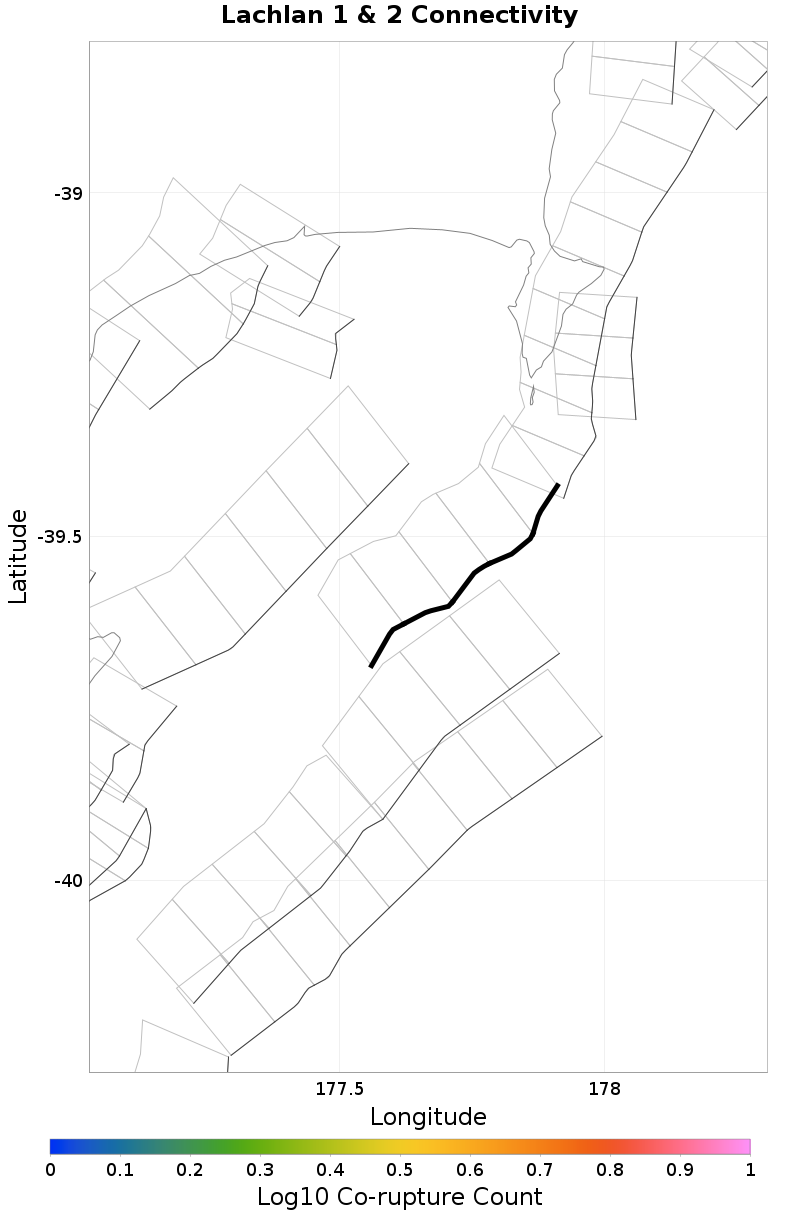

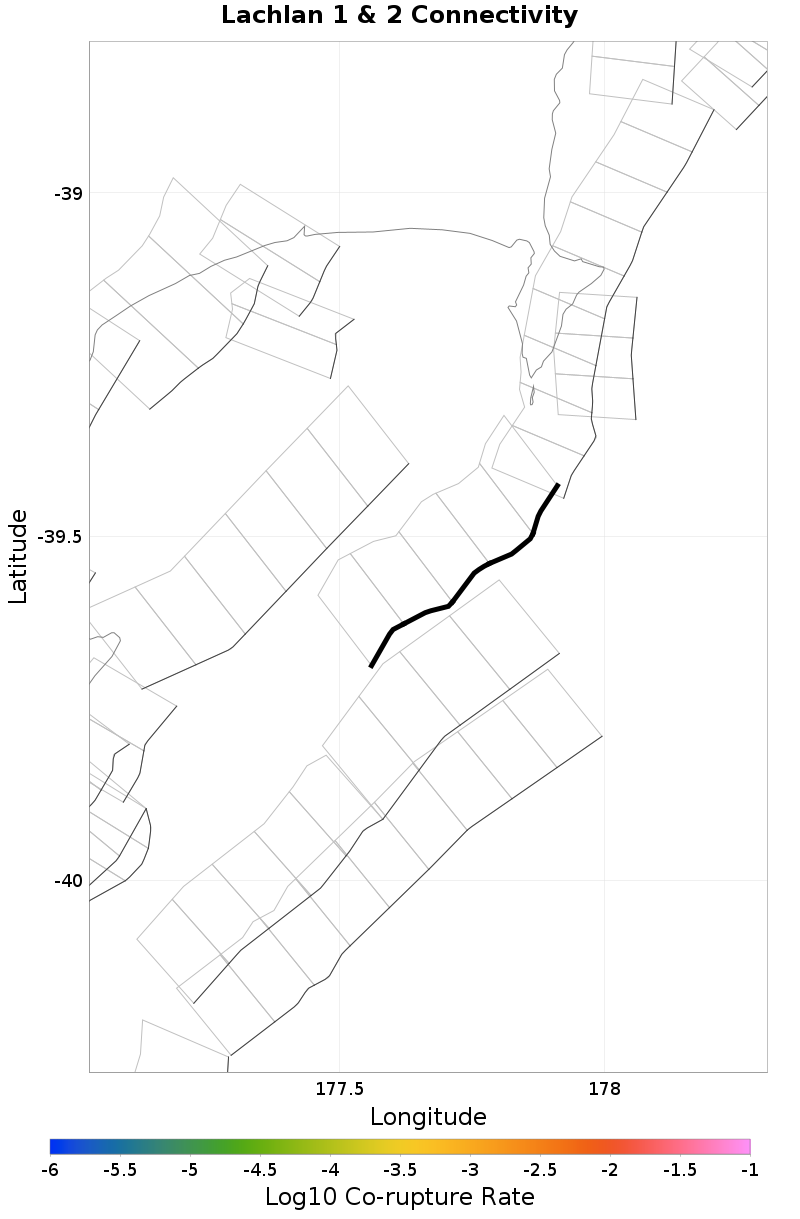

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lachlan 3, 0.51 km away |
| Mahia 2, 7.45 km away |
| Motuokura North, 10.61 km away |
| Kidnappers Ridge, 10.9 km away |
| Motu o Kura Ridge, 19.76 km away |
Lachlan 3, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMEJTRzhi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mahia 2, 7.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMEJTRzhi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motuokura North, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMEJTRzhi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kidnappers Ridge, 10.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMEJTRzhi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu o Kura Ridge, 19.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMEJTRzhi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
