Ohiwa 1 Details

PropertyValue
Rupture Count9,037
Ruptures Above Sect Min Mag9,037
Ruptures w/ Nonzero Rates166
Magnitude Range[6.53, 8.00]
Length Range[9, 305] km
Total Rate2.3098804E-4 /yr
Multi-Fault Rate2.3098804E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults49

Table Of Contents

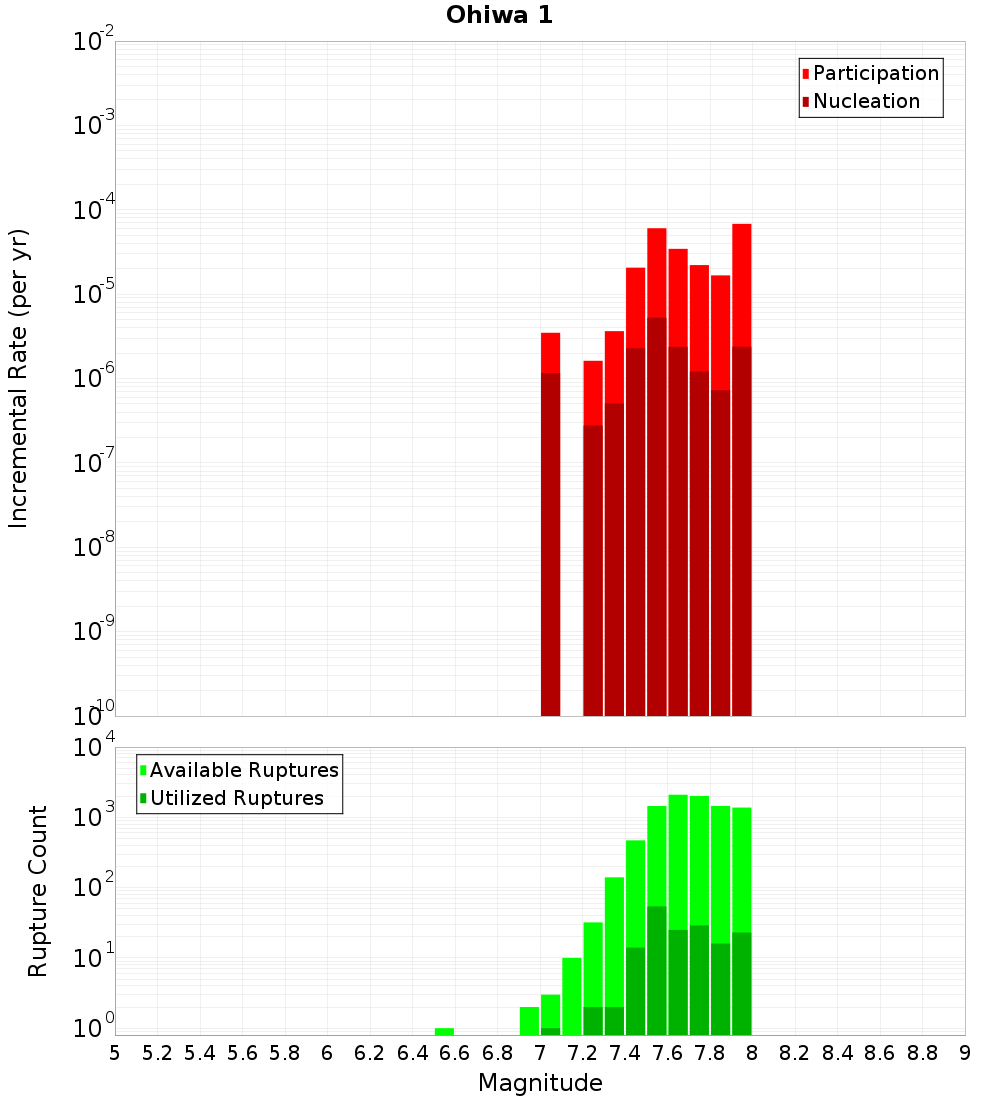

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

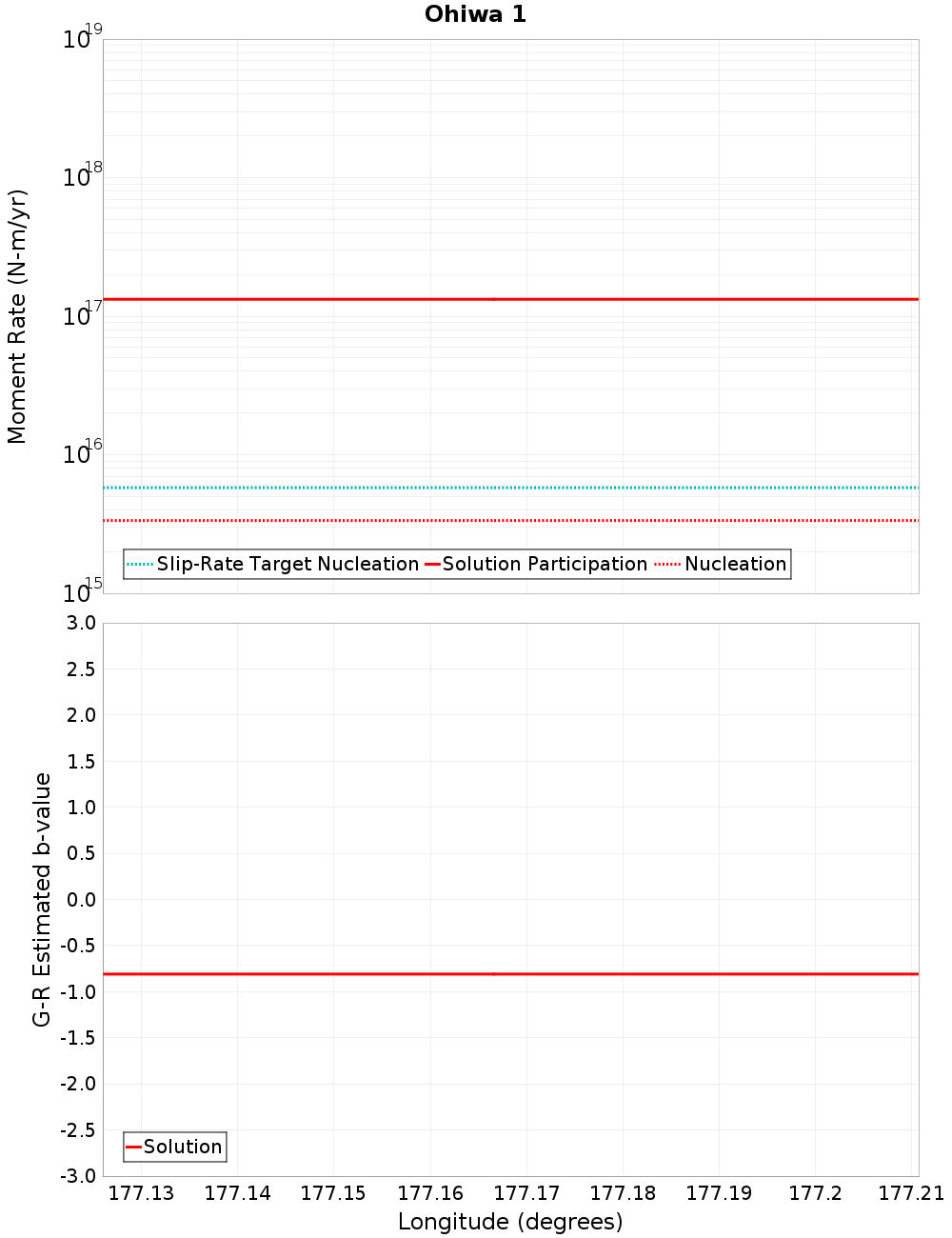

Moment-Rates and b-Values

(top)

Along-strike plot

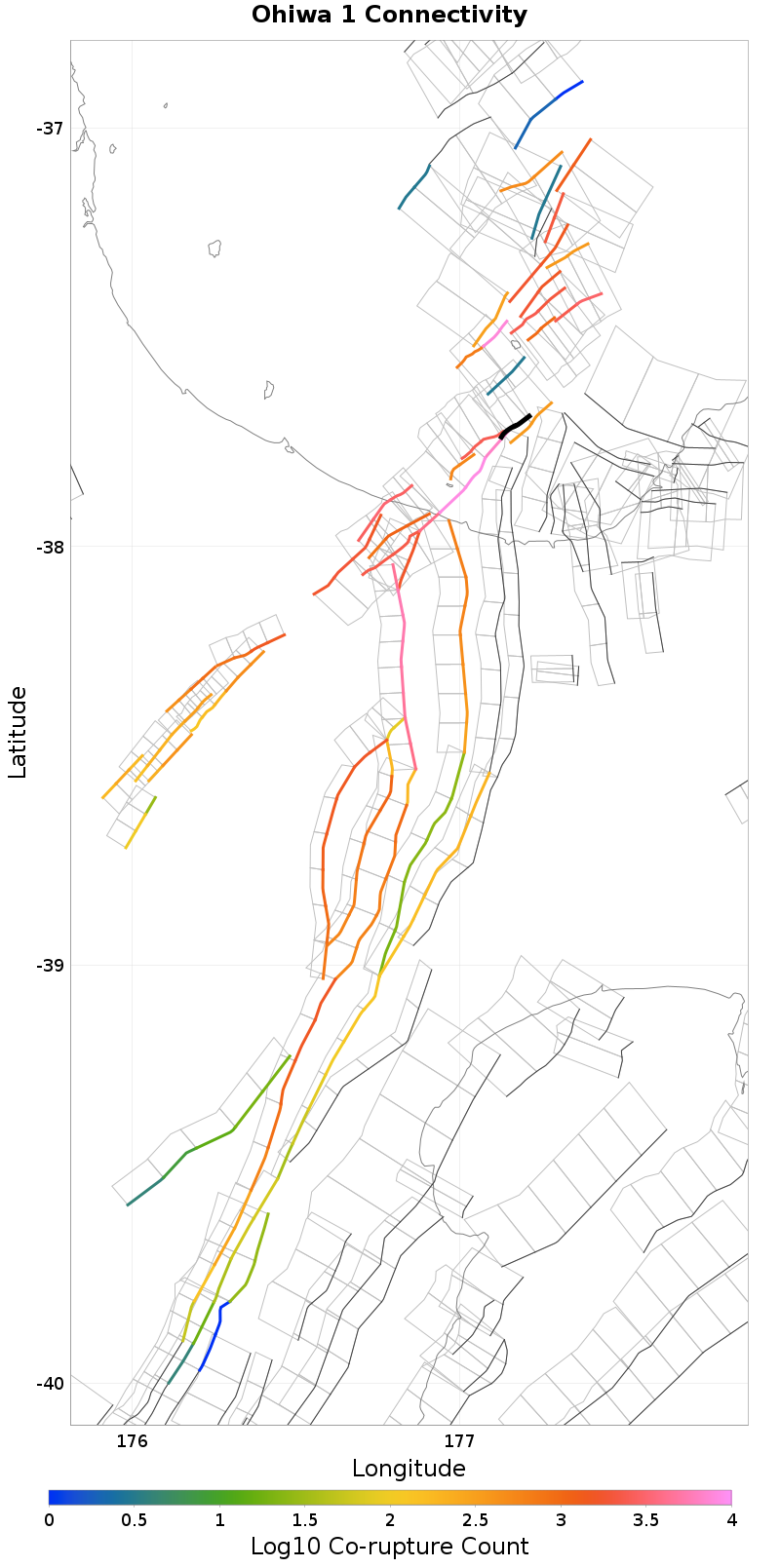

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.14 km awayOhae 1, 8.74 km away
White Island 1, 0.17 km awayTuatoru 1, 11.29 km away
Rangitaiki 2, 0.42 km awayOhae 2, 14.04 km away
White Island 2, 0.88 km awayWaiotahi: North, 14.52 km away
Waimanawa - Waikaremoana, 4.14 km awayTe Arawa 2, 14.95 km away
Calypso 2, 8.32 km awayHariki, 16.12 km away
Opotiki 3, 8.42 km awayOpape 1, 16.67 km away
Te Arawa 1, 8.65 km awayVolkner 3, 17.93 km away
Waimana: North, 8.65 km awayOpotiki 2, 19.25 km away
Rangitaiki 1, 8.72 km away

Whakaari 4, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?true
Co-rupture Count7,637
Co-rupture Rate1.8503726E-4

White Island 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?true
Co-rupture Count8,408
Co-rupture Rate1.6016763E-4

Rangitaiki 2, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?true
Co-rupture Count2,484
Co-rupture Rate8.722654E-5

White Island 2, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?false
Co-rupture Count360
Co-rupture Rate3.196669E-6

Waimanawa - Waikaremoana, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Opotiki 3, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?false
Co-rupture Count2,375
Co-rupture Rate6.424292E-5

Waimana: North, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?false
Co-rupture Count558
Co-rupture Rate6.7336296E-5

Ohae 1, 8.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?false
Co-rupture Count979
Co-rupture Rate4.893006E-5

Ohae 2, 14.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?false
Co-rupture Count1,862
Co-rupture Rate4.7864123E-5

Hariki, 16.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 16.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?true
Directly Connected?false
Co-rupture Count313
Co-rupture Rate6.8446093E-6

Opotiki 2, 19.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzEuMFU5MldR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
