Kaweka Details
| Property | Value |
|---|---|
| Rupture Count | 349 |
| Ruptures Above Sect Min Mag | 346 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.97, 8.19] |
| Length Range | [24, 414] km |
| Total Rate | 2.9525164E-4 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 35 |
Table Of Contents

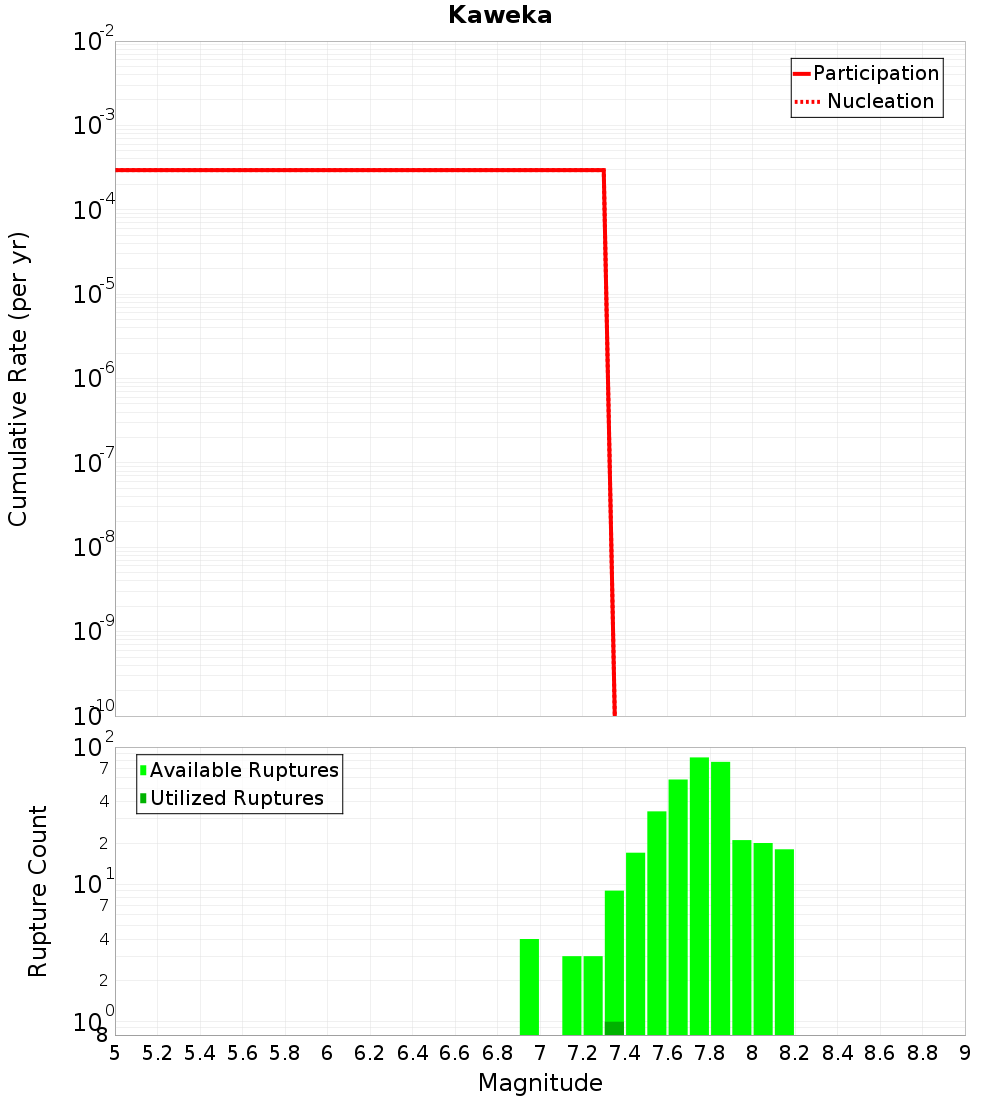

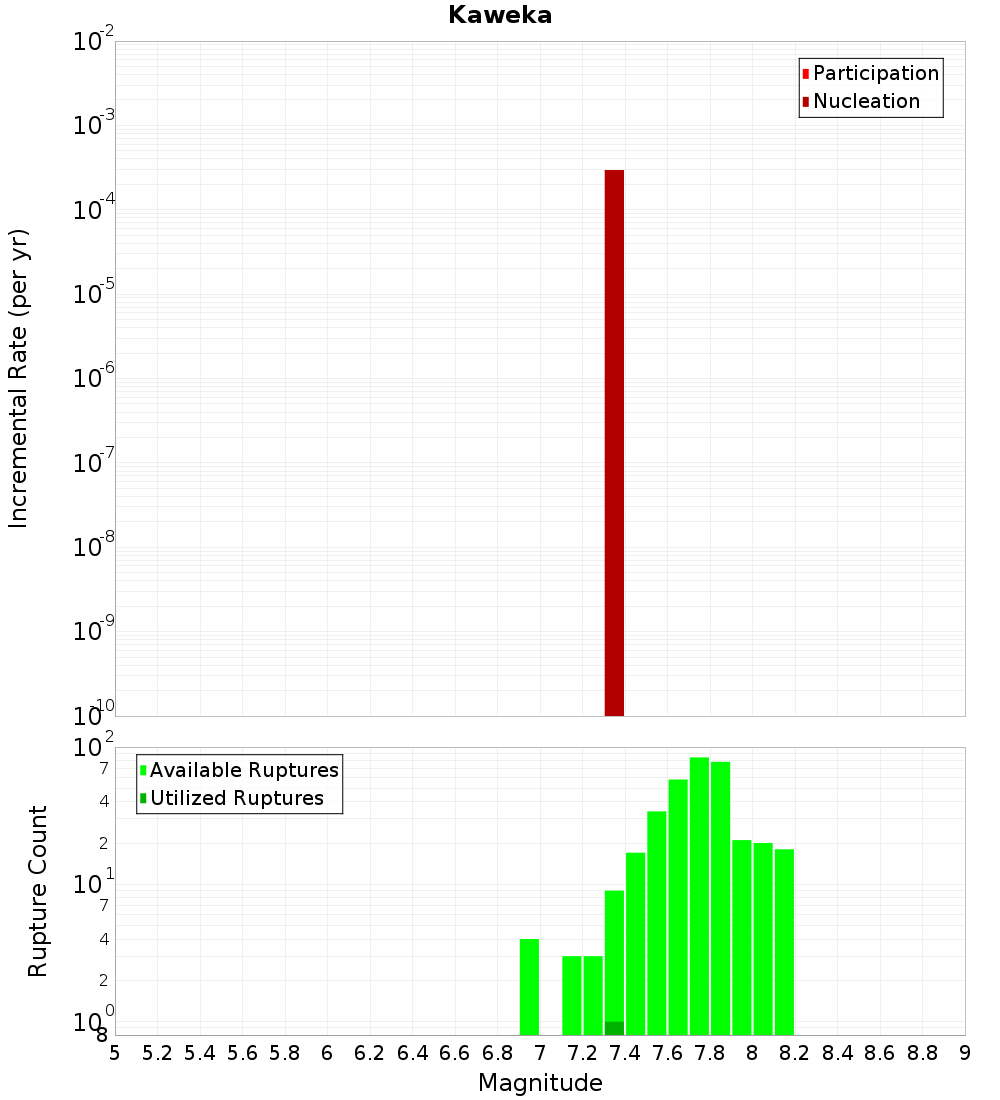

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

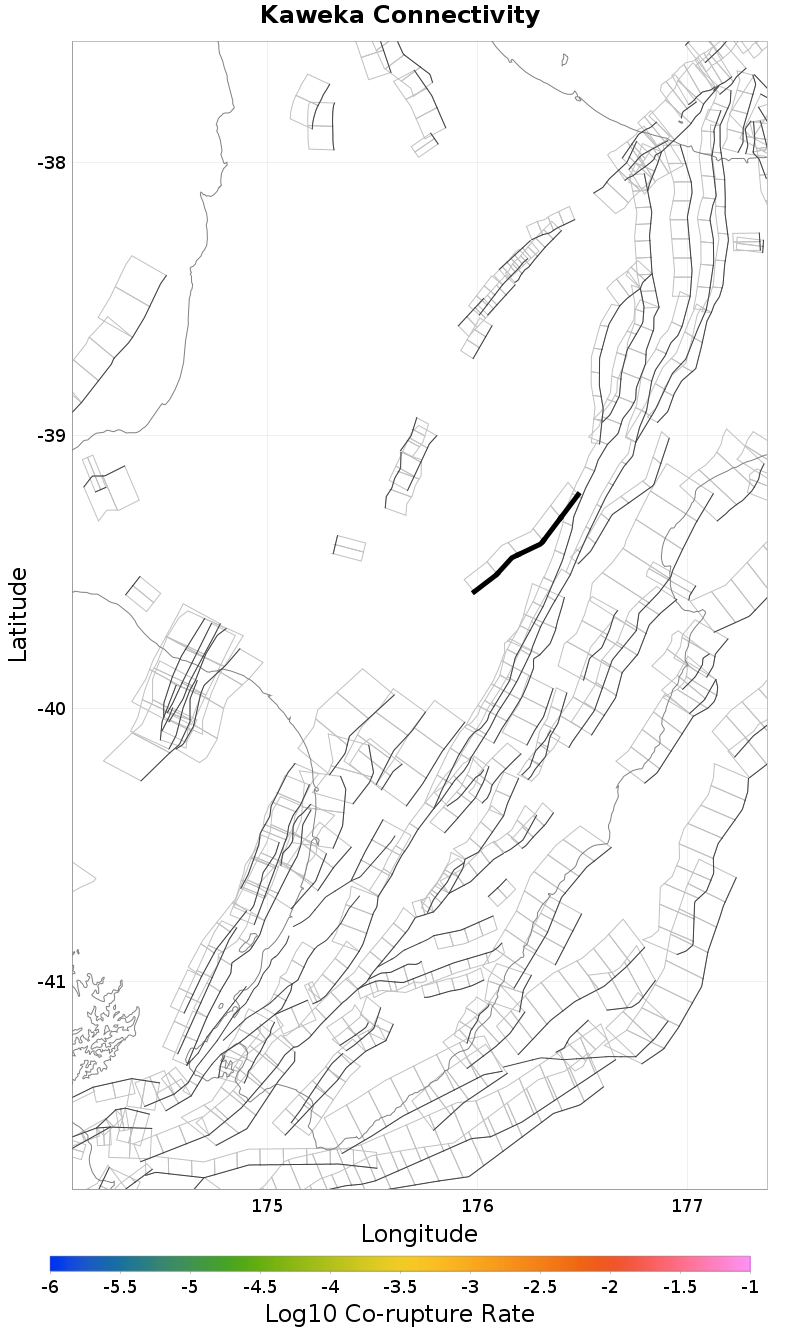

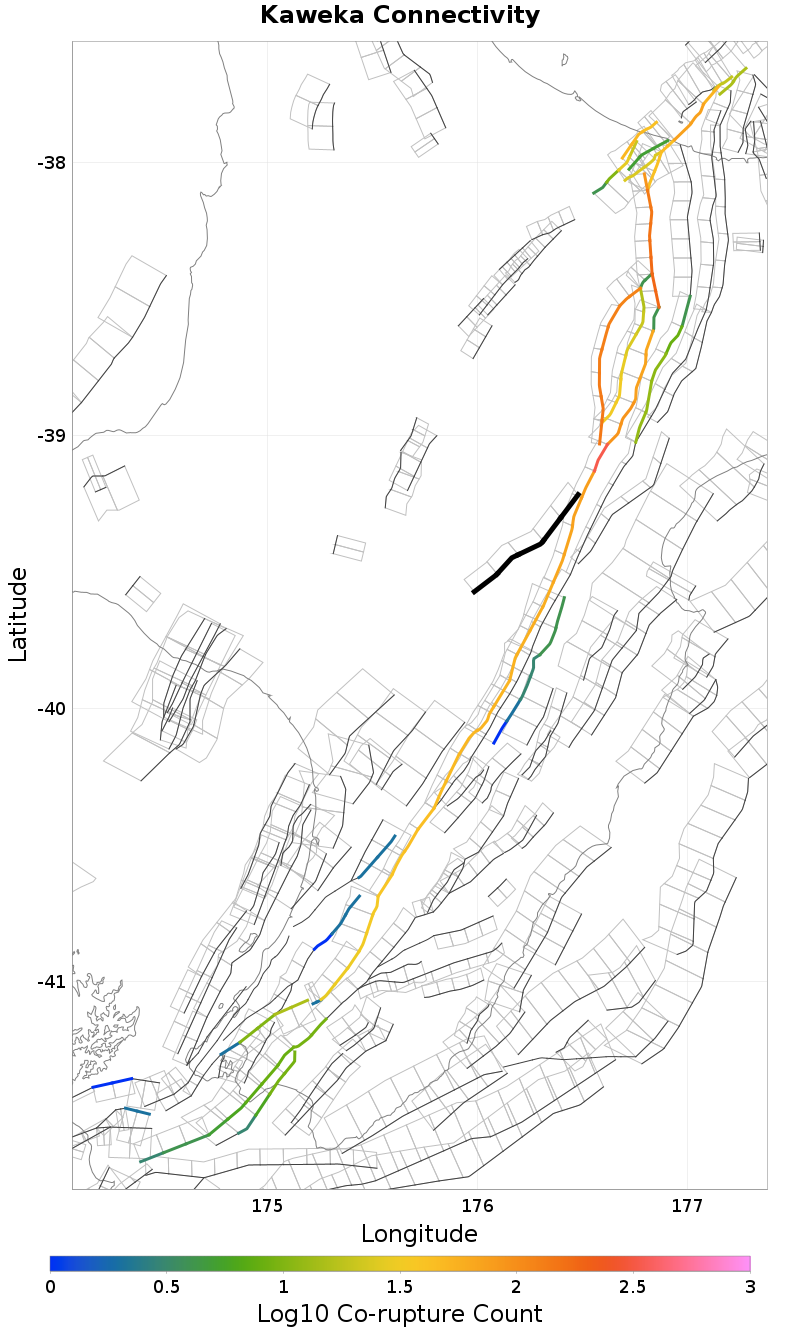

Connectivity
 |  |
|---|
Nearby Sections
Ruahine: North, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzYuMFl1Nnl6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 339 |
| Co-rupture Rate | 0.0 |
Mohaka: North, 10.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzYuMFl1Nnl6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Patoka - Rangiora, 15.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzYuMFl1Nnl6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ruahine: Central, 16.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzYuMFl1Nnl6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 0.0 |
Mohaka: South, 17.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzYuMFl1Nnl6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wakarara, 18.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzYuMFl1Nnl6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Wheao: South, 19.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzYuMFl1Nnl6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 140 |
| Co-rupture Rate | 0.0 |
