Chamberlain Details
| Property | Value |
|---|---|
| Rupture Count | 17 |
| Ruptures Above Sect Min Mag | 16 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.90, 7.53] |
| Length Range | [22, 90] km |
| Total Rate | 1.6210512E-5 /yr |
| Multi-Fault Rate | 1.6210512E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

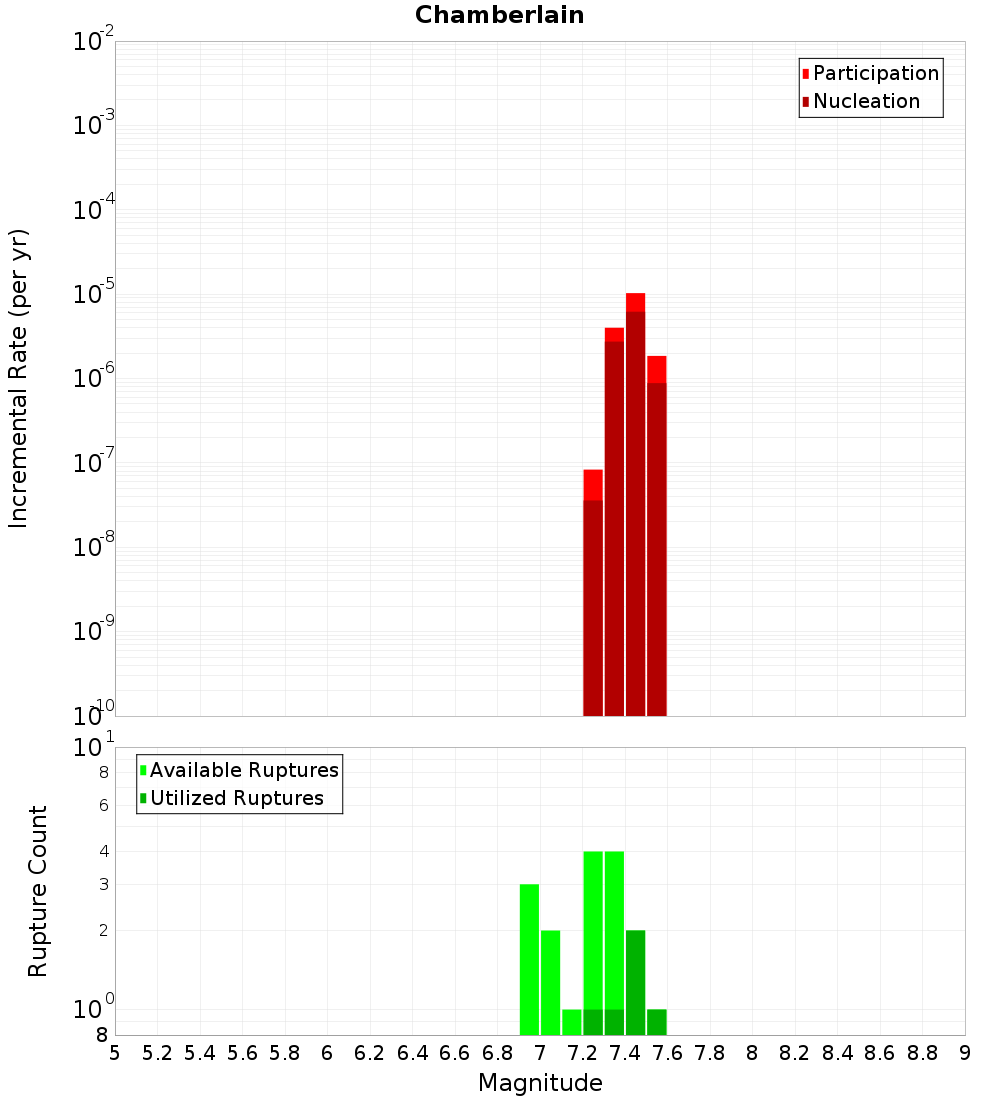

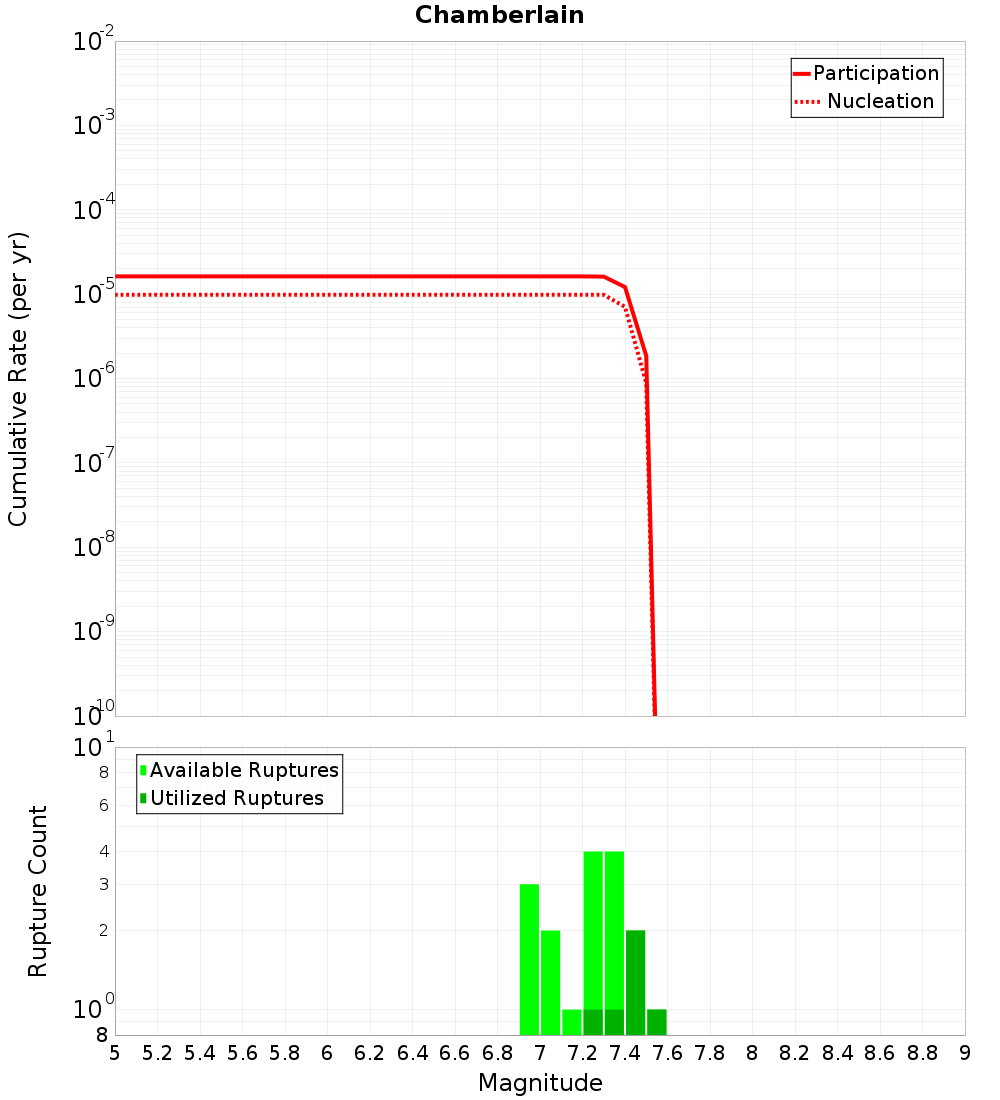

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

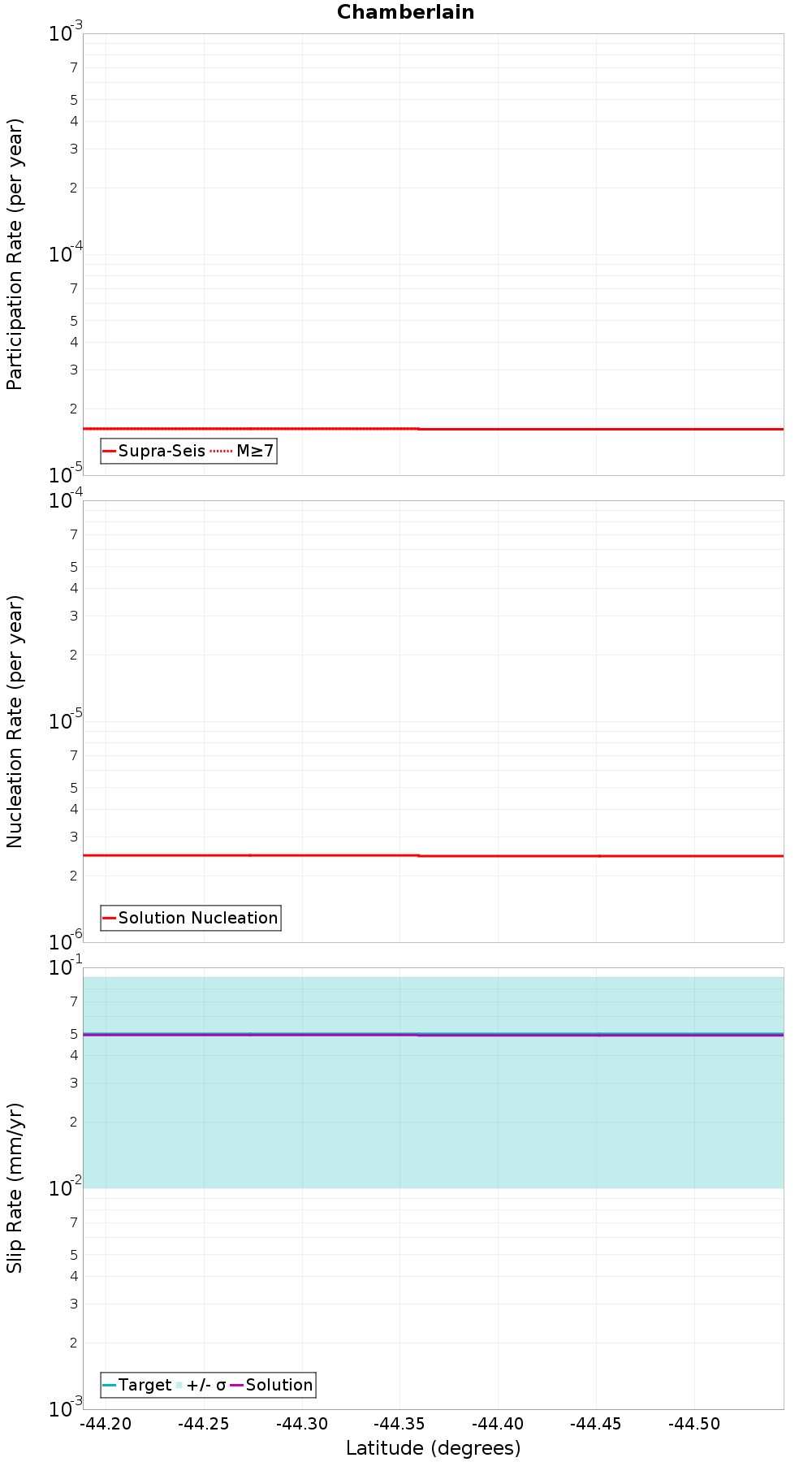

Along-Strike Values

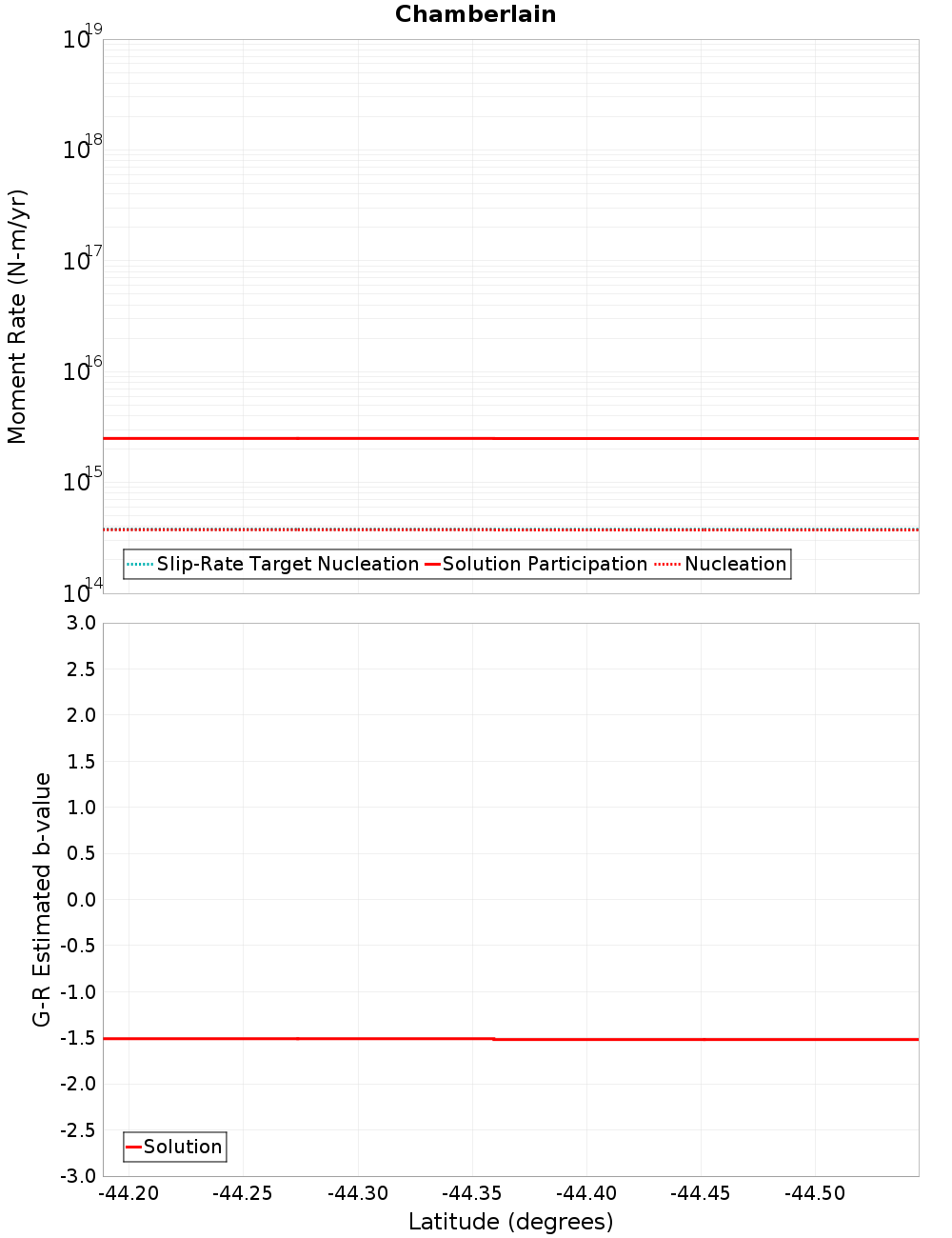

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Opawa, 1.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 3.997034E-6 |
Hunters, 2.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dalgety, 2.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Albury, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 7.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maungati, 8.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.8531654E-6 |
Kirkliston, 9.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Irishman Creek, 10.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.2213478E-5 |
Grampian, 11.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Brothers, 12.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fox Peak, 14.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Stonewall, 15.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dryburgh, 16.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimate, 19.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzMzcuMGlDV2c0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
