Ruahine: North Details

PropertyValue
Rupture Count23,590
Ruptures Above Sect Min Mag23,587
Ruptures w/ Nonzero Rates19
Magnitude Range[6.97, 8.60]
Length Range[24, 1,113] km
Total Rate0.0010689858 /yr
Multi-Fault Rate3.4348993E-4 /yr (32.13%)
Directly-Connected Faults8
All Co-Rupturing Faults101

Table Of Contents

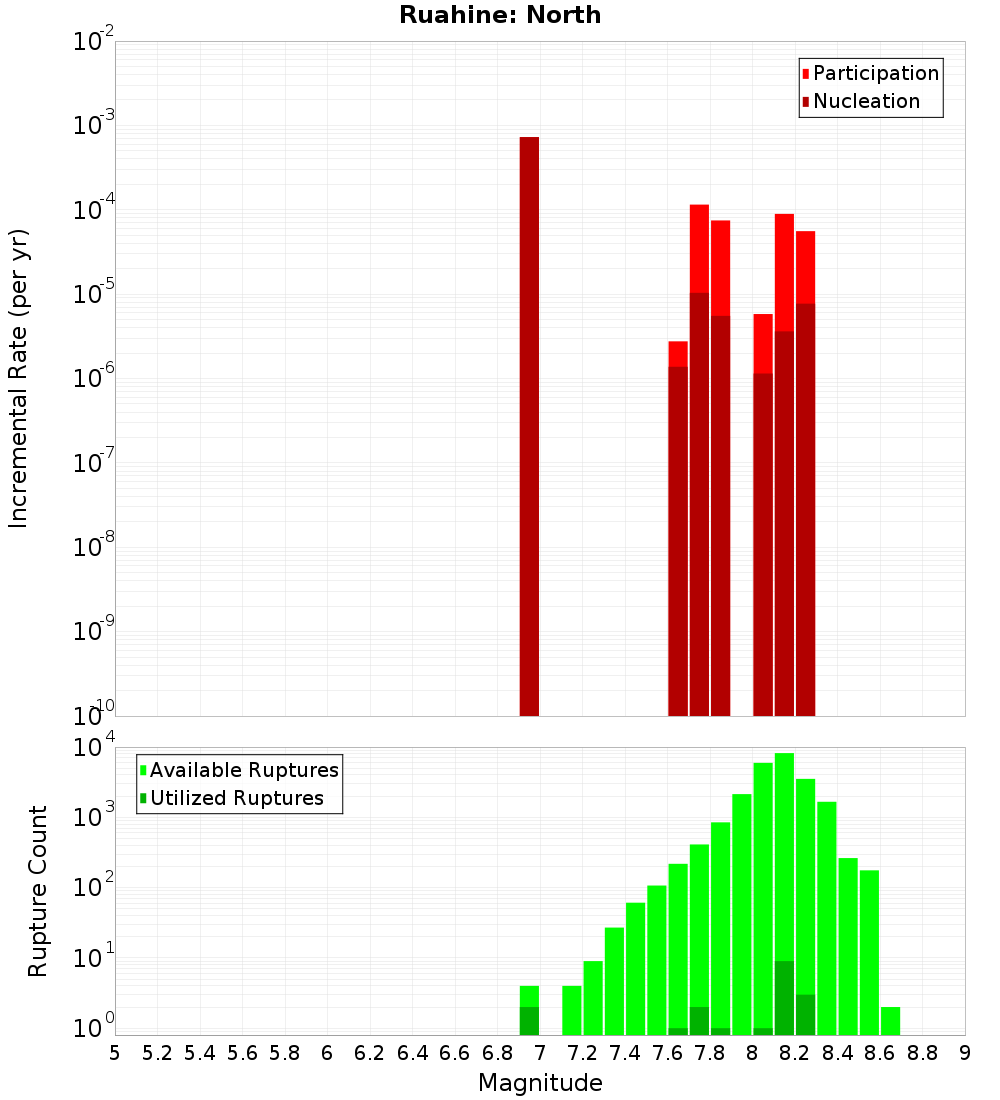

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

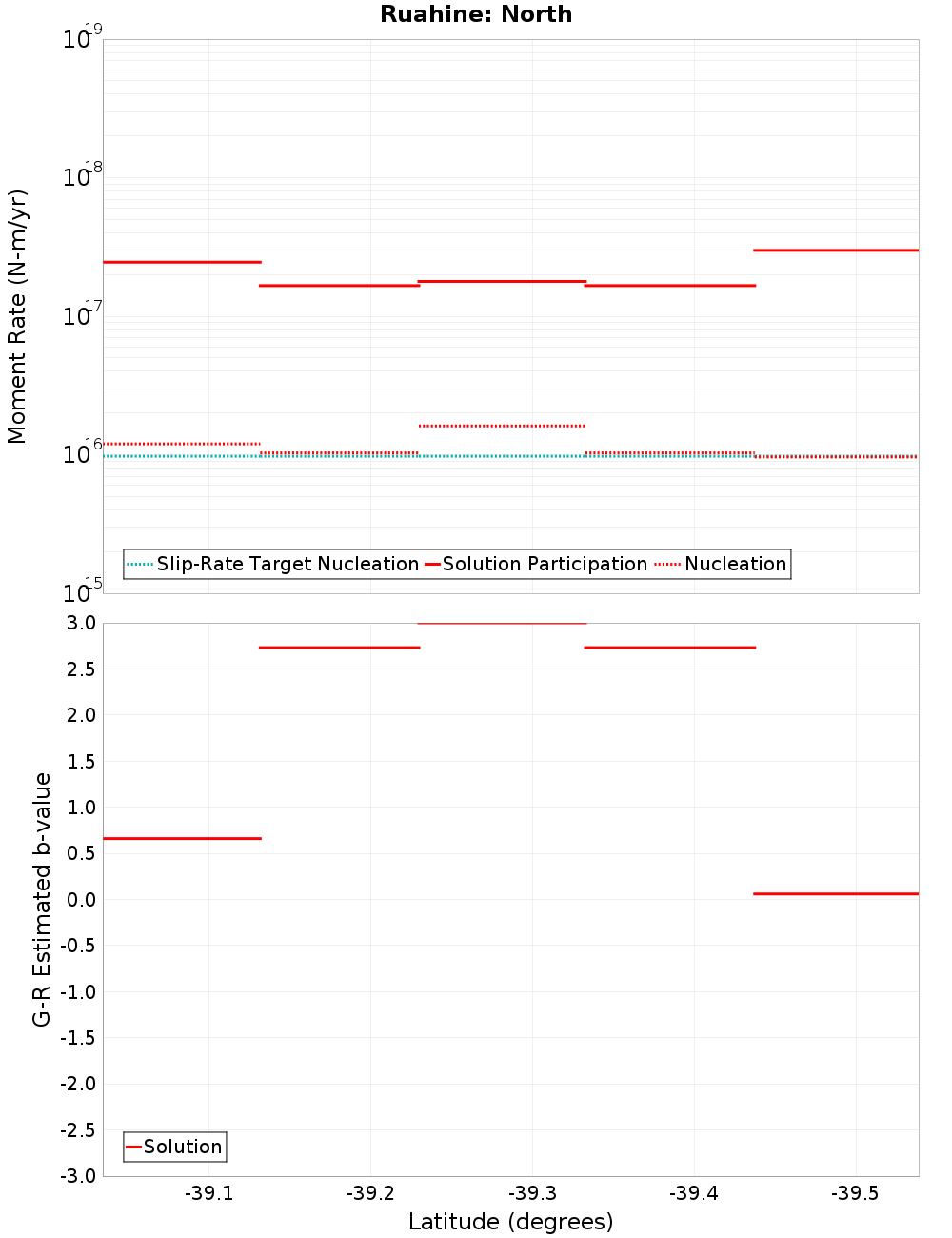

Moment-Rates and b-Values

(top)

Along-strike plot

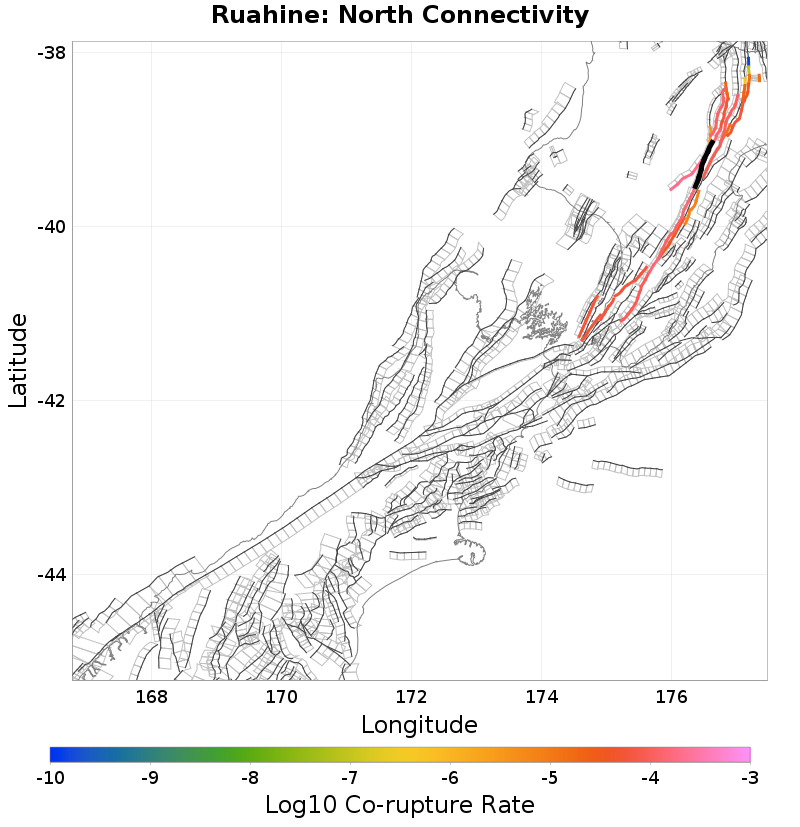

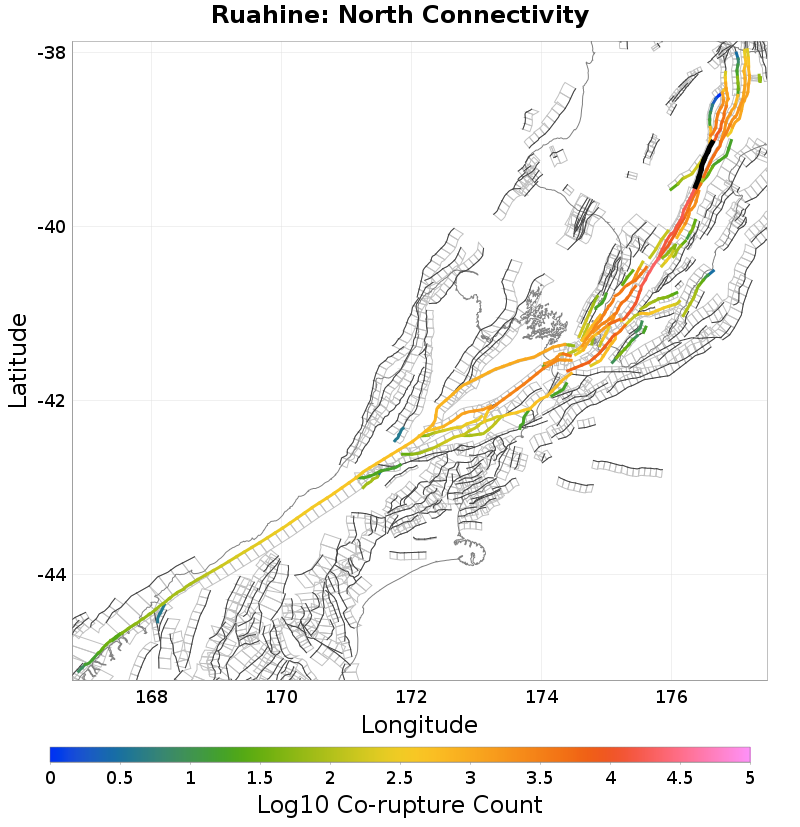

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 17.89 km away
Te Heka, 19.72 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?true
Co-rupture Count8,543
Co-rupture Rate1.3048318E-4

Ruahine: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?true
Co-rupture Count17,206
Co-rupture Rate1.4430407E-4

Kaweka, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate1.9839252E-4

Wheao: South, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?true
Co-rupture Count609
Co-rupture Rate3.5001124E-6

Wakarara, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?true
Co-rupture Count2,124
Co-rupture Rate6.602184E-6

Mohaka: South, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?true
Co-rupture Count9,525
Co-rupture Rate3.8926144E-5

Mohaka: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?true
Co-rupture Count5,118
Co-rupture Rate8.58262E-5

Patoka - Rangiora, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0

Te Whaiti South, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?true
Co-rupture Count3,542
Co-rupture Rate1.15114366E-4

Whakatane: South, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?false
Co-rupture Count2,003
Co-rupture Rate1.0402792E-4

Waimana: South, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?true
Directly Connected?false
Co-rupture Count3,131
Co-rupture Rate1.4512416E-5

Awanui, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
