Ruahine: South Details

Property	Value
Rupture Count	26,732
Ruptures Above Sect Min Mag	26,729
Ruptures w/ Nonzero Rates	19
Magnitude Range	[6.99, 8.60]
Length Range	[24, 1,113] km
Total Rate	1.9061552E-4 /yr
Multi-Fault Rate	1.9061552E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	101

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

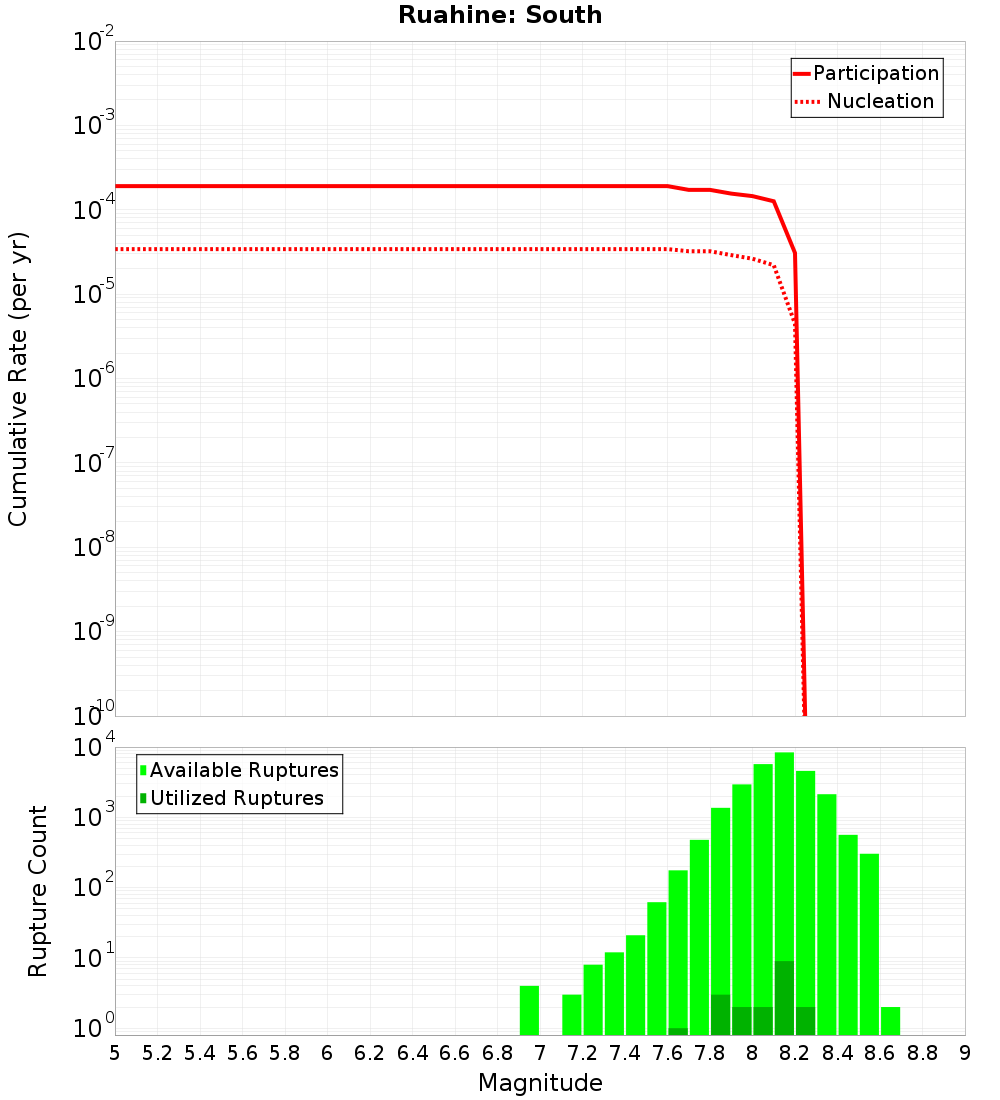

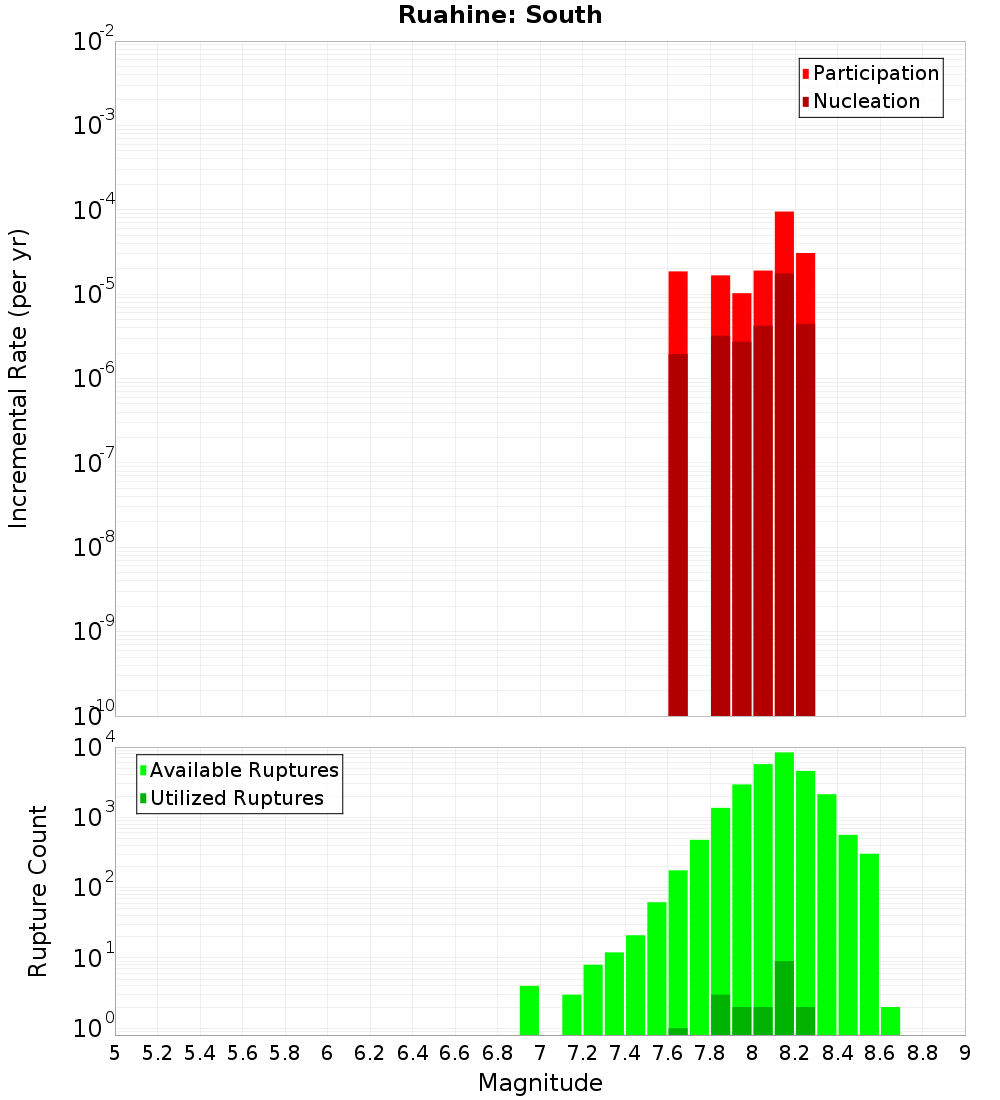

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.19 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.97 km away
Ruataniwha, 9.87 km away
Maunga, 13.33 km away
Wakarara, 14.13 km away
Tokomaru, 14.38 km away
Northern Ohariu, 18.29 km away
Taonui, 18.79 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	true
Co-rupture Count	25,263
Co-rupture Rate	1.9061552E-4

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	true
Co-rupture Count	7,825
Co-rupture Rate	2.9680403E-5

Ruahine: Central, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	true
Co-rupture Count	14,205
Co-rupture Rate	1.18595046E-4

Rangefront, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,292
Co-rupture Rate	7.110388E-6

Woodville, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	true
Co-rupture Count	338
Co-rupture Rate	1.6623711E-5

Pahiatua, 5.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	true
Co-rupture Count	468
Co-rupture Rate	1.8605973E-5

Ruataniwha, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 13.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wakarara, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,713
Co-rupture Rate	6.602184E-6

Tokomaru, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	false
Co-rupture Count	2,104
Co-rupture Rate	9.1451E-6

Northern Ohariu, 18.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	true
Directly Connected?	false
Co-rupture Count	4,806
Co-rupture Rate	3.42435E-5

Taonui, 18.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjEuMDV4N3E0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
