Motu o Kura Ridge Details

Property	Value
Rupture Count	1,747
Ruptures Above Sect Min Mag	1,744
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.69, 8.26]
Length Range	[17, 562] km
Total Rate	2.9574992E-4 /yr
Multi-Fault Rate	2.5439888E-4 /yr (86.02%)
Directly-Connected Faults	3
All Co-Rupturing Faults	25

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

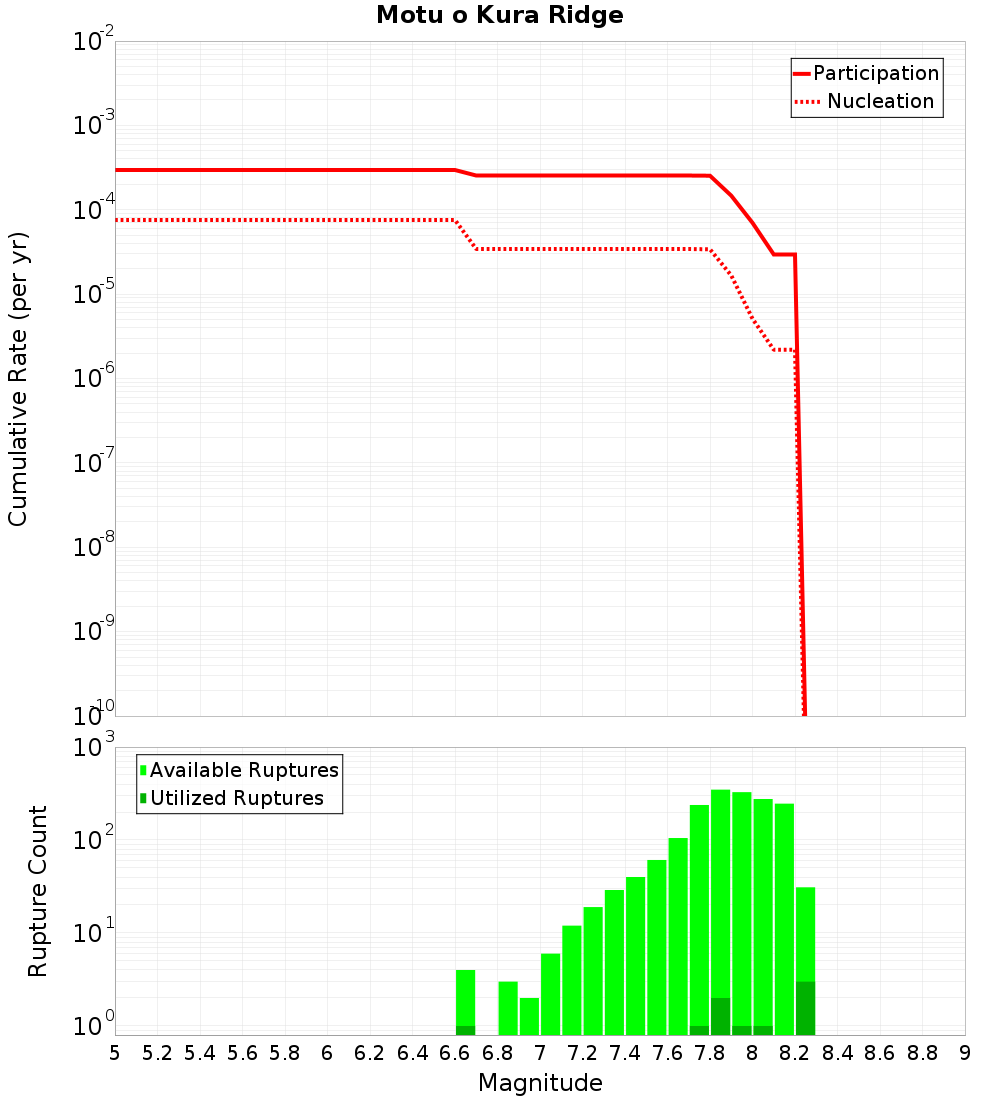

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

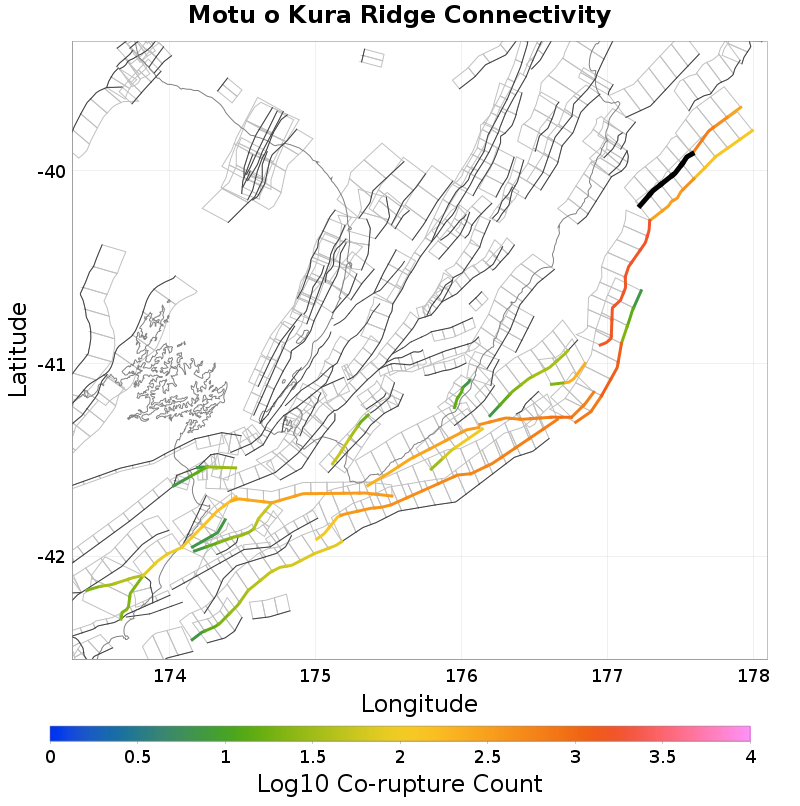

Connectivity

Nearby Sections

Fault Section
Motuokura North, 0 km away
Motu o Kura East, 6.46 km away
Madden Banks, 7.97 km away
Kairakau 2, 13.65 km away
Kairakau South, 15.16 km away
Kairakau North, 15.92 km away
Lachlan 1 & 2, 19.76 km away

Motuokura North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjQuMEFleFM2
Connected?	true
Directly Connected?	true
Co-rupture Count	655
Co-rupture Rate	1.7747101E-4

Motu o Kura East, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjQuMEFleFM2
Connected?	true
Directly Connected?	true
Co-rupture Count	444
Co-rupture Rate	2.2357132E-4

Madden Banks, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjQuMEFleFM2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,674
Co-rupture Rate	2.5439888E-4

Kairakau 2, 13.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjQuMEFleFM2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kairakau South, 15.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjQuMEFleFM2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kairakau North, 15.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjQuMEFleFM2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lachlan 1 & 2, 19.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNjQuMEFleFM2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
