Kaiwara North Details

PropertyValue
Rupture Count483
Ruptures Above Sect Min Mag483
Ruptures w/ Nonzero Rates19
Magnitude Range[7.03, 8.49]
Length Range[25, 877] km
Total Rate1.2704569E-4 /yr
Multi-Fault Rate1.2704569E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults41

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

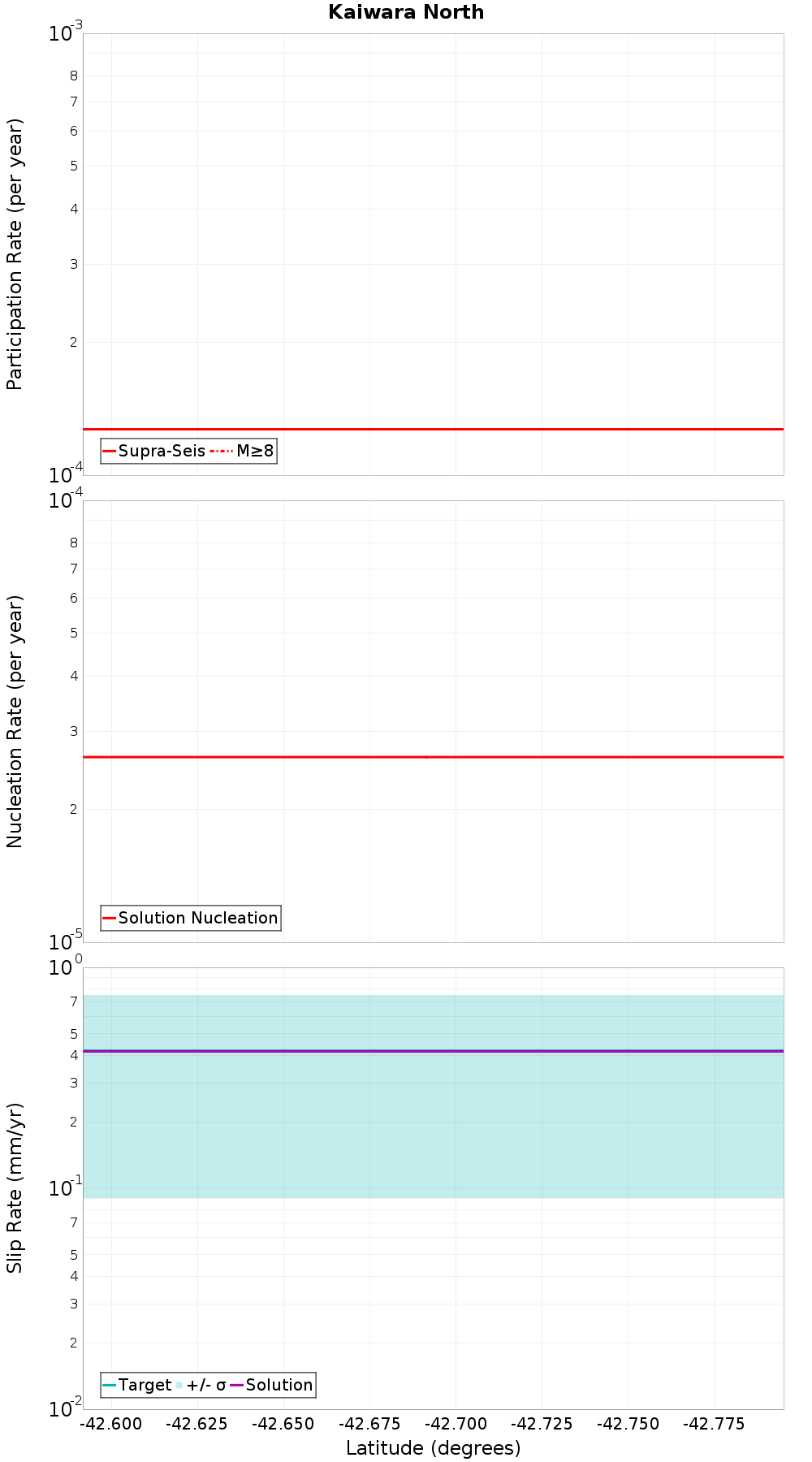

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

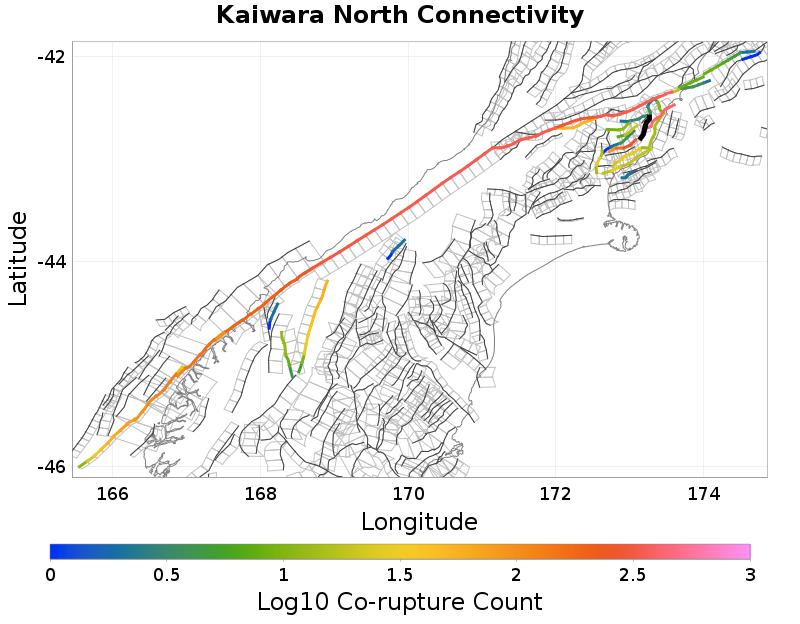

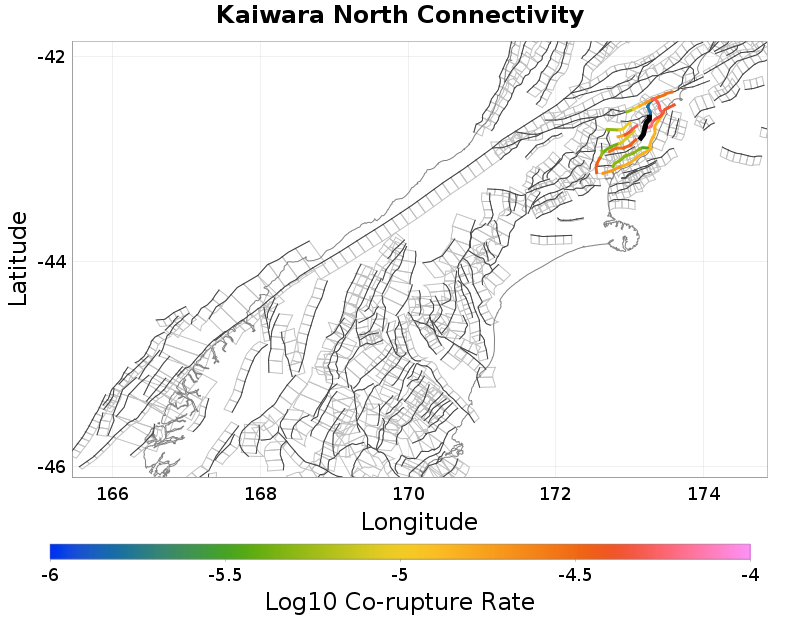

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Lowry, 0.15 km awayHope: Conway, 6.51 km away
The Humps, 0.22 km awayHawkswood, 9.21 km away
Leonard Mound, 0.3 km awayOmihiLwrHuru, 10.71 km away
Mt Culverden, 0.53 km awayLeader: North, 10.78 km away
Leader: South, 0.57 km awayKaiwara South, 11.67 km away
Leader: Central, 2.03 km awayHope: Hamner SE, 12.43 km away
Hundalee, 3.47 km awayStoneJug, 13.46 km away
Alexander, 5.18 km awayAmberBlyth, 15.9 km away
Hanmer, 5.4 km awayHope: Hanmer NW, 17.2 km away

Lowry, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.2342724E-5

The Humps, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Leonard Mound, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate4.8208607E-5

Mt Culverden, 0.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate9.309828E-6

Leader: South, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: Central, 2.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.5569715E-6

Hundalee, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?true
Co-rupture Count453
Co-rupture Rate5.8553127E-5

Alexander, 5.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?true
Co-rupture Count272
Co-rupture Rate3.5124587E-5

Hanmer, 5.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 6.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count376
Co-rupture Rate2.9654537E-5

Hawkswood, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate1.411871E-5

OmihiLwrHuru, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate4.888901E-6

Leader: North, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.5569715E-6

Kaiwara South, 11.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SE, 12.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count342
Co-rupture Rate0.0

StoneJug, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate5.1601564E-5

AmberBlyth, 15.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.9583242E-5

Hope: Hanmer NW, 17.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzMuMFJOZXpF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
