Cape Foulwind 4 Details
| Property | Value |
|---|---|
| Rupture Count | 117 |
| Ruptures Above Sect Min Mag | 114 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.96, 7.83] |
| Length Range | [24, 185] km |
| Total Rate | 7.546662E-5 /yr |
| Multi-Fault Rate | 5.9837606E-5 /yr (79.29%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

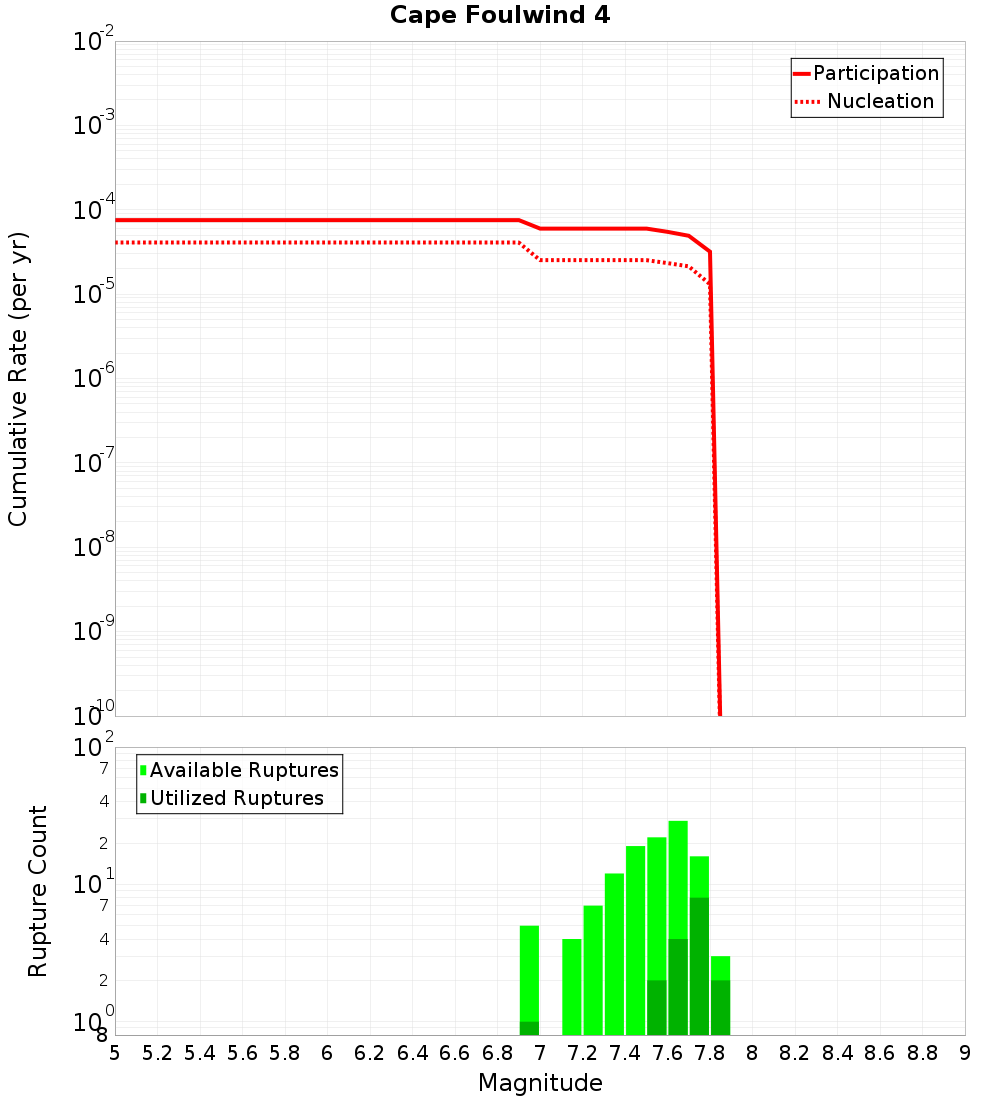

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

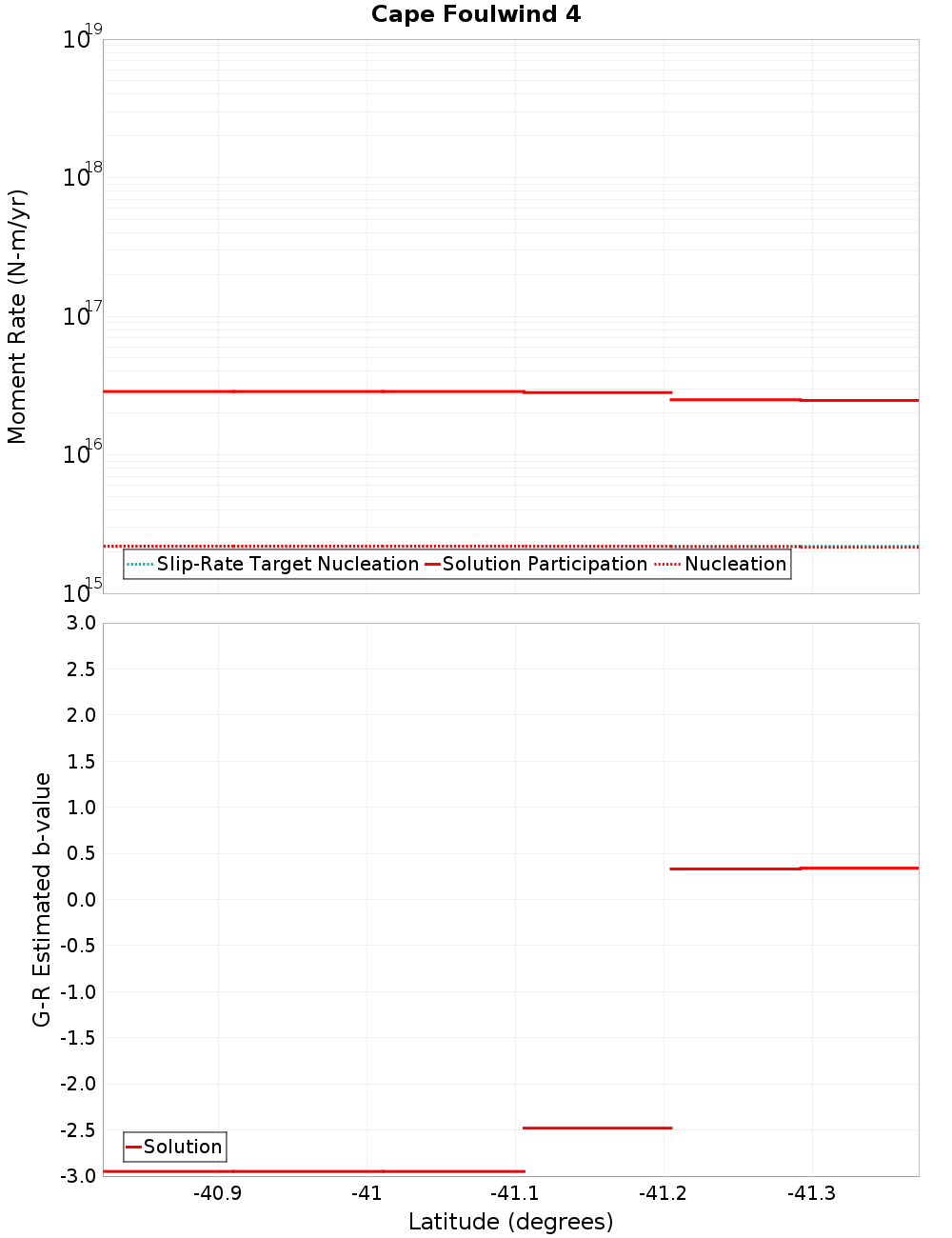

Moment-Rates and b-Values

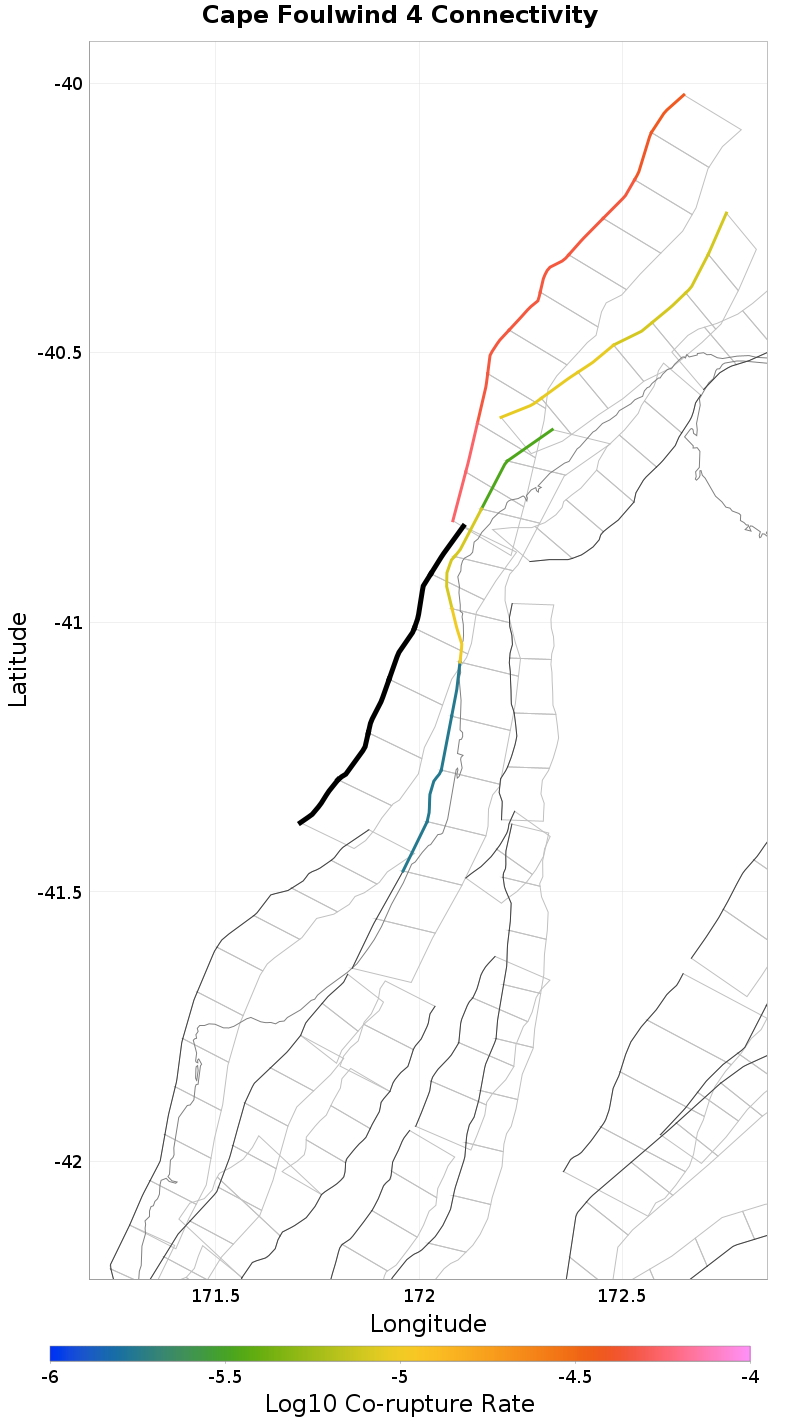

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kahurangi, 0.46 km away |
| Kongahau, 1.15 km away |
| Wakamarama, 1.46 km away |
| Cape Foulwind 2, 8.22 km away |
| Kohaihai, 11.38 km away |
| Farewell, 19.87 km away |
Kahurangi, 0.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzguMFNwc1Fk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 63 |
| Co-rupture Rate | 5.4719654E-5 |
Kongahau, 1.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzguMFNwc1Fk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 49 |
| Co-rupture Rate | 9.788829E-6 |
Wakamarama, 1.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzguMFNwc1Fk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 2, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzguMFNwc1Fk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kohaihai, 11.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzguMFNwc1Fk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Farewell, 19.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzNzguMFNwc1Fk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 9.1548145E-6 |
