Farewell Details
| Property | Value |
|---|---|
| Rupture Count | 79 |
| Ruptures Above Sect Min Mag | 76 |
| Ruptures w/ Nonzero Rates | 34 |
| Magnitude Range | [6.76, 7.81] |
| Length Range | [19, 178] km |
| Total Rate | 8.5376305E-5 /yr |
| Multi-Fault Rate | 4.008268E-5 /yr (46.95%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

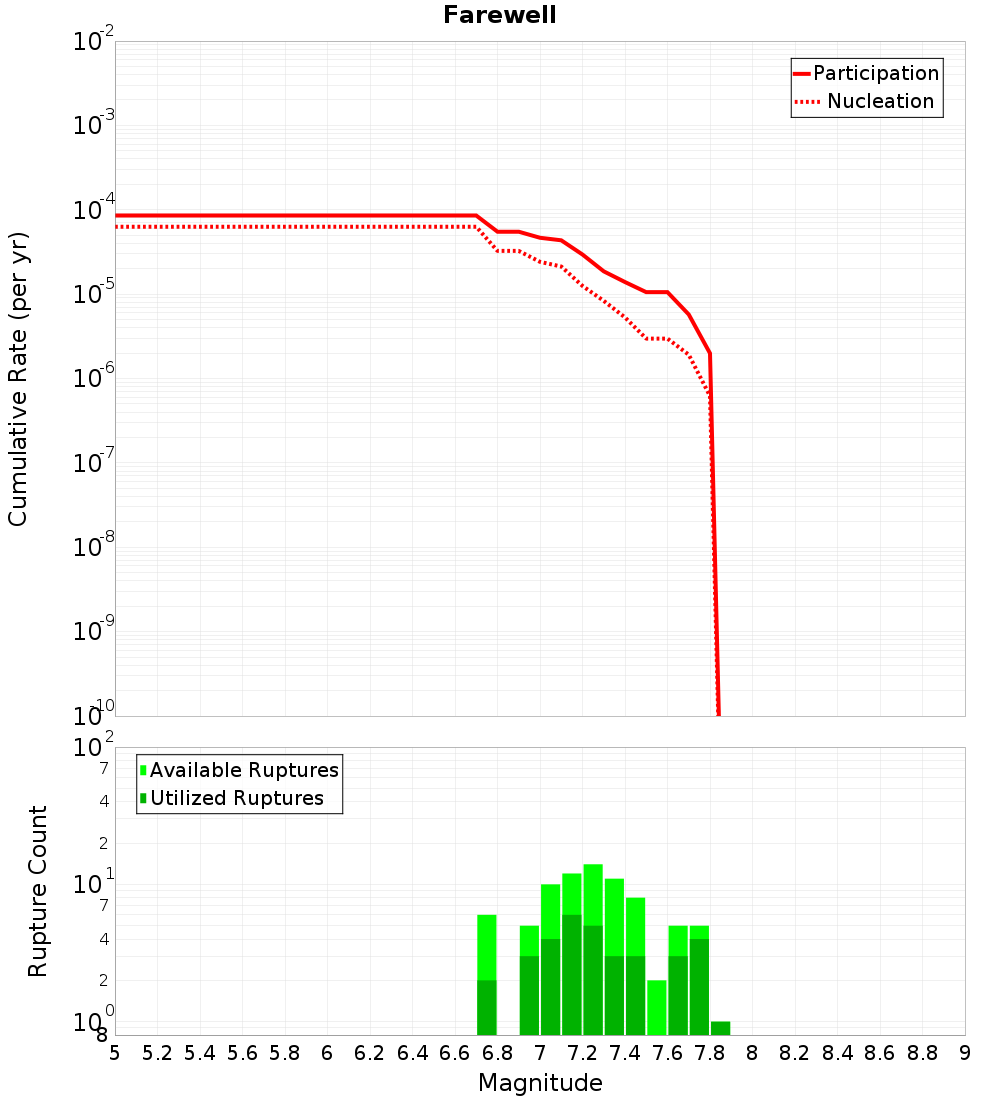

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

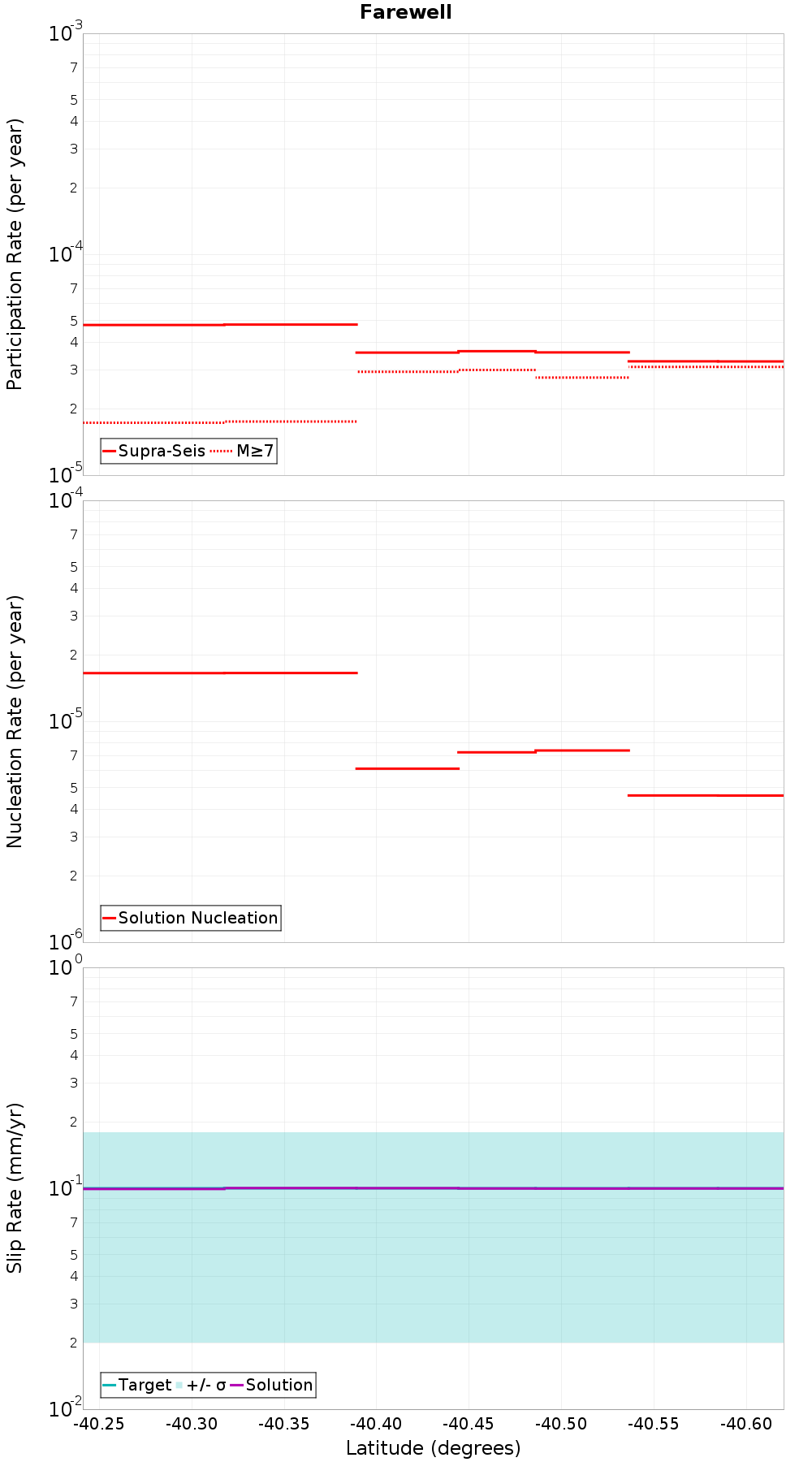

Along-Strike Values

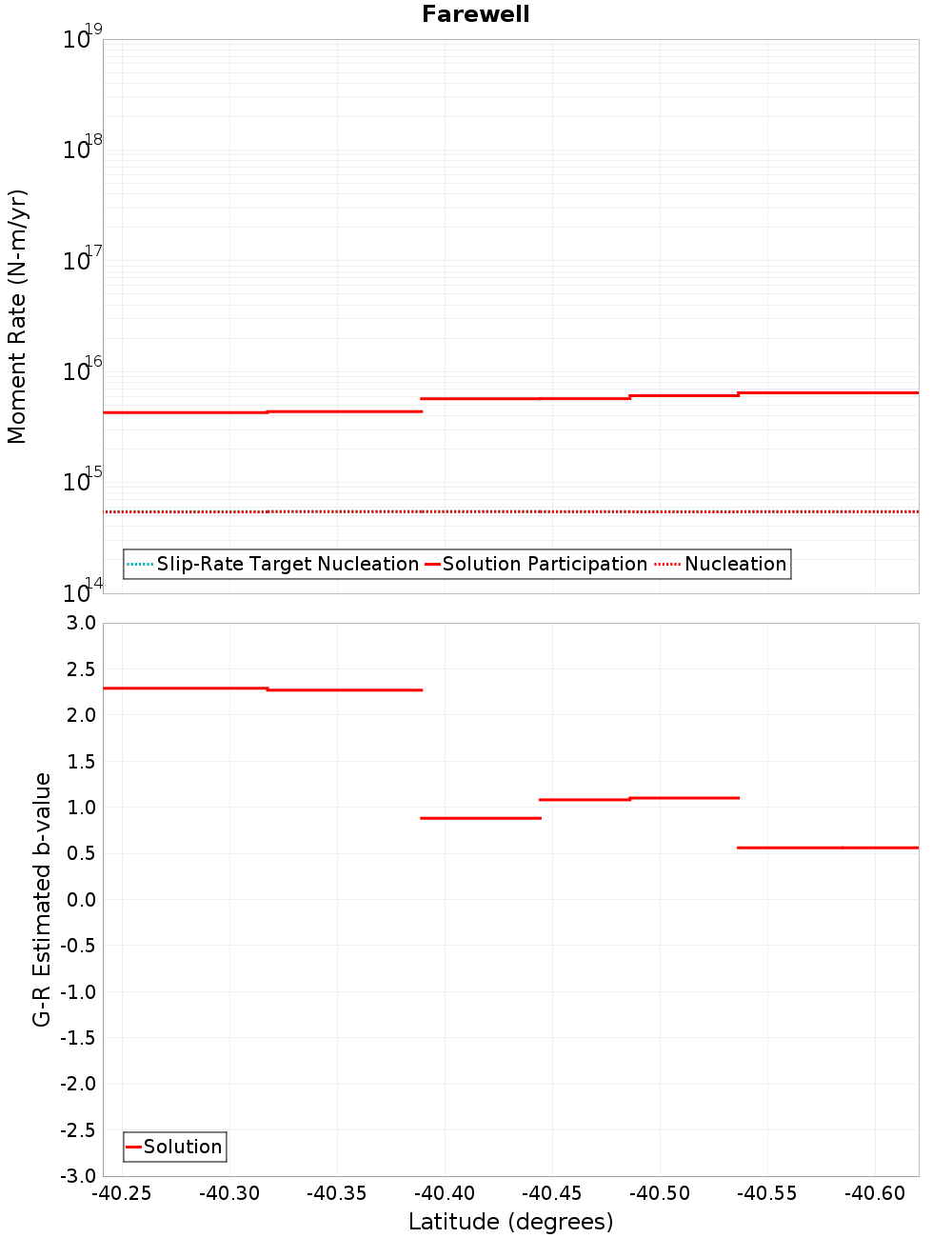

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wakamarama Offshore, 0.22 km away |
| Wakamarama, 0.23 km away |
| Kahurangi, 0.25 km away |
| Kongahau, 3.83 km away |
| Cape Foulwind 4, 19.87 km away |
Wakamarama Offshore, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 1.3091066E-5 |
Wakamarama, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 8.8903425E-6 |
Kahurangi, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 7.011628E-6 |
Kongahau, 3.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.8092887E-5 |
Cape Foulwind 4, 19.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 7.010943E-6 |
