Papatea Details

Property	Value
Rupture Count	369
Ruptures Above Sect Min Mag	369
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.76, 8.45]
Length Range	[18, 806] km
Total Rate	3.963967E-4 /yr
Multi-Fault Rate	3.963967E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

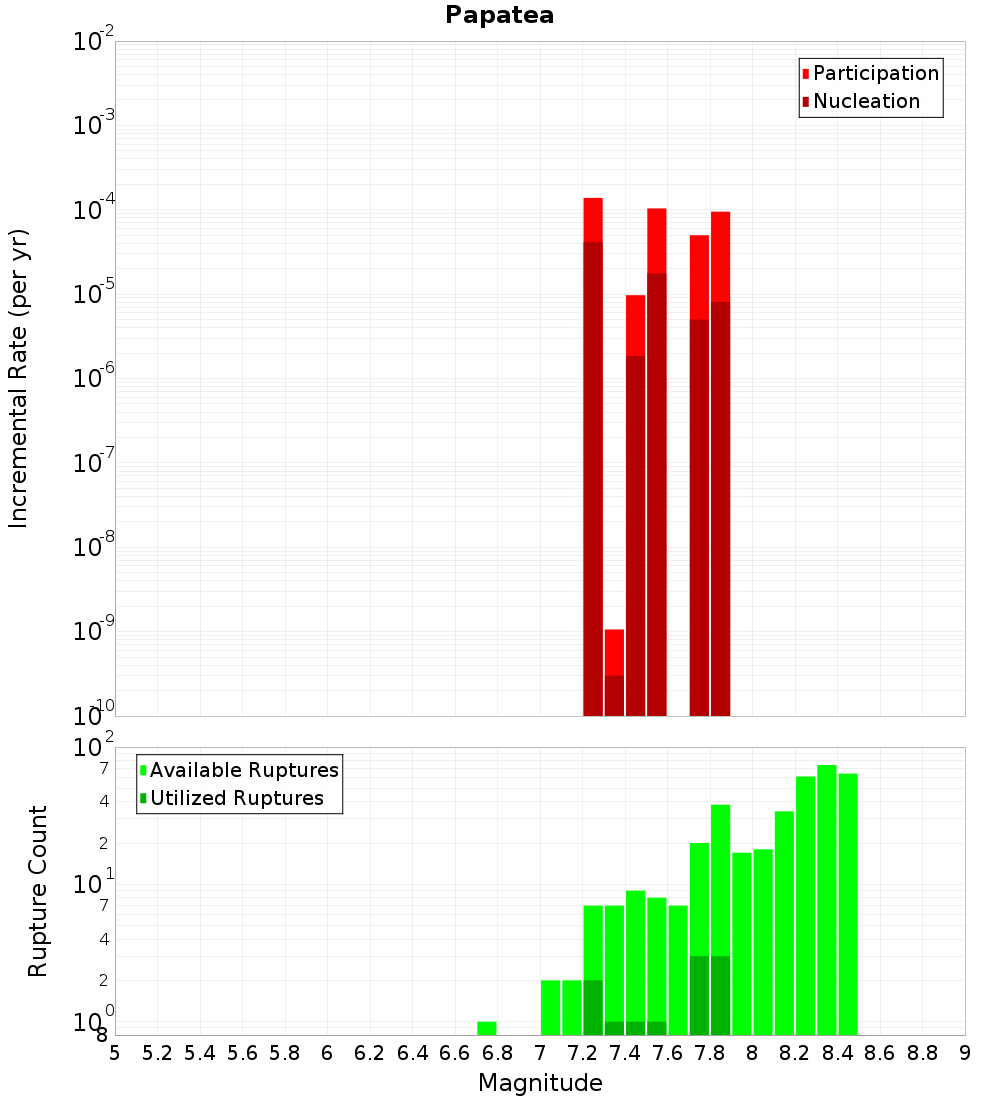

Magnitude-Frequency Distribution

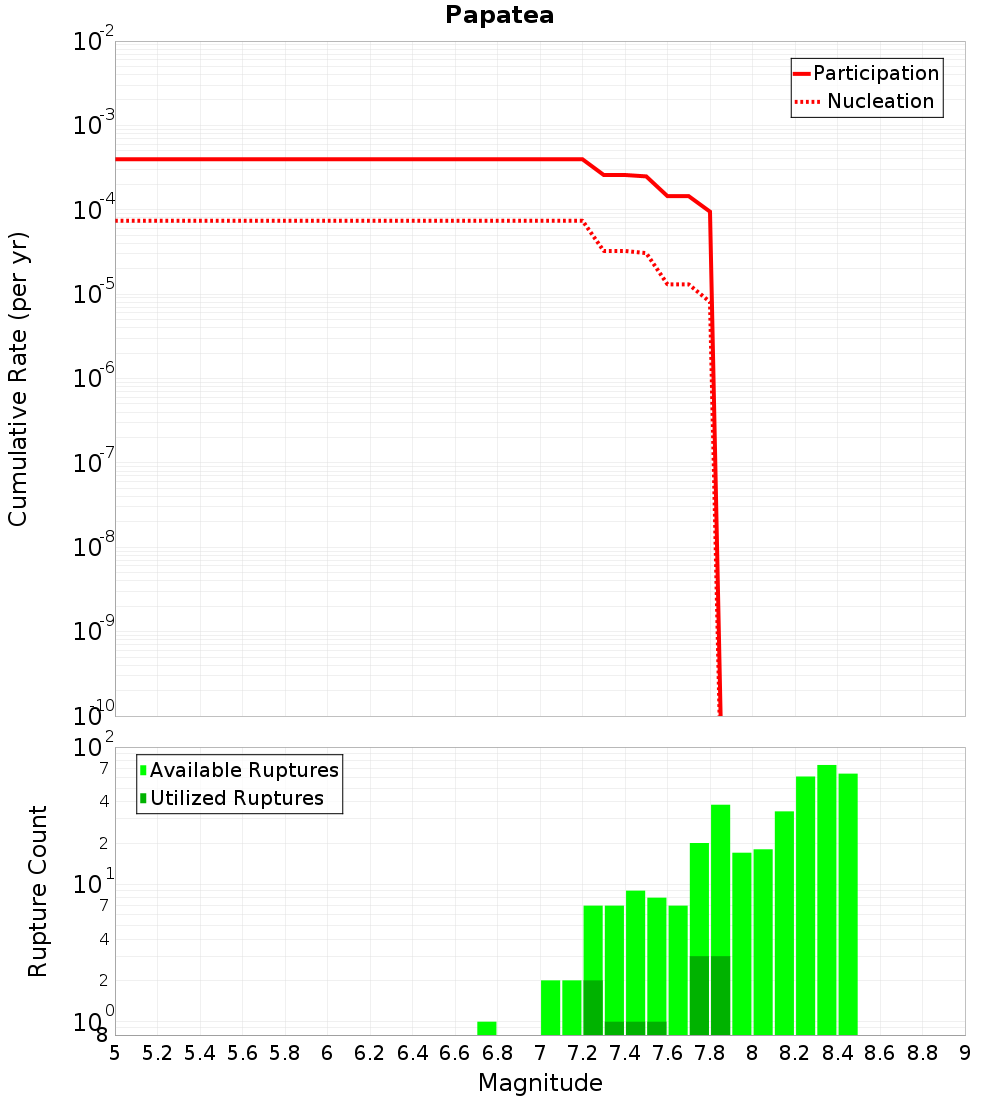

Incremental	Cumulative

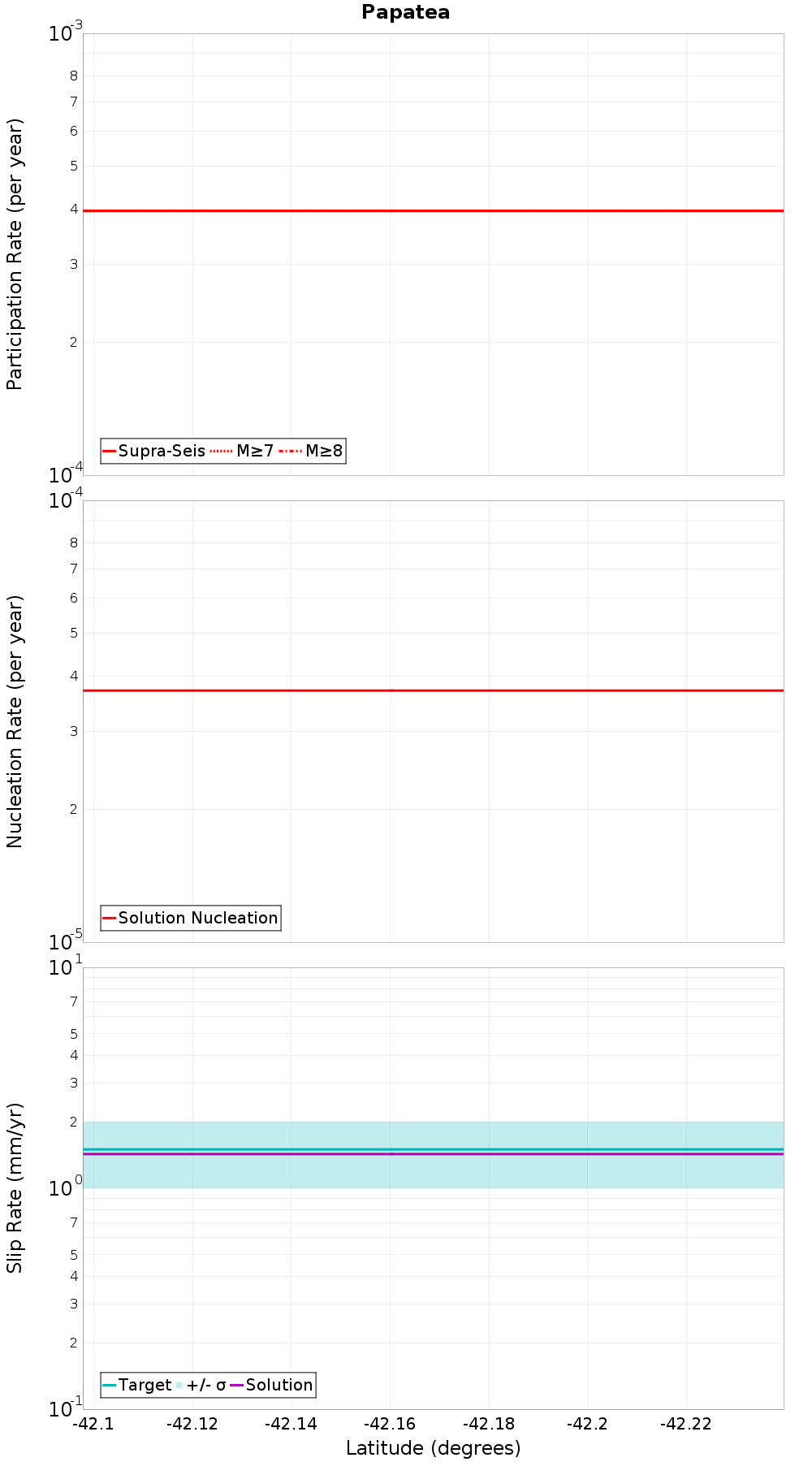

Along-Strike Values

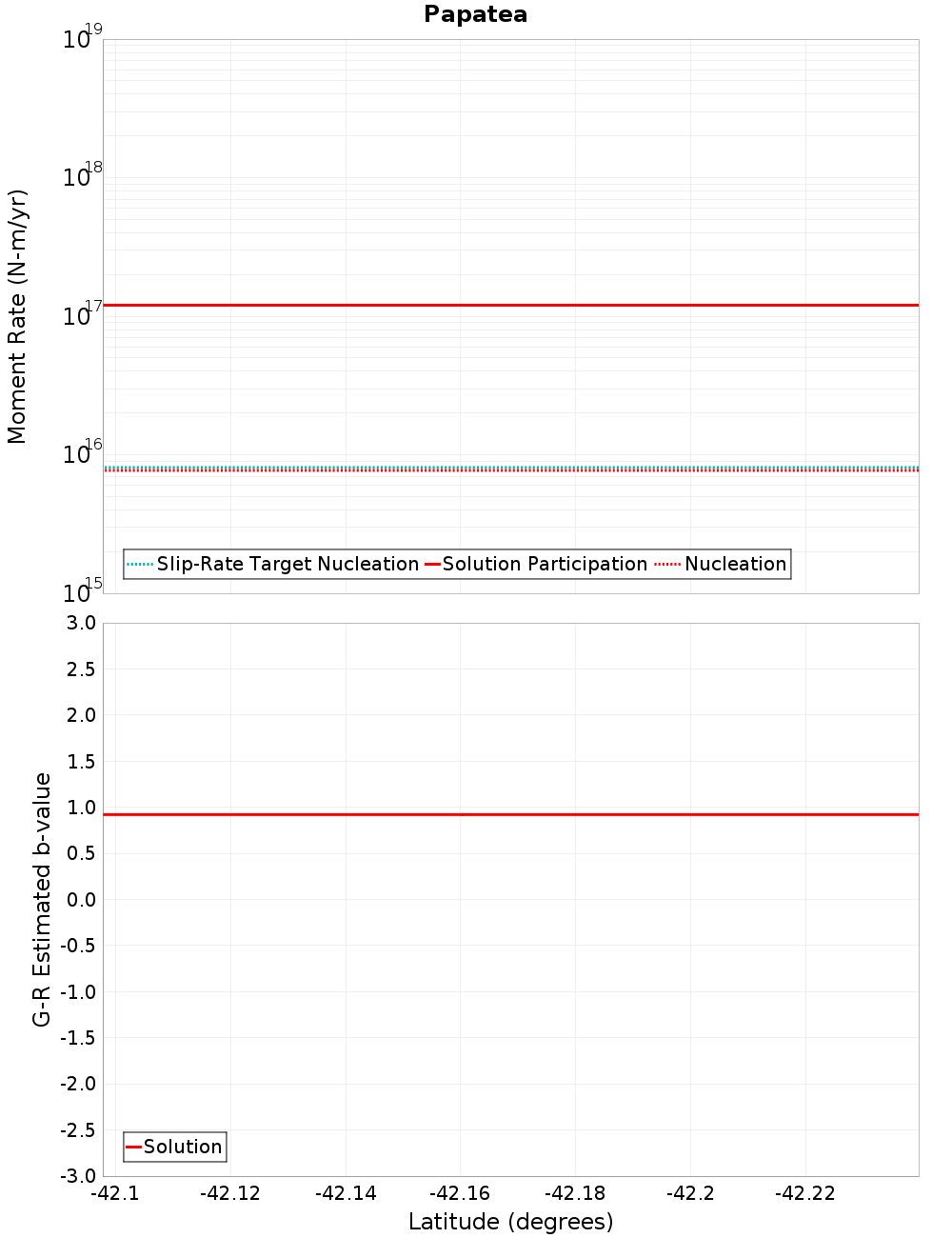

Moment-Rates and b-Values

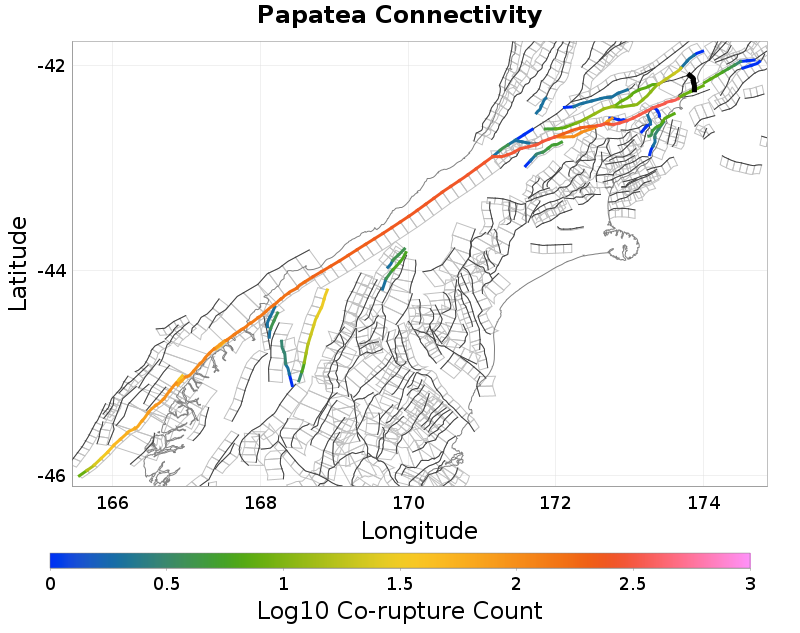

Connectivity

Nearby Sections

Fault Section
Kekerengu 1, 0 km away
Fidget, 0 km away
Jordan, 0 km away
Hope: Seaward, 0.03 km away
Kaikoura - Mangamaunu, 4.97 km away
Hope: Conway, 10.19 km away
Hope: Te Rapa, 11.56 km away
Clarence: Northeast, 11.87 km away
Marlborough Slope 2, 18.28 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Seaward, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Kaikoura - Mangamaunu, 4.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 10.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	true
Directly Connected?	true
Co-rupture Count	348
Co-rupture Rate	3.963967E-4

Hope: Te Rapa, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0

Clarence: Northeast, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	0.0

Marlborough Slope 2, 18.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzODguNW41VnVj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
