Calypso 2 Details

PropertyValue
Rupture Count2,221
Ruptures Above Sect Min Mag2,221
Ruptures w/ Nonzero Rates59
Magnitude Range[6.72, 8.27]
Length Range[14, 511] km
Total Rate1.3206374E-4 /yr
Multi-Fault Rate1.3206374E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults56

Table Of Contents

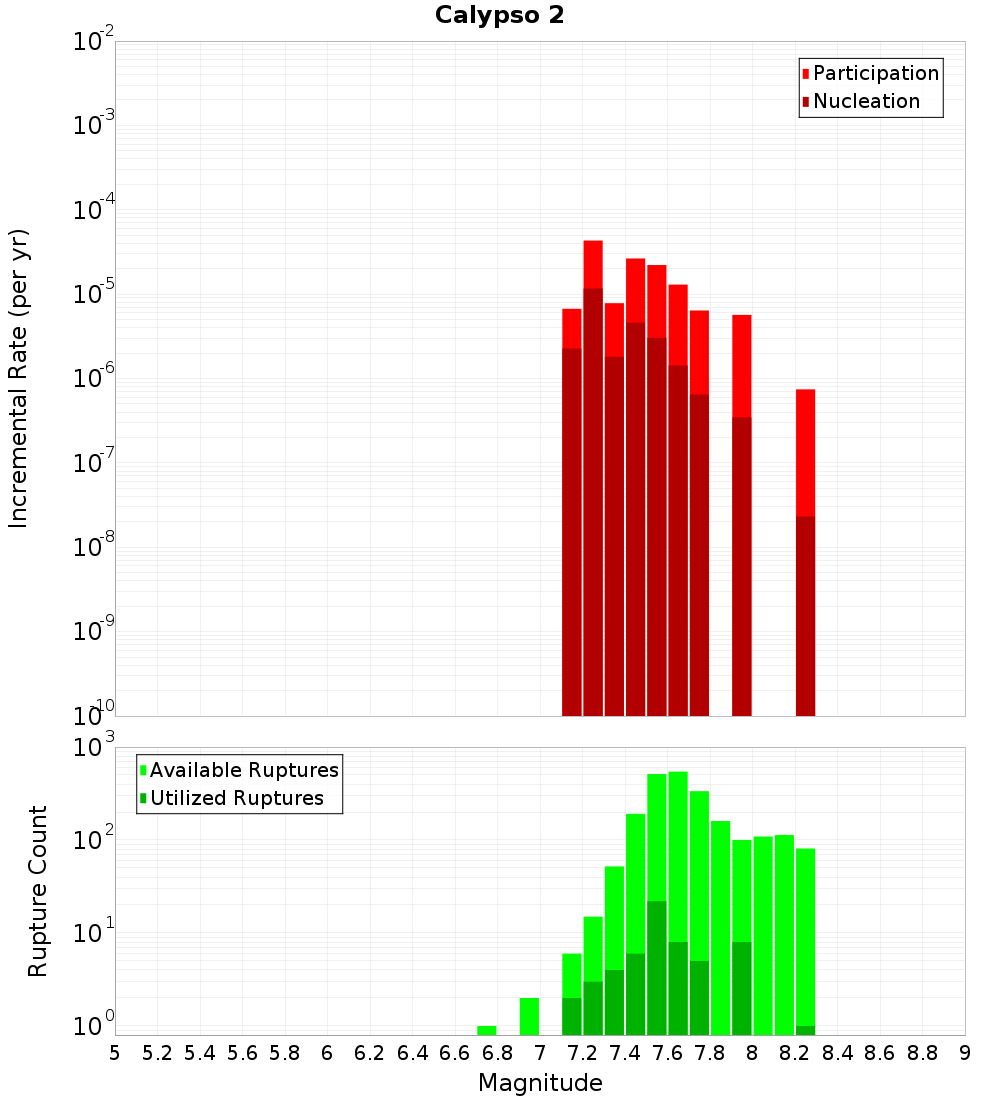

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

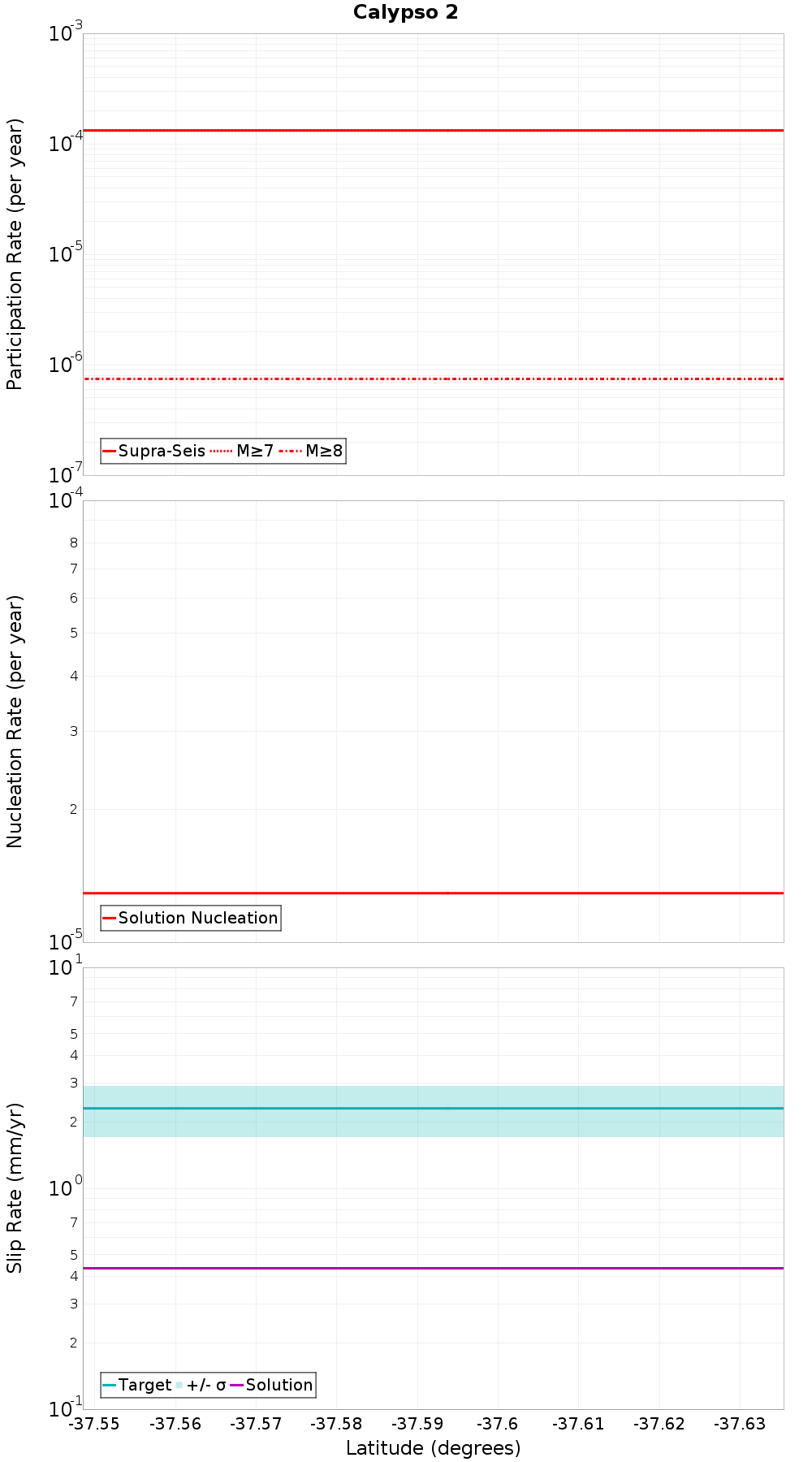

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.2 km awayVolkner 4, 11.95 km away
Te Arawa 1, 1.54 km awayTuatoru 2, 12.9 km away
Tuatoru 1, 3.86 km awayRangitaiki 1, 14.65 km away
Te Arawa 2, 6.99 km awayWaimanawa - Waikaremoana, 14.96 km away
Rangitaiki 2, 8.01 km awayOpotiki 3, 16.55 km away
Ohiwa 1, 8.32 km awayTuakana 6, 17.76 km away
White Island 1, 8.93 km awayOhae 1, 17.8 km away
Volkner 3, 9.04 km awayTe Arawa 3, 18.58 km away
White Island 2, 10.04 km awayHariki, 18.86 km away

Whakaari 4, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count643
Co-rupture Rate9.693334E-6

Te Arawa 1, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?true
Co-rupture Count1,583
Co-rupture Rate6.900598E-5

Tuatoru 1, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?true
Co-rupture Count417
Co-rupture Rate1.4657882E-5

Te Arawa 2, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate1.0900457E-5

Rangitaiki 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?true
Co-rupture Count1,561
Co-rupture Rate1.1707121E-4

Ohiwa 1, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

White Island 1, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count1,969
Co-rupture Rate3.117384E-5

Volkner 3, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count491
Co-rupture Rate2.0028912E-5

Volkner 4, 11.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count499
Co-rupture Rate1.7467493E-5

Rangitaiki 1, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate9.418767E-5

Waimanawa - Waikaremoana, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 16.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate0.0

Tuakana 6, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 17.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count85
Co-rupture Rate1.9319175E-5

Hariki, 18.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMzOTQuMHlCSDk3
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate3.2947269E-6
