Alpine: Resolution - Charles Details

PropertyValue
Rupture Count20,440
Ruptures Above Sect Min Mag20,439
Ruptures w/ Nonzero Rates234
Magnitude Range[6.55, 8.63]
Length Range[10, 1,202] km
Total Rate0.0021147993 /yr
Multi-Fault Rate0.0021147993 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults108

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

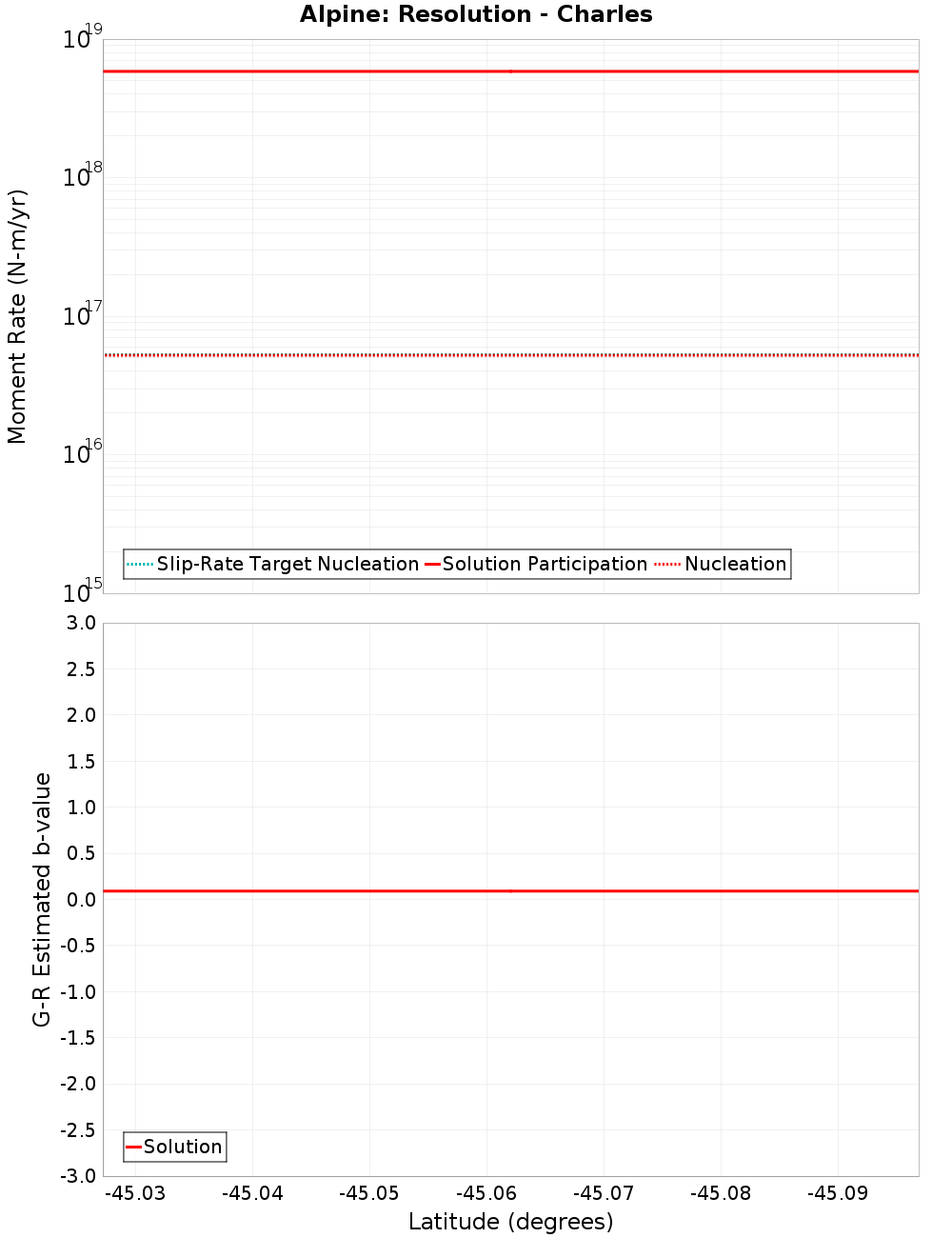

Moment-Rates and b-Values

(top)

Along-strike plot

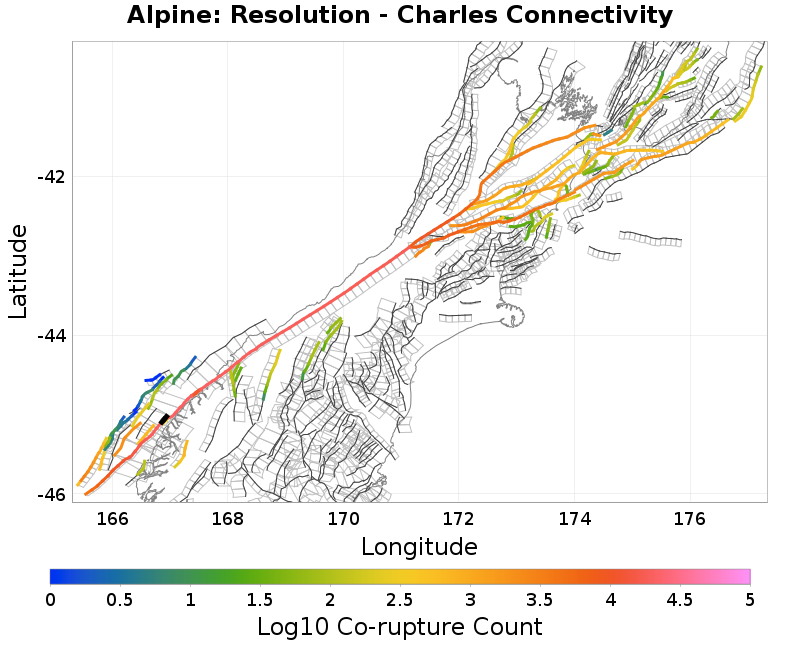

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Dagg, 0 km away
Central Wedge 4 - South Wedge 411, 0.29 km away
South Wedge 2, 0.33 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 3.34 km away
Central Wedge 1 & 2 & 3, 3.37 km away
South Wedge 1, 10.28 km away
South Wedge 3-6-10, 16.42 km away
South Wedge 5, 16.5 km away

Alpine: Resolution - Dagg, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?true
Directly Connected?true
Co-rupture Count19,142
Co-rupture Rate0.0021147993

Central Wedge 4 - South Wedge 411, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?true
Directly Connected?false
Co-rupture Count256
Co-rupture Rate5.264611E-9

South Wedge 2, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Nancy, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?true
Directly Connected?true
Co-rupture Count296
Co-rupture Rate0.0

Alpine: Caswell, 3.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?true
Directly Connected?true
Co-rupture Count20,360
Co-rupture Rate0.0021082745

Central Wedge 1 & 2 & 3, 3.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate2.0219522E-4

South Wedge 1, 10.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?true
Directly Connected?false
Co-rupture Count642
Co-rupture Rate4.573464E-5

South Wedge 3-6-10, 16.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?true
Directly Connected?false
Co-rupture Count2,067
Co-rupture Rate1.0485768E-4

South Wedge 5, 16.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NjkuMGF0anNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
