Whakatane: North Details

PropertyValue
Rupture Count5,970
Ruptures Above Sect Min Mag5,963
Ruptures w/ Nonzero Rates158
Magnitude Range[6.63, 8.40]
Length Range[16, 687] km
Total Rate8.77876E-4 /yr
Multi-Fault Rate8.7340525E-4 /yr (99.49%)
Directly-Connected Faults8
All Co-Rupturing Faults91

Table Of Contents

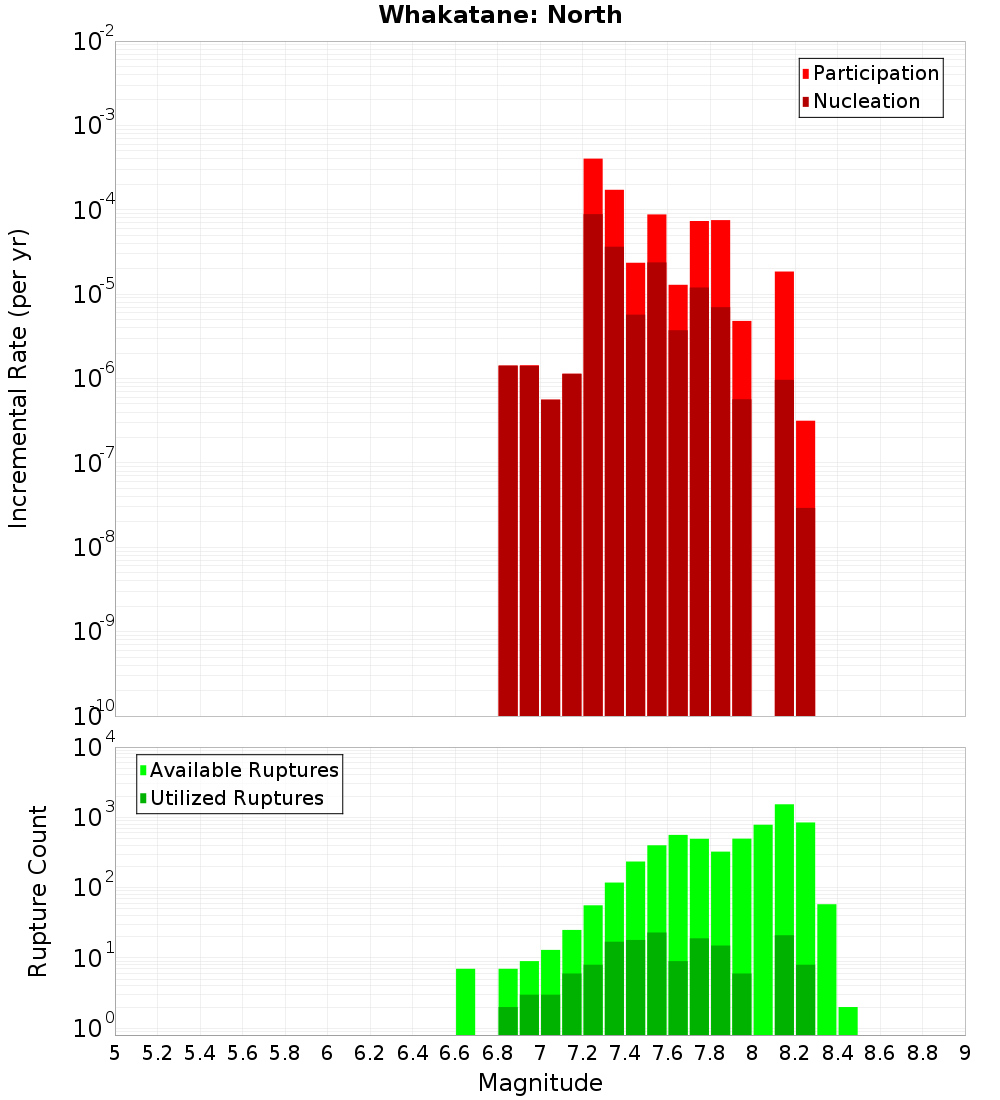

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

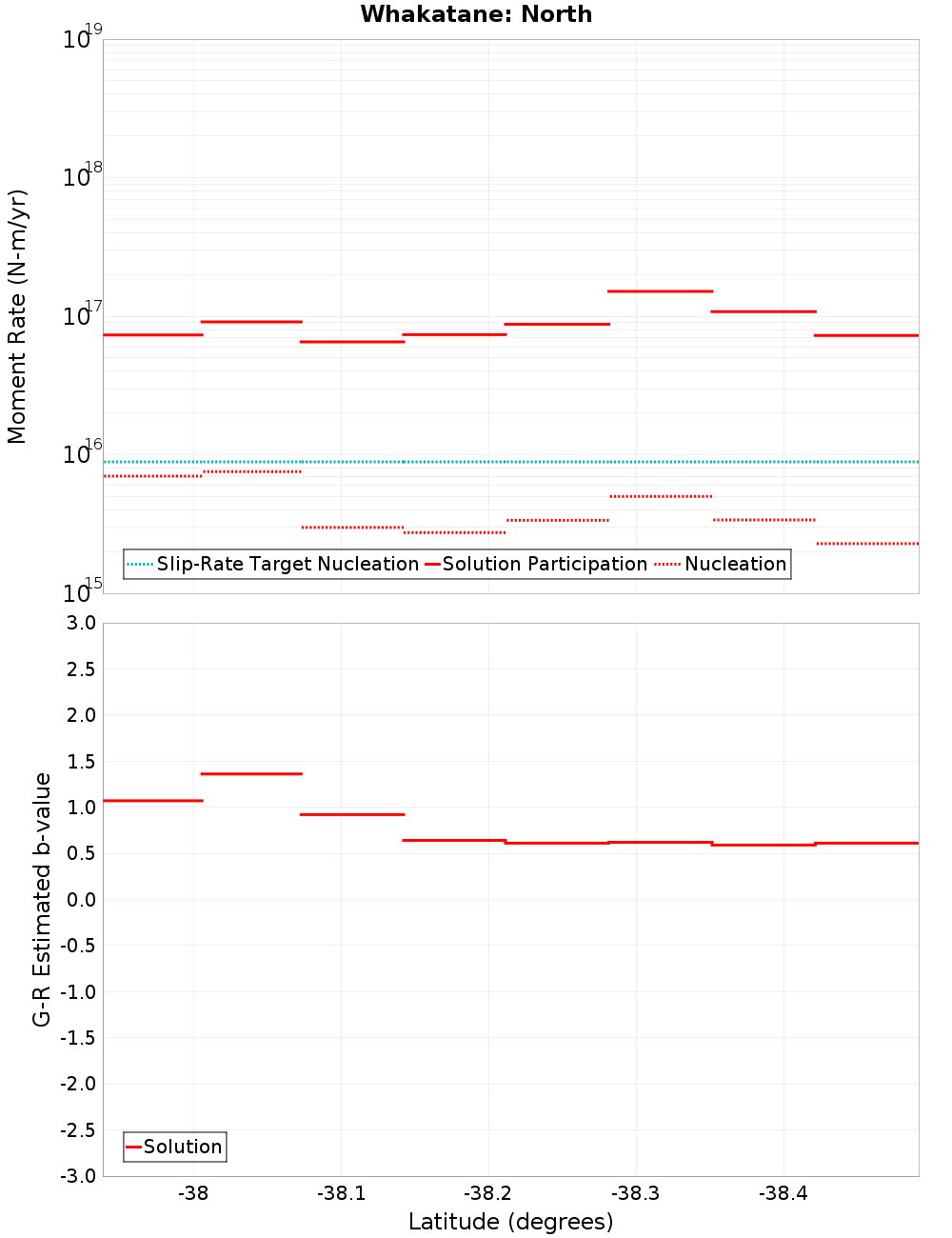

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakatane: South, 0 km awayWaiotahi: North, 10.4 km away
Otakiri, 0.17 km awayWaiohau: South, 10.71 km away
Matata, 1.44 km awayWaiotahi: South, 10.84 km away
White Island 1, 3.09 km awayRangitaiki 1, 11.12 km away
Edgecumbe Coastal, 3.09 km awayWaiohau: North, 12.32 km away
Braemar, 4.83 km awayTe Whaiti North, 13.65 km away
Edgecumbe 1987, 7.15 km awayTe Whaiti South, 14.65 km away
Waimana: North, 7.34 km awayRangitaiki 2, 16.94 km away
Awakeri, 7.56 km awayWheao: North, 17.55 km away
Waimana: South, 8.55 km awayWaimanawa - Waikaremoana, 18.17 km away

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?true
Co-rupture Count1,252
Co-rupture Rate1.7506548E-4

Otakiri, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?true
Co-rupture Count61
Co-rupture Rate0.0

Matata, 1.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count112
Co-rupture Rate3.4027333E-5

White Island 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?true
Co-rupture Count3,768
Co-rupture Rate6.7091365E-5

Edgecumbe Coastal, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?true
Co-rupture Count301
Co-rupture Rate5.5855984E-4

Braemar, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate1.2939841E-4

Edgecumbe 1987, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate5.556204E-4

Waimana: North, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?true
Co-rupture Count209
Co-rupture Rate7.5275464E-5

Awakeri, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 8.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?true
Co-rupture Count2,977
Co-rupture Rate6.518847E-5

Waiotahi: North, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count84
Co-rupture Rate9.306765E-5

Waiotahi: South, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count164
Co-rupture Rate2.938973E-6

Waiohau: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate4.64846E-4

Te Whaiti North, 13.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate2.8649089E-5

Te Whaiti South, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count108
Co-rupture Rate9.501032E-9

Rangitaiki 2, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count1,073
Co-rupture Rate5.037409E-6

Wheao: North, 17.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count122
Co-rupture Rate3.20466E-6

Waimanawa - Waikaremoana, 18.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0NzQuMEpnYURU
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate4.933124E-6
