Alpine: George to Jacksons Details

PropertyValue
Rupture Count77,005
Ruptures Above Sect Min Mag76,996
Ruptures w/ Nonzero Rates10,191
Magnitude Range[6.86, 8.63]
Length Range[21, 1,204] km
Total Rate0.0068950607 /yr
Multi-Fault Rate0.004951959 /yr (71.82%)
Directly-Connected Faults6
All Co-Rupturing Faults126

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

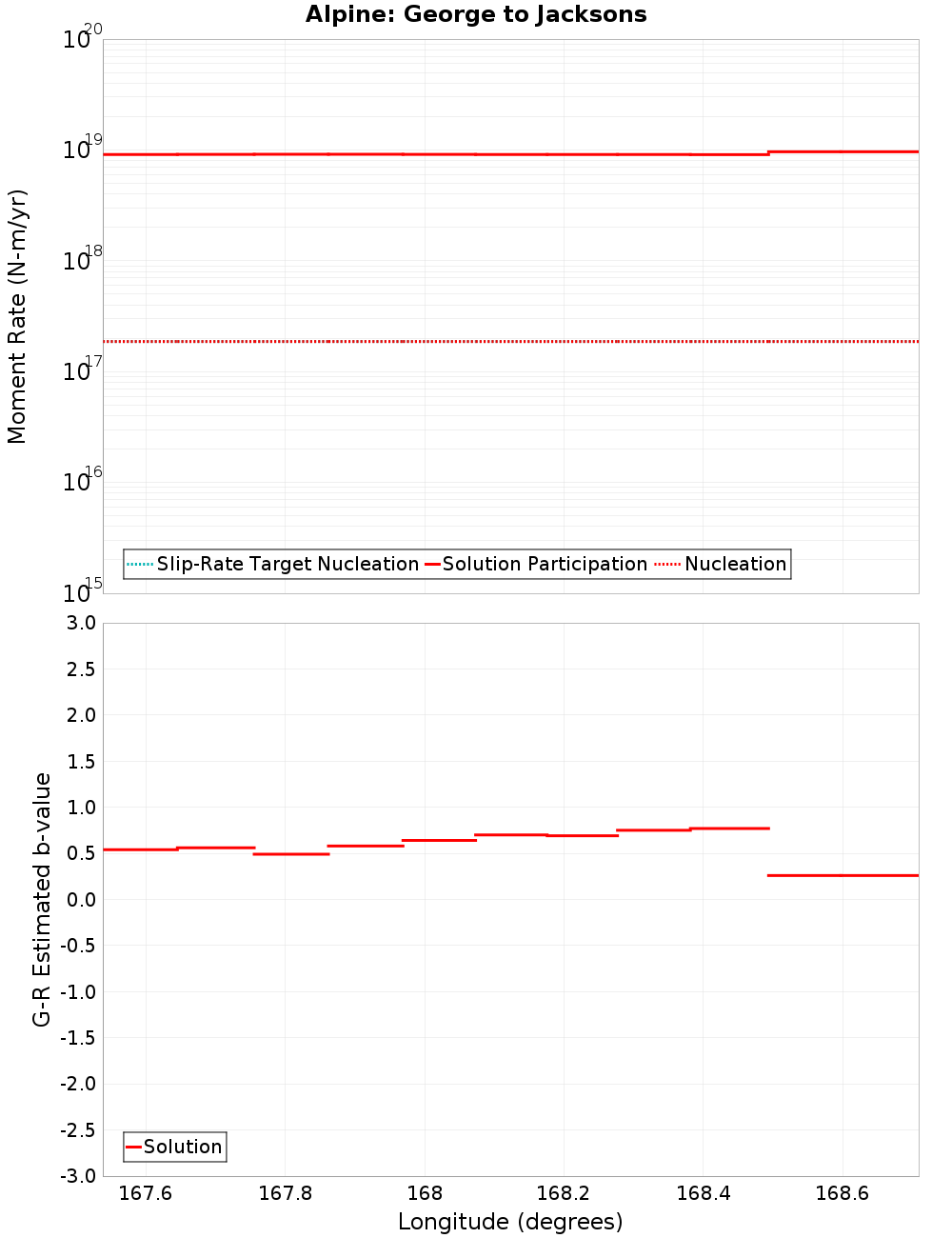

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George seaward, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Alpine: George landward, 0 km away
Skippers, 0.18 km away
Hollyford, 0.23 km away
Madagascar, 0.25 km away
Darran, 0.26 km away
Barn, 0.78 km away
Moonlight North, 9.46 km away
Alpine: Caswell - South George, 15.22 km away
Livingstone, 18.42 km away

Alpine: George seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count35,991
Co-rupture Rate0.002399734

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count74,715
Co-rupture Rate0.0034349256

Alpine: George landward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count29,105
Co-rupture Rate0.0012029043

Skippers, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count445
Co-rupture Rate1.1343829E-4

Hollyford, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count1,346
Co-rupture Rate2.4081858E-4

Madagascar, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Darran, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count1,142
Co-rupture Rate2.6527734E-4

Barn, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonlight North, 9.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count480
Co-rupture Rate7.3272845E-6

Alpine: Caswell - South George, 15.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count62,301
Co-rupture Rate0.0033589164

Livingstone, 18.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
