Backbone Details

PropertyValue
Rupture Count325
Ruptures Above Sect Min Mag325
Ruptures w/ Nonzero Rates50
Magnitude Range[7.07, 8.10]
Length Range[24, 255] km
Total Rate1.1388225E-5 /yr
Multi-Fault Rate9.6600115E-6 /yr (84.82%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

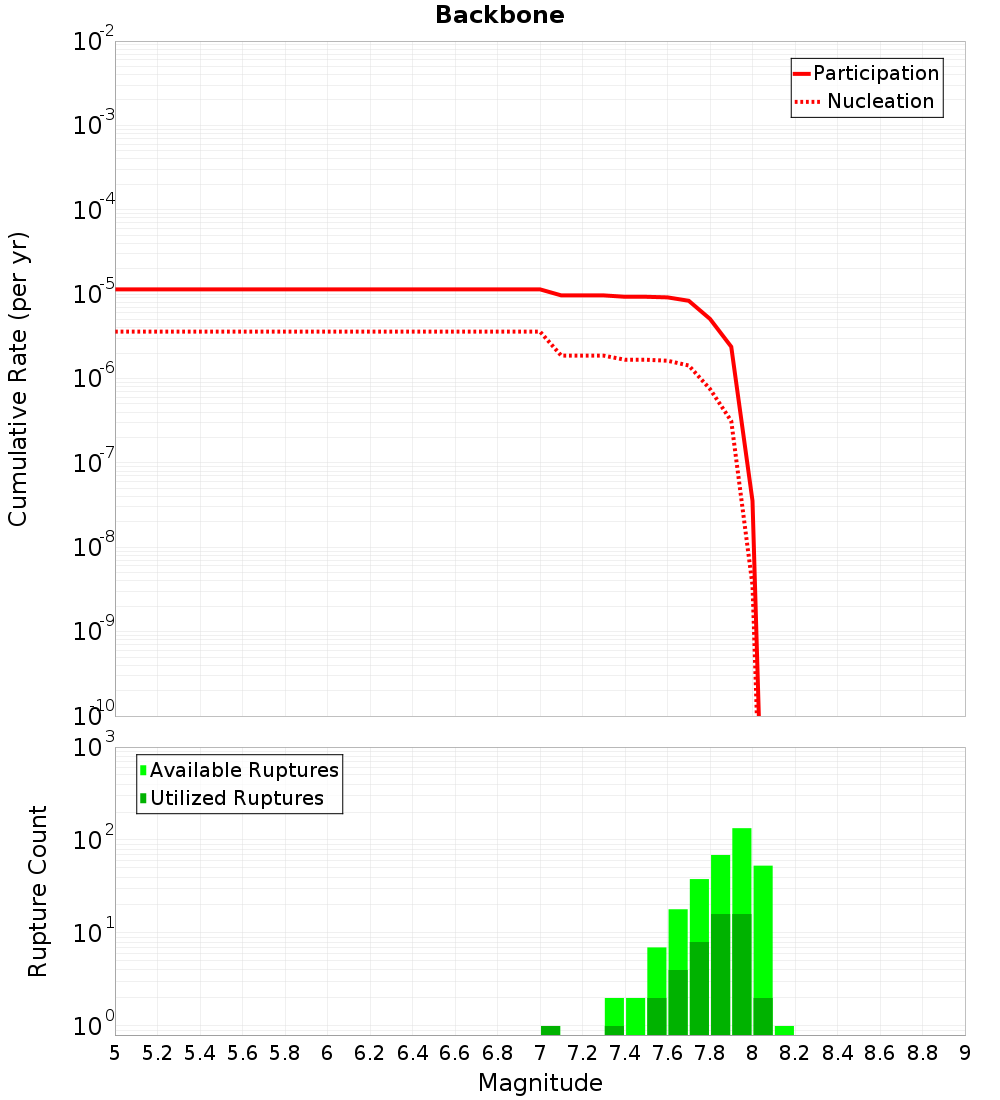

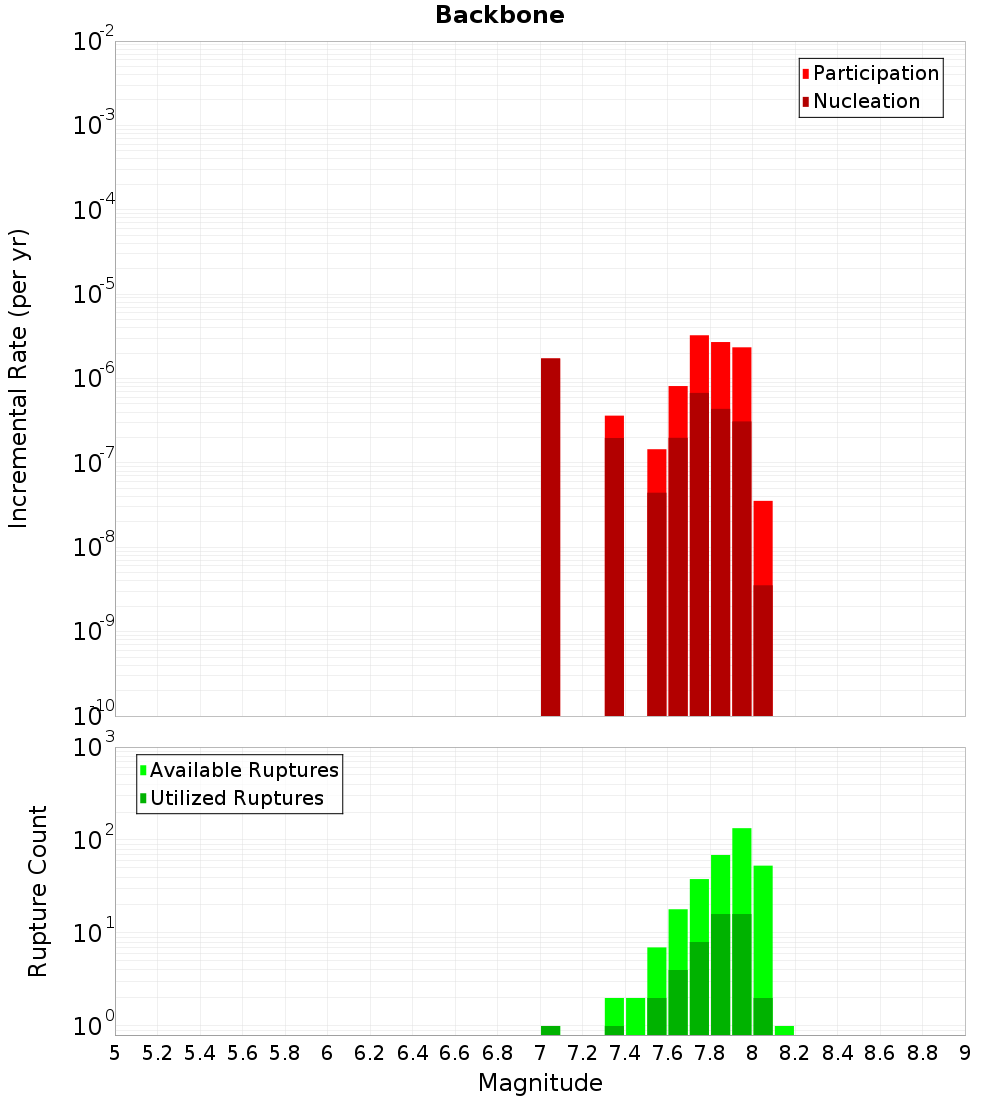

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

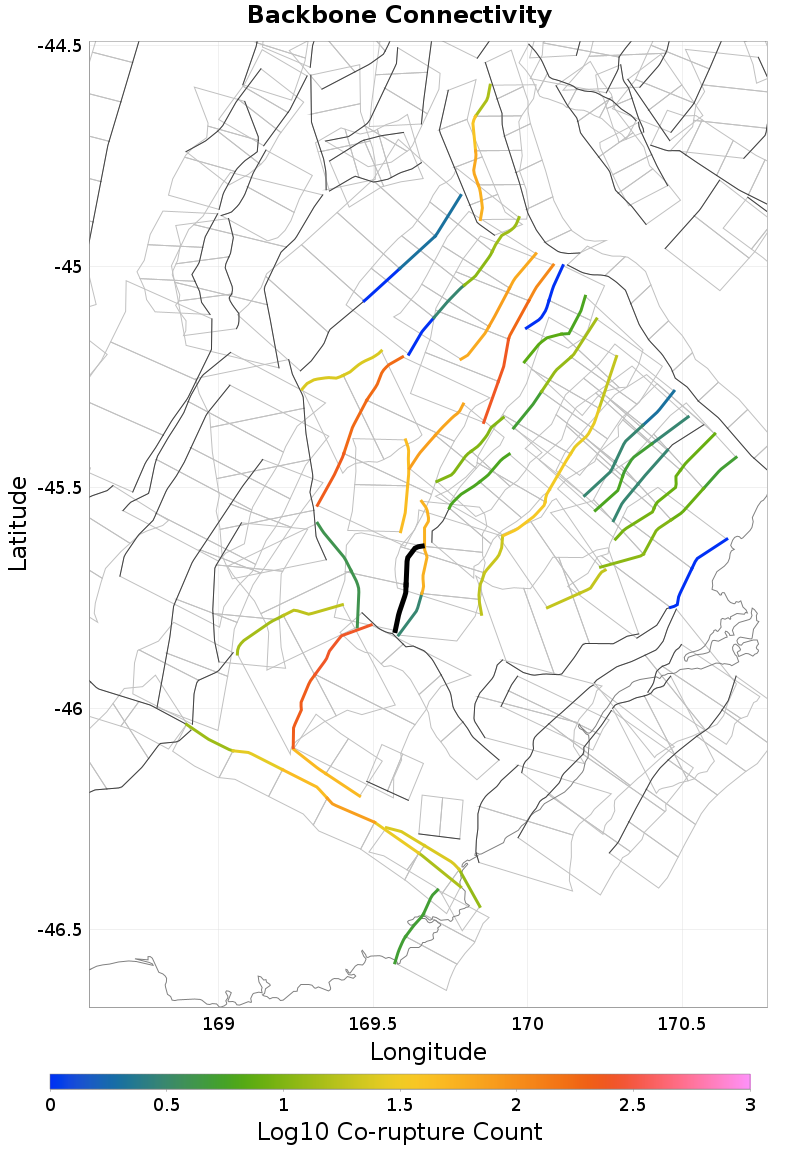

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Little Valley, 0.55 km awayWendon Valley, 10.78 km away
Beaumont River, 0.6 km awayWaikaia, 14.16 km away
Blue Mountain, 1.02 km awayPylap, 15.99 km away
Tuapeka, 1.03 km awayGalloway, 16.03 km away
Logan Burn, 2.62 km awayLong Valley, 16.09 km away
Lake Onslow, 3.64 km awayHyde North, 16.61 km away
Spylaw, 4.47 km awayOld Man, 17.65 km away
Hyde South - The Twins, 6.59 km awayGarvie, 17.84 km away
Teviot, 8.3 km away

Little Valley, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count242
Co-rupture Rate7.223884E-6

Beaumont River, 0.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate5.4834093E-8

Blue Mountain, 1.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count254
Co-rupture Rate4.1342128E-6

Tuapeka, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate7.1555484E-11

Lake Onslow, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate4.813922E-6

Spylaw, 4.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Hyde South - The Twins, 6.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate9.005296E-12

Teviot, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wendon Valley, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikaia, 14.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pylap, 15.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Galloway, 16.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate2.6192429E-6

Long Valley, 16.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count76
Co-rupture Rate4.3329296E-6

Hyde North, 16.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate2.8822575E-9

Old Man, 17.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 17.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
