Tuatoru 1 Details

Property	Value
Rupture Count	6,042
Ruptures Above Sect Min Mag	6,042
Ruptures w/ Nonzero Rates	161
Magnitude Range	[6.56, 8.30]
Length Range	[9, 566] km
Total Rate	0.0010757884 /yr
Multi-Fault Rate	9.965464E-4 /yr (92.63%)
Directly-Connected Faults	5
All Co-Rupturing Faults	50

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

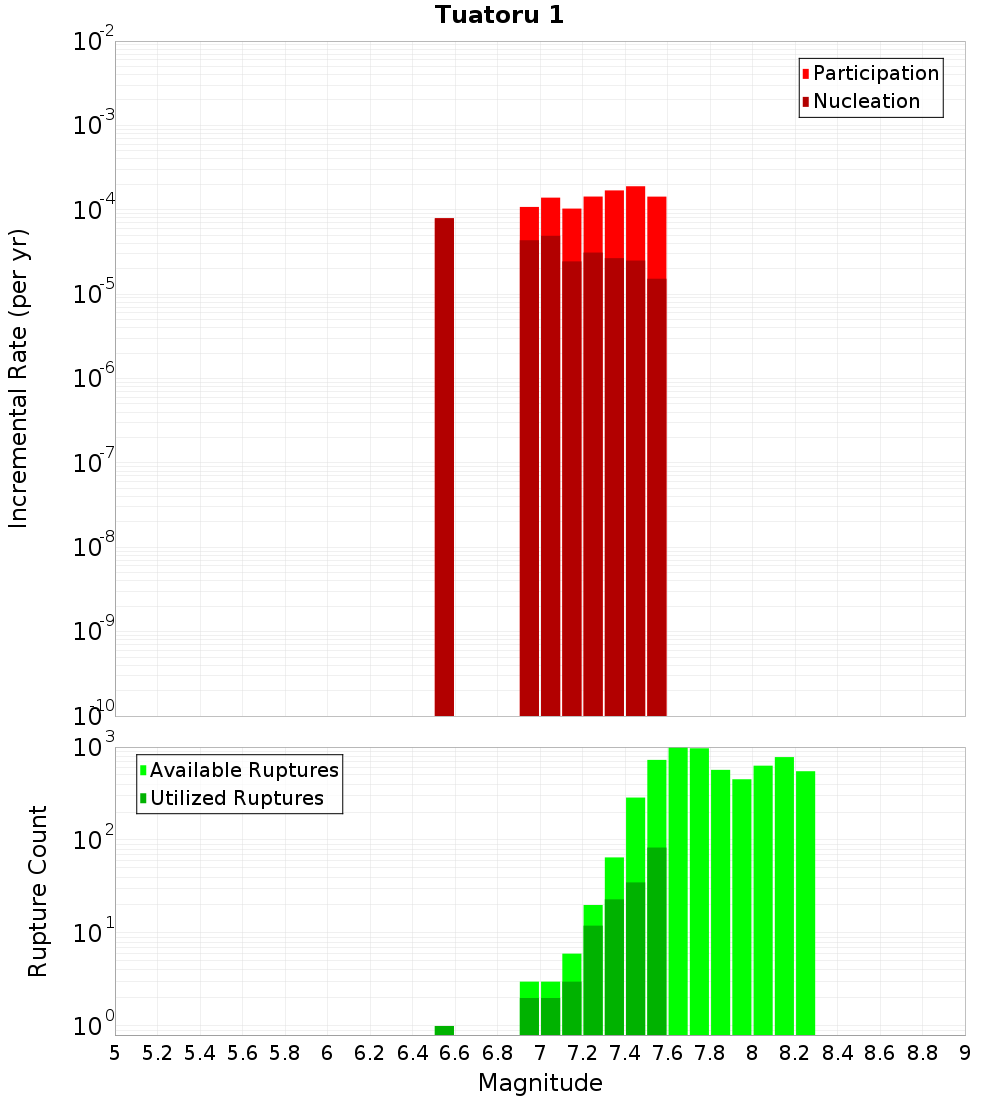

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

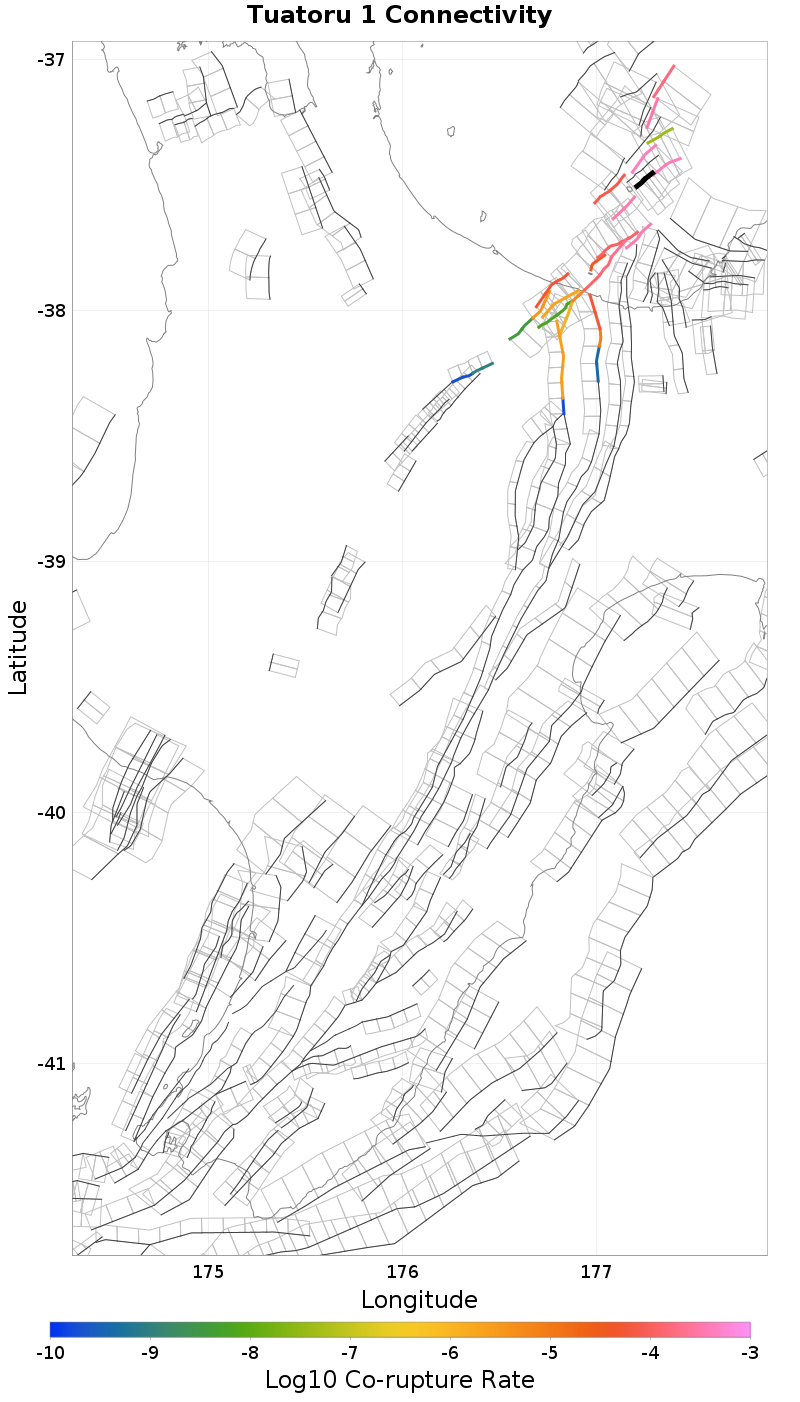

Connectivity

Nearby Sections

Fault Section	Fault Section
Tuatoru 2, 0.43 km away	Volkner 3, 10.46 km away
Te Arawa 1, 3.09 km away	Volkner 4, 11.02 km away
Calypso 2, 3.86 km away	Ohiwa 1, 11.29 km away
Te Arawa 2, 4.64 km away	Ohae 1, 16.26 km away
Hariki, 5.5 km away	Otara West 1, 17.15 km away
Whakaari 4, 5.84 km away	Waimanawa - Waikaremoana, 18.66 km away
White Island 2, 5.84 km away	Rangitaiki 2, 19.16 km away
Opotiki 3, 8.45 km away	Otara East 1, 19.26 km away
Te Arawa 3, 9.82 km away

Tuatoru 2, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	true
Co-rupture Count	3,976
Co-rupture Rate	3.9975223E-4

Te Arawa 1, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 3.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	true
Co-rupture Count	417
Co-rupture Rate	3.426259E-4

Te Arawa 2, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	true
Co-rupture Count	628
Co-rupture Rate	4.2889052E-4

Hariki, 5.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	true
Co-rupture Count	2,654
Co-rupture Rate	7.446067E-5

White Island 2, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	true
Co-rupture Count	3,131
Co-rupture Rate	3.398477E-4

Opotiki 3, 8.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 3, 9.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	false
Co-rupture Count	97
Co-rupture Rate	4.0012182E-8

Volkner 3, 10.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Volkner 4, 11.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 11.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	false
Co-rupture Count	1,715
Co-rupture Rate	1.1870722E-4

Ohae 1, 16.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 1, 17.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 18.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 19.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	false
Co-rupture Count	1,252
Co-rupture Rate	1.10616136E-4

Otara East 1, 19.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMDJlZWRk
Connected?	true
Directly Connected?	false
Co-rupture Count	2,458
Co-rupture Rate	3.0029888E-4
