Opouawe - Uruti Details

Property	Value
Rupture Count	32,067
Ruptures Above Sect Min Mag	32,055
Ruptures w/ Nonzero Rates	1,067
Magnitude Range	[6.81, 8.62]
Length Range	[20, 1,204] km
Total Rate	9.723931E-4 /yr
Multi-Fault Rate	9.644761E-4 /yr (99.19%)
Directly-Connected Faults	12
All Co-Rupturing Faults	92

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

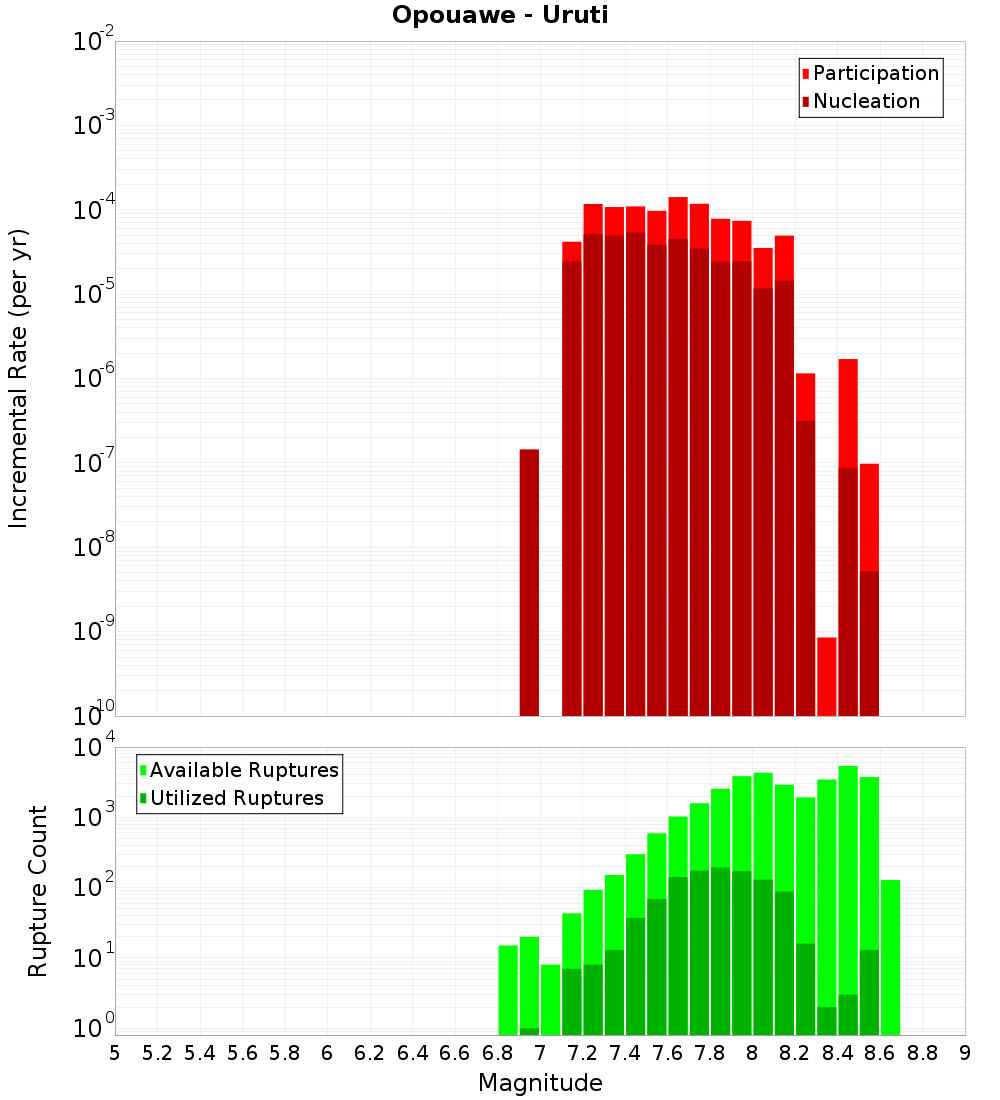

Magnitude-Frequency Distribution

Incremental	Cumulative

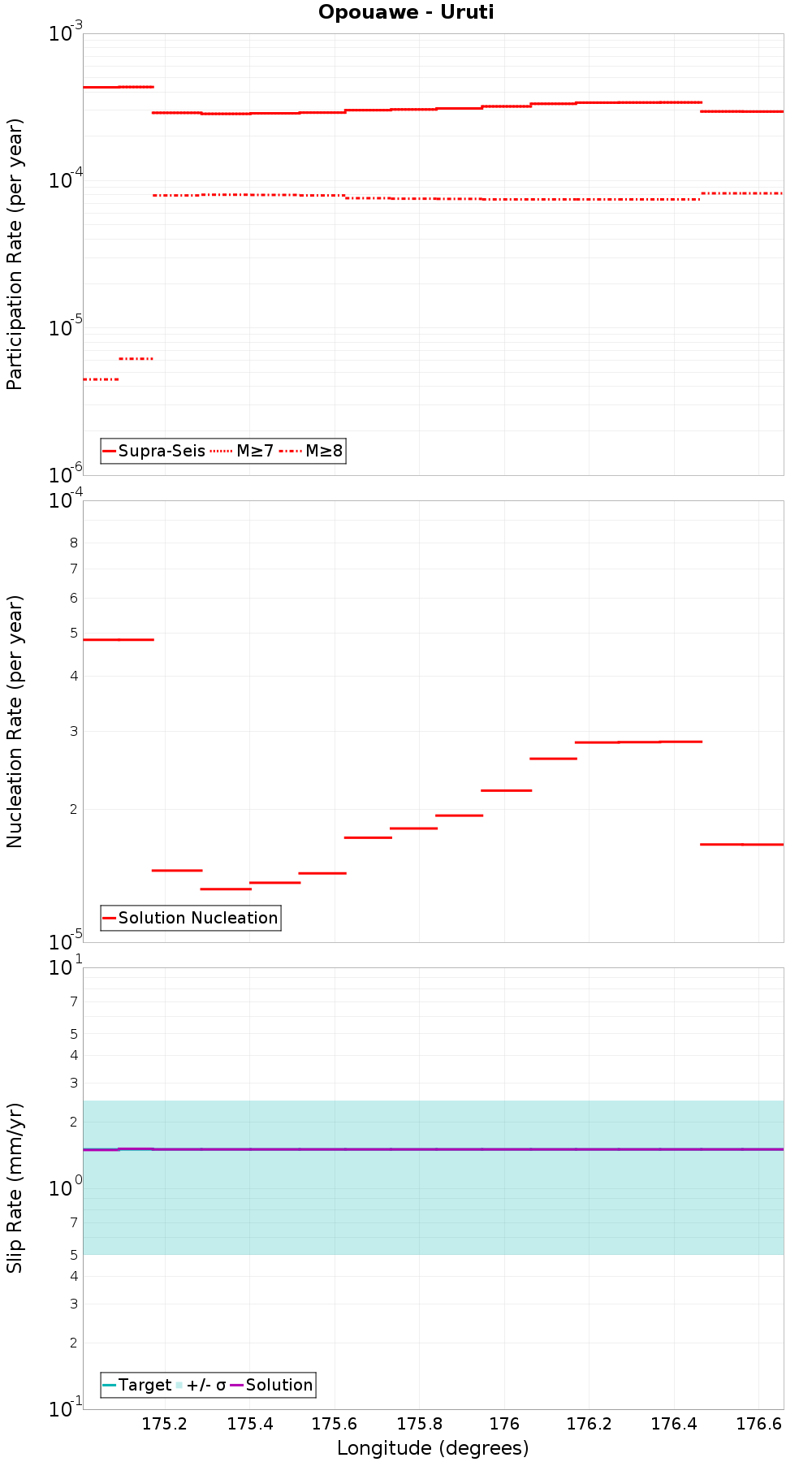

Along-Strike Values

Moment-Rates and b-Values

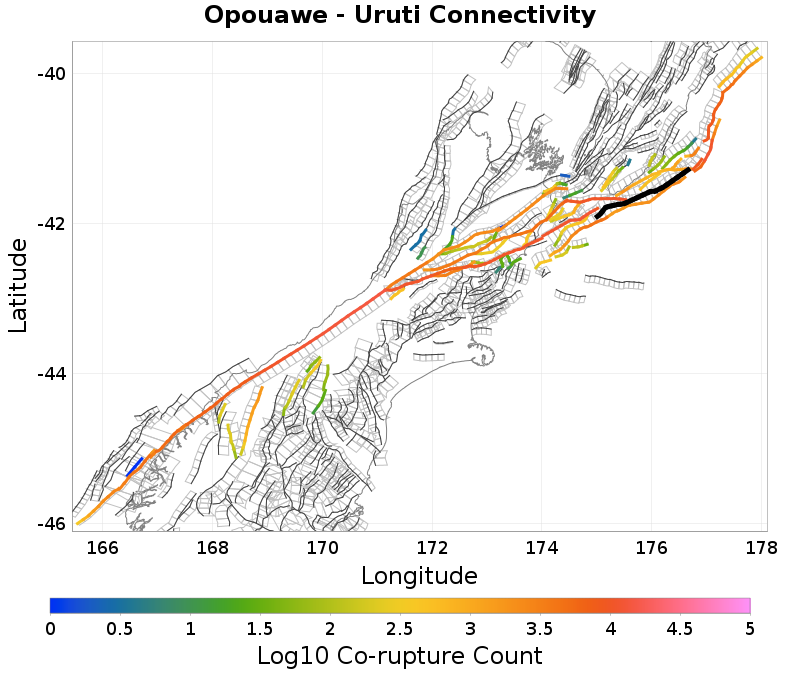

Connectivity

Nearby Sections

Fault Section	Fault Section
BooBoo, 0.13 km away	Otaraia, 7.95 km away
Uruti Basin 2, 0.14 km away	Palliser - Kaiwhata, 8.58 km away
Uruti Basin, 0.16 km away	Upper Slope, 13.4 km away
Te Rapa 2, 0.25 km away	Uruti North, 13.46 km away
Uruti Ridge 2, 2.43 km away	Campbell Bank, 13.93 km away
Pahaua, 2.68 km away	Dry River - Huangarua: 1, 14.3 km away
Kekerengu Bank, 5.25 km away	Whareama Bank, 15.36 km away
Uruti East - PorWest 1, 5.54 km away	Riversdale, 18.85 km away
Honeycomb, 5.87 km away

BooBoo, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	11,030
Co-rupture Rate	2.26993E-4

Uruti Basin 2, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	1,220
Co-rupture Rate	1.5660009E-4

Uruti Basin, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	3,036
Co-rupture Rate	1.3819309E-4

Te Rapa 2, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	12,531
Co-rupture Rate	2.0205005E-6

Uruti Ridge 2, 2.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	9,325
Co-rupture Rate	9.230808E-5

Pahaua, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	2,665
Co-rupture Rate	7.559693E-5

Kekerengu Bank, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	4,851
Co-rupture Rate	3.9842172E-4

Uruti East - PorWest 1, 5.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	12,496
Co-rupture Rate	7.72557E-5

Honeycomb, 5.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	513
Co-rupture Rate	6.441516E-5

Otaraia, 7.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	false
Co-rupture Count	514
Co-rupture Rate	5.8454944E-8

Palliser - Kaiwhata, 8.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	1,919
Co-rupture Rate	6.440933E-5

Upper Slope, 13.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	false
Co-rupture Count	479
Co-rupture Rate	1.0726804E-5

Uruti North, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	2,952
Co-rupture Rate	1.3375861E-4

Campbell Bank, 13.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	false
Co-rupture Count	1,034
Co-rupture Rate	6.5914595E-5

Dry River - Huangarua: 1, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	true
Co-rupture Count	231
Co-rupture Rate	2.2507405E-4

Whareama Bank, 15.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	false
Co-rupture Count	51
Co-rupture Rate	6.71302E-6

Riversdale, 18.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo
Connected?	true
Directly Connected?	false
Co-rupture Count	72
Co-rupture Rate	1.1051203E-6
