Tutaki Details
| Property | Value |
|---|---|
| Rupture Count | 190 |
| Ruptures Above Sect Min Mag | 188 |
| Ruptures w/ Nonzero Rates | 40 |
| Magnitude Range | [7.07, 8.27] |
| Length Range | [24, 518] km |
| Total Rate | 1.3437732E-4 /yr |
| Multi-Fault Rate | 7.486662E-5 /yr (55.71%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 15 |
Table Of Contents

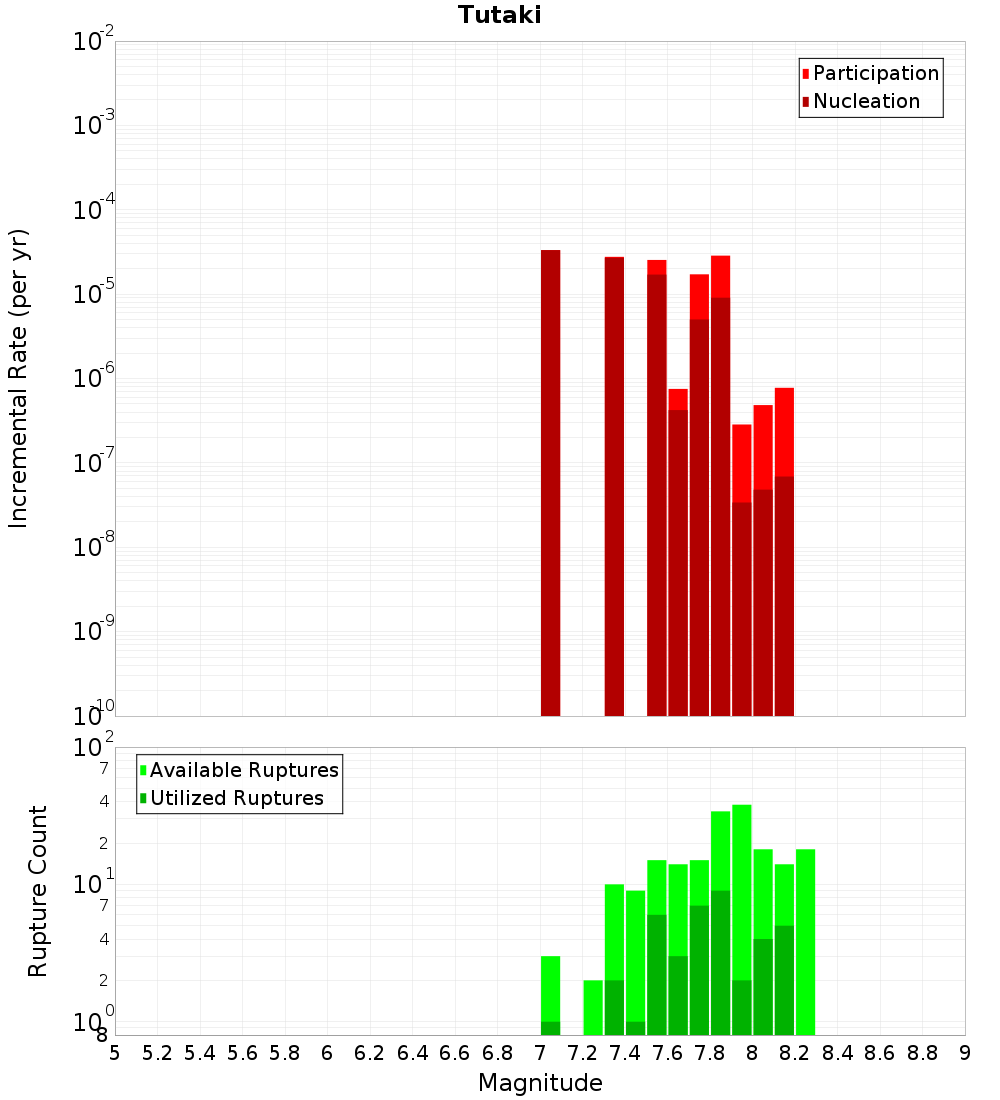

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

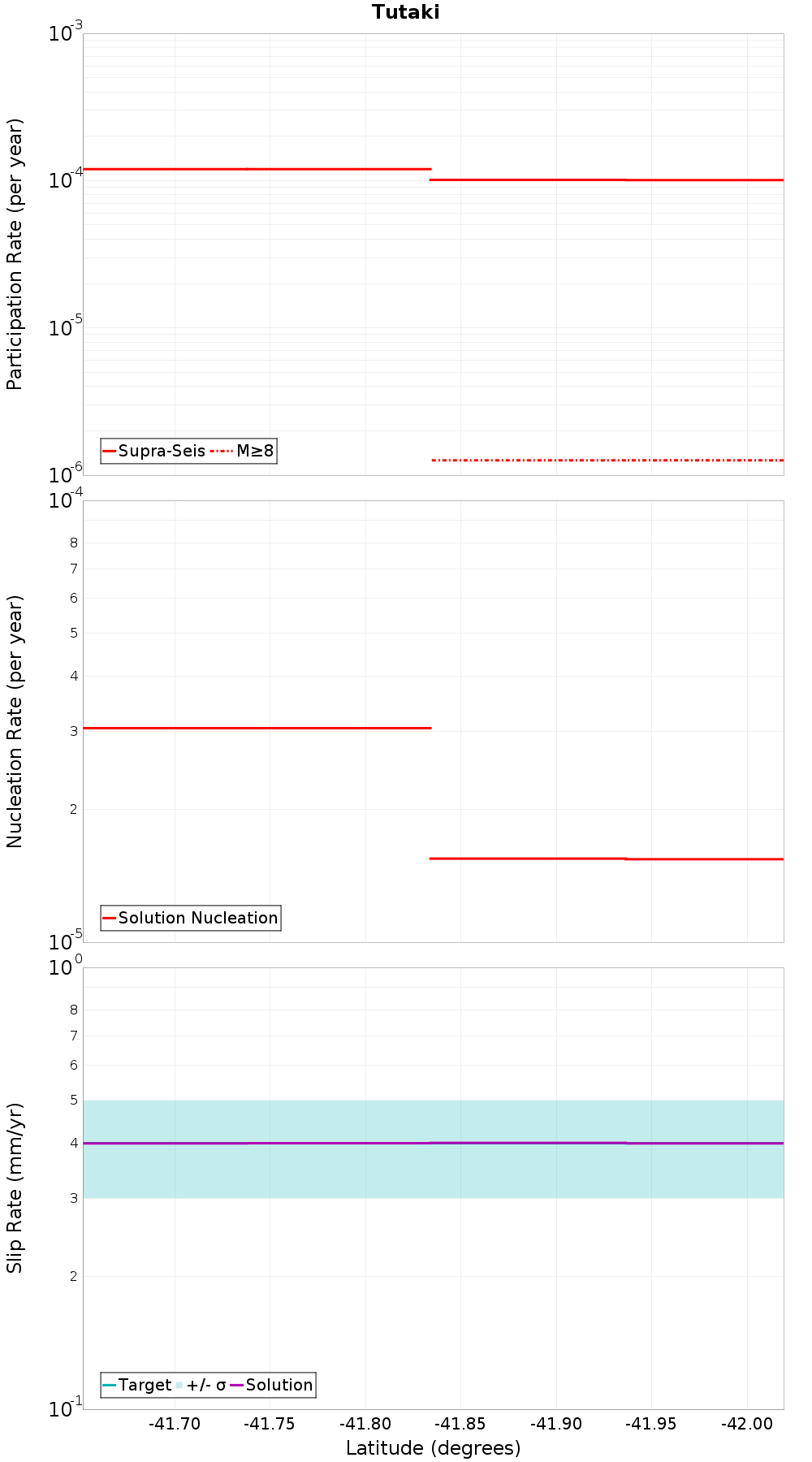

Along-Strike Values
Moment-Rates and b-Values

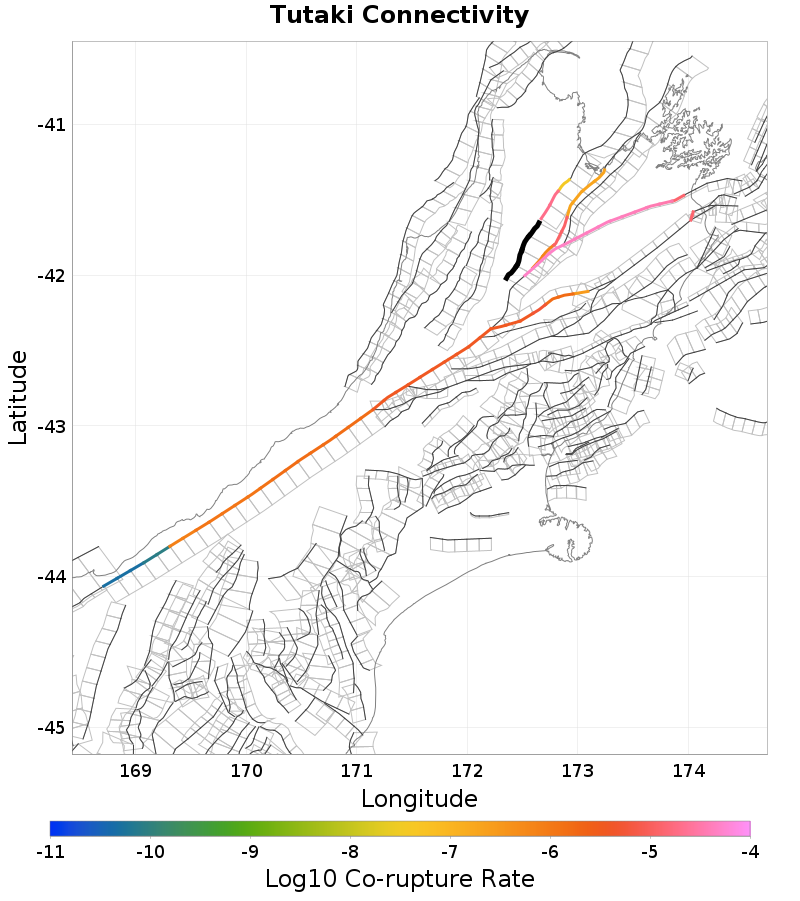

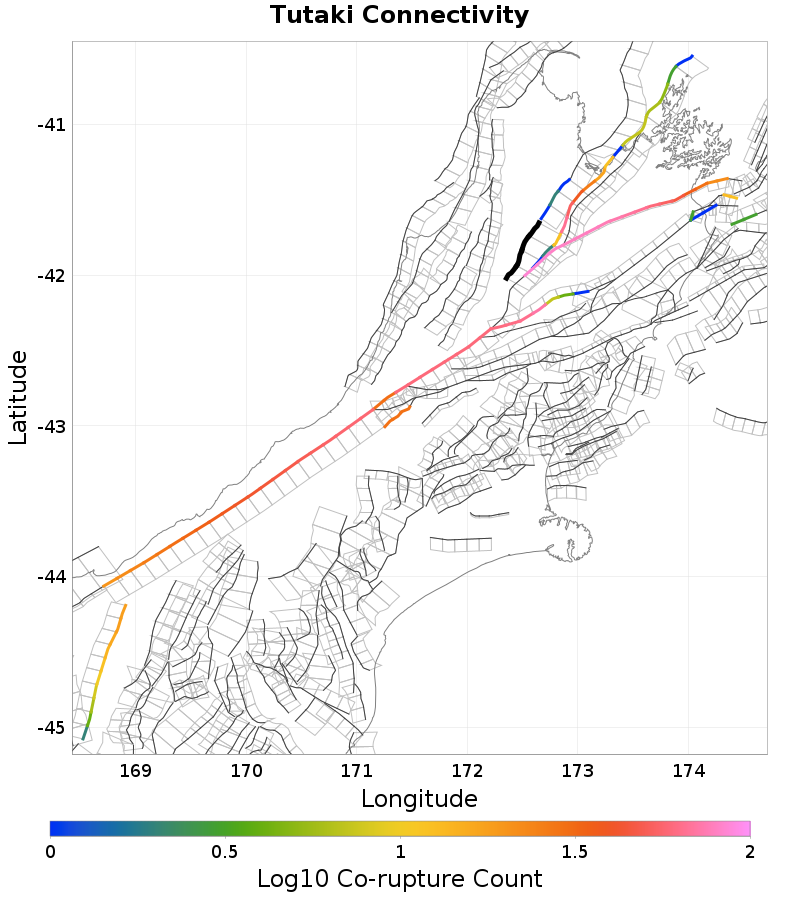

Connectivity
 |  |
|---|
Nearby Sections
Alpine: Springs Junction to Tophouse, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 85 |
| Co-rupture Rate | 4.84768E-5 |
Flaxmore - Waimea - Tahunanui, 2.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 65 |
| Co-rupture Rate | 1.1747717E-5 |
Ruby Bay - Moutere, 3.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.0084495E-5 |
Wairau, 7.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 79 |
| Co-rupture Rate | 4.3759603E-5 |
Awatere: Southwest, 9.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 71 |
| Co-rupture Rate | 5.212584E-6 |
Whangamoa, 14.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Creek, 19.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0ODQuMHBoamdo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
