Rangefront Details

PropertyValue
Rupture Count10,407
Ruptures Above Sect Min Mag10,405
Ruptures w/ Nonzero Rates4
Magnitude Range[6.94, 8.32]
Length Range[21, 552] km
Total Rate5.5631284E-5 /yr
Multi-Fault Rate5.5631284E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults101

Table Of Contents

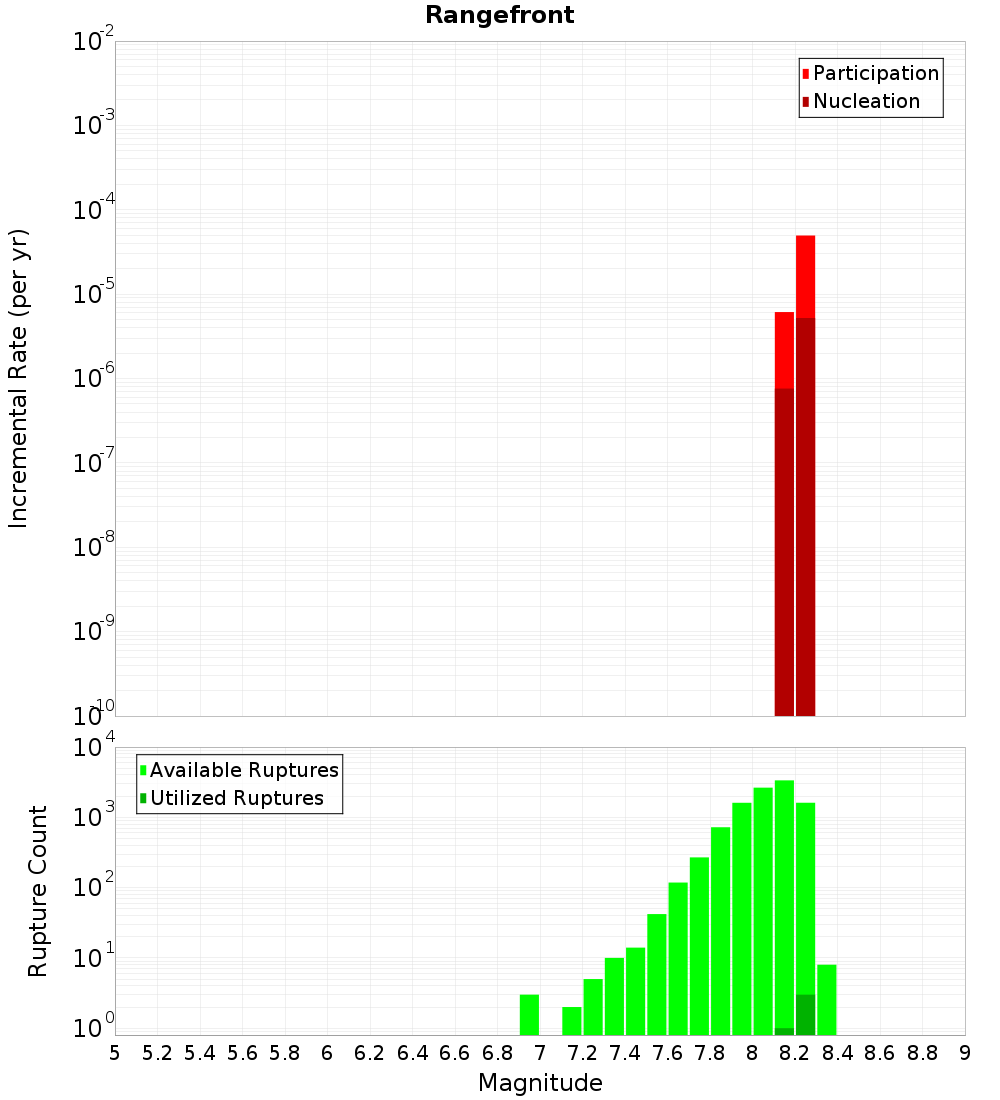

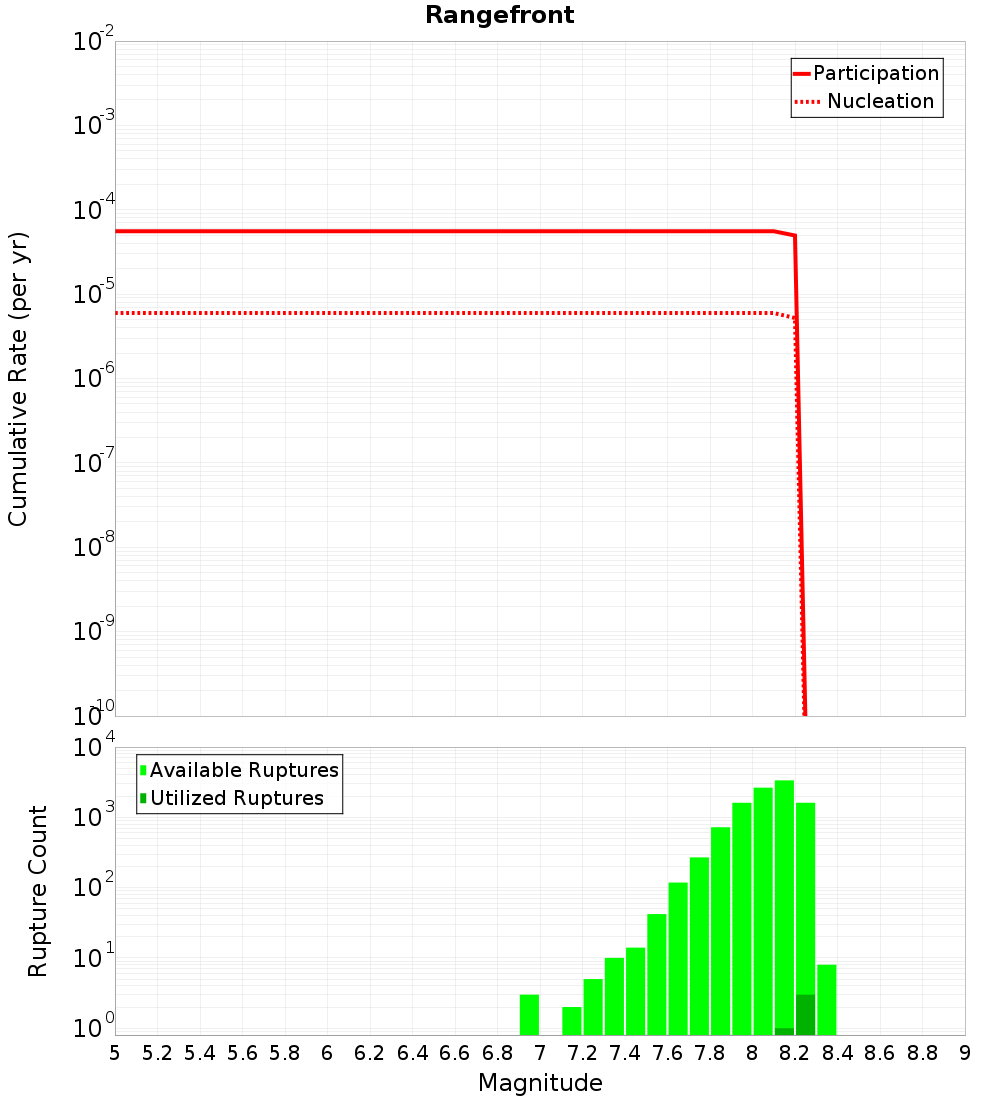

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

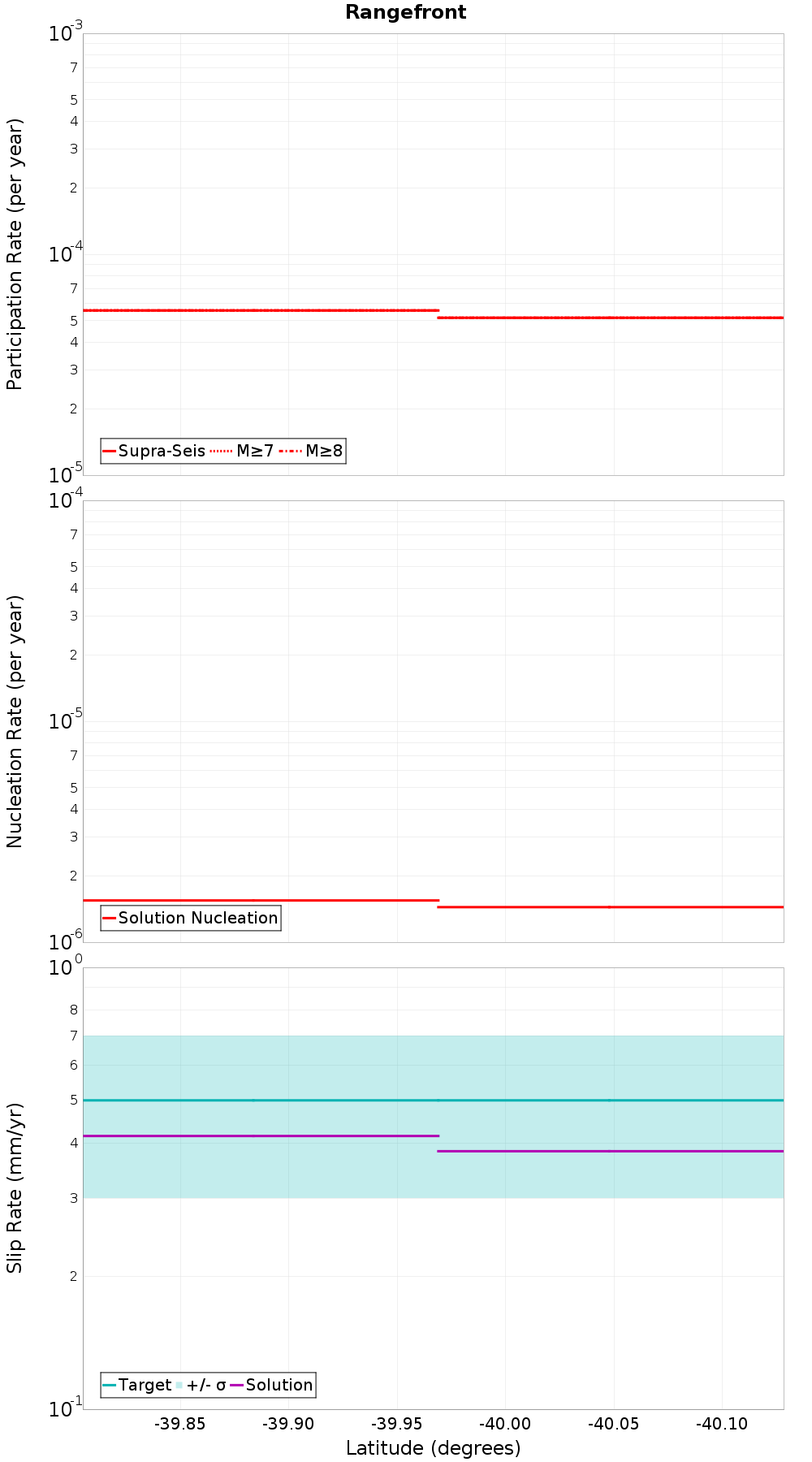

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wakarara, 0 km away
Ruahine: South, 0.19 km away
Ruahine: Central, 0.2 km away
Mohaka: South, 0.2 km away
Ruataniwha, 8.95 km away
Pahiatua, 9.78 km away
Maunga, 10.17 km away
Woodville, 10.84 km away
Pohangina, 12.41 km away
Oruawharo - Mangatoro, 15.62 km away
Clear Hills - Waikopiro, 16.39 km away
Waewaepa, 16.75 km away
Te Heka, 17.34 km away

Wakarara, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?true
Directly Connected?true
Co-rupture Count7,452
Co-rupture Rate4.950115E-5

Ruahine: South, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?true
Directly Connected?true
Co-rupture Count2,608
Co-rupture Rate4.0760106E-6

Ruahine: Central, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?true
Directly Connected?true
Co-rupture Count995
Co-rupture Rate0.0

Mohaka: South, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?true
Directly Connected?true
Co-rupture Count12,414
Co-rupture Rate1.0311055E-4

Ruataniwha, 8.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahiatua, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate0.0

Maunga, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Woodville, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate0.0

Oruawharo - Mangatoro, 15.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clear Hills - Waikopiro, 16.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waewaepa, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ0OTcuMFBXZHU3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
