Alpine: Caswell Details

PropertyValue
Rupture Count58,343
Ruptures Above Sect Min Mag58,342
Ruptures w/ Nonzero Rates163
Magnitude Range[6.91, 8.63]
Length Range[22, 1,204] km
Total Rate0.004012681 /yr
Multi-Fault Rate0.004012681 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults127

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

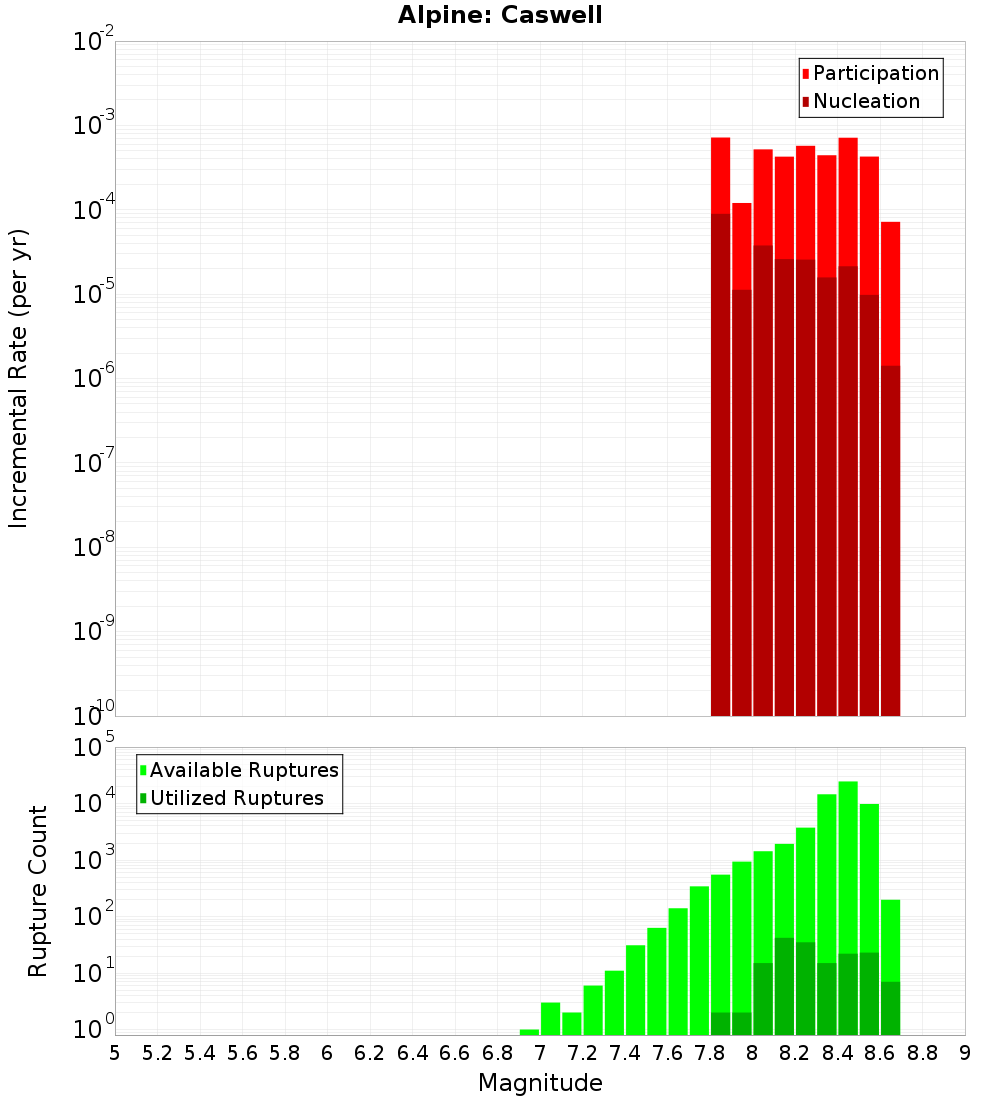

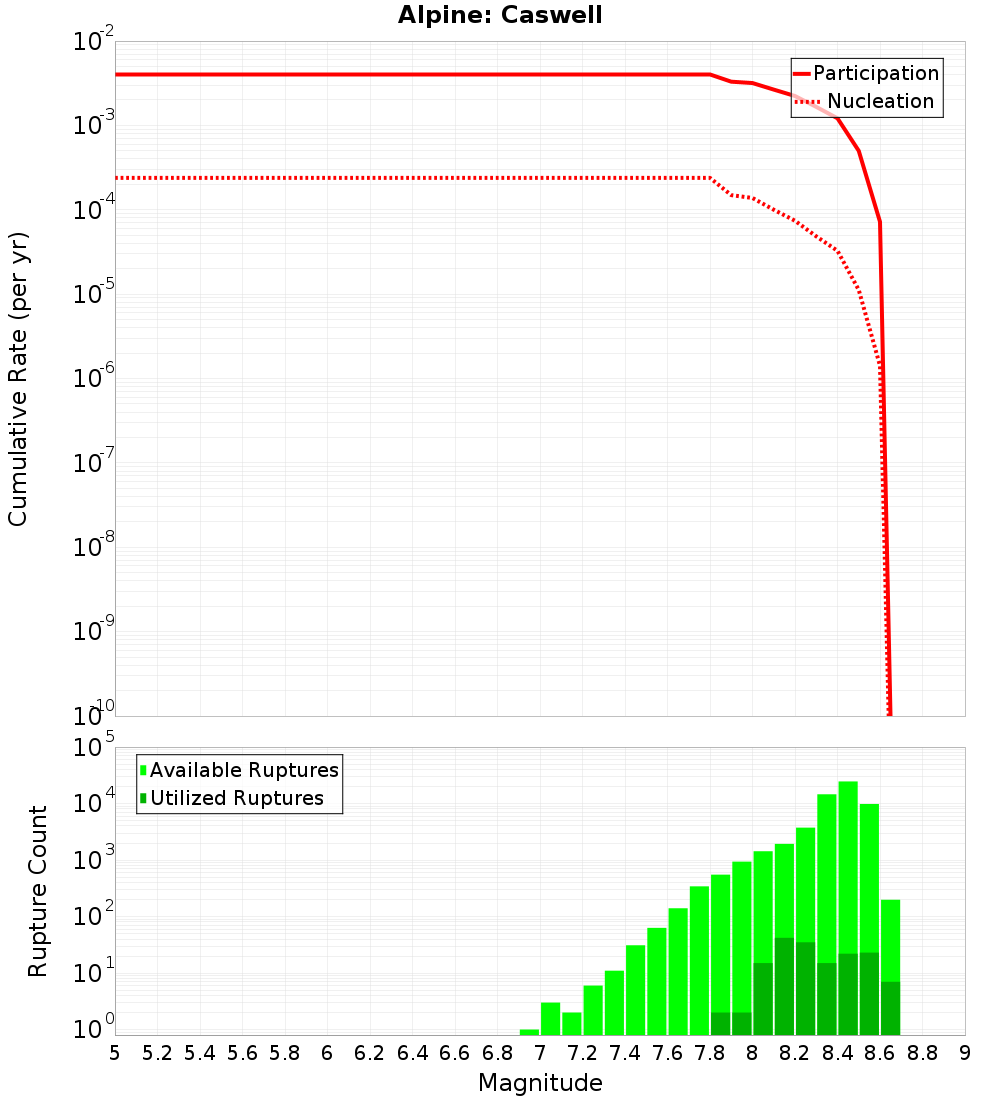

Incremental PlotCumulative Plot

Along-Strike Values

(top)

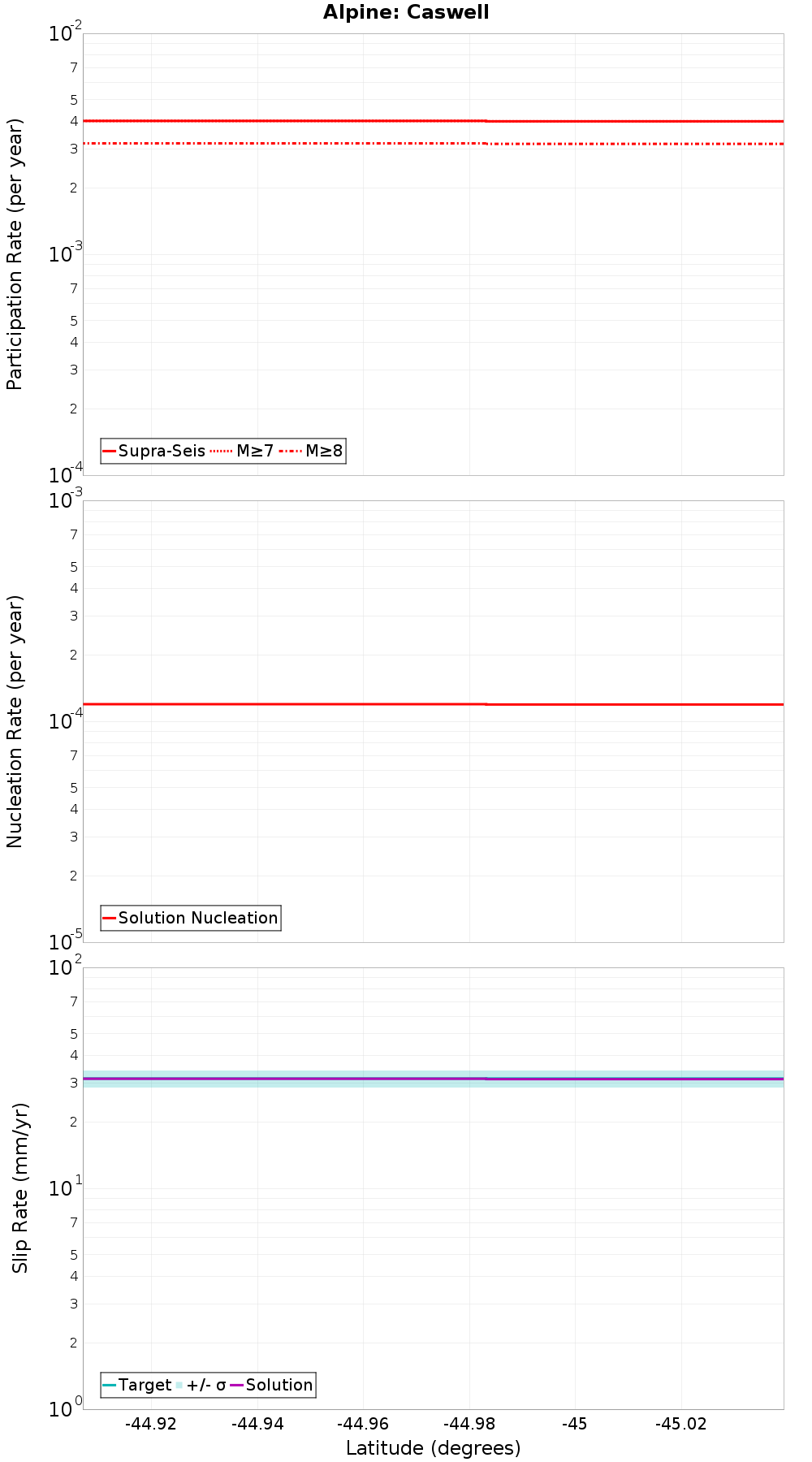

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Nancy, 0 km away
Alpine: Caswell - South George, 0 km away
Central Wedge 1 & 2 & 3, 0.16 km away
South Wedge 2, 0.28 km away
Central Wedge 4 - South Wedge 411, 0.31 km away
Alpine: Resolution - Charles, 3.34 km away
Alpine: Resolution - Dagg, 11.23 km away

Alpine: Nancy, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDAuMFk3SFhI
Connected?true
Directly Connected?true
Co-rupture Count30,001
Co-rupture Rate0.0018873323

Alpine: Caswell - South George, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDAuMFk3SFhI
Connected?true
Directly Connected?true
Co-rupture Count58,141
Co-rupture Rate0.0031742991

Central Wedge 1 & 2 & 3, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDAuMFk3SFhI
Connected?true
Directly Connected?true
Co-rupture Count6,522
Co-rupture Rate1.537853E-4

South Wedge 2, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDAuMFk3SFhI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDAuMFk3SFhI
Connected?true
Directly Connected?false
Co-rupture Count536
Co-rupture Rate1.5558924E-4

Alpine: Resolution - Charles, 3.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDAuMFk3SFhI
Connected?true
Directly Connected?true
Co-rupture Count20,360
Co-rupture Rate0.0020918709

Alpine: Resolution - Dagg, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDAuMFk3SFhI
Connected?true
Directly Connected?false
Co-rupture Count46,896
Co-rupture Rate0.0039792033
