Alfredton South Details

PropertyValue
Rupture Count2,281
Ruptures Above Sect Min Mag2,279
Ruptures w/ Nonzero Rates29
Magnitude Range[6.45, 8.59]
Length Range[10, 1,112] km
Total Rate0.0011185277 /yr
Multi-Fault Rate0.0011185277 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults58

Table Of Contents

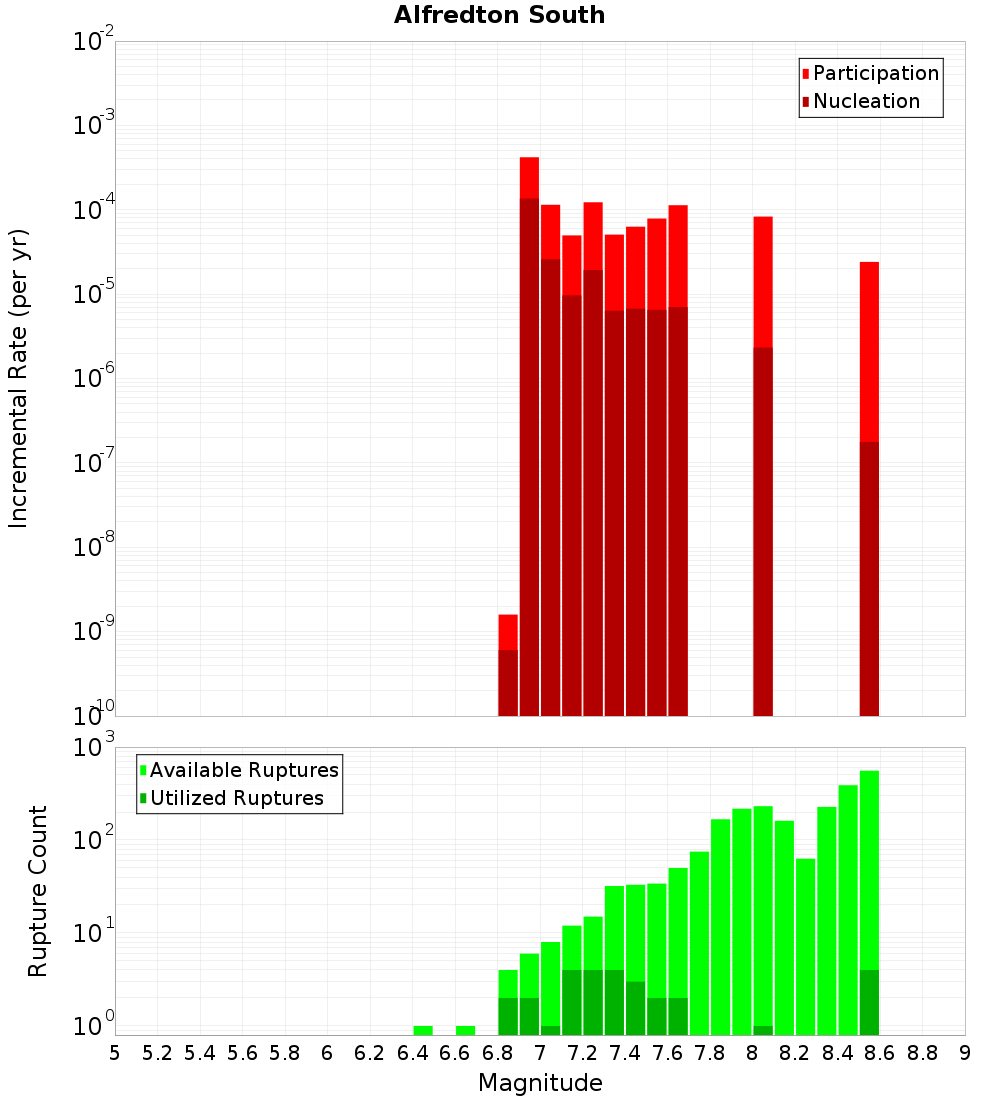

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Saunders Road, 0 km away
Alfredton North, 0 km away
Dreyers Rock, 0 km away
Pa Valley, 0.07 km away
Wairarapa: 3, 7.46 km away
Mokonui Northeast, 9.5 km away
Mokonui Southwest, 9.66 km away
Makuri - Waewaepa, 15.34 km away
Waitawhiti, 15.85 km away
Tokomaru, 17.22 km away
Wellington: Pahiatua, 18.67 km away

Saunders Road, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?true
Co-rupture Count1,185
Co-rupture Rate6.113706E-4

Alfredton North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?true
Co-rupture Count656
Co-rupture Rate4.884873E-4

Dreyers Rock, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?true
Co-rupture Count2,230
Co-rupture Rate5.5355934E-4

Pa Valley, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?true
Co-rupture Count88
Co-rupture Rate1.8667959E-5

Wairarapa: 3, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?false
Co-rupture Count2,249
Co-rupture Rate4.1272215E-4

Mokonui Northeast, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.881676E-9

Mokonui Southwest, 9.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Makuri - Waewaepa, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?false
Co-rupture Count490
Co-rupture Rate5.0715404E-4

Waitawhiti, 15.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 17.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Pahiatua, 18.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
