Hopkins Details

PropertyValue
Rupture Count3,274
Ruptures Above Sect Min Mag3,272
Ruptures w/ Nonzero Rates31
Magnitude Range[6.99, 8.47]
Length Range[24, 838] km
Total Rate1.4594117E-4 /yr
Multi-Fault Rate1.4594117E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults88

Table Of Contents

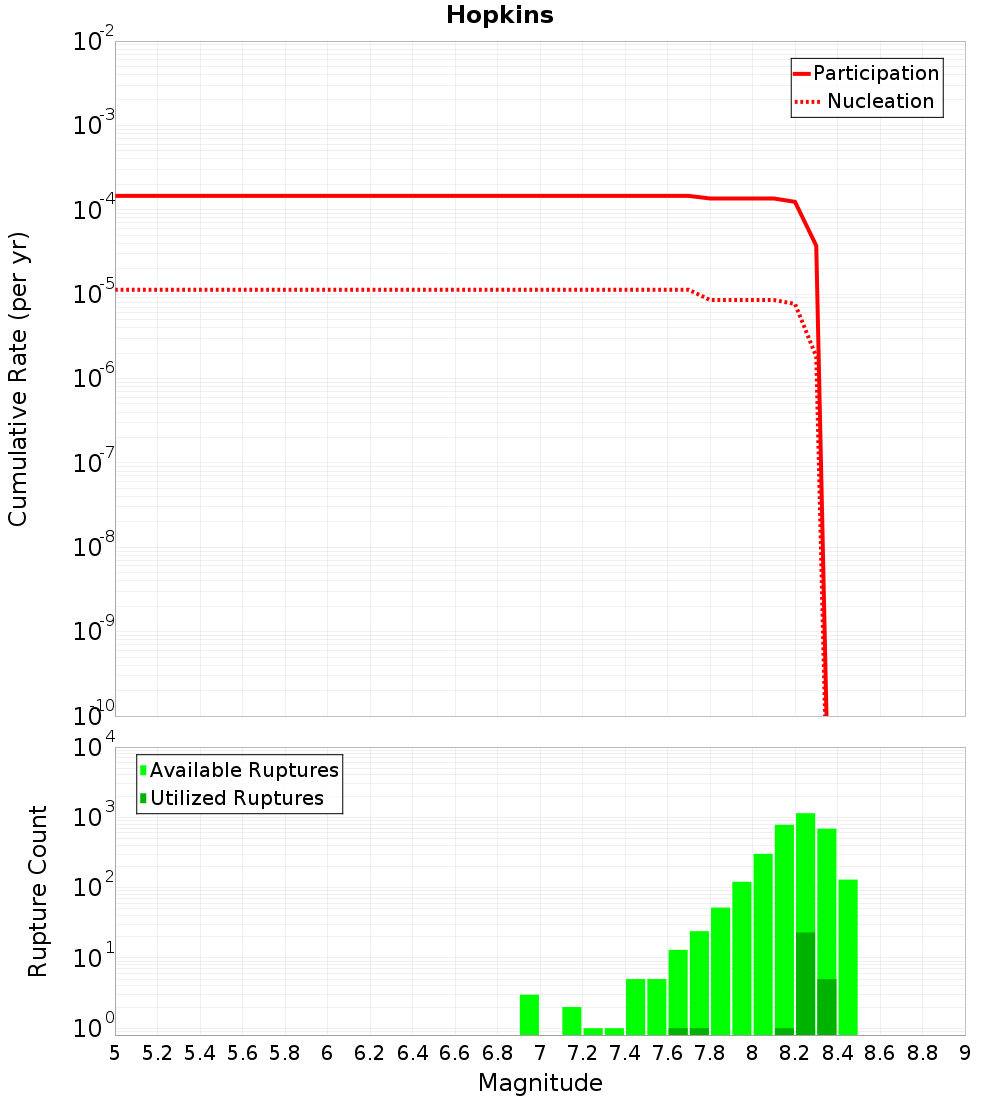

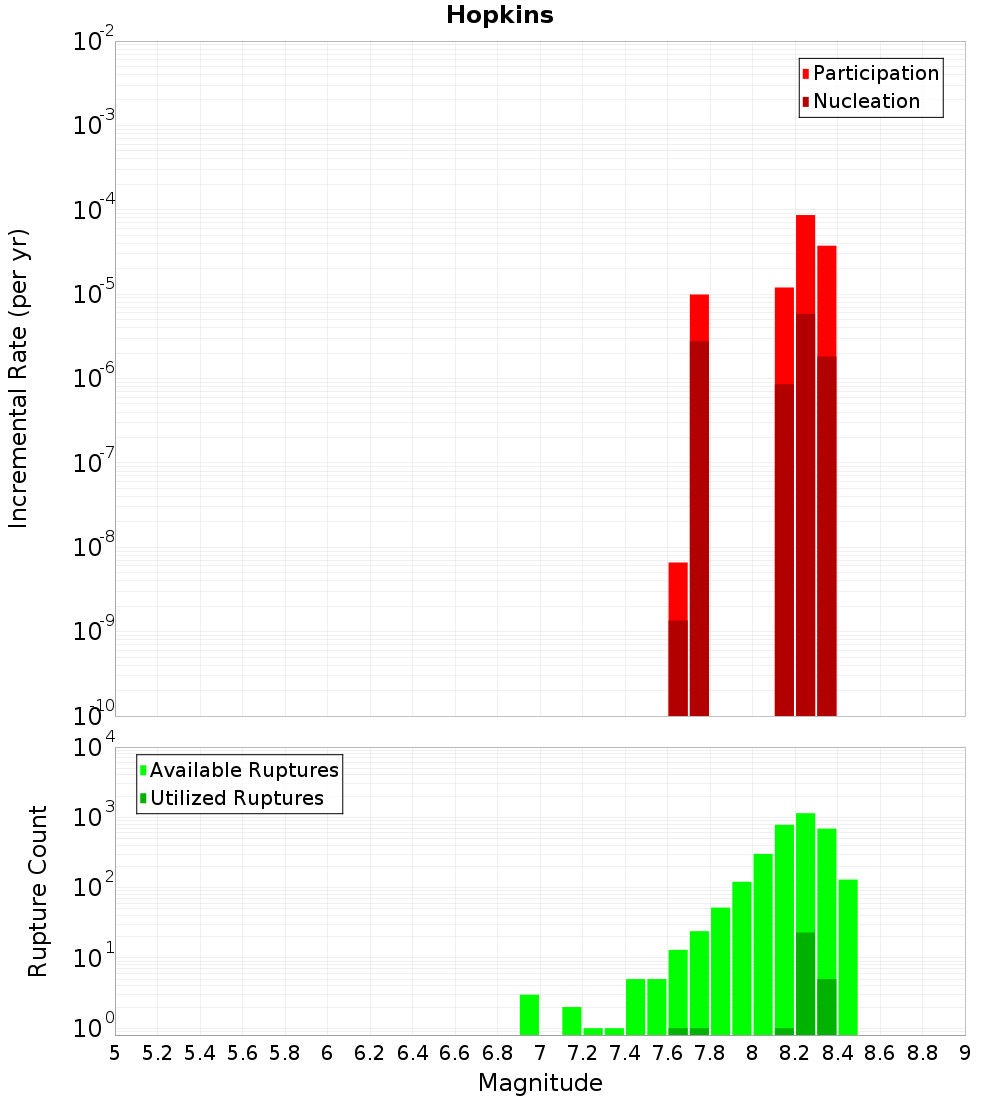

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

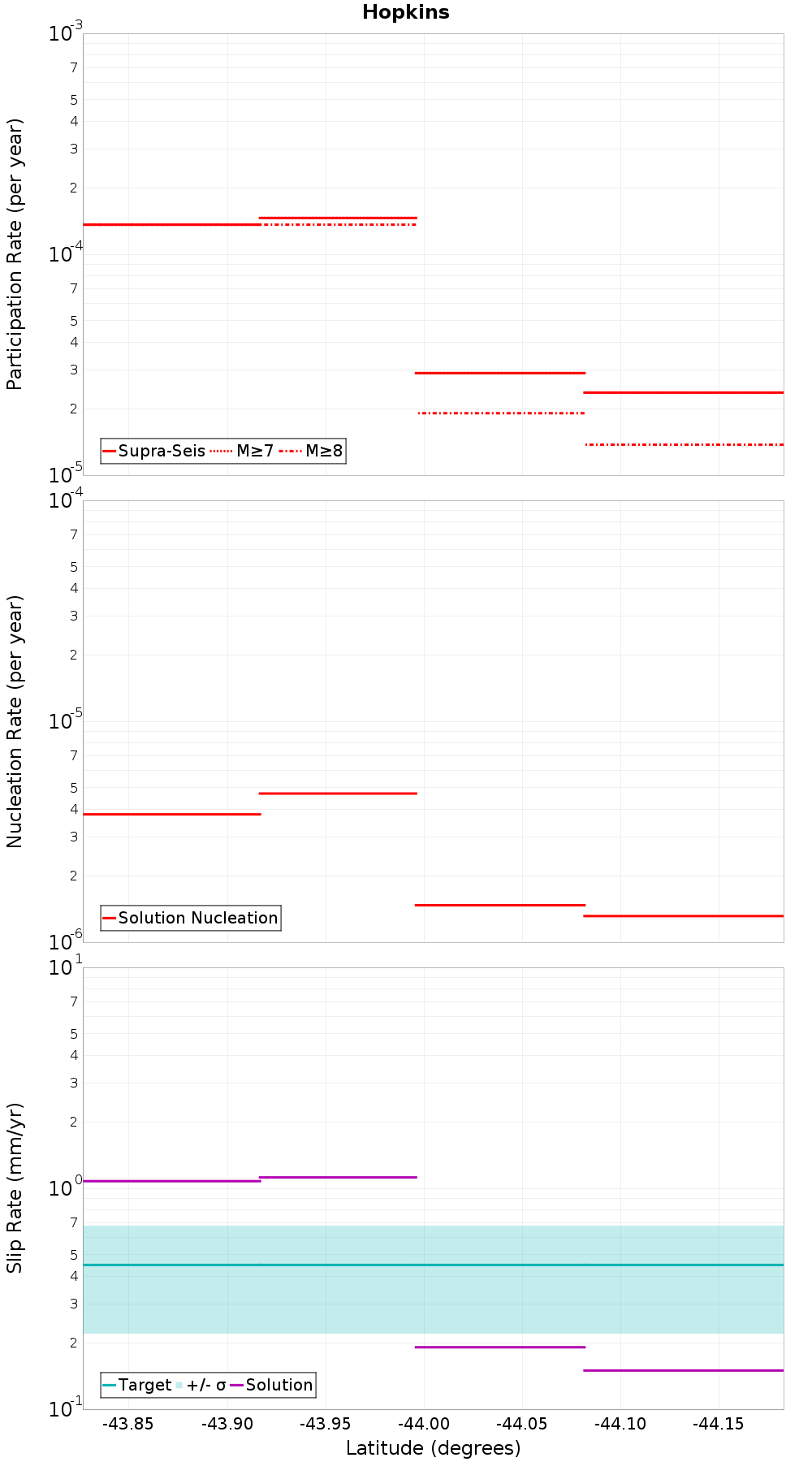

Along-Strike Values

(top)

Along-strike plot

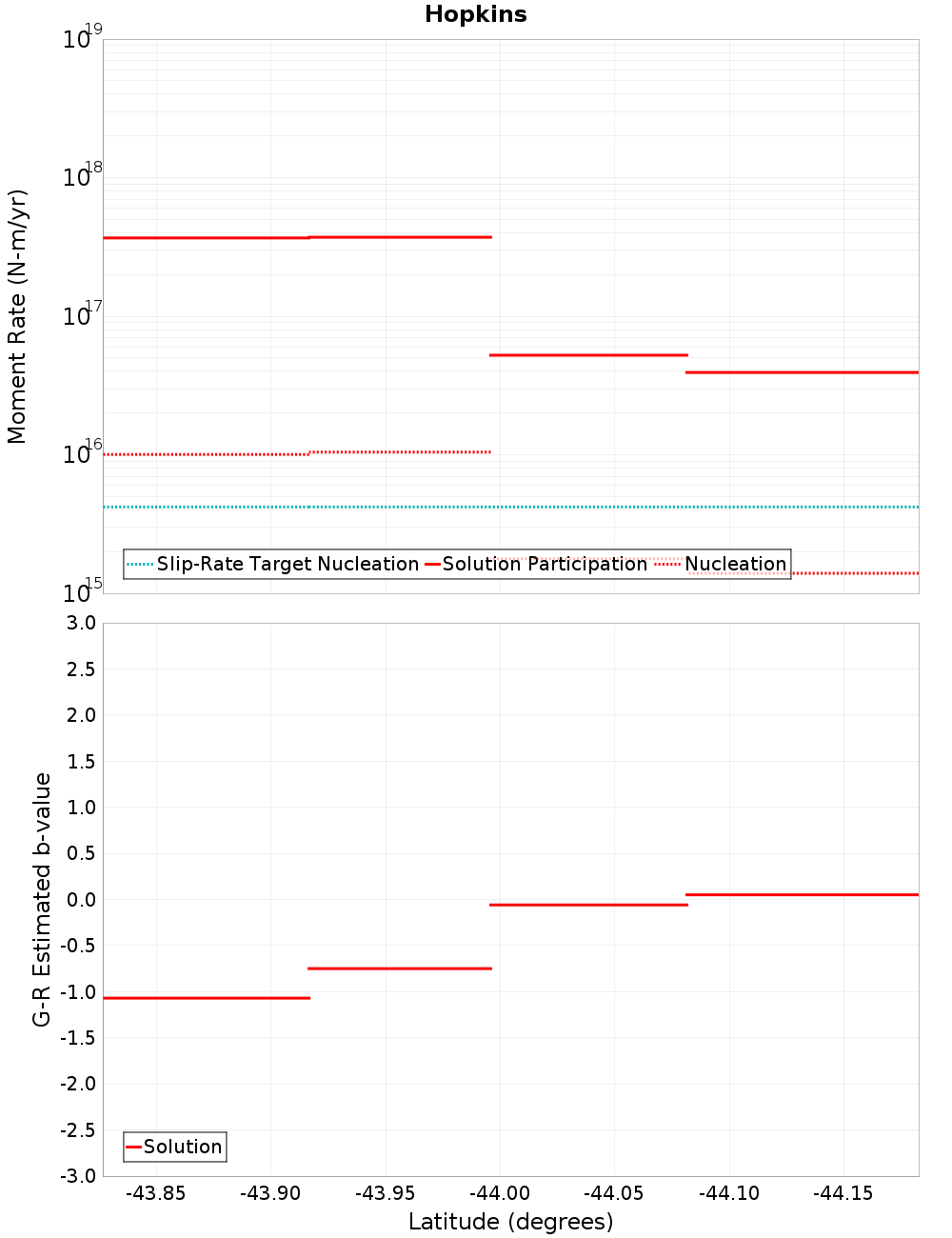

Moment-Rates and b-Values

(top)

Along-strike plot

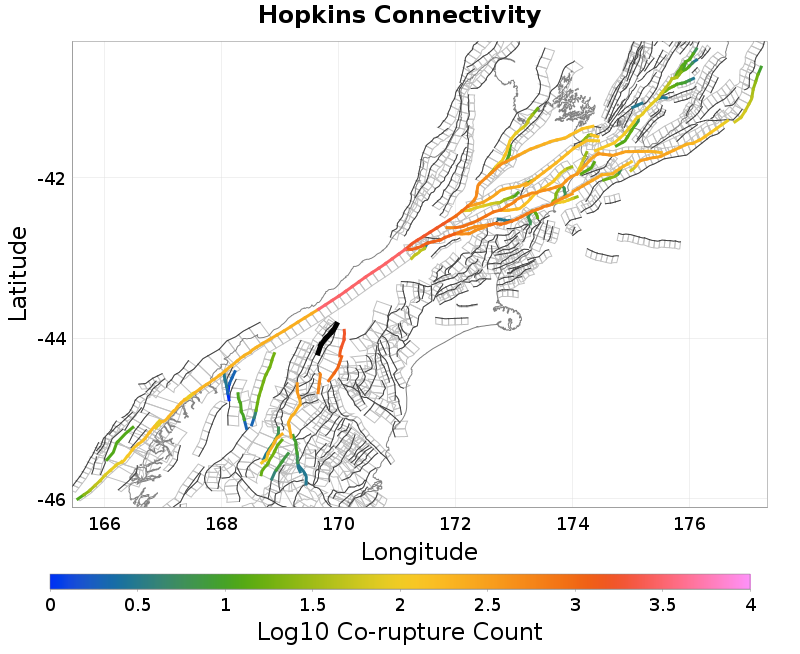

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dingle, 1.8 km away
Barrier Range, 1.83 km away
Wanaka, 1.91 km away
Huxley, 3.39 km away
Ostler North, 4.64 km away
Alpine: Jacksons to Kaniere, 5.91 km away
Hunter Valley, 7.71 km away
Dromedary, 16.74 km away
Ostler South, 19.15 km away

Dingle, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barrier Range, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wanaka, 1.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Huxley, 3.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler North, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?true
Co-rupture Count1,643
Co-rupture Rate1.2488864E-4

Alpine: Jacksons to Kaniere, 5.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?true
Co-rupture Count3,218
Co-rupture Rate1.360339E-4

Hunter Valley, 7.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 16.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate1.5771095E-5

Ostler South, 19.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuME5jdnlq
Connected?true
Directly Connected?false
Co-rupture Count1,073
Co-rupture Rate1.2488864E-4
