Chancet Details

Property	Value
Rupture Count	3,014
Ruptures Above Sect Min Mag	3,007
Ruptures w/ Nonzero Rates	94
Magnitude Range	[6.58, 8.53]
Length Range	[14, 947] km
Total Rate	6.079096E-4 /yr
Multi-Fault Rate	6.079096E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	72

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

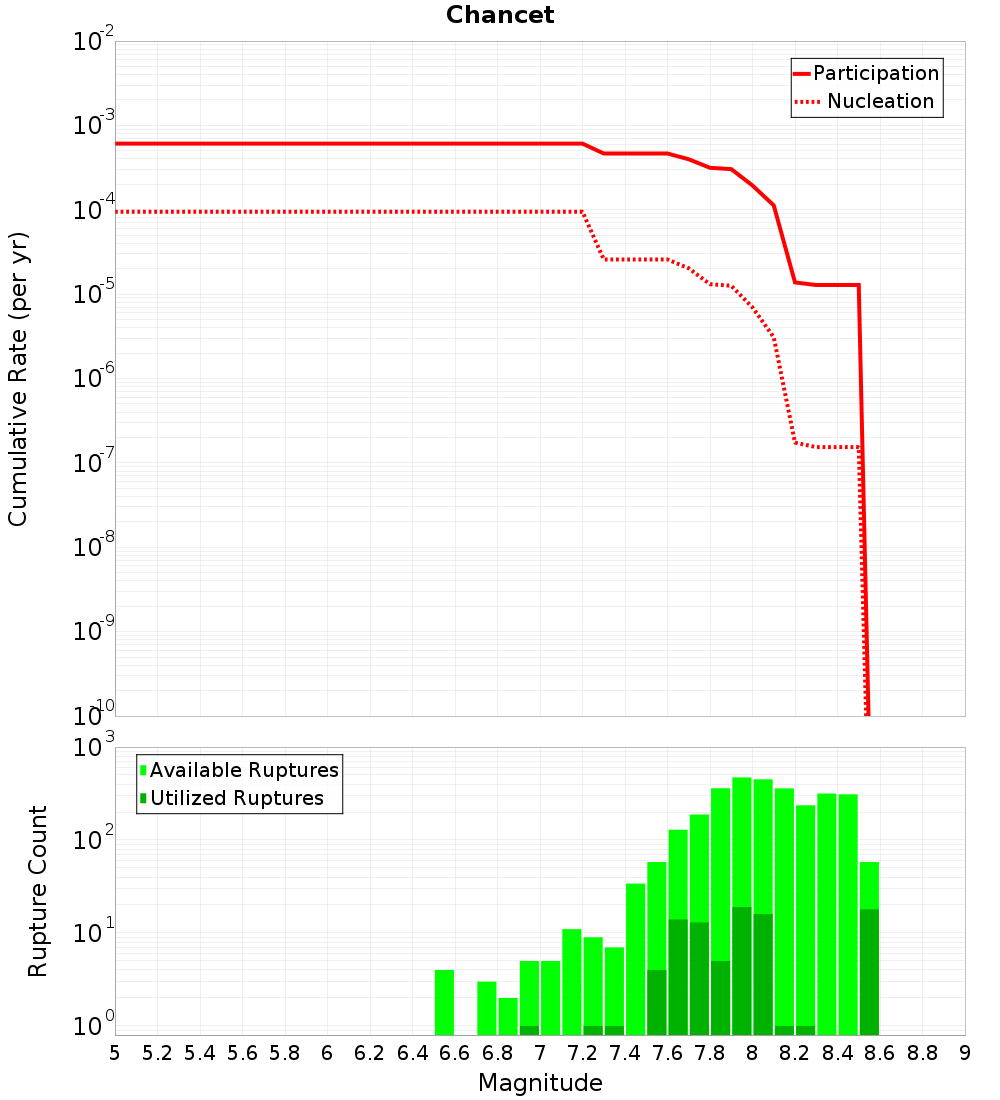

Magnitude-Frequency Distribution

Incremental	Cumulative

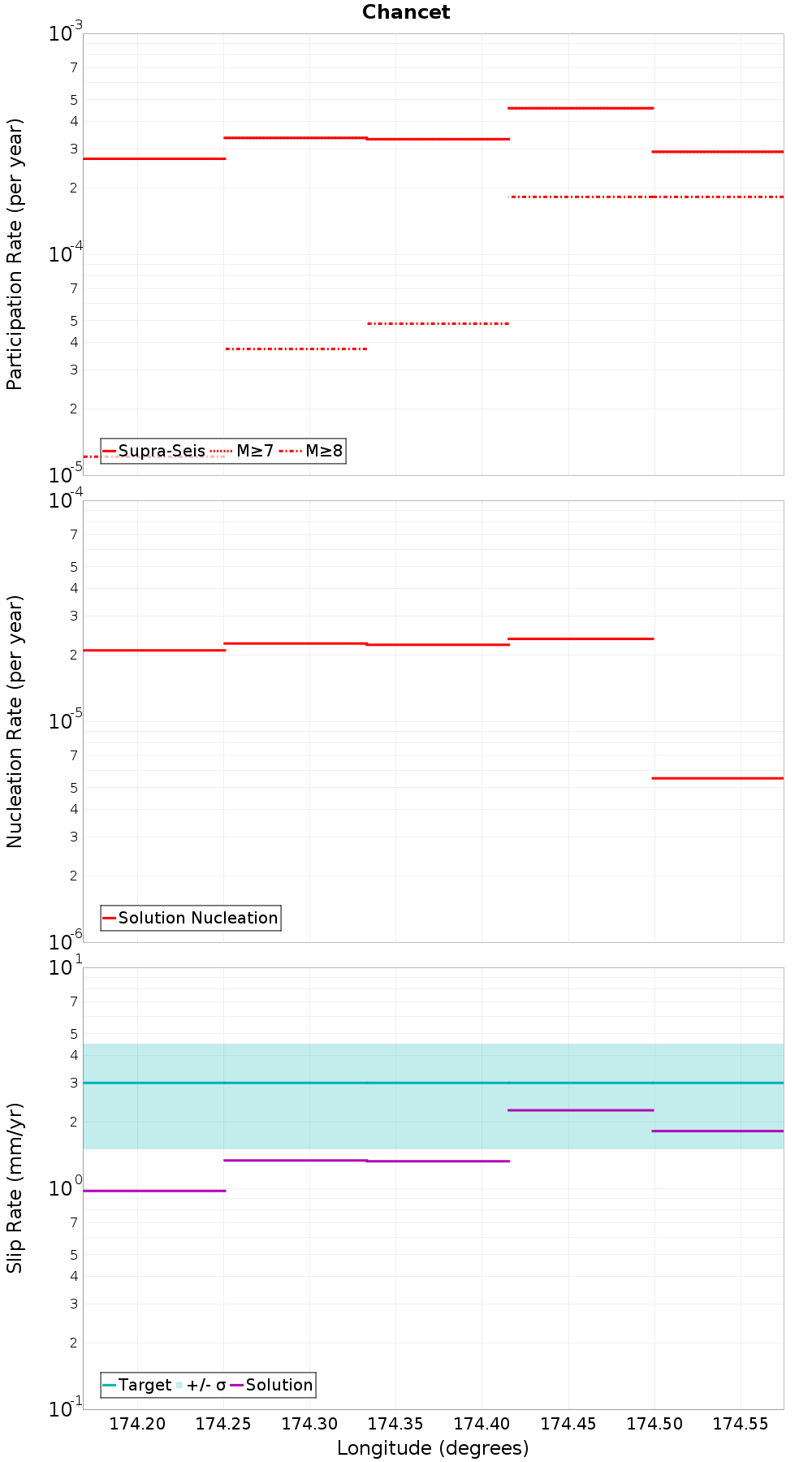

Along-Strike Values

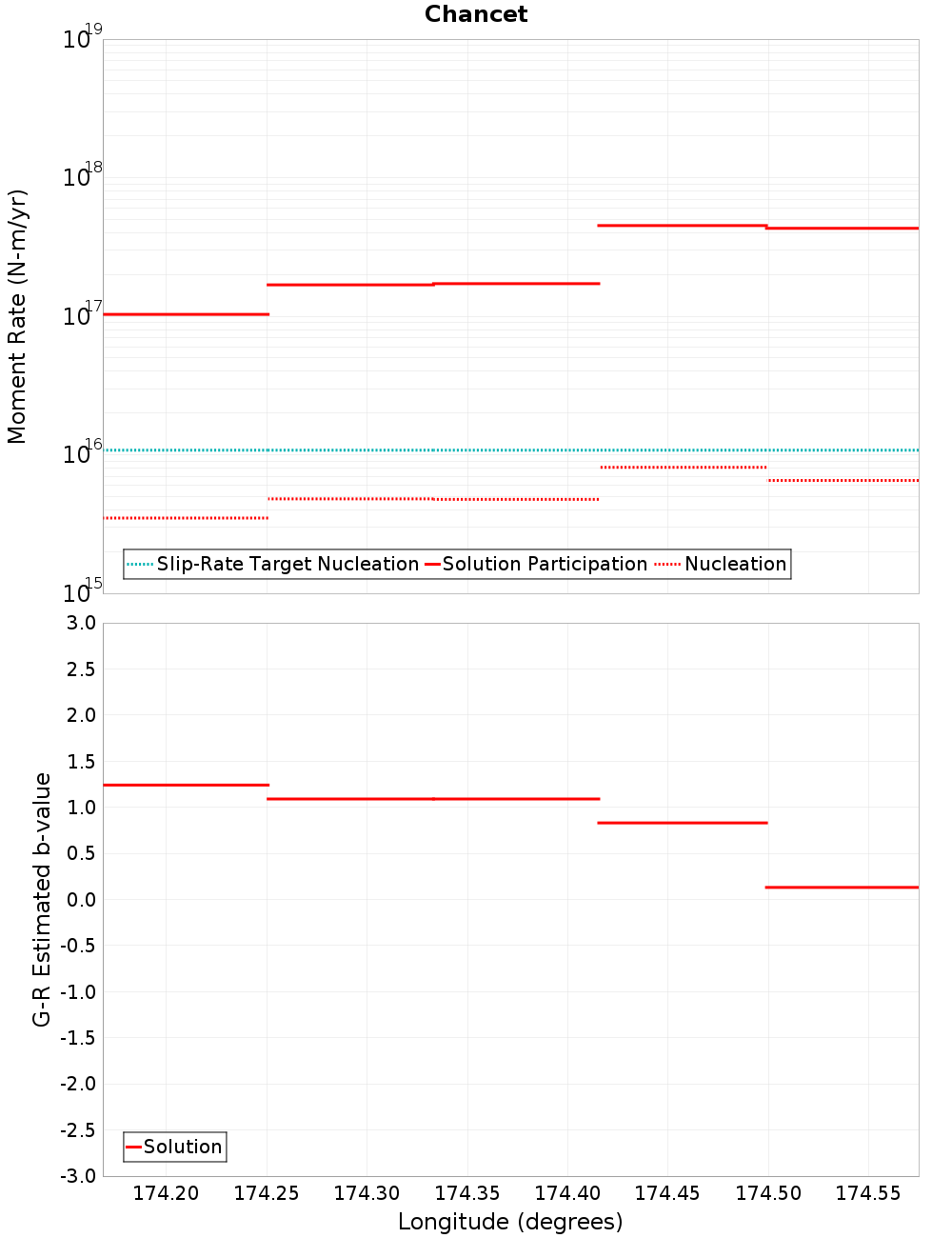

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Campbell Bank, 0 km away
Wharanui, 0.07 km away
London Hill, 0.17 km away
Upper Slope, 1.61 km away
Needles East 2, 2.61 km away
Needles, 6.52 km away
Kekerengu 1, 7.4 km away
Hope: Te Rapa, 8.16 km away
Te Rapa 1, 8.16 km away
Te Rapa 2, 11.11 km away
Kekerengu Bank, 15.35 km away
BooBoo, 15.89 km away
Clarence: Northeast, 18.61 km away

Campbell Bank, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	1,841
Co-rupture Rate	2.78031E-4

Wharanui, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

London Hill, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	150
Co-rupture Rate	1.4404296E-4

Upper Slope, 1.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Needles East 2, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	496
Co-rupture Rate	1.2629492E-4

Needles, 6.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	877
Co-rupture Rate	2.3718363E-4

Kekerengu 1, 7.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	false
Co-rupture Count	724
Co-rupture Rate	3.1827122E-4

Hope: Te Rapa, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	889
Co-rupture Rate	3.9540534E-8

Te Rapa 1, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0

Te Rapa 2, 11.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0

Kekerengu Bank, 15.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	false
Co-rupture Count	123
Co-rupture Rate	0.0

BooBoo, 15.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	false
Co-rupture Count	1,634
Co-rupture Rate	2.7799766E-4

Clarence: Northeast, 18.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
