Moonlight North Details

Property	Value
Rupture Count	11,407
Ruptures Above Sect Min Mag	11,400
Ruptures w/ Nonzero Rates	142
Magnitude Range	[6.84, 8.53]
Length Range	[21, 1,045] km
Total Rate	8.3122664E-4 /yr
Multi-Fault Rate	4.777792E-4 /yr (57.48%)
Directly-Connected Faults	4
All Co-Rupturing Faults	115

Table Of Contents

Magnitude-Frequency Distribution

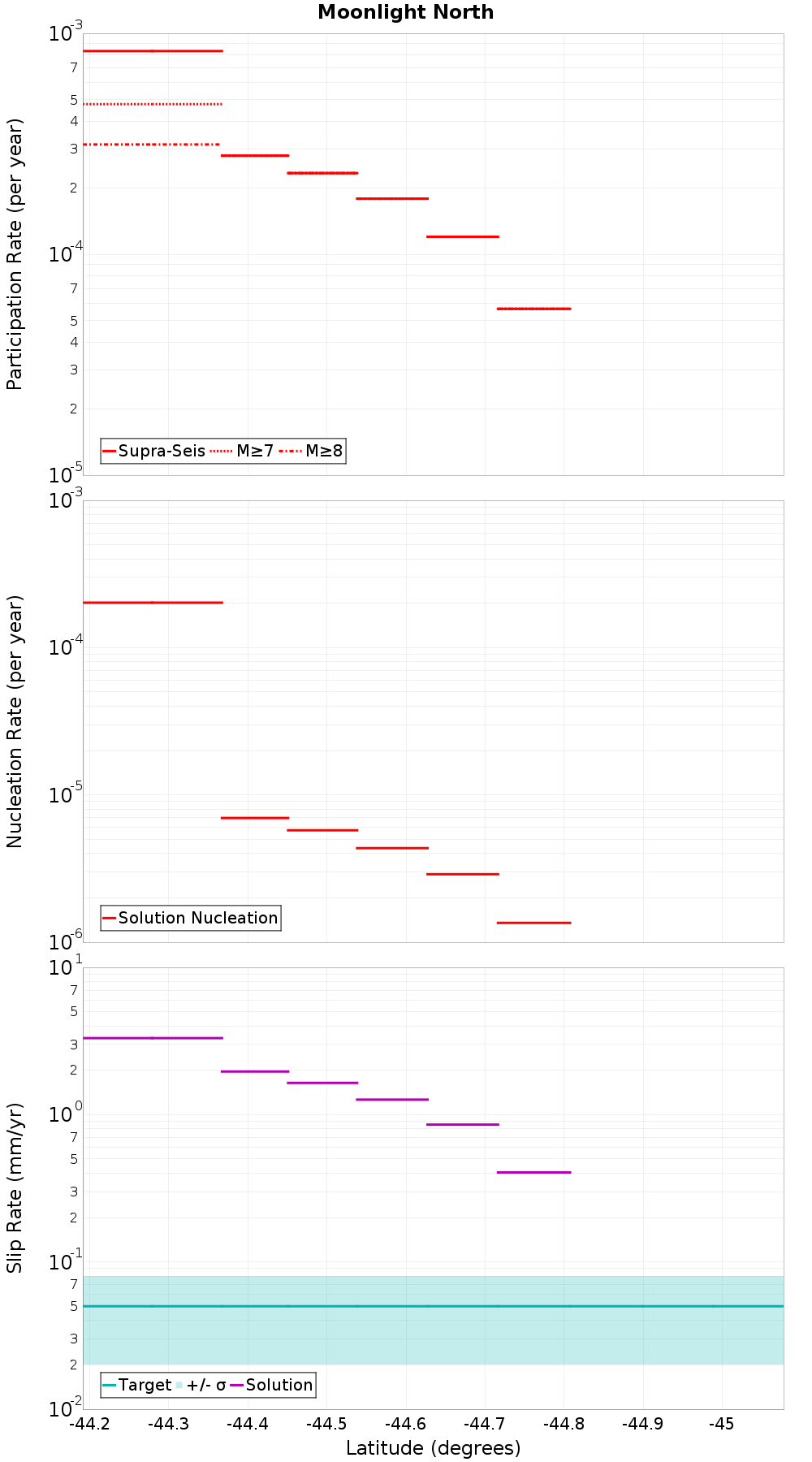

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

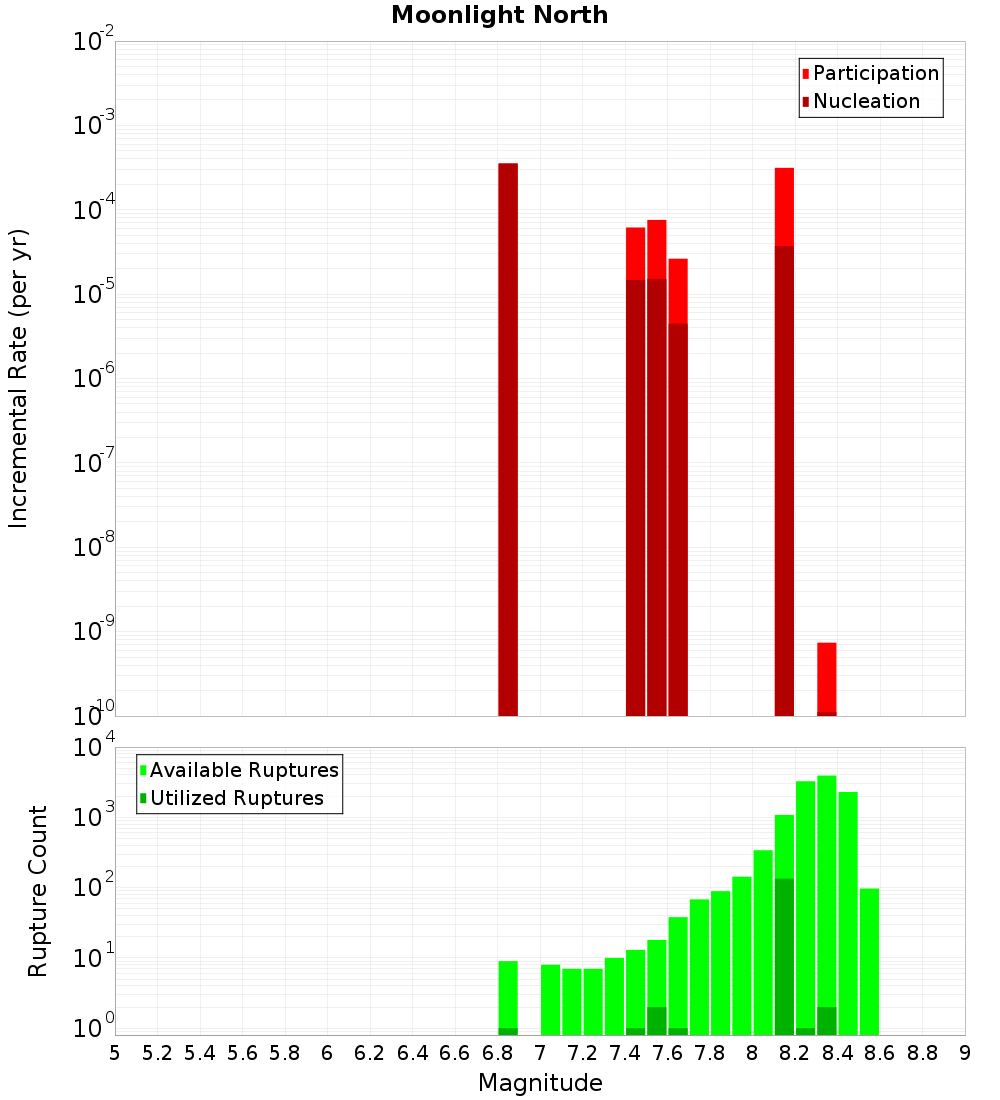

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
West Wakatipu, 0.14 km away
Alpine: Jacksons to Kaniere, 1.51 km away
Moonlight South, 4.72 km away
Alpine: George to Jacksons, 9.46 km away
Livingstone, 9.69 km away
Barn, 10.72 km away
Motatapu, 19.58 km away

West Wakatipu, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	1,975
Co-rupture Rate	0.0

Alpine: Jacksons to Kaniere, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	11,308
Co-rupture Rate	4.777792E-4

Moonlight South, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: George to Jacksons, 9.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	false
Co-rupture Count	480
Co-rupture Rate	4.7777846E-4

Livingstone, 9.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Barn, 10.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	0.0

Motatapu, 19.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
