Settlement Details
| Property | Value |
|---|---|
| Rupture Count | 43 |
| Ruptures Above Sect Min Mag | 41 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.67, 8.13] |
| Length Range | [14, 255] km |
| Total Rate | 6.349509E-6 /yr |
| Multi-Fault Rate | 6.349509E-6 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 20 |
Table Of Contents

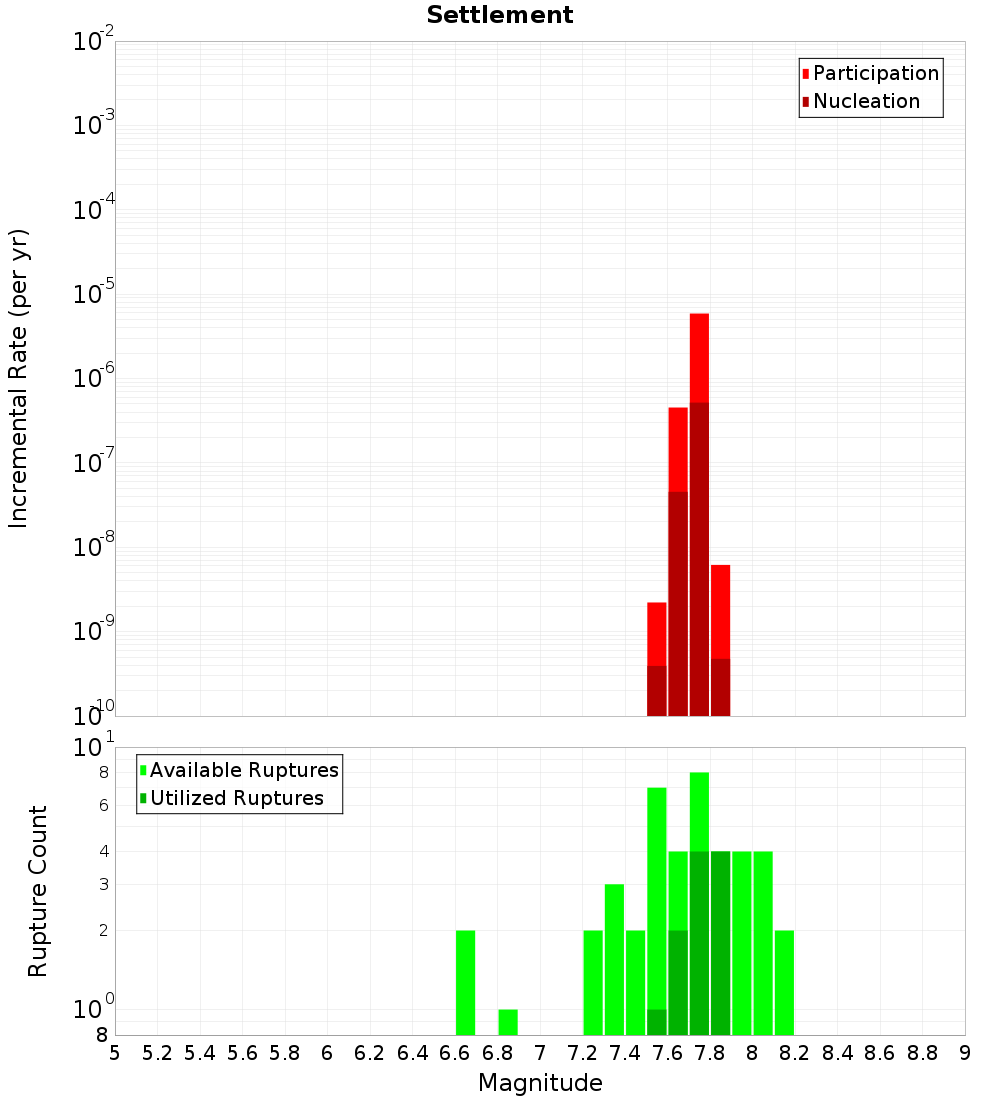

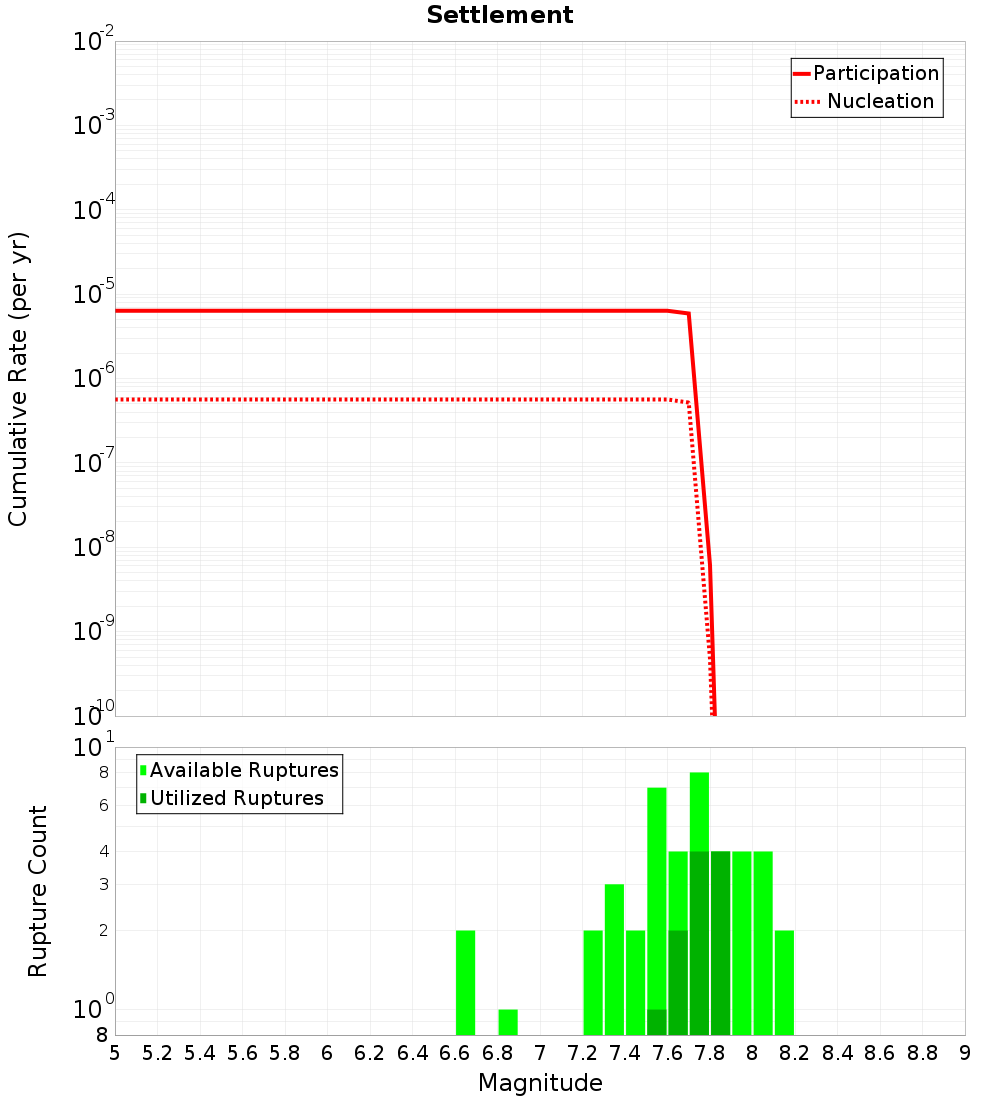

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

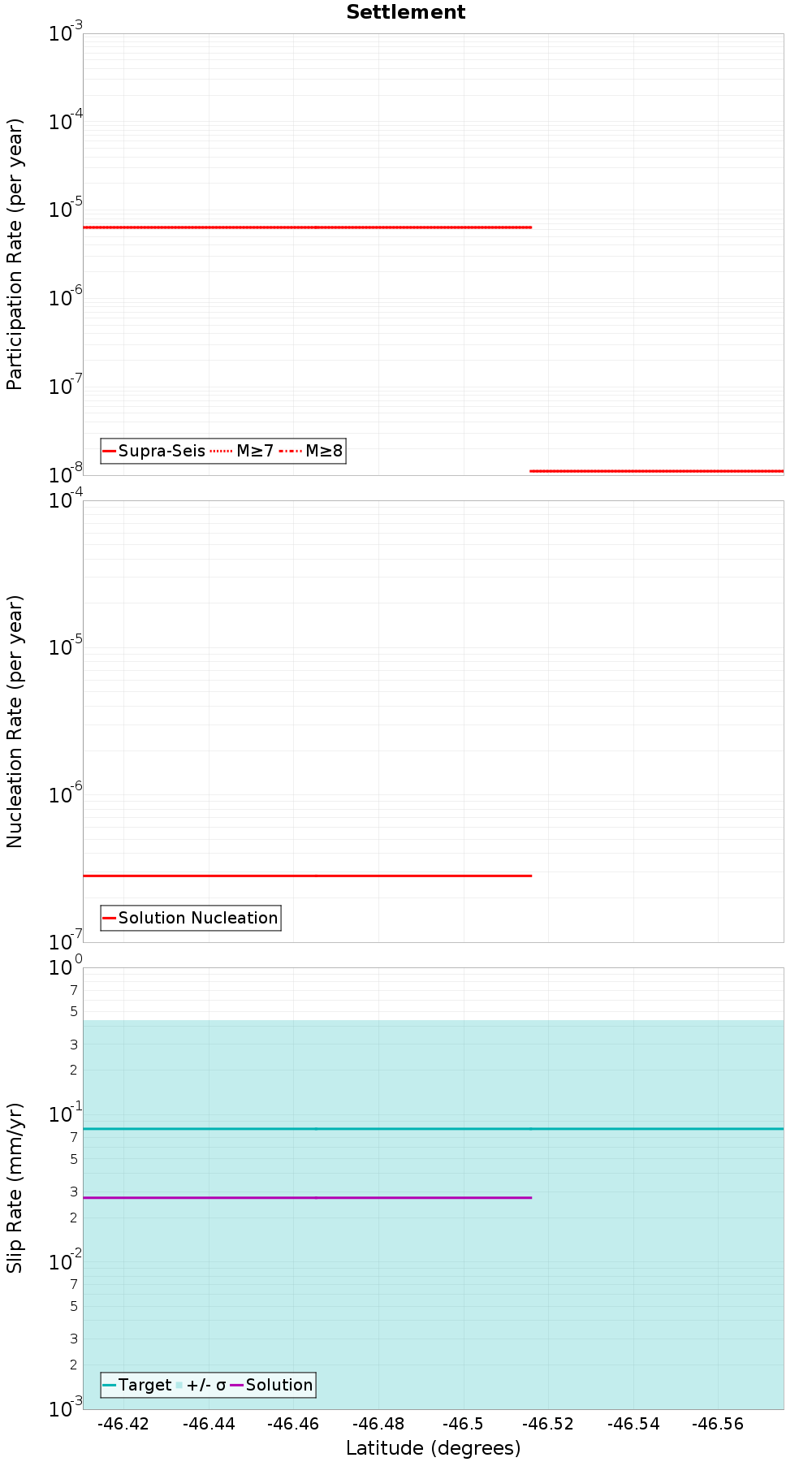

Along-Strike Values

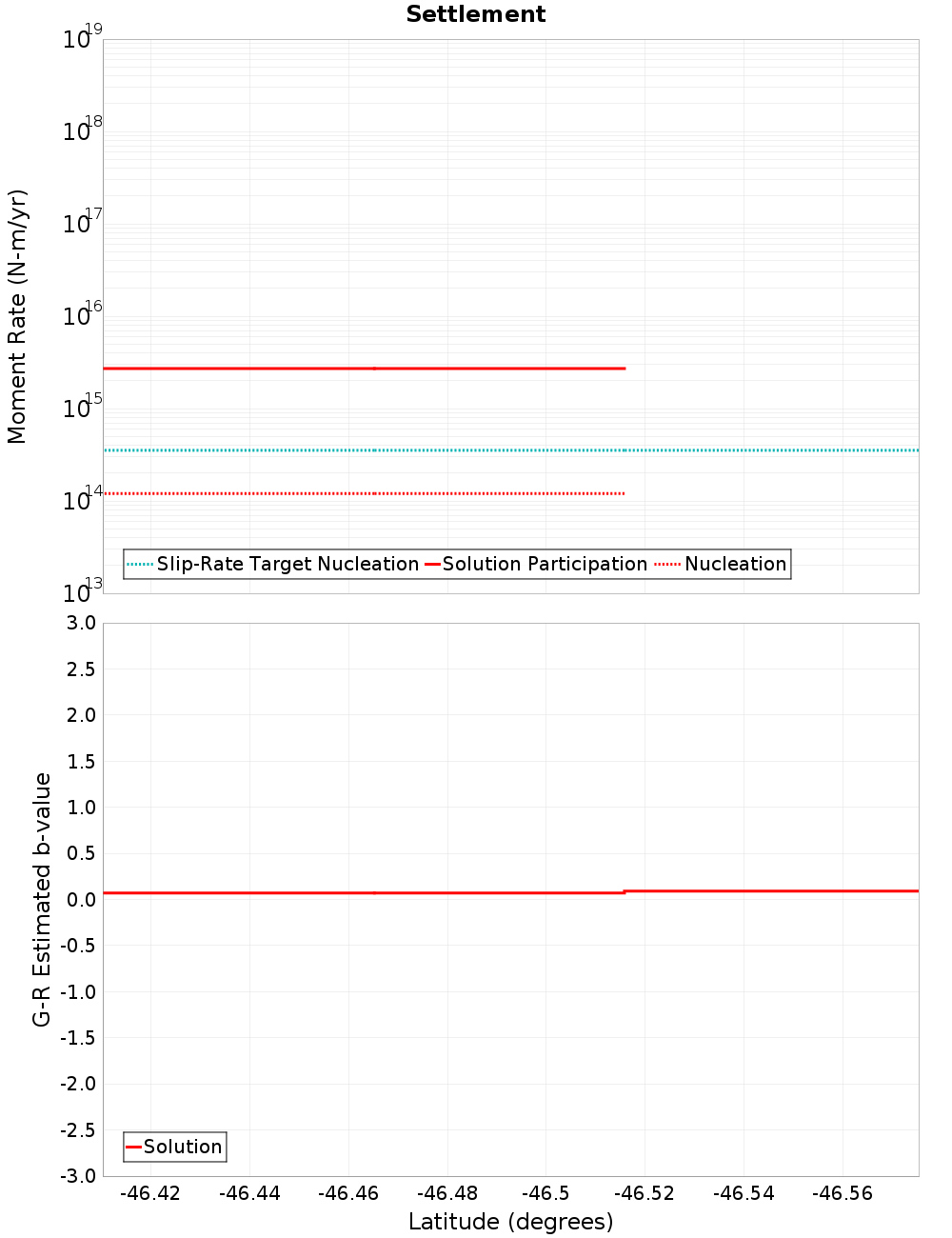

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Little Hillfoot, 0.3 km away |
| Hillfoot, 2.07 km away |
| Titri South, 11.67 km away |
| Otanomomo, 13.4 km away |
Little Hillfoot, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hillfoot, 2.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 0.0 |
Titri South, 11.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 6.349509E-6 |
Otanomomo, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MDQuMHFuNldW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
