Rangitaiki 1 Details

Property	Value
Rupture Count	2,346
Ruptures Above Sect Min Mag	2,346
Ruptures w/ Nonzero Rates	368
Magnitude Range	[6.52, 8.20]
Length Range	[9, 444] km
Total Rate	5.1066192E-5 /yr
Multi-Fault Rate	4.3210435E-5 /yr (84.62%)
Directly-Connected Faults	2
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

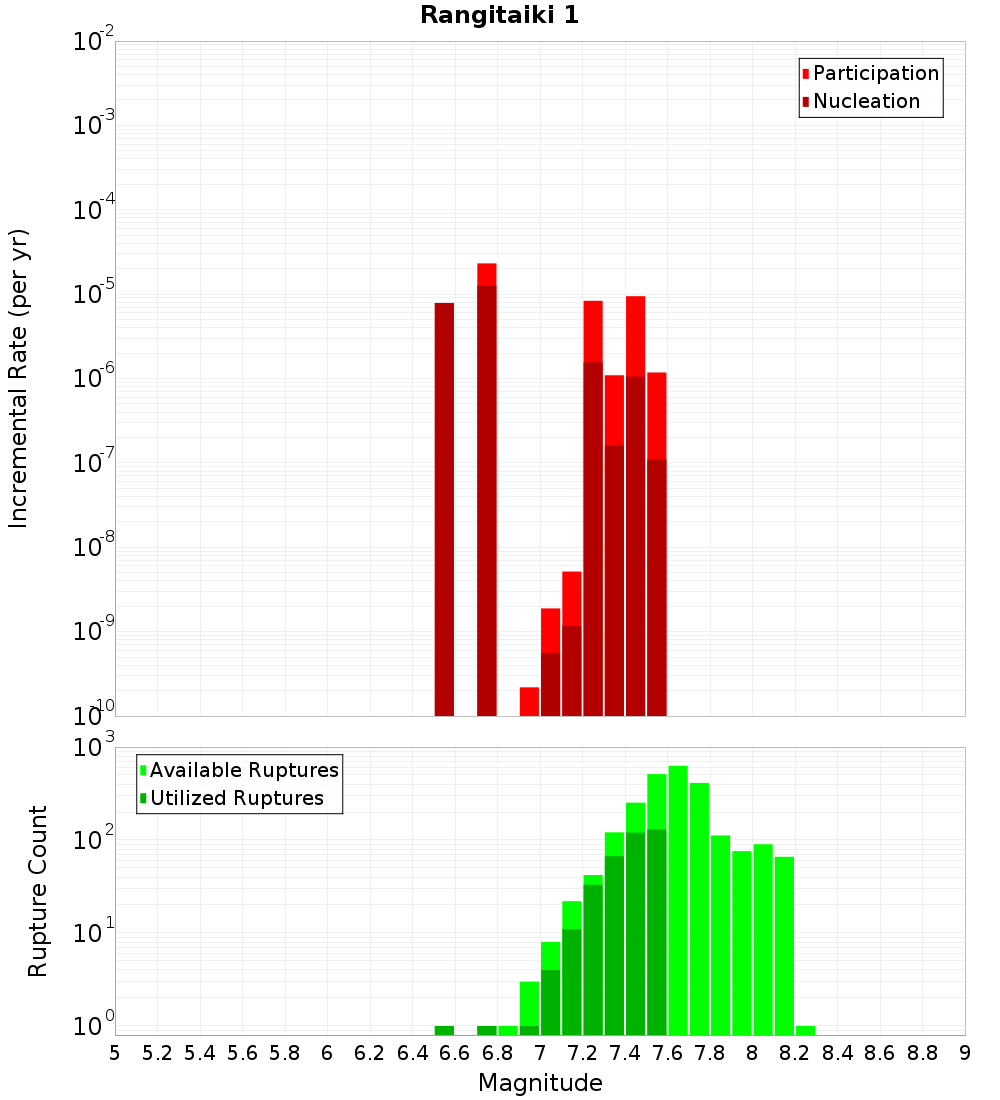

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

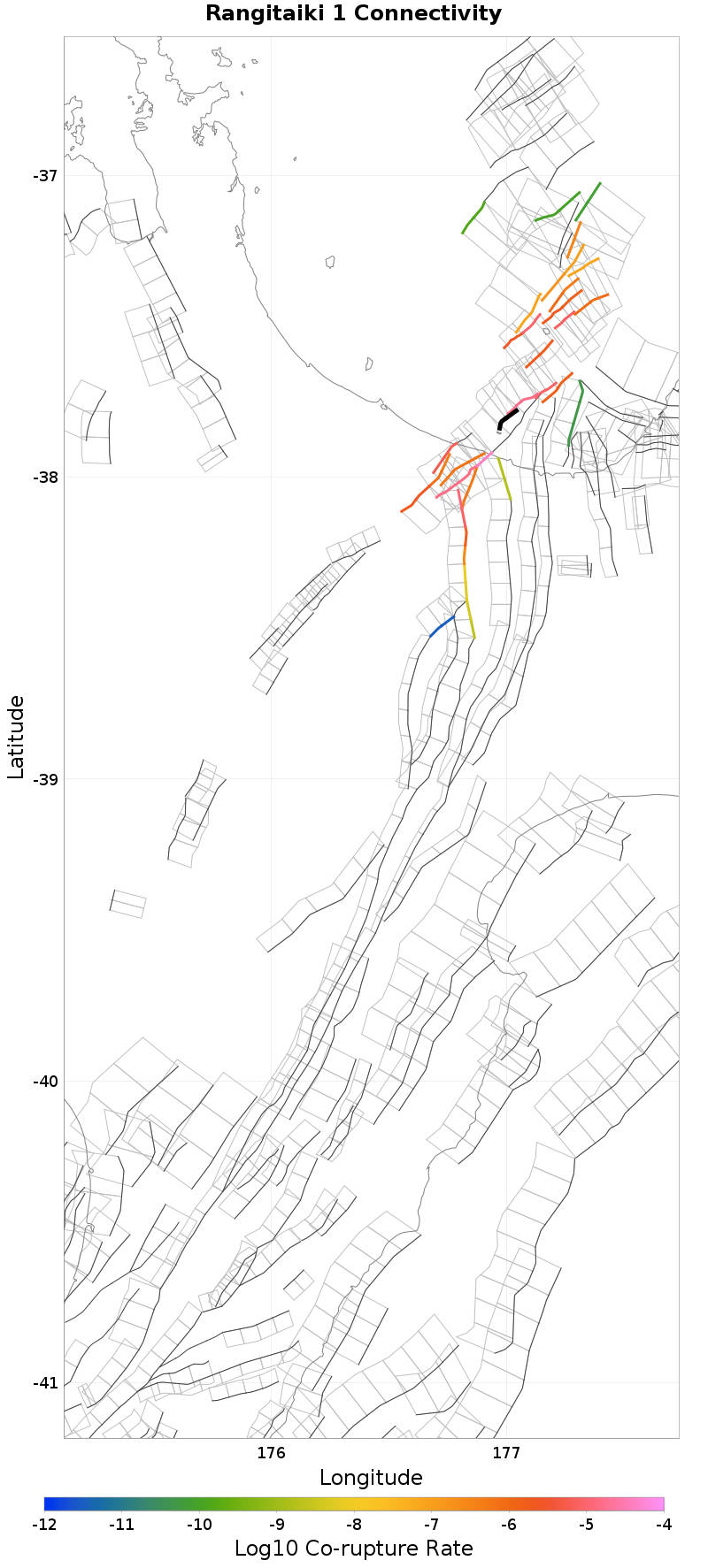

Connectivity

Nearby Sections

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away
Edgecumbe 1987, 15.01 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,166
Co-rupture Rate	1.5692409E-5

White Island 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	599
Co-rupture Rate	8.40581E-6

Edgecumbe Coastal, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,242
Co-rupture Rate	4.201486E-5

Matata, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	304
Co-rupture Rate	5.9960225E-6

White Island 2, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	450
Co-rupture Rate	1.5315636E-6

Waimana: North, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	1,451
Co-rupture Rate	9.657008E-6

Otakiri, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	6.5752886E-7

Whakatane: North, 11.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	164
Co-rupture Rate	1.7453802E-9

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 13.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	169
Co-rupture Rate	1.9136246E-6

Edgecumbe 1987, 15.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	762
Co-rupture Rate	1.425414E-5

Awakeri, 16.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	874
Co-rupture Rate	5.7125993E-7
