Te Arawa 2 Details

PropertyValue
Rupture Count7,000
Ruptures Above Sect Min Mag7,000
Ruptures w/ Nonzero Rates337
Magnitude Range[6.82, 8.33]
Length Range[16, 605] km
Total Rate6.805582E-5 /yr
Multi-Fault Rate6.550413E-5 /yr (96.25%)
Directly-Connected Faults4
All Co-Rupturing Faults72

Table Of Contents

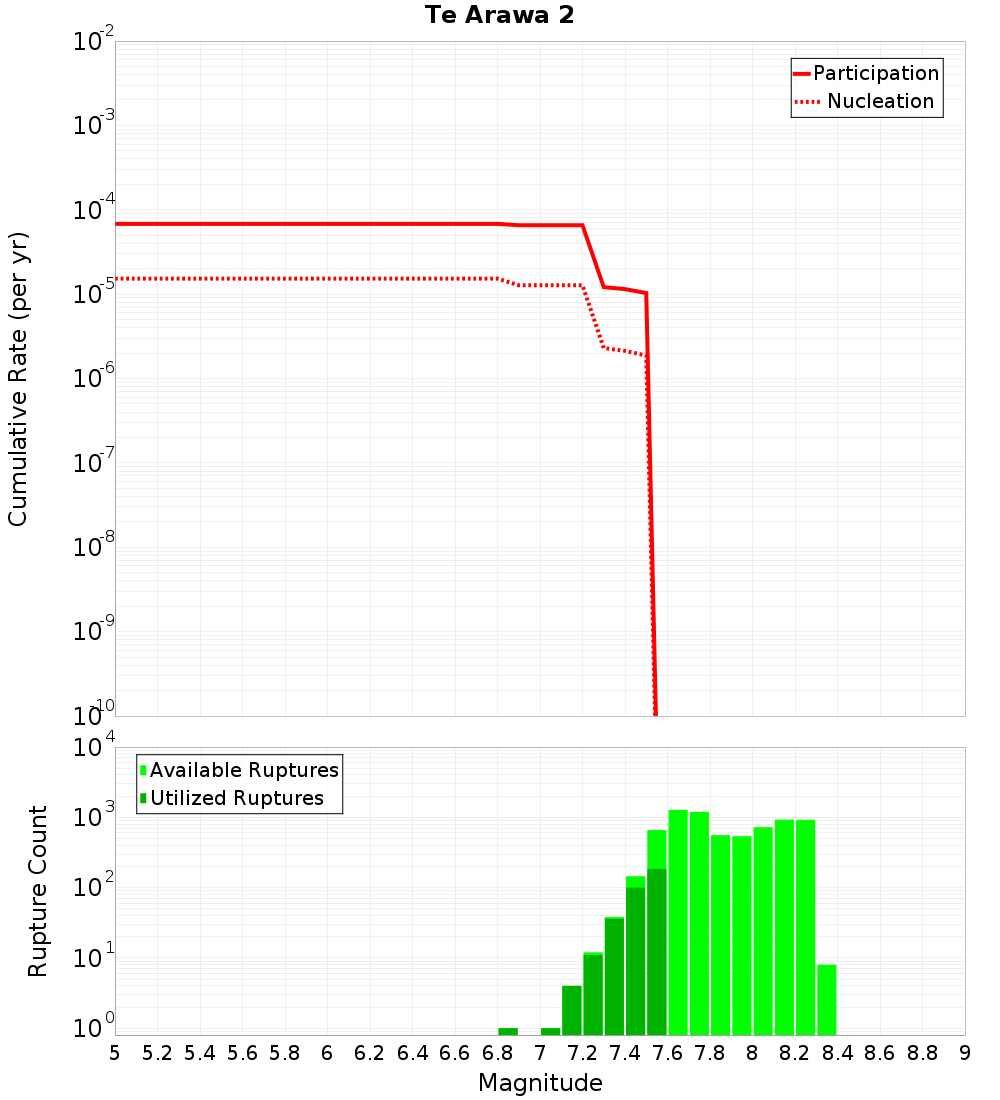

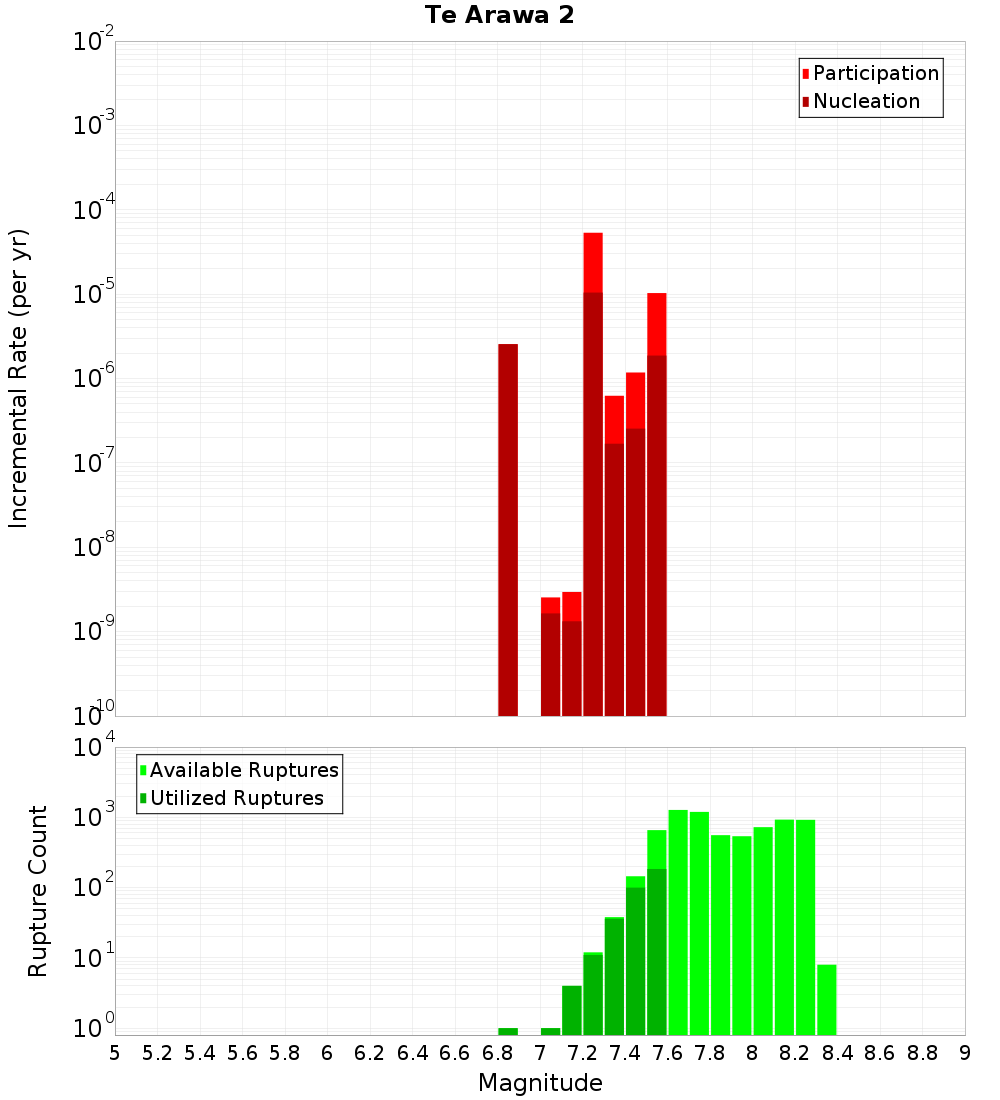

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

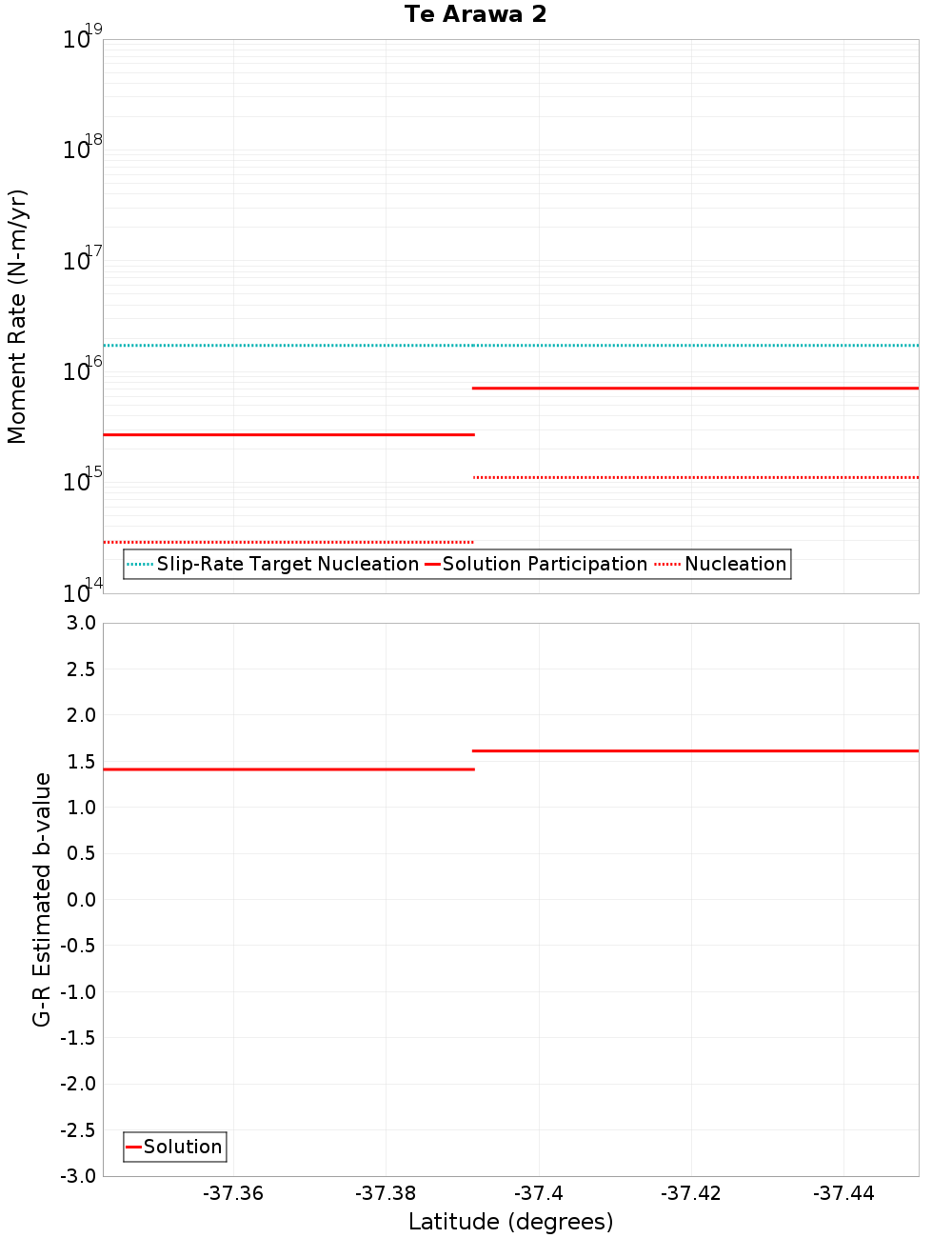

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tuatoru 2, 0.13 km awayOtara West 1, 7.42 km away
Te Arawa 1, 1.19 km awayOtara East 1, 7.74 km away
Te Arawa 3, 1.67 km awayWhite Island 2, 10.07 km away
Whakaari 4, 3.86 km awayOtara West 2, 11.66 km away
Volkner 4, 4.02 km awayOpotiki 3, 14.7 km away
Tuatoru 1, 4.64 km awayOhiwa 1, 14.95 km away
Hariki, 5.17 km awayOtara West 3, 18.79 km away
Volkner 3, 6 km awayOtara East 2, 19.77 km away
Calypso 2, 6.99 km away

Tuatoru 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?true
Co-rupture Count4,667
Co-rupture Rate5.3517604E-5

Te Arawa 1, 1.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate5.490338E-7

Te Arawa 3, 1.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate4.782052E-9

Whakaari 4, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?true
Co-rupture Count6,368
Co-rupture Rate5.5885528E-5

Volkner 4, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate2.0959913E-8

Tuatoru 1, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?true
Co-rupture Count628
Co-rupture Rate9.66864E-6

Hariki, 5.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate0.0

Volkner 3, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate2.9391444E-7

Otara West 1, 7.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count2,697
Co-rupture Rate7.4218156E-7

White Island 2, 10.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count619
Co-rupture Rate9.780206E-6

Otara West 2, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate1.0659998E-10

Ohiwa 1, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count3,540
Co-rupture Rate5.322523E-5

Otara West 3, 18.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate8.381921E-11

Otara East 2, 19.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?true
Directly Connected?false
Co-rupture Count1,141
Co-rupture Rate3.7938598E-8
