Volkner 4 Details

Property	Value
Rupture Count	4,704
Ruptures Above Sect Min Mag	4,704
Ruptures w/ Nonzero Rates	108
Magnitude Range	[7.13, 8.33]
Length Range	[26, 594] km
Total Rate	8.40898E-7 /yr
Multi-Fault Rate	8.40335E-7 /yr (99.93%)
Directly-Connected Faults	5
All Co-Rupturing Faults	62

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

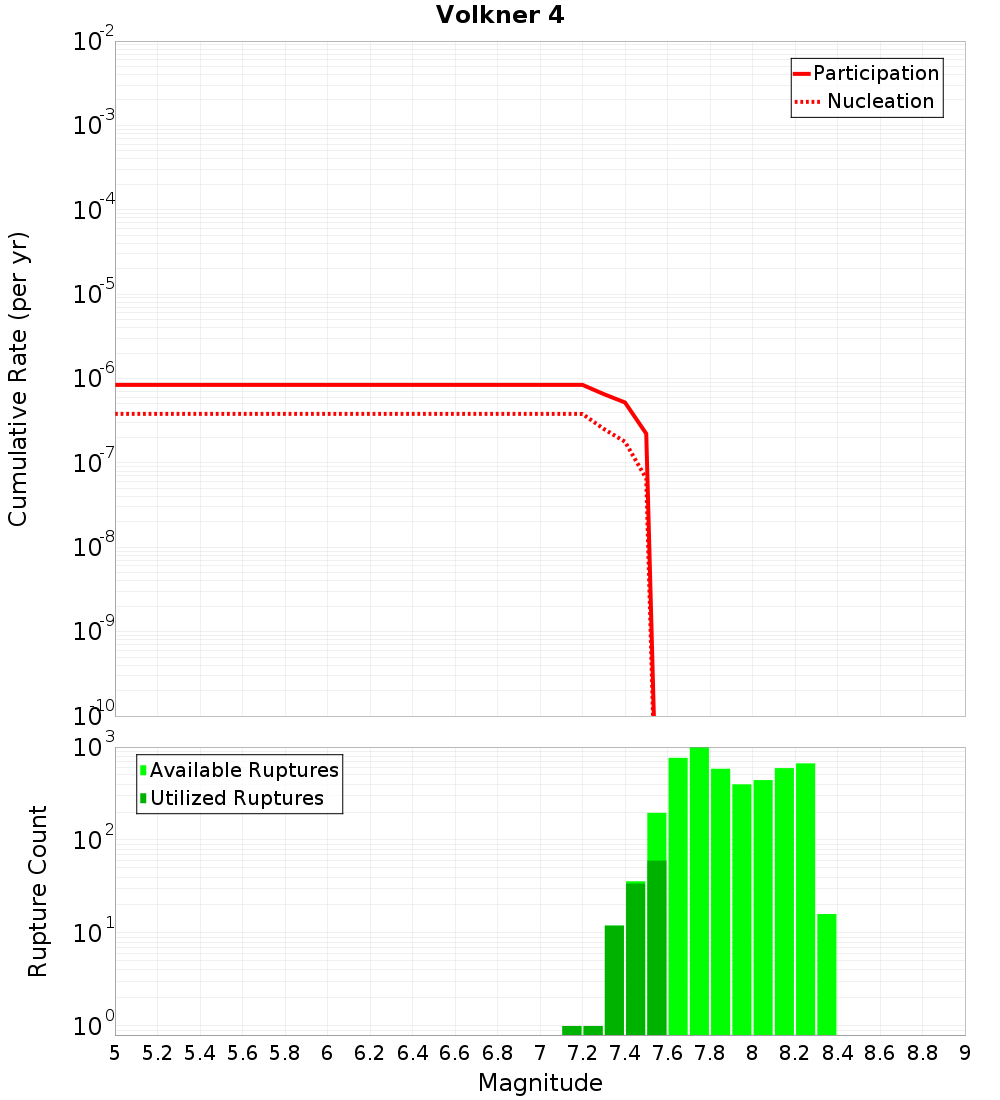

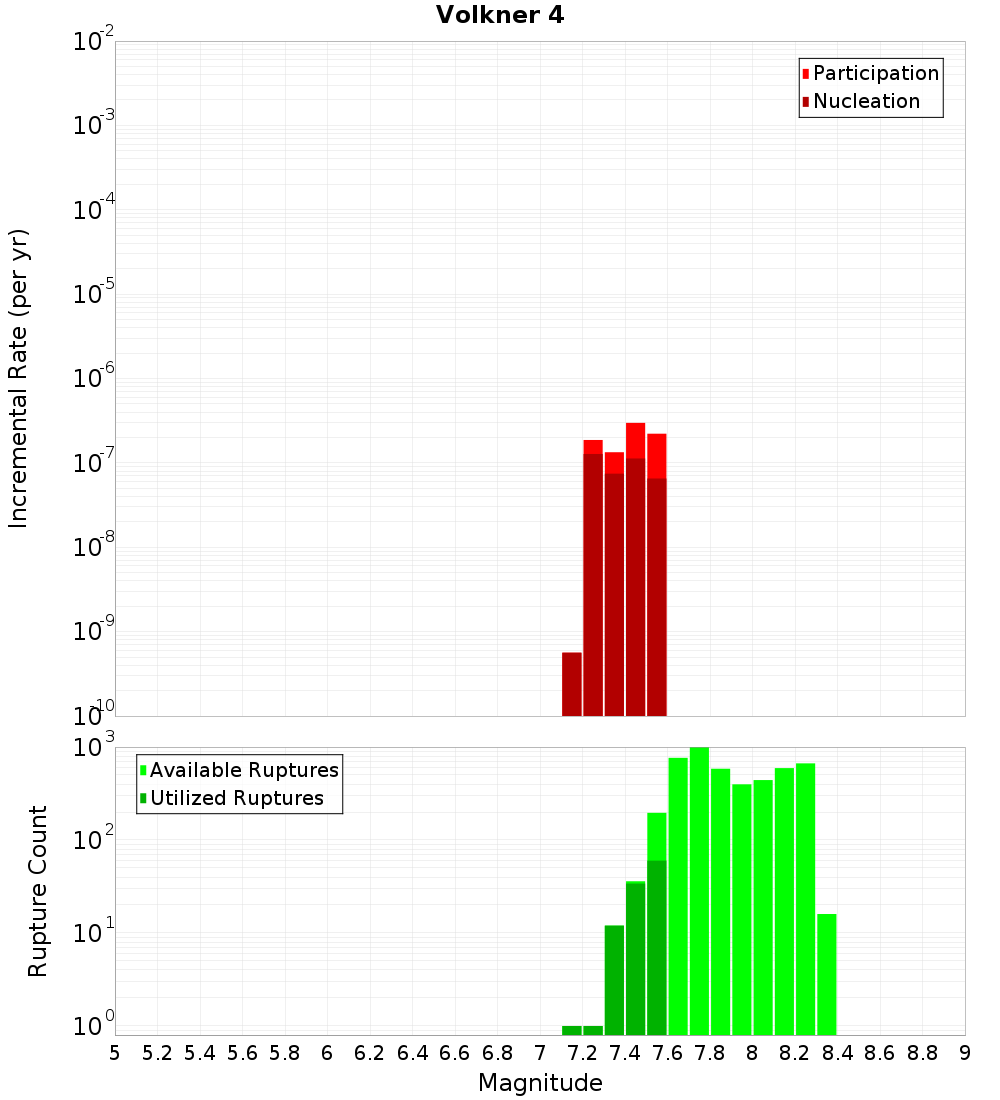

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

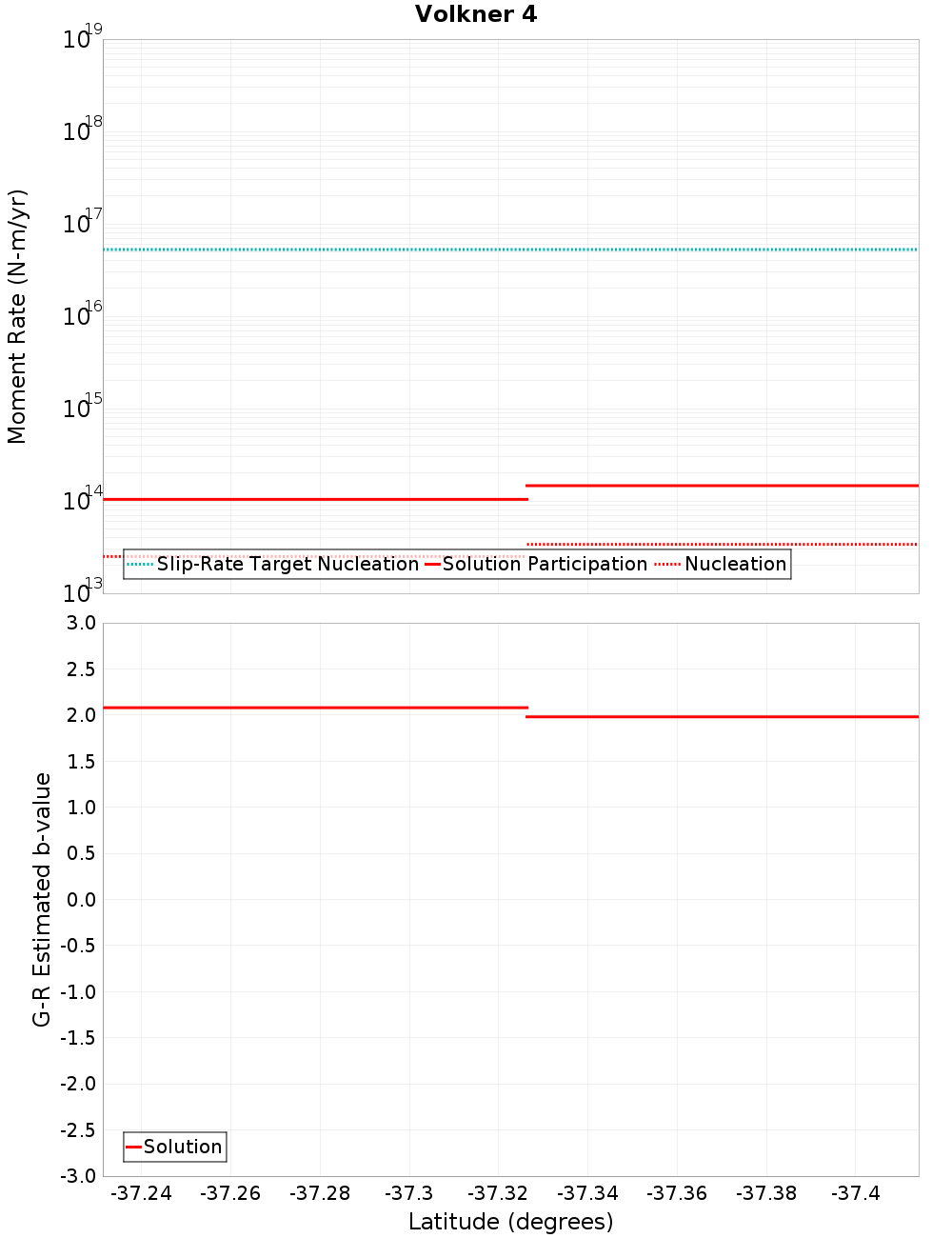

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Tuakana 7, 0.13 km away	Otara West 2, 4.44 km away
Otara West 3, 0.2 km away	Whakaari 4, 5.31 km away
Otara East 1, 0.22 km away	Otara East 2, 5.35 km away
Tuakana 6, 0.33 km away	Te Arawa 1, 6.45 km away
Volkner 3, 1.38 km away	Tuatoru 2, 10.03 km away
Otara West 1, 1.39 km away	Tuatoru 1, 11.02 km away
Te Arawa 3, 1.79 km away	Calypso 2, 11.95 km away
Te Arawa 2, 4.02 km away	Tauranga Trough East 2, 19.49 km away

Tuakana 7, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 3, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,234
Co-rupture Rate	3.3489492E-8

Otara East 1, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	true
Co-rupture Count	874
Co-rupture Rate	4.0440582E-8

Tuakana 6, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	387
Co-rupture Rate	9.544861E-9

Volkner 3, 1.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,282
Co-rupture Rate	2.6263075E-7

Otara West 1, 1.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 3, 1.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	4.263152E-10

Te Arawa 2, 4.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	2.0959913E-8

Otara West 2, 4.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	292
Co-rupture Rate	2.1609334E-11

Whakaari 4, 5.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	true
Co-rupture Count	4,685
Co-rupture Rate	7.635281E-7

Otara East 2, 5.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,126
Co-rupture Rate	1.481436E-8

Te Arawa 1, 6.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	5.18605E-10

Tuatoru 2, 10.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	2.4969687E-10

Tuatoru 1, 11.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 11.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tauranga Trough East 2, 19.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEh1N0F5
Connected?	true
Directly Connected?	false
Co-rupture Count	54
Co-rupture Rate	0.0
