AmberBlyth Details

Property	Value
Rupture Count	915
Ruptures Above Sect Min Mag	911
Ruptures w/ Nonzero Rates	48
Magnitude Range	[6.81, 8.11]
Length Range	[20, 345] km
Total Rate	5.1918684E-4 /yr
Multi-Fault Rate	5.114197E-4 /yr (98.50%)
Directly-Connected Faults	10
All Co-Rupturing Faults	46

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

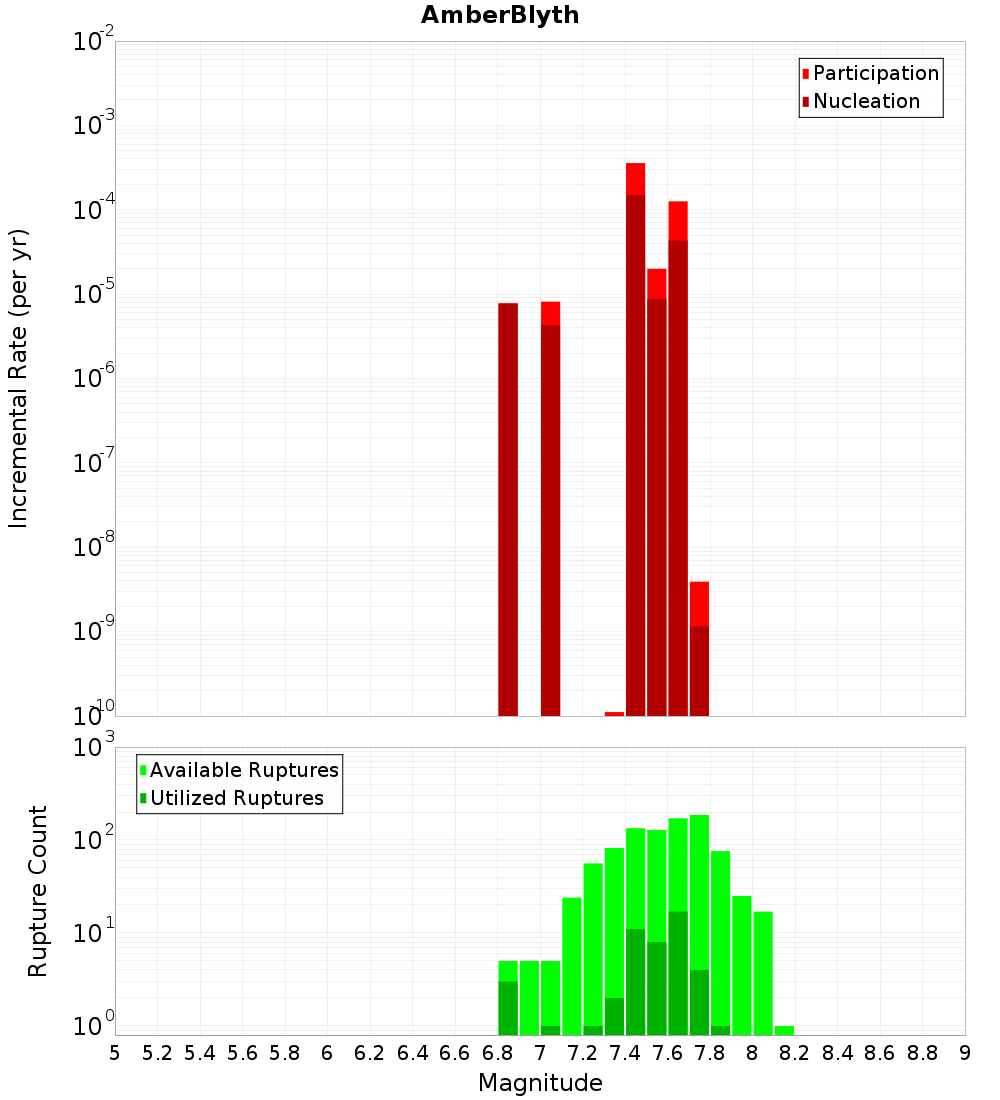

Magnitude-Frequency Distribution

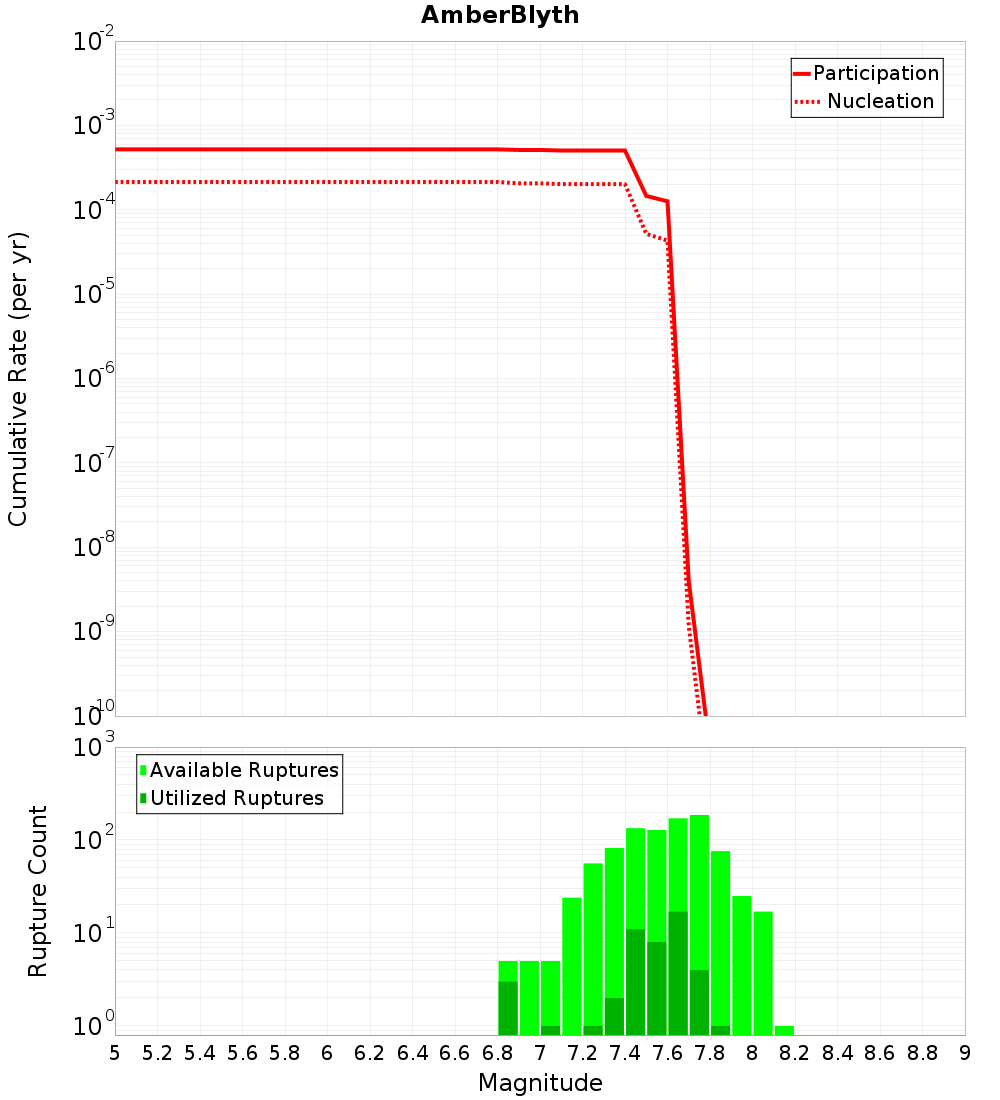

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
OmihiLwrHuru, 1.98 km away	Waikuku, 9.2 km away
Motunau, 2.59 km away	Alexander, 11.84 km away
Hawkswood, 3.15 km away	North Canterbury Shelf 4, 12.25 km away
Boby Stream, 3.76 km away	Mt Lawry, 14.29 km away
Point Gibson, 4.29 km away	Pegasus Bay, 14.66 km away
North Canterbury Shelf 2, 4.87 km away	Springbank, 15.08 km away
Leithfield - NCVI - NCVII, 5.71 km away	Mt Arden, 15.14 km away
Doctors, 5.78 km away	Kaiwara North, 15.9 km away
North Canterbury Shelf 11, 7.7 km away	Lowry, 16.84 km away
Starvation - Ashley, 7.86 km away	Knowles Top, 19.54 km away
Kaiwara South, 8.44 km away

OmihiLwrHuru, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	9.9698445E-6

Motunau, 2.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	116
Co-rupture Rate	1.3925116E-4

Hawkswood, 3.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	595
Co-rupture Rate	3.0387705E-4

Boby Stream, 3.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	130
Co-rupture Rate	8.665038E-6

Point Gibson, 4.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	135
Co-rupture Rate	1.6491198E-4

North Canterbury Shelf 2, 4.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	116
Co-rupture Rate	1.7379703E-5

Leithfield - NCVI - NCVII, 5.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	170
Co-rupture Rate	4.5778554E-5

Doctors, 5.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

North Canterbury Shelf 11, 7.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	2.9086681E-5

Starvation - Ashley, 7.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	127
Co-rupture Rate	1.0614042E-9

Kaiwara South, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	3.1084182E-10

Waikuku, 9.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	74
Co-rupture Rate	1.6781229E-9

Alexander, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	75
Co-rupture Rate	5.396223E-6

North Canterbury Shelf 4, 12.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	1.9557742E-9

Mt Lawry, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pegasus Bay, 14.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	74
Co-rupture Rate	1.5901295E-4

Springbank, 15.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0

Mt Arden, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaiwara North, 15.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	5.3608123E-6

Lowry, 16.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Knowles Top, 19.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
