Fidget Details

Property	Value
Rupture Count	18,829
Ruptures Above Sect Min Mag	18,826
Ruptures w/ Nonzero Rates	462
Magnitude Range	[6.76, 8.62]
Length Range	[17, 1,201] km
Total Rate	0.0011982523 /yr
Multi-Fault Rate	0.0011982523 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	129

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

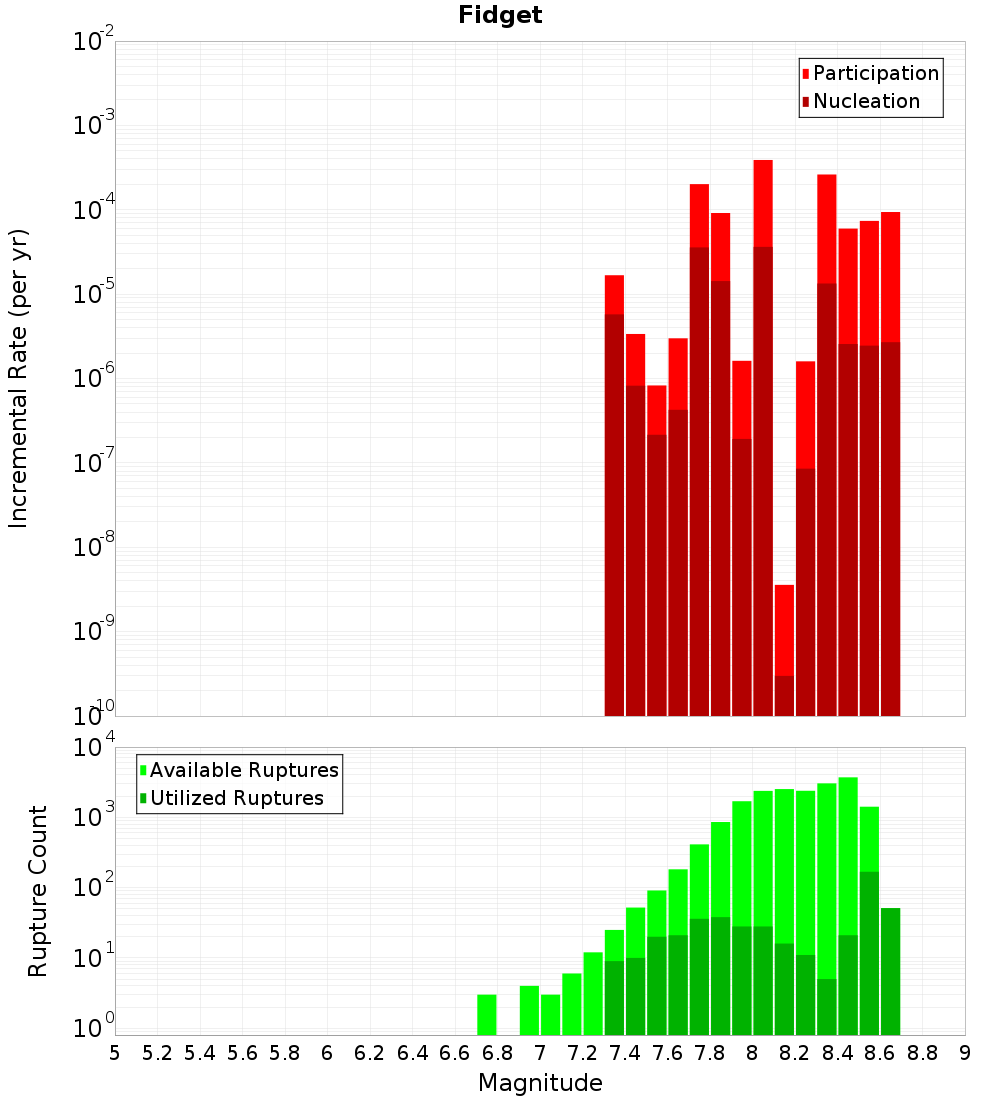

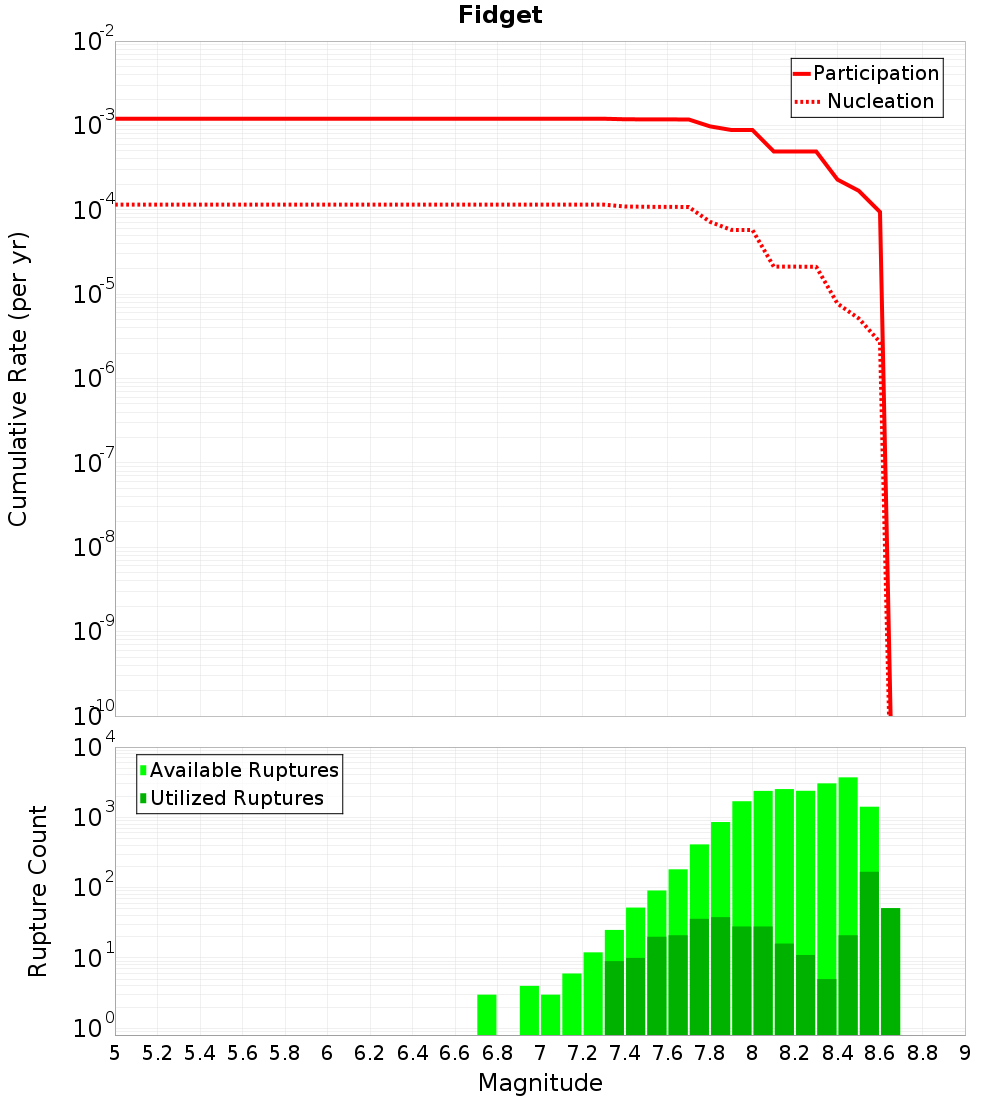

Magnitude-Frequency Distribution

Incremental	Cumulative

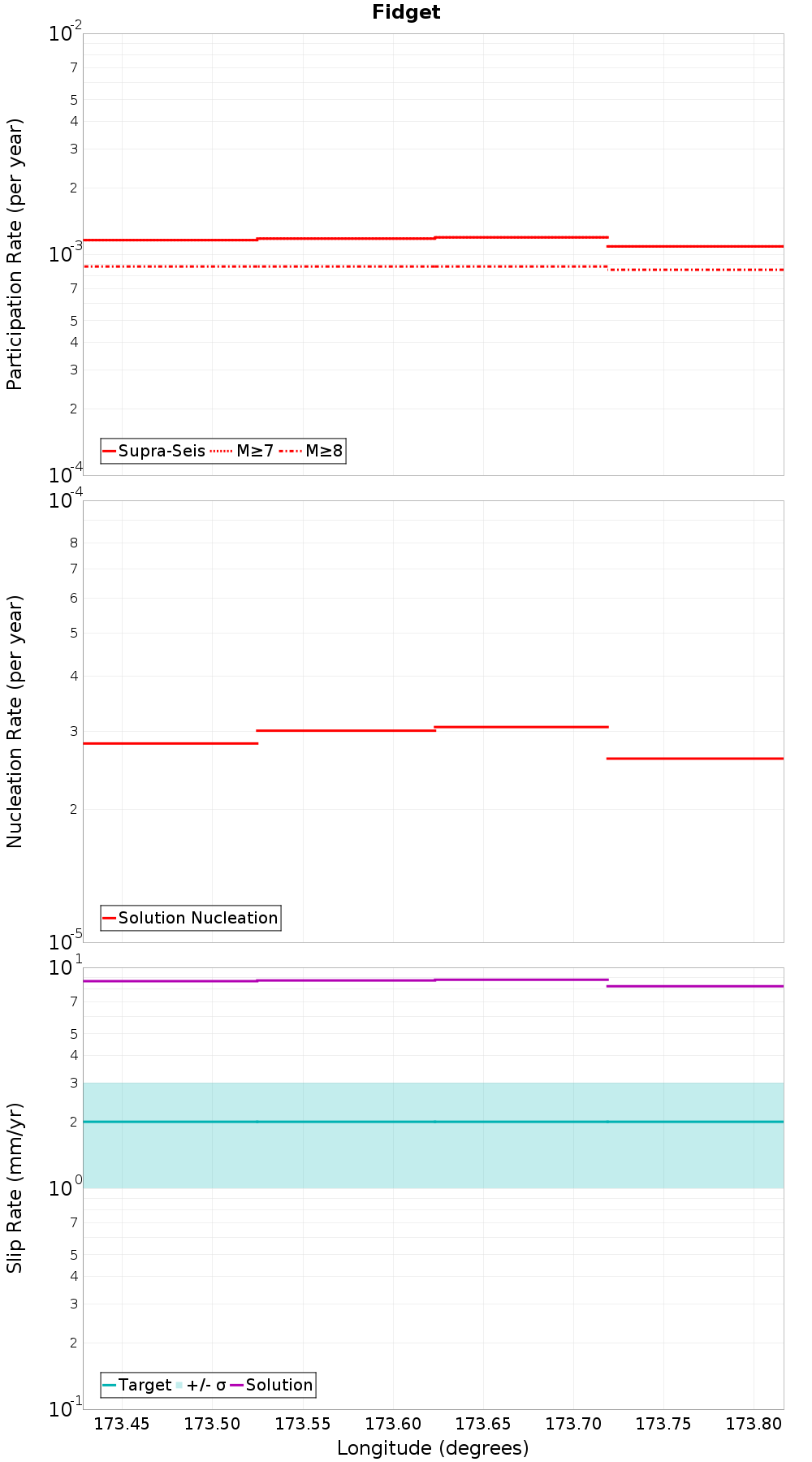

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Papatea, 0 km away
Kekerengu 1, 0 km away
Jordan, 0 km away
Clarence: Northeast, 0.64 km away
Elliott, 3.22 km away
Clarence: Central, 3.22 km away
Hope: Seaward, 13.67 km away
Hope: Te Rapa, 16.07 km away
Awatere: Northeast 1, 17.38 km away
Hope: Conway, 17.56 km away
Awatere: Southwest, 18 km away

Papatea, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	16,572
Co-rupture Rate	0.0010683356

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	290
Co-rupture Rate	3.2515165E-6

Clarence: Northeast, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	109
Co-rupture Rate	9.2101676E-5

Elliott, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,345
Co-rupture Rate	1.5539493E-4

Clarence: Central, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	13,536
Co-rupture Rate	9.897491E-4

Hope: Seaward, 13.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	539
Co-rupture Rate	1.736059E-5

Hope: Te Rapa, 16.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	108
Co-rupture Rate	1.7358887E-5

Awatere: Northeast 1, 17.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 17.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	438
Co-rupture Rate	1.9959612E-6

Awatere: Southwest, 18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0
