Oaonui Details

Property	Value
Rupture Count	28
Ruptures Above Sect Min Mag	28
Ruptures w/ Nonzero Rates	28
Magnitude Range	[6.90, 7.61]
Length Range	[22, 105] km
Total Rate	4.3481318E-4 /yr
Multi-Fault Rate	3.9373357E-5 /yr (9.06%)
Directly-Connected Faults	2
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

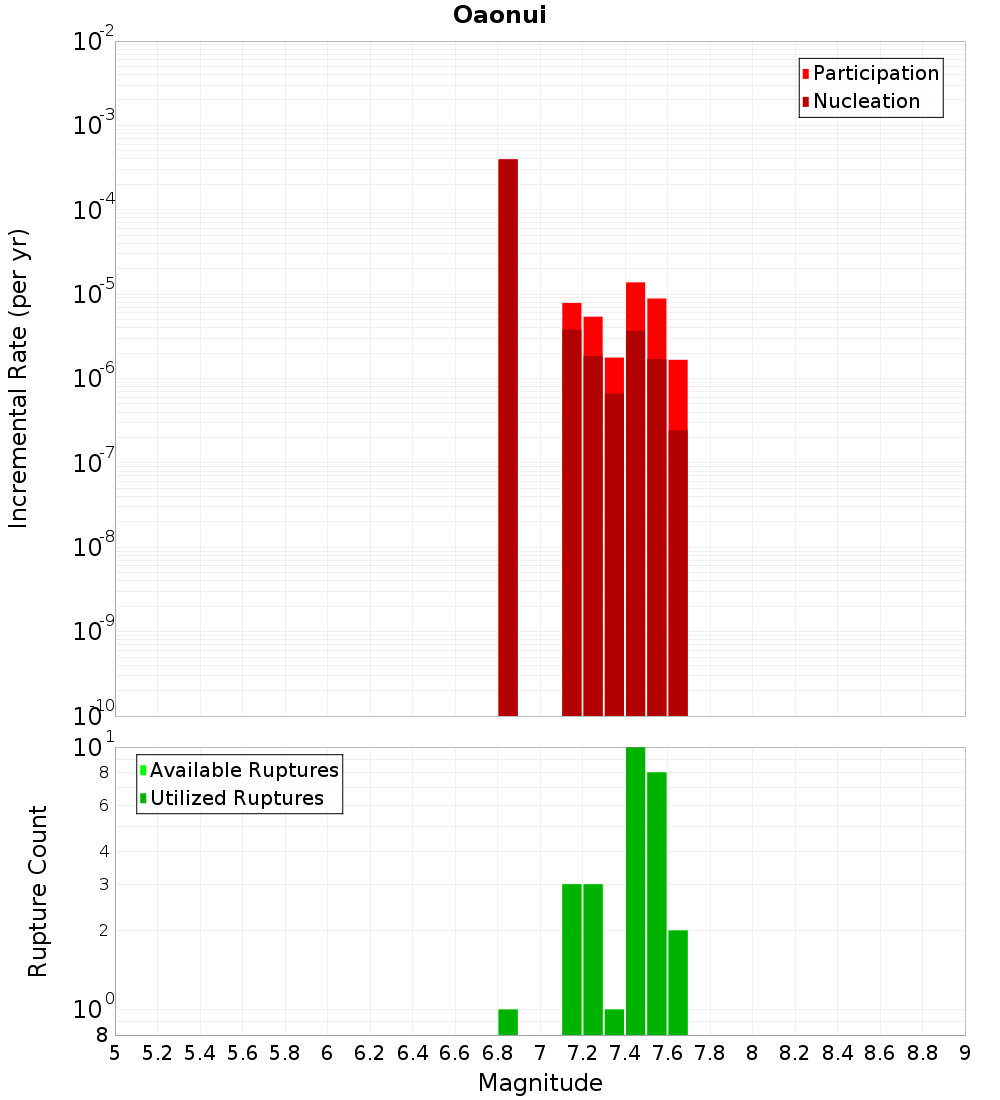

Magnitude-Frequency Distribution

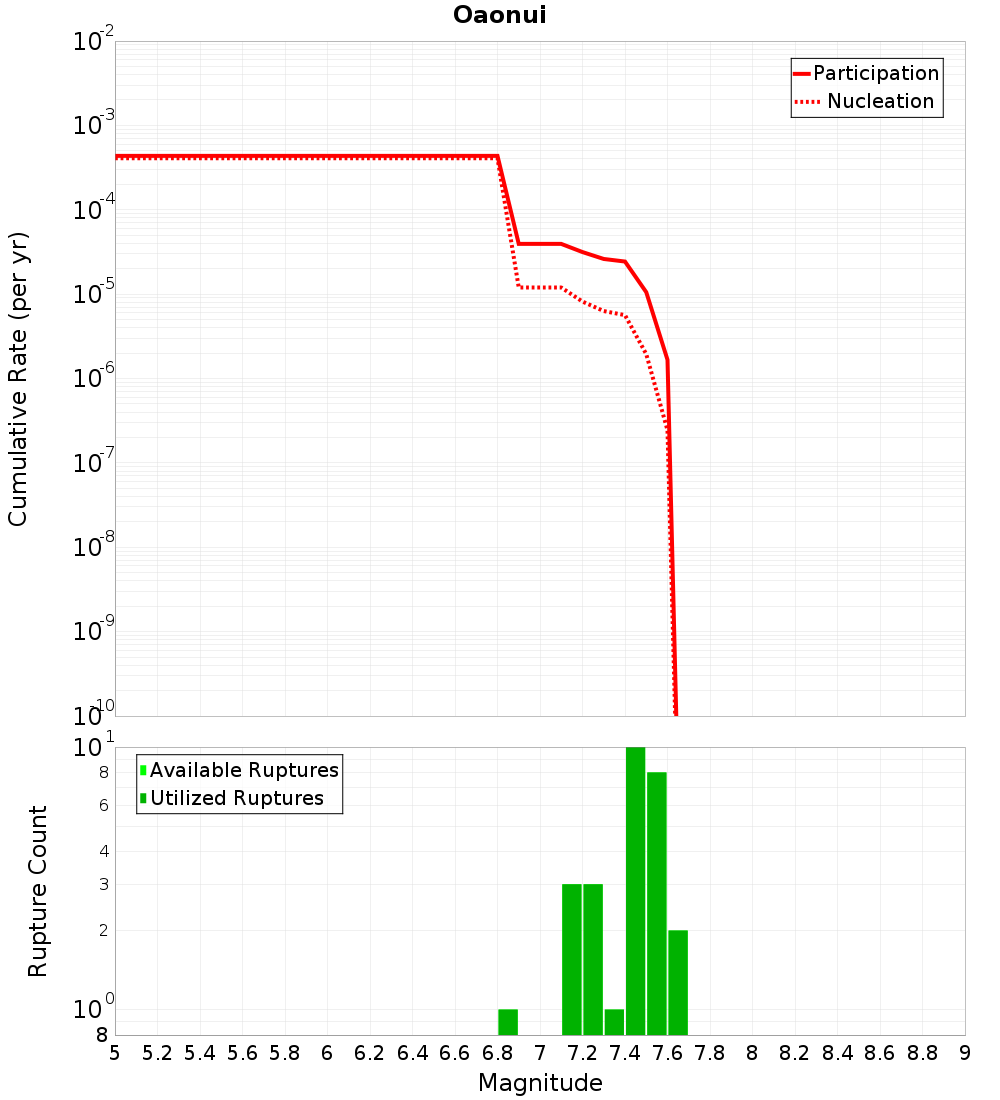

Incremental	Cumulative

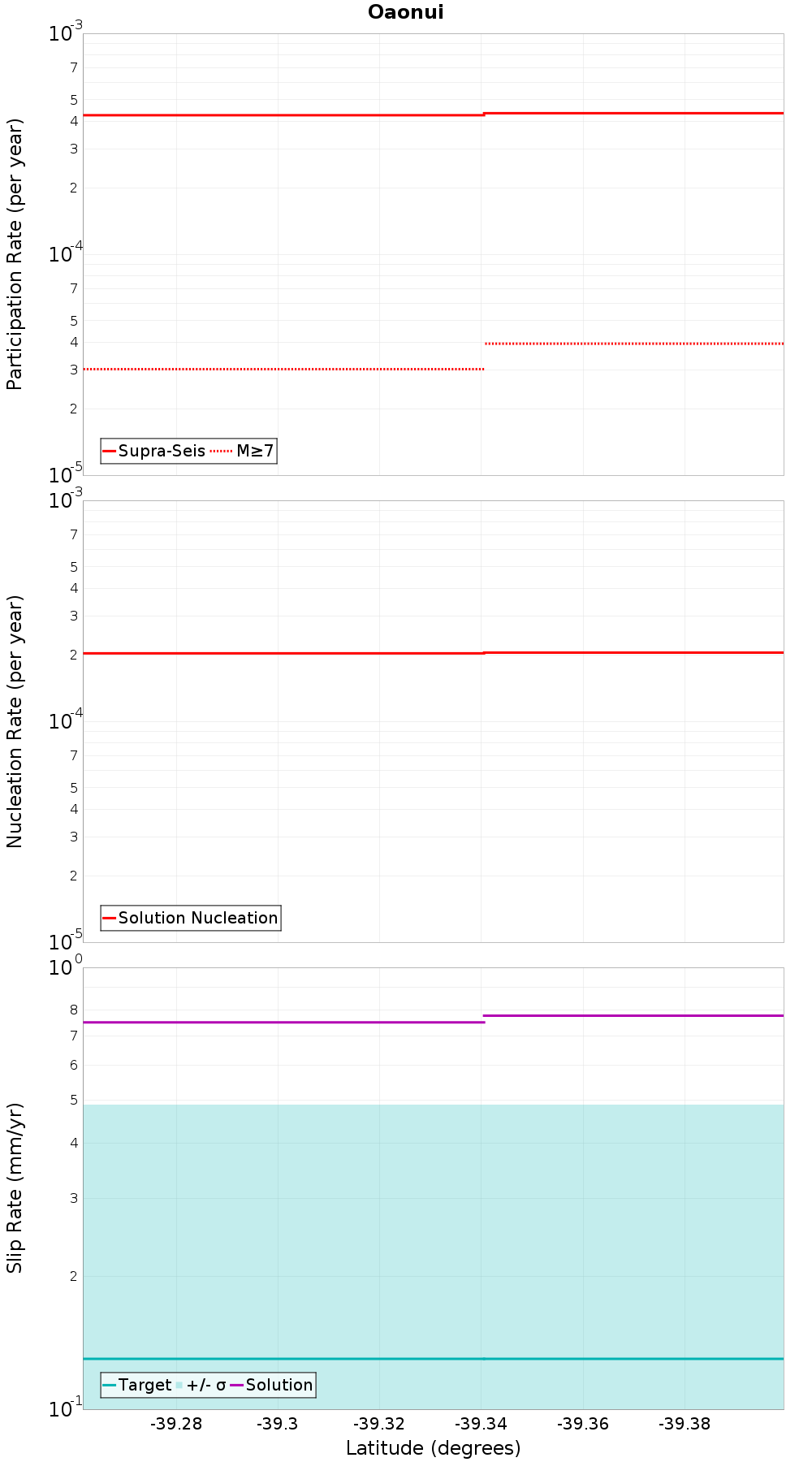

Along-Strike Values

Moment-Rates and b-Values

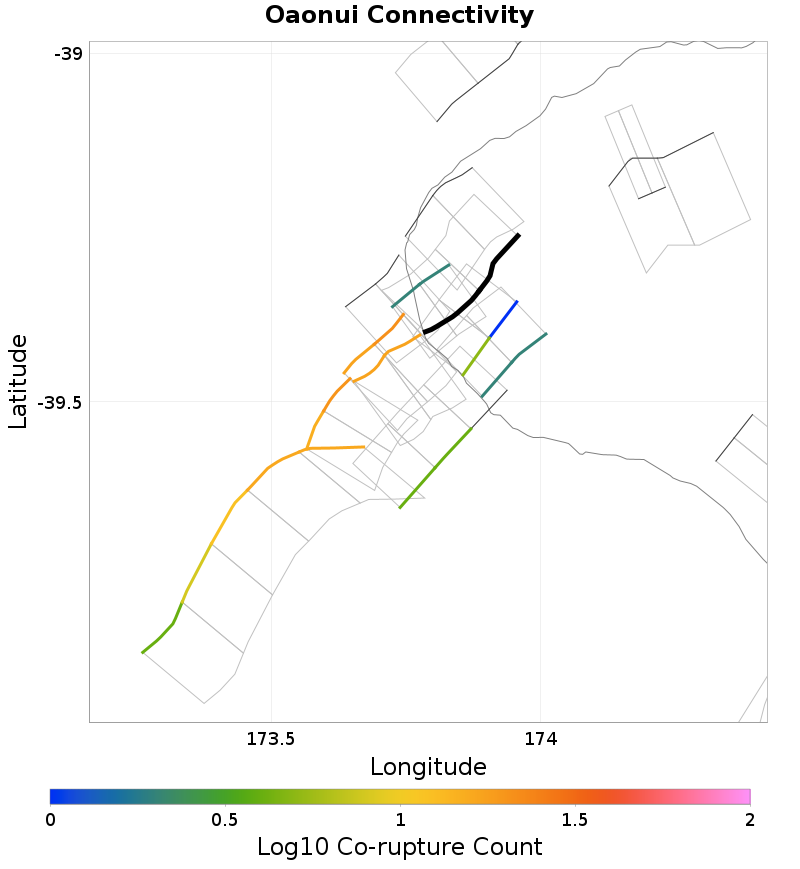

Connectivity

Nearby Sections

Fault Section
Manahi 2, 0.21 km away
Rahotu, 0.25 km away
Warea, 0.31 km away
Cape Egmont: North, 0.65 km away
Manahi 1, 1.04 km away
Ihaia, 5.28 km away
Kiri, 10.41 km away
Cape Egmont: Central, 13.19 km away
Pihama, 13.29 km away
Inglewood, 16.63 km away

Manahi 2, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rahotu, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	2.8119548E-6

Warea, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: North, 0.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	3.0357607E-5

Manahi 1, 1.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	2.5582809E-5

Ihaia, 5.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	5.819962E-6

Kiri, 10.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	2.7718897E-6

Cape Egmont: Central, 13.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	2.7066353E-5

Pihama, 13.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	4.4404574E-6

Inglewood, 16.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMEtQTVB3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
