Martinborough Details

Property	Value
Rupture Count	75
Ruptures Above Sect Min Mag	72
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.62, 8.21]
Length Range	[15, 444] km
Total Rate	3.408136E-5 /yr
Multi-Fault Rate	3.408136E-5 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	27

Table Of Contents

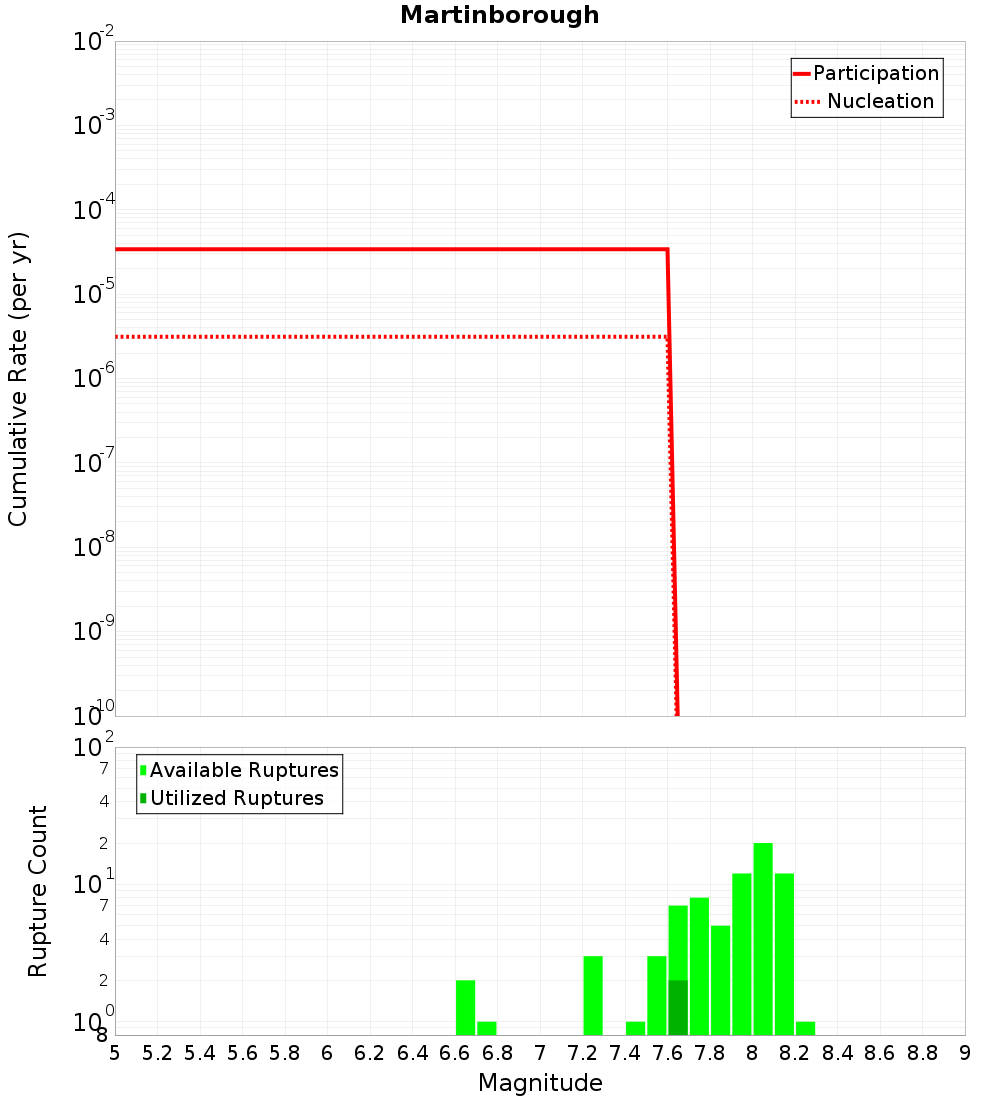

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

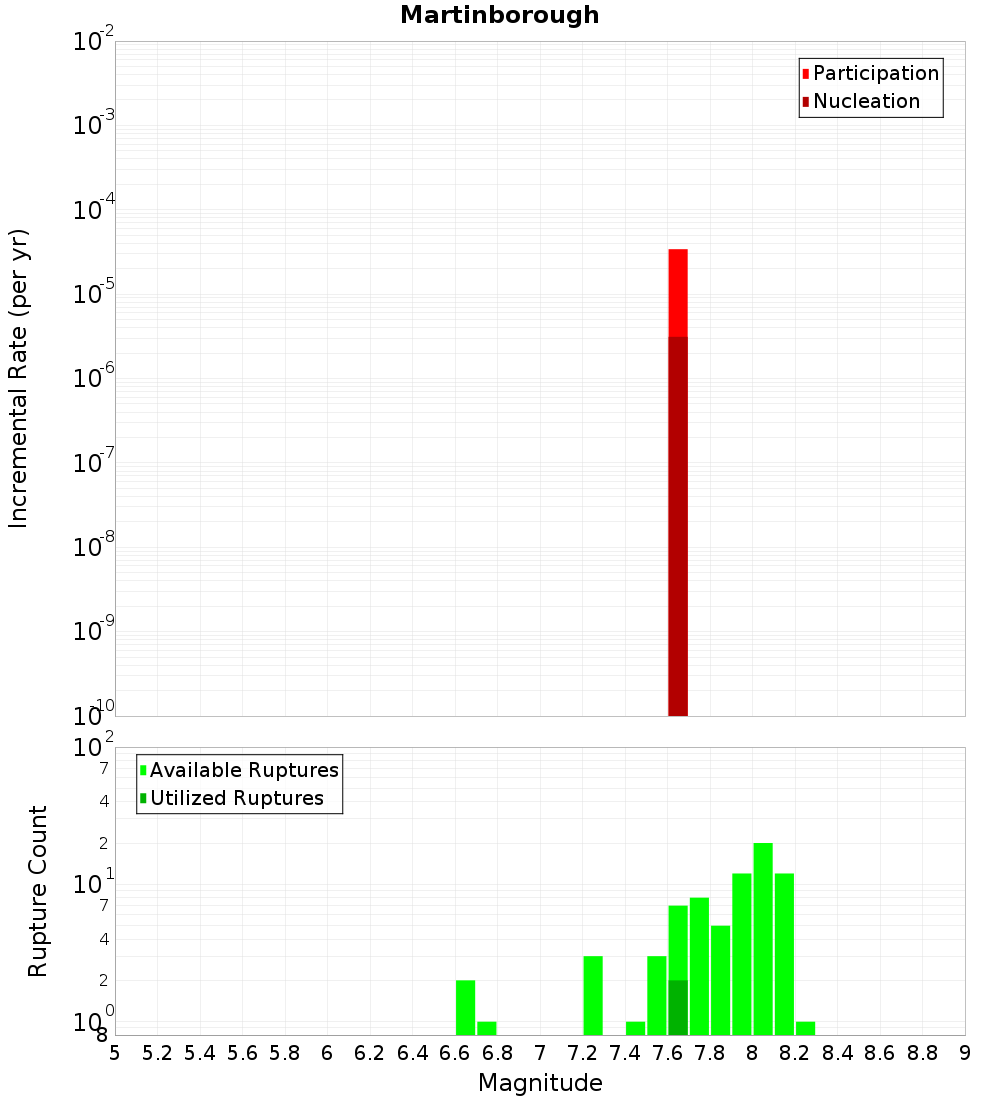

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

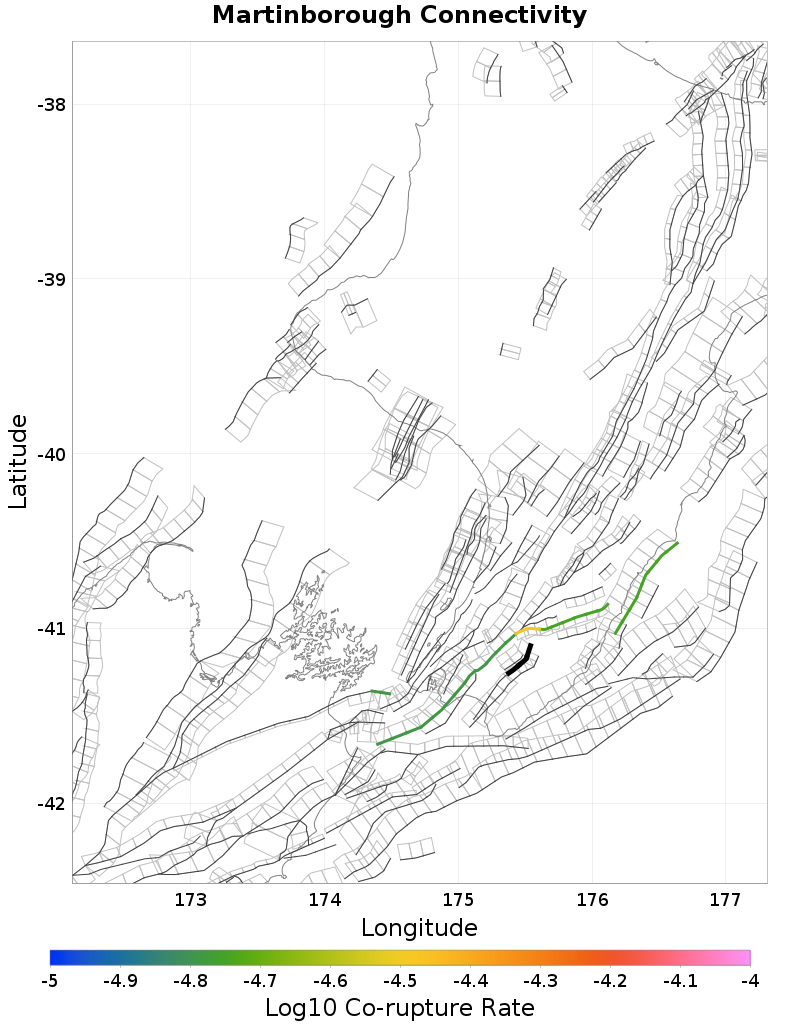

Connectivity

Nearby Sections

Fault Section
Carterton, 0.42 km away
Otaraia, 1.89 km away
Bidwill, 2.26 km away
Masterton, 2.34 km away
Dry River - Huangarua: 1, 4.37 km away
Dry River - Huangarua: 2, 4.43 km away
Dry River - Huangarua: 3, 5.61 km away
Wairarapa: 3, 9.53 km away
Wairarapa: 2, 9.66 km away
Wellington Hutt Valley: 5, 10.73 km away
Mokonui Southwest, 12.87 km away
Wellington: Tararua 2, 17.58 km away
Kaumingi, 18.09 km away
Wairarapa: 1, 18.81 km away
Wharekauhau, 19.44 km away

Carterton, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	true
Directly Connected?	true
Co-rupture Count	72
Co-rupture Rate	3.408136E-5

Otaraia, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Bidwill, 2.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Masterton, 2.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 1, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 2, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 3, 5.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 3, 9.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 9.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	1.6310292E-5

Wellington Hutt Valley: 5, 10.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Southwest, 12.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 2, 17.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	true
Directly Connected?	false
Co-rupture Count	51
Co-rupture Rate	0.0

Kaumingi, 18.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 1, 18.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	1.6310292E-5

Wharekauhau, 19.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MjQuMGhXQjRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
