Maimai: North Details
| Property | Value |
|---|---|
| Rupture Count | 21 |
| Ruptures Above Sect Min Mag | 19 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.72, 7.71] |
| Length Range | [18, 146] km |
| Total Rate | 3.9279717E-9 /yr |
| Multi-Fault Rate | 9.0263297E-10 /yr (22.98%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

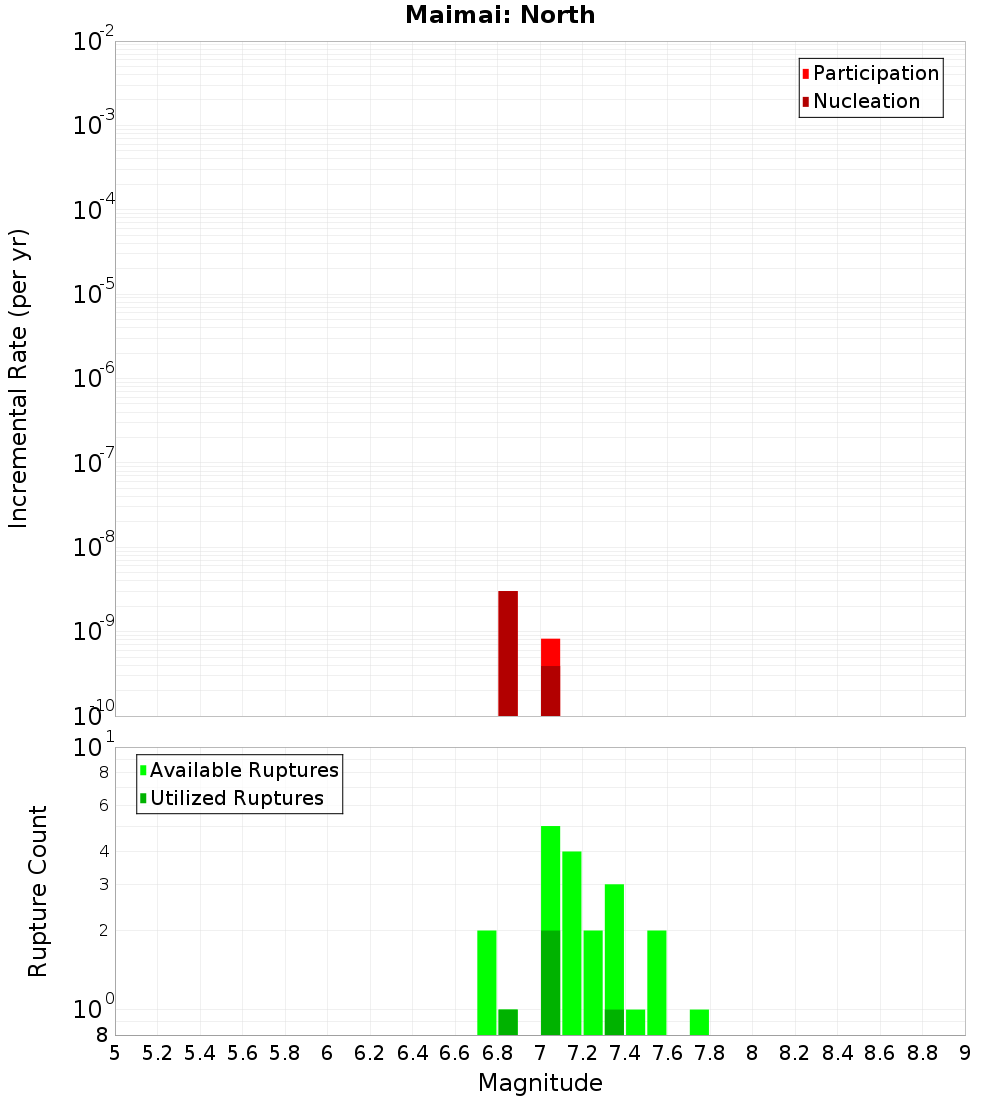

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

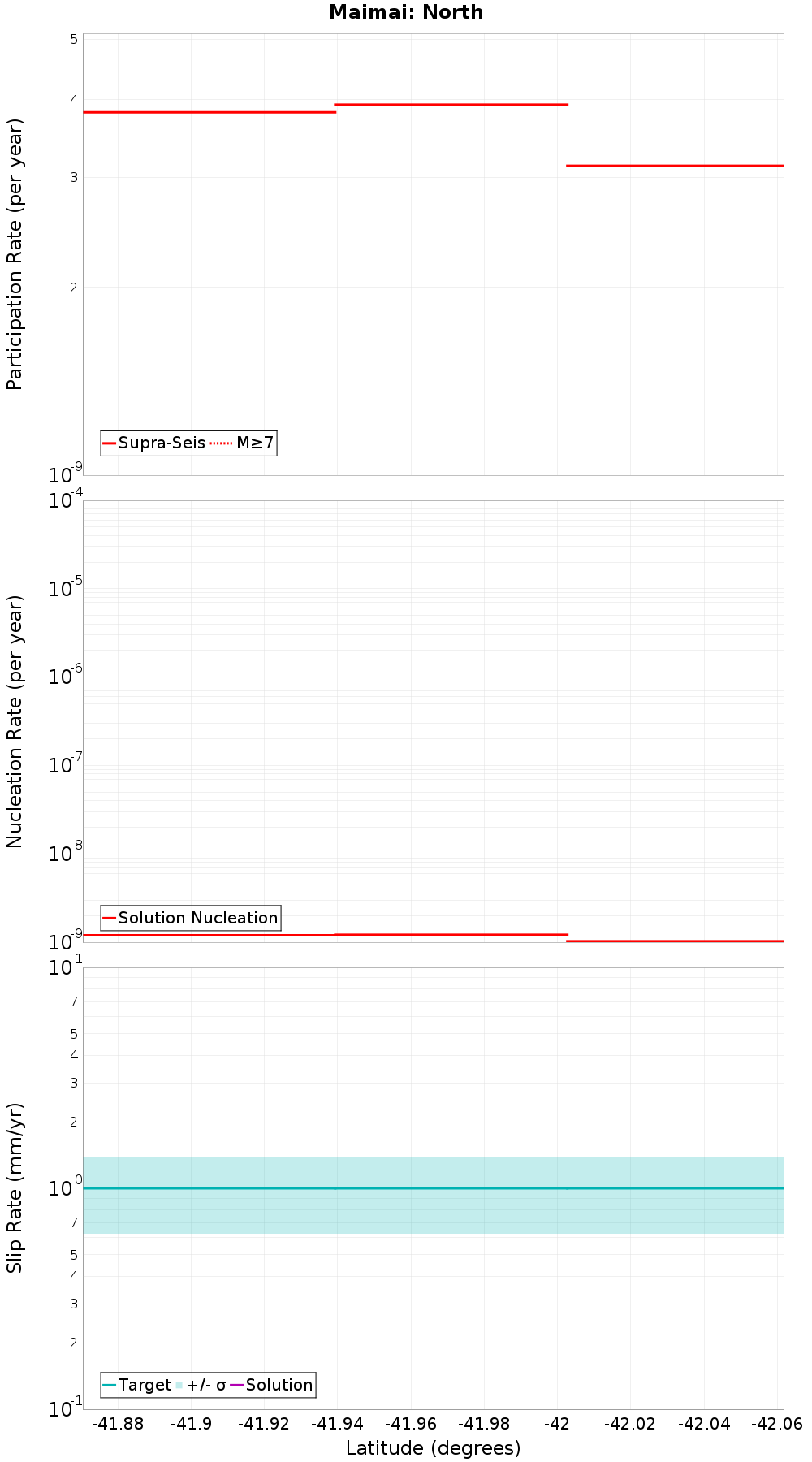

Along-Strike Values
Moment-Rates and b-Values

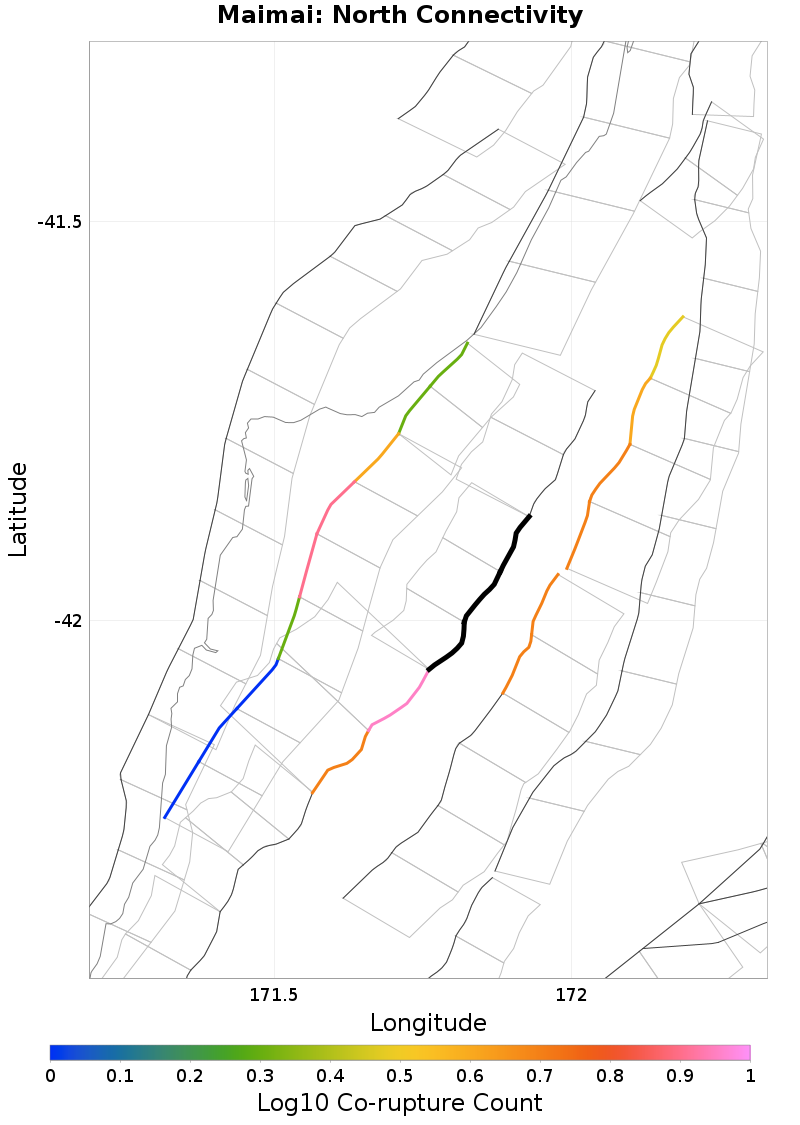

Connectivity
 |  |
|---|
Nearby Sections
Inangahua, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9 |
| Co-rupture Rate | 7.740686E-11 |
Paparoa West, 1.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 8.252261E-10 |
Paparoa West: North, 2.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Lyell South, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 7.740686E-11 |
Lyell, 7.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 7.740686E-11 |
Cape Foulwind 2, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Creek, 17.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
