Titri Central Details

PropertyValue
Rupture Count35
Ruptures Above Sect Min Mag35
Ruptures w/ Nonzero Rates17
Magnitude Range[7.23, 7.86]
Length Range[30, 144] km
Total Rate1.3235745E-5 /yr
Multi-Fault Rate1.3011848E-5 /yr (98.31%)
Directly-Connected Faults5
All Co-Rupturing Faults10

Table Of Contents

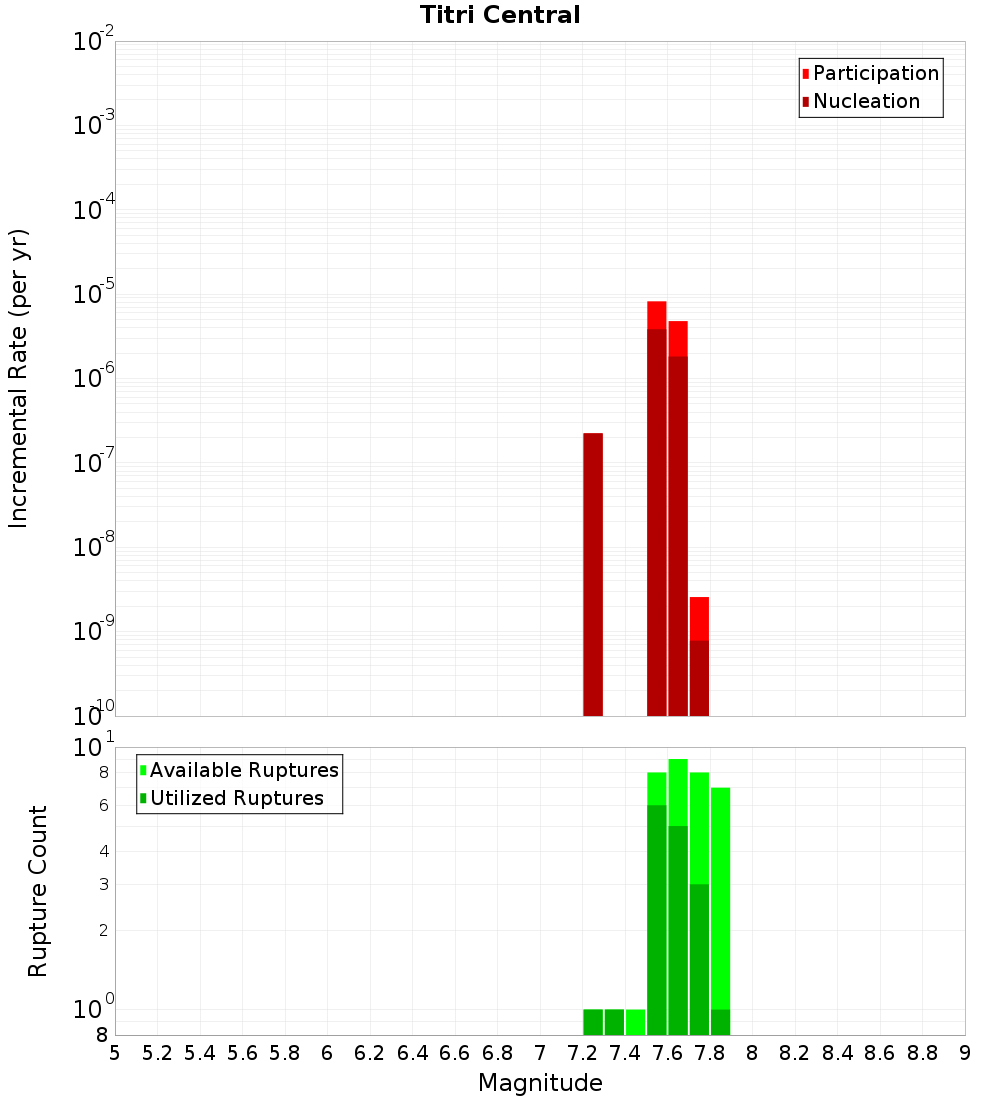

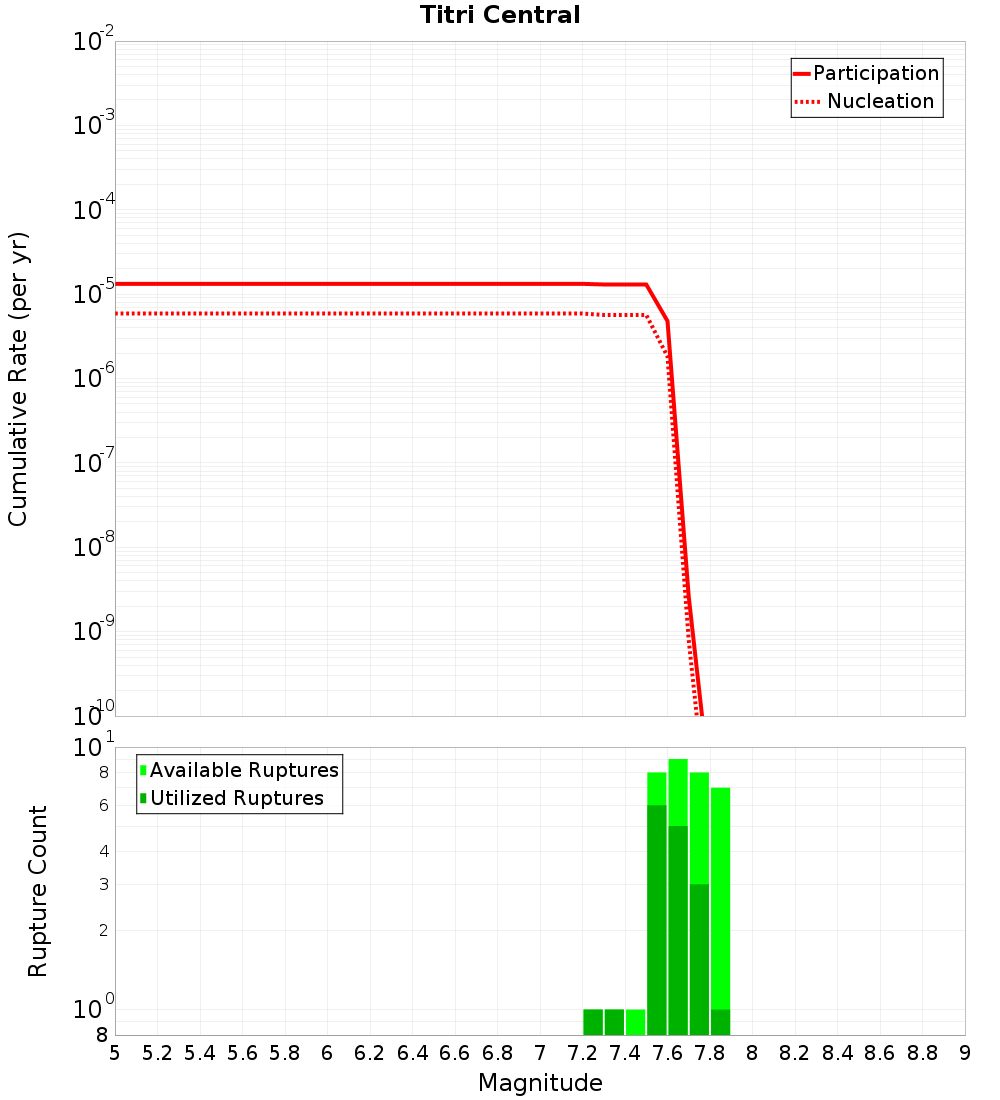

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

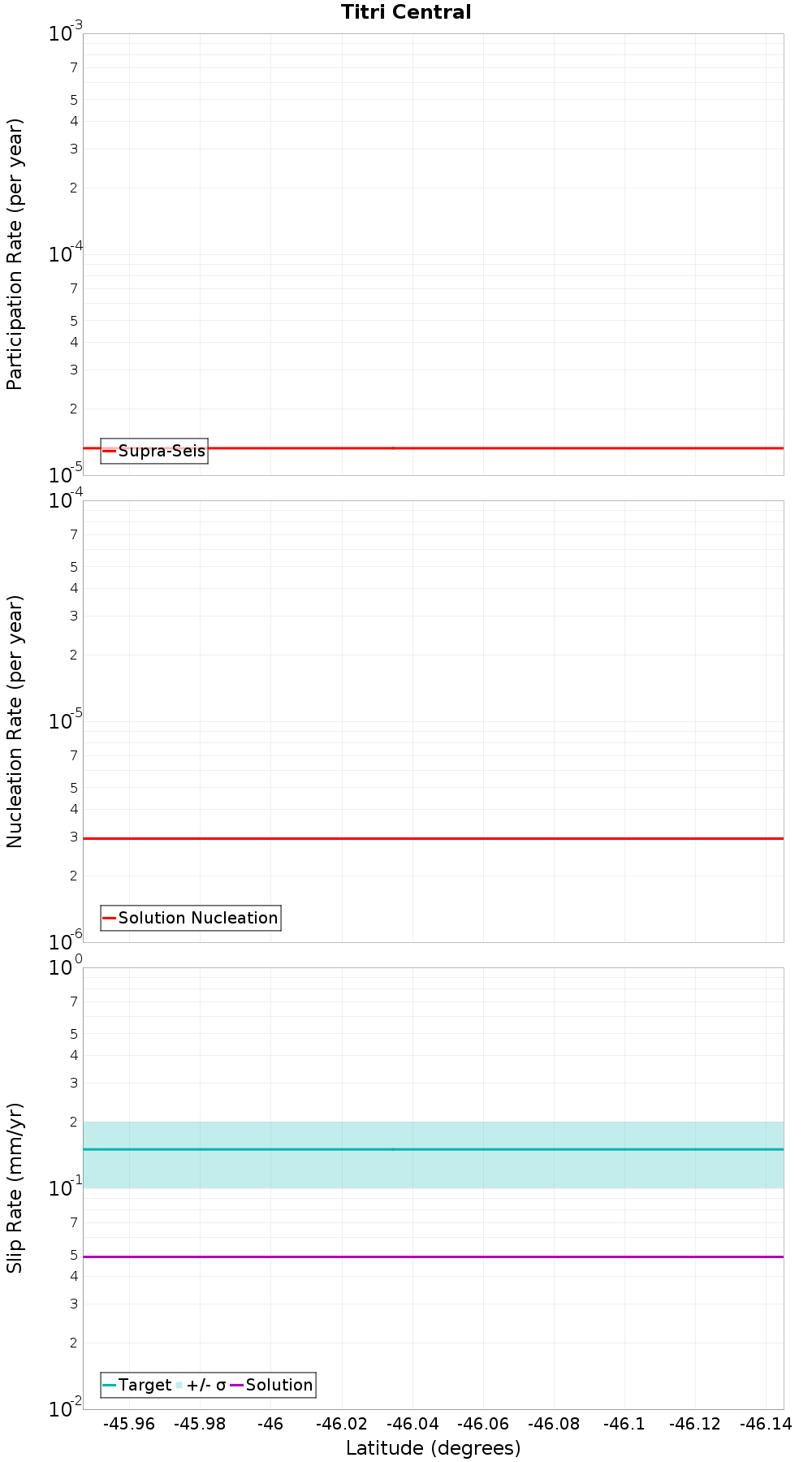

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

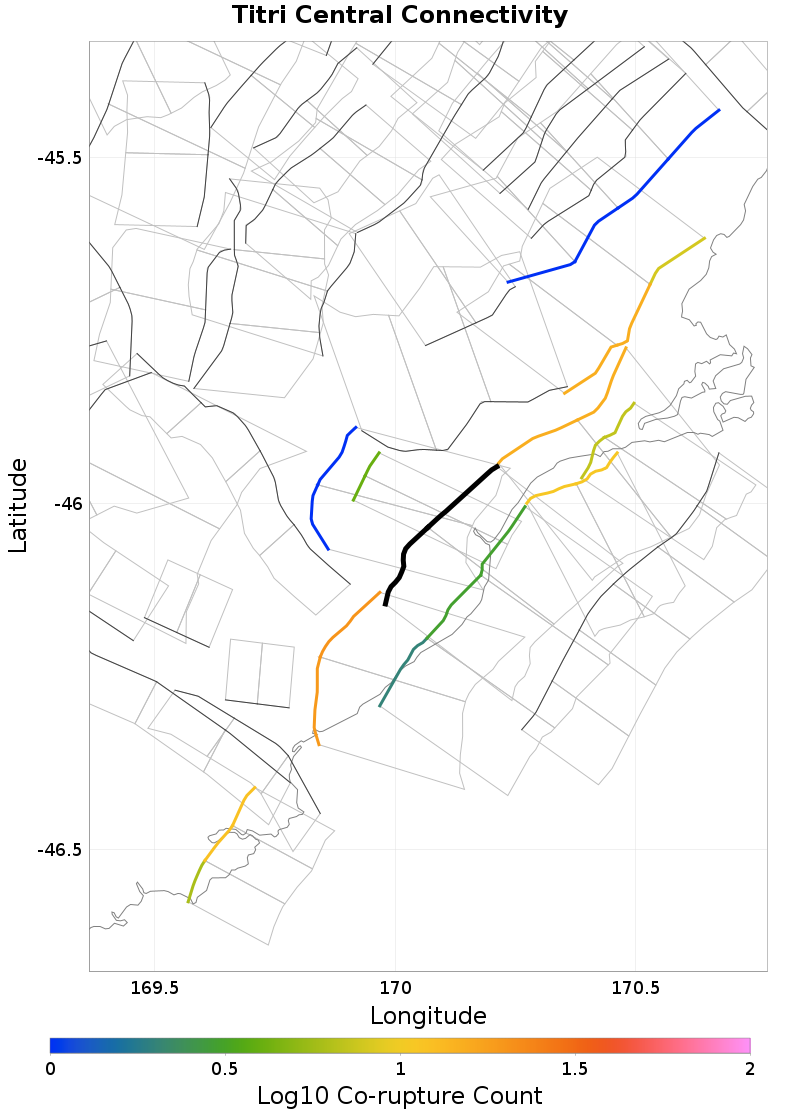

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Titri North, 0.03 km away
Titri South, 0.34 km away
Green Island, 5.11 km away
Akatore, 5.5 km away
Tuapeka, 6.22 km away
Maungatua - North Taieri, 7.17 km away
Waitahuna 1, 7.94 km away
Waitahuna 2, 8.3 km away
Kaikorai, 10.87 km away
Sliver Stream - Merton, 15.99 km away
Takapu, 18.86 km away

Titri North, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate2.9874994E-9

Titri South, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate6.0401746E-9

Green Island, 5.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate2.9601113E-9

Akatore, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate1.3005509E-5

Tuapeka, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 7.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 7.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Waitahuna 2, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate4.7874178E-6

Kaikorai, 10.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Sliver Stream - Merton, 15.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate4.880974E-10

Takapu, 18.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzUuMFp4TVRy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
