Barefell Details

Property	Value
Rupture Count	3,917
Ruptures Above Sect Min Mag	3,917
Ruptures w/ Nonzero Rates	163
Magnitude Range	[6.91, 8.57]
Length Range	[18, 1,026] km
Total Rate	8.785286E-5 /yr
Multi-Fault Rate	8.775882E-5 /yr (99.89%)
Directly-Connected Faults	3
All Co-Rupturing Faults	109

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

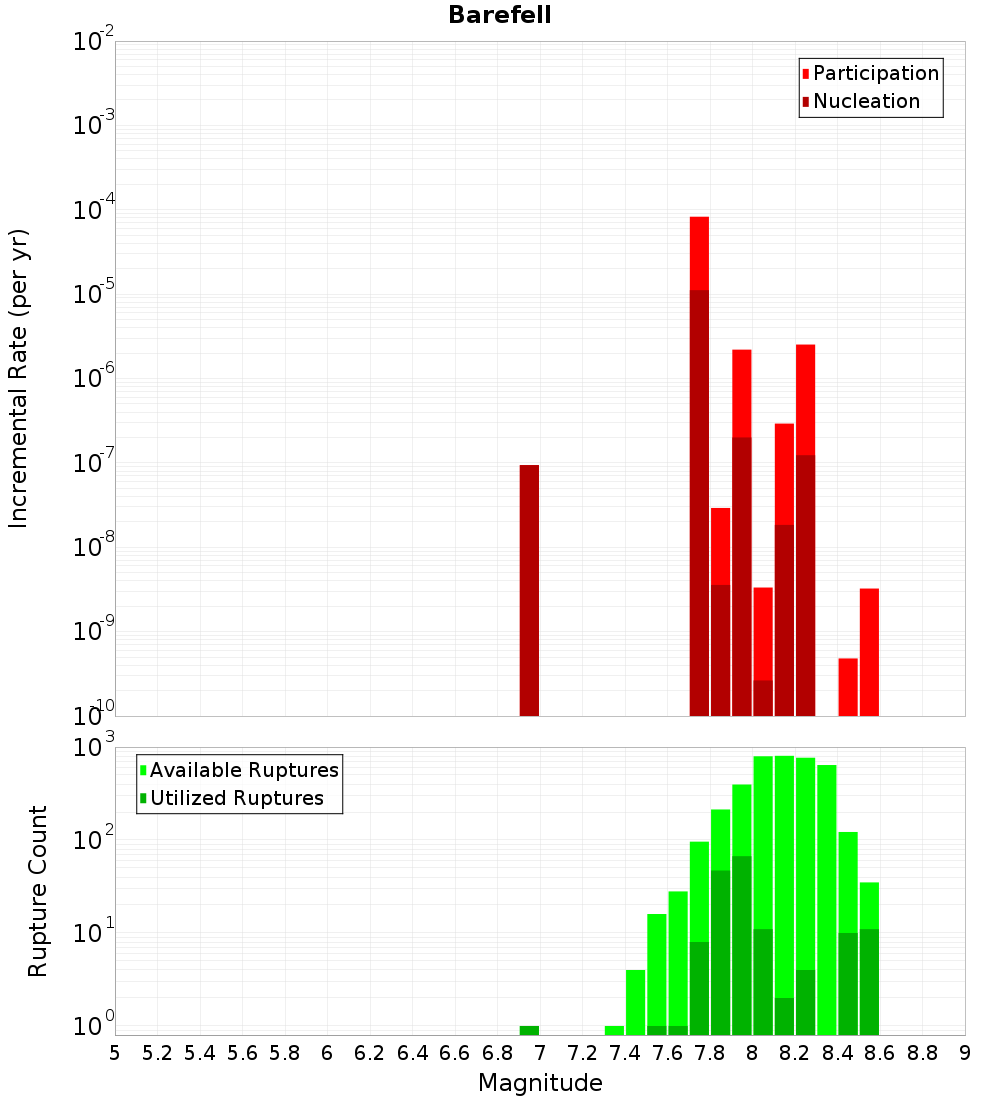

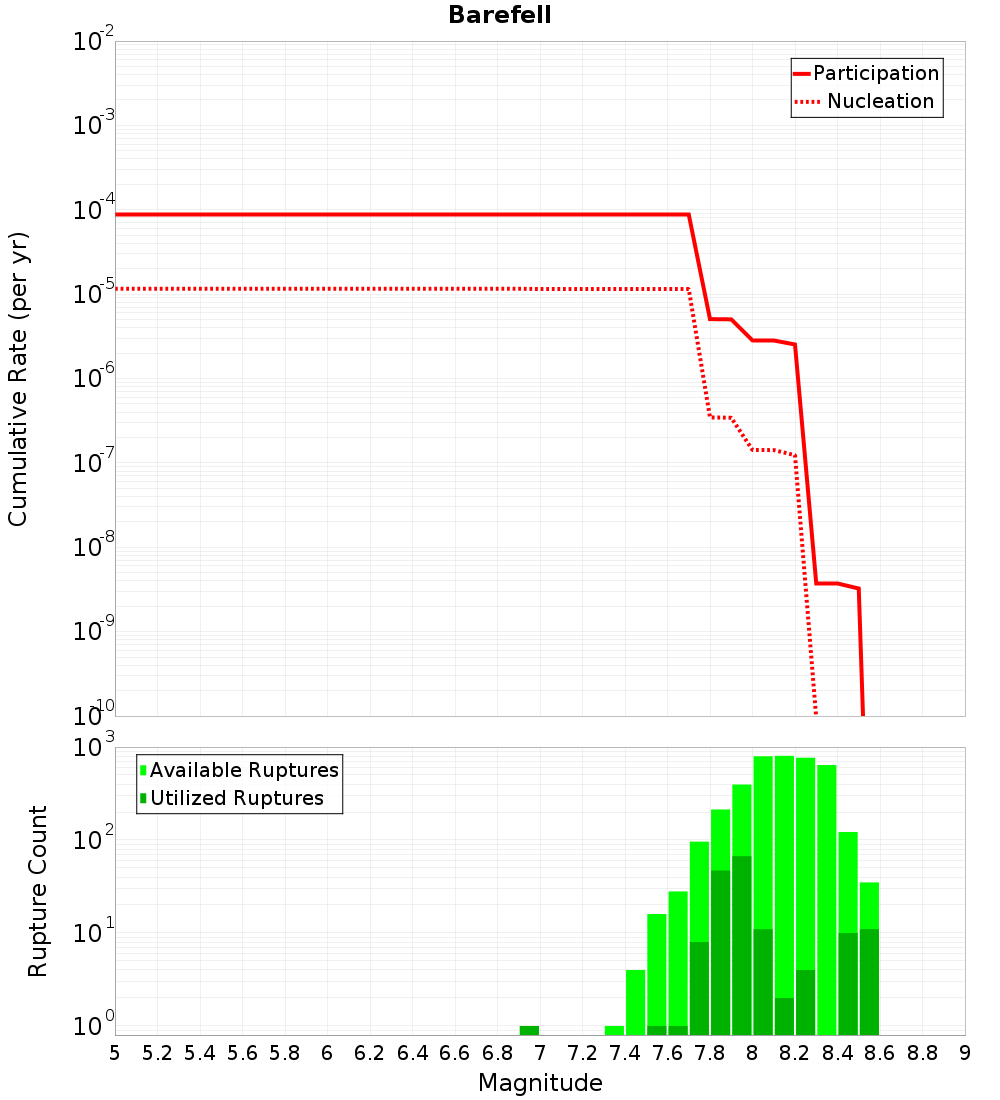

Magnitude-Frequency Distribution

Incremental	Cumulative

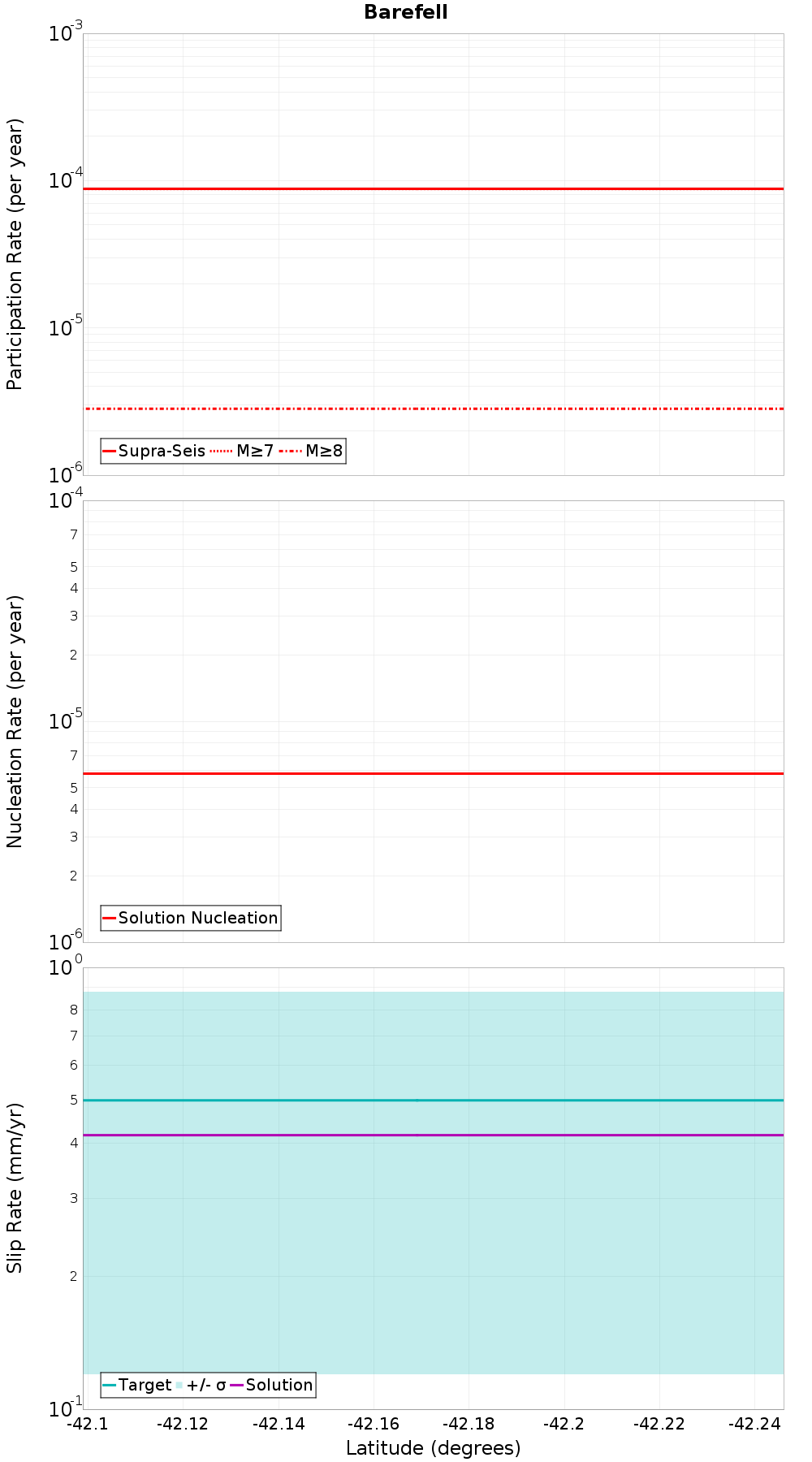

Along-Strike Values

Moment-Rates and b-Values

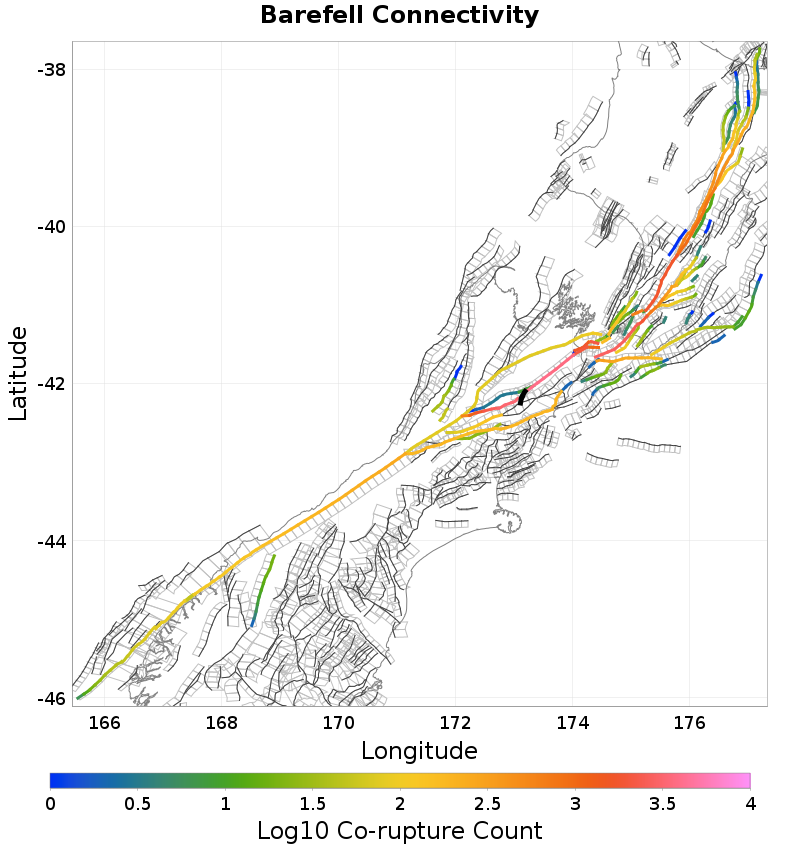

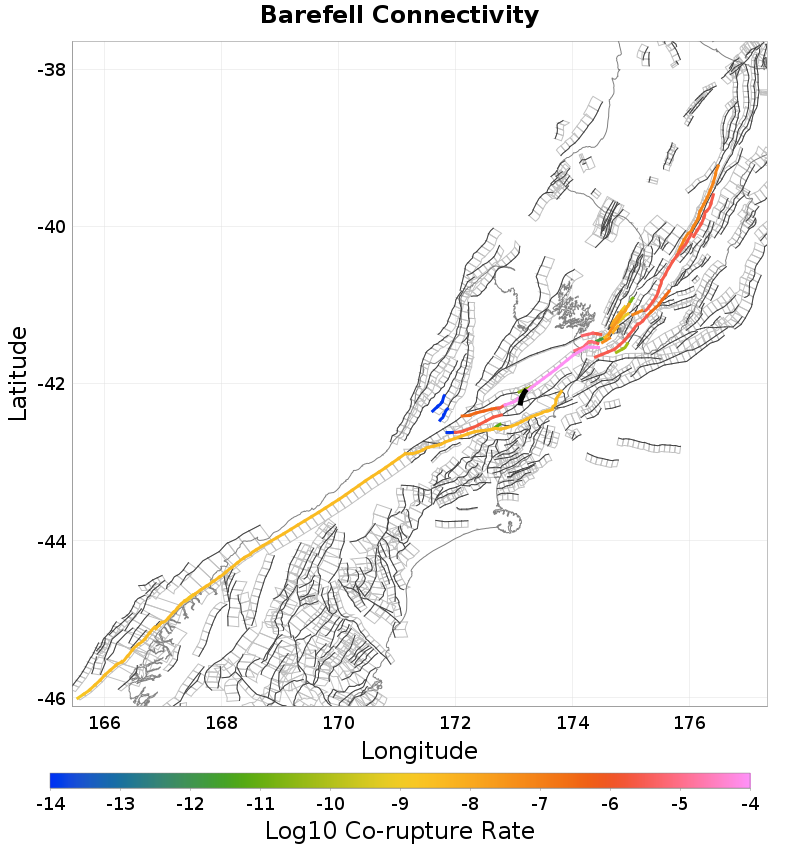

Connectivity

Nearby Sections

Fault Section
Awatere: Northeast 1, 0 km away
Clarence: Central, 0.11 km away
Awatere: Southwest, 0.17 km away
Fowlers, 0.26 km away
Elliott, 8.47 km away
Clarence: Northeast, 16.85 km away

Awatere: Northeast 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,894
Co-rupture Rate	8.775878E-5

Clarence: Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Southwest, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	3.7201072E-11

Fowlers, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,216
Co-rupture Rate	8.2976505E-5

Elliott, 8.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 16.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
