Clarence: Southwest Details

PropertyValue
Rupture Count24,466
Ruptures Above Sect Min Mag24,462
Ruptures w/ Nonzero Rates1,872
Magnitude Range[6.95, 8.62]
Length Range[23, 1,201] km
Total Rate8.481186E-4 /yr
Multi-Fault Rate8.3692075E-4 /yr (98.68%)
Directly-Connected Faults8
All Co-Rupturing Faults140

Table Of Contents

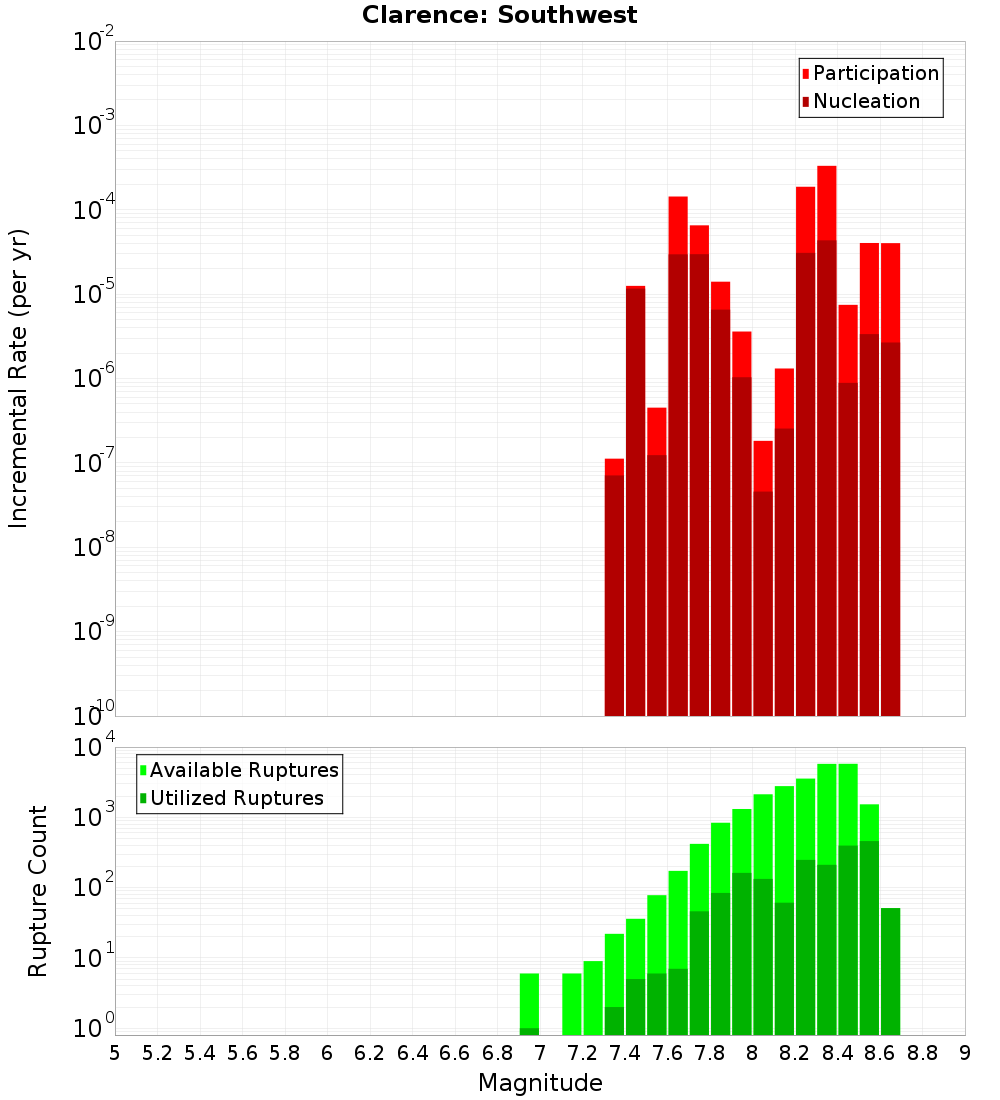

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Clarence: Central, 0 km awayHanmer, 11.45 km away
Alpine: Kaniere to Springs Junction, 0.21 km awayHope: Kakapo-2-Hamner, 12.23 km away
Elliott, 0.33 km awayHope: Hanmer NW, 12.23 km away
Fowlers, 2.09 km awayKelly, 13.14 km away
Hope: Hope River, 5.56 km awayHope: Taramakau, 13.86 km away
Alpine: Springs Junction to Tophouse, 5.57 km awayHope: Hamner SW, 13.9 km away
White Creek - buried, 6.06 km awayPoulter, 15.04 km away
Hope: Hurunui, 8.29 km awayAwatere: Southwest, 15.93 km away
Kakapo, 8.64 km awayHope: Hamner SE, 17.93 km away
Esk North, 8.71 km awayLyell South, 19.36 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count15,290
Co-rupture Rate6.0672086E-4

Alpine: Kaniere to Springs Junction, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count11,310
Co-rupture Rate6.759283E-4

Elliott, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count5,837
Co-rupture Rate8.321051E-5

Fowlers, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count190
Co-rupture Rate2.1737264E-6

Hope: Hope River, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count9,122
Co-rupture Rate2.3511375E-4

Alpine: Springs Junction to Tophouse, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count37
Co-rupture Rate2.80289E-8

White Creek - buried, 6.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count629
Co-rupture Rate8.3787704E-8

Hope: Hurunui, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count8,907
Co-rupture Rate2.3420725E-4

Kakapo, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count507
Co-rupture Rate2.613529E-7

Hope: Kakapo-2-Hamner, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count135
Co-rupture Rate8.679493E-7

Hope: Hanmer NW, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kelly, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count7,952
Co-rupture Rate2.3302047E-4

Hope: Taramakau, 13.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SW, 13.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count133
Co-rupture Rate8.679493E-7

Poulter, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 15.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SE, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count131
Co-rupture Rate8.679493E-7

Lyell South, 19.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count273
Co-rupture Rate4.5774993E-8
