Ruahine: Central Details

PropertyValue
Rupture Count44,153
Ruptures Above Sect Min Mag44,151
Ruptures w/ Nonzero Rates44
Magnitude Range[6.96, 8.60]
Length Range[22, 1,113] km
Total Rate9.6854795E-4 /yr
Multi-Fault Rate9.676954E-4 /yr (99.91%)
Directly-Connected Faults4
All Co-Rupturing Faults130

Table Of Contents

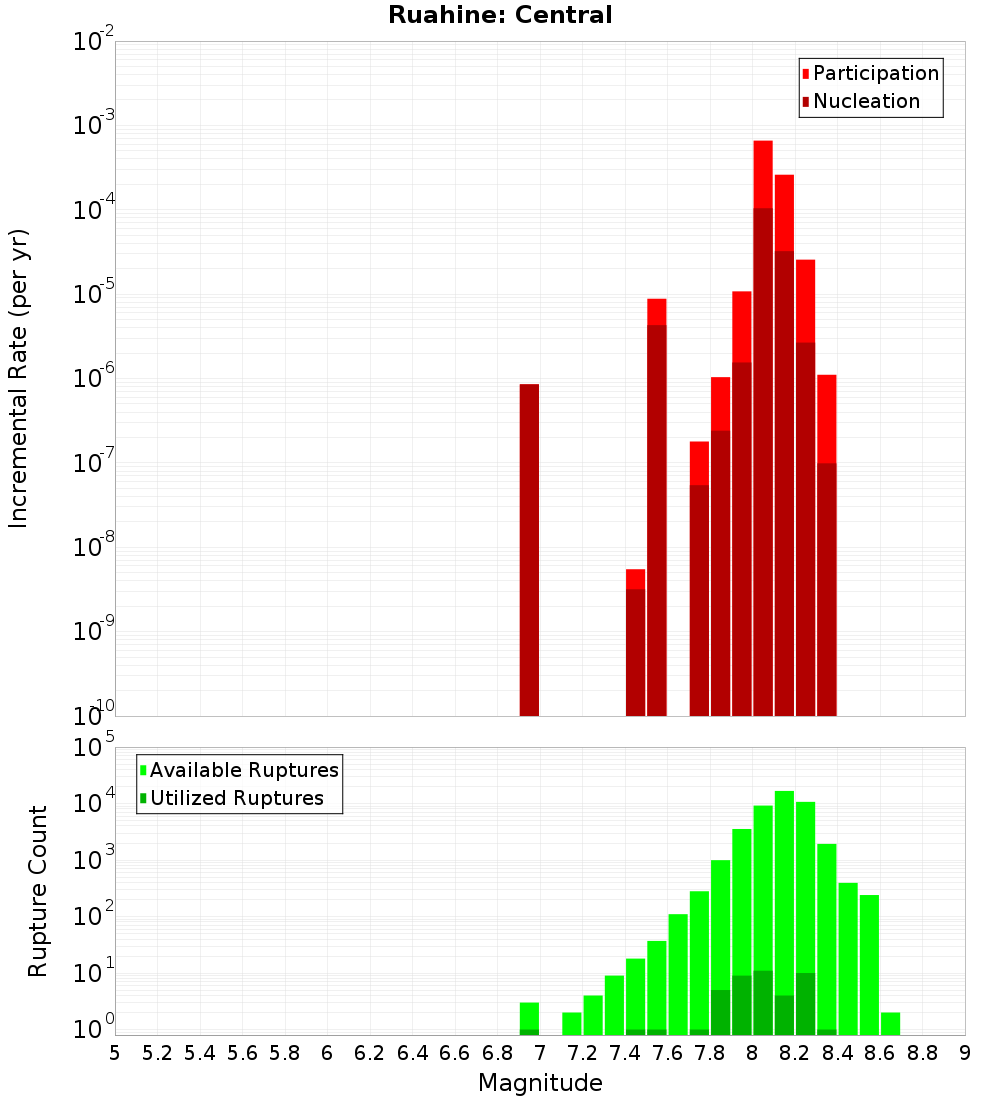

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

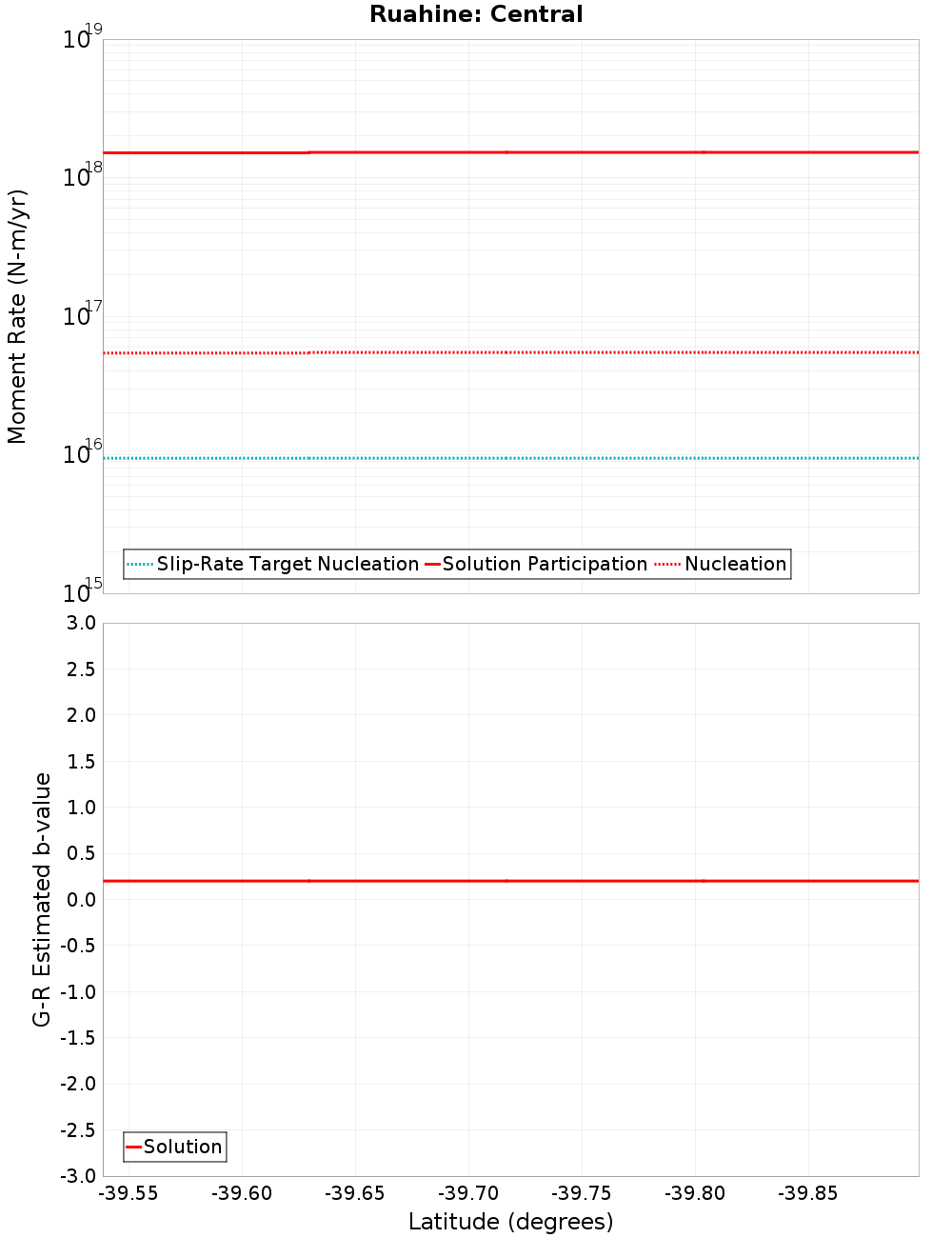

Moment-Rates and b-Values

(top)

Along-strike plot

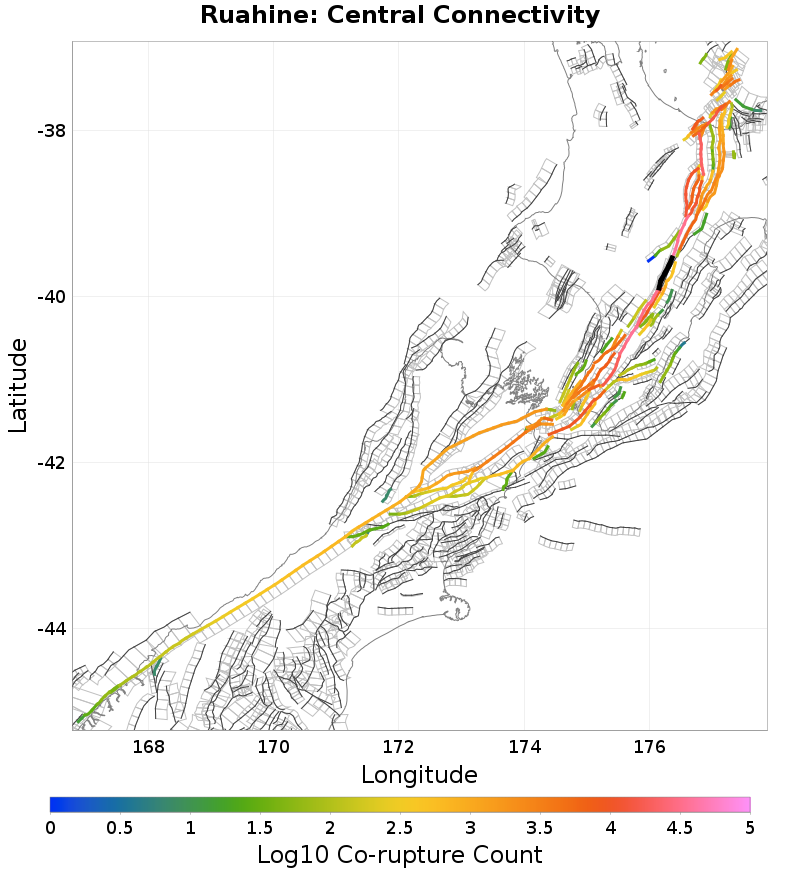

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ruahine: North, 0 km away
Wakarara, 0.11 km away
Ruahine: South, 0.16 km away
Rangefront, 0.2 km away
Mohaka: South, 2.68 km away
Mohaka: North, 7.58 km away
Ruataniwha, 9.9 km away
Patoka - Rangiora, 12.66 km away
Kaweka, 16.09 km away
Te Heka, 18.27 km away
Awanui, 18.65 km away

Ruahine: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count41,554
Co-rupture Rate9.447579E-4

Wakarara, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count482
Co-rupture Rate1.9964354E-7

Ruahine: South, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count31,850
Co-rupture Rate5.6950387E-4

Rangefront, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count995
Co-rupture Rate1.0300863E-8

Mohaka: South, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?true
Co-rupture Count8,935
Co-rupture Rate3.9818604E-4

Mohaka: North, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count6,522
Co-rupture Rate1.4499662E-4

Ruataniwha, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Patoka - Rangiora, 12.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Kaweka, 16.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?true
Directly Connected?false
Co-rupture Count59
Co-rupture Rate0.0

Te Heka, 18.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 18.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1MzguMHlQcFdZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
