Ben McLeod Details
| Property | Value |
|---|---|
| Rupture Count | 117 |
| Ruptures Above Sect Min Mag | 116 |
| Ruptures w/ Nonzero Rates | 32 |
| Magnitude Range | [7.05, 8.11] |
| Length Range | [23, 345] km |
| Total Rate | 3.4800552E-5 /yr |
| Multi-Fault Rate | 3.480055E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 20 |
Table Of Contents

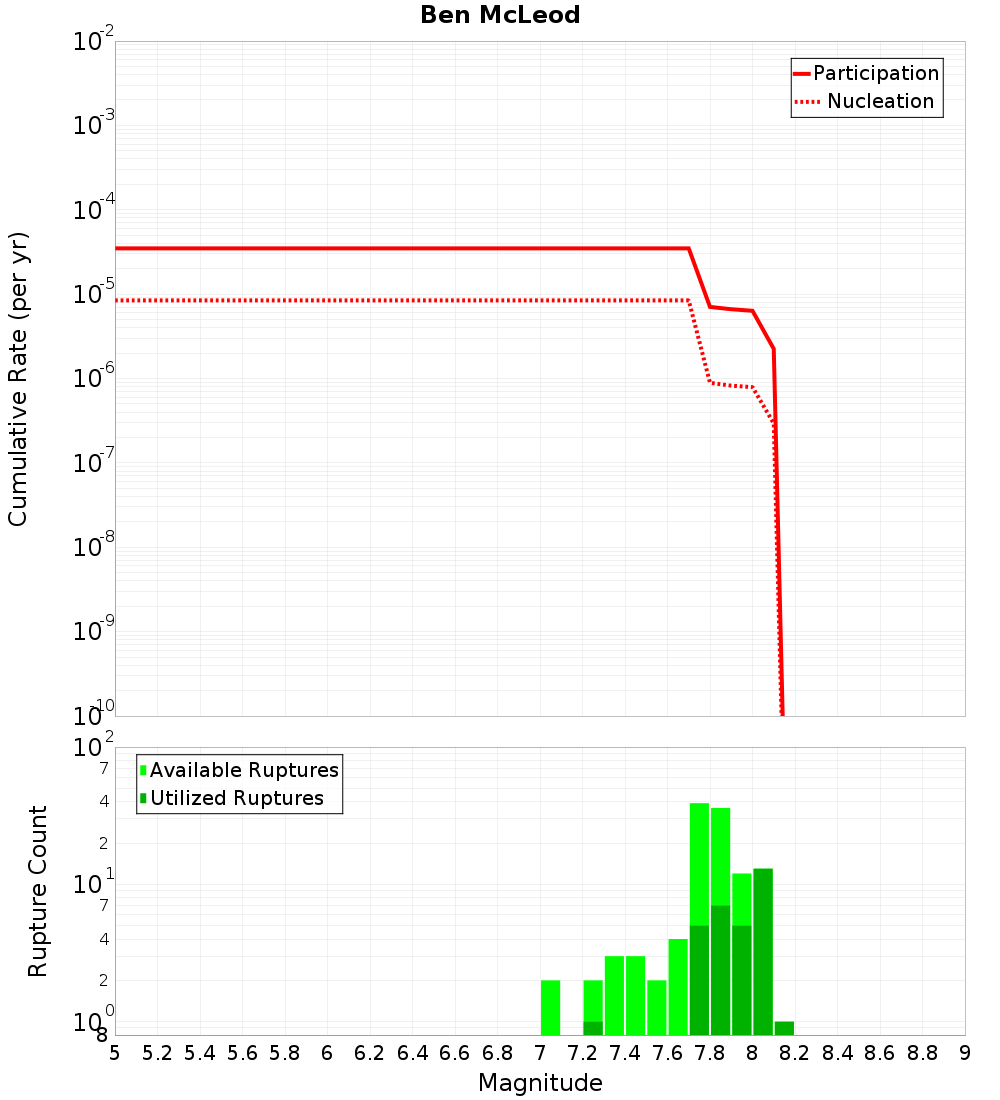

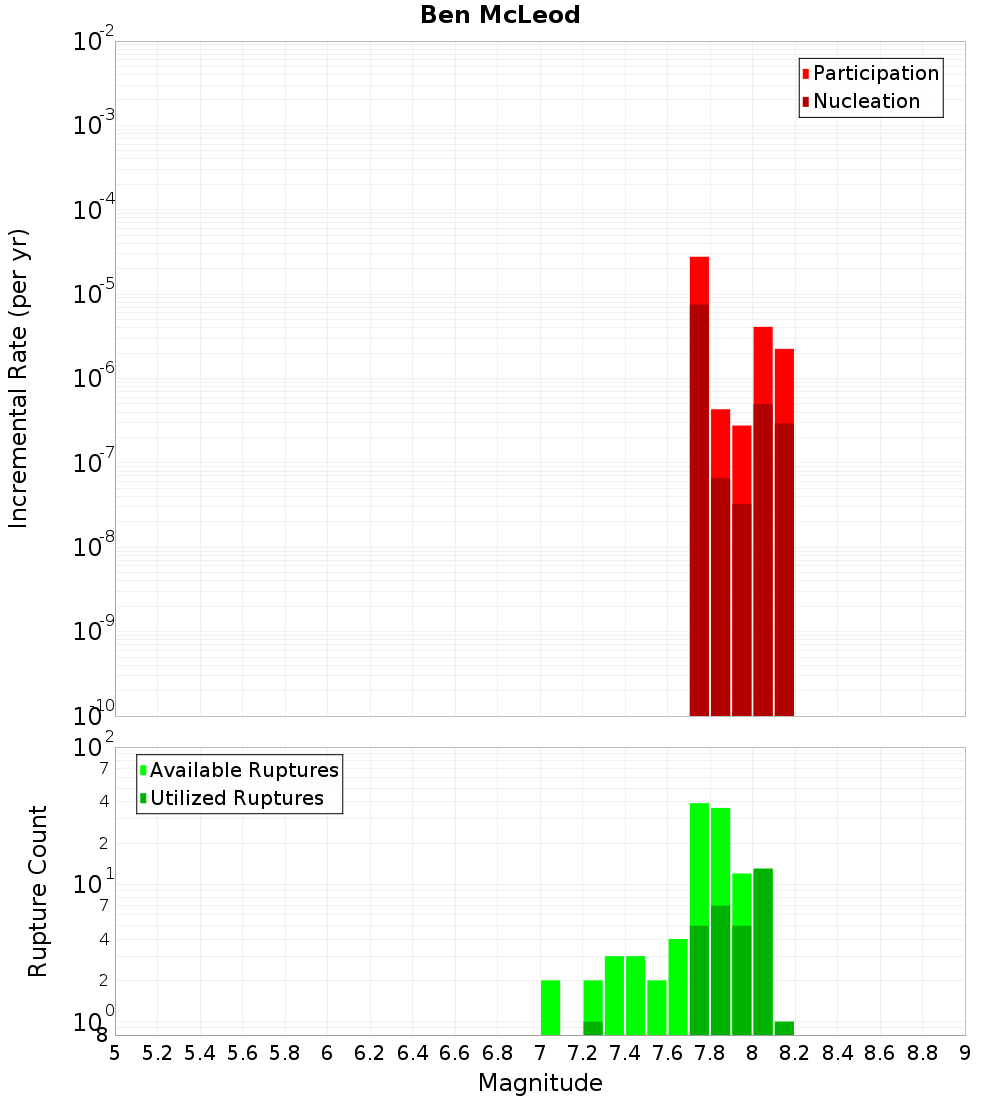

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

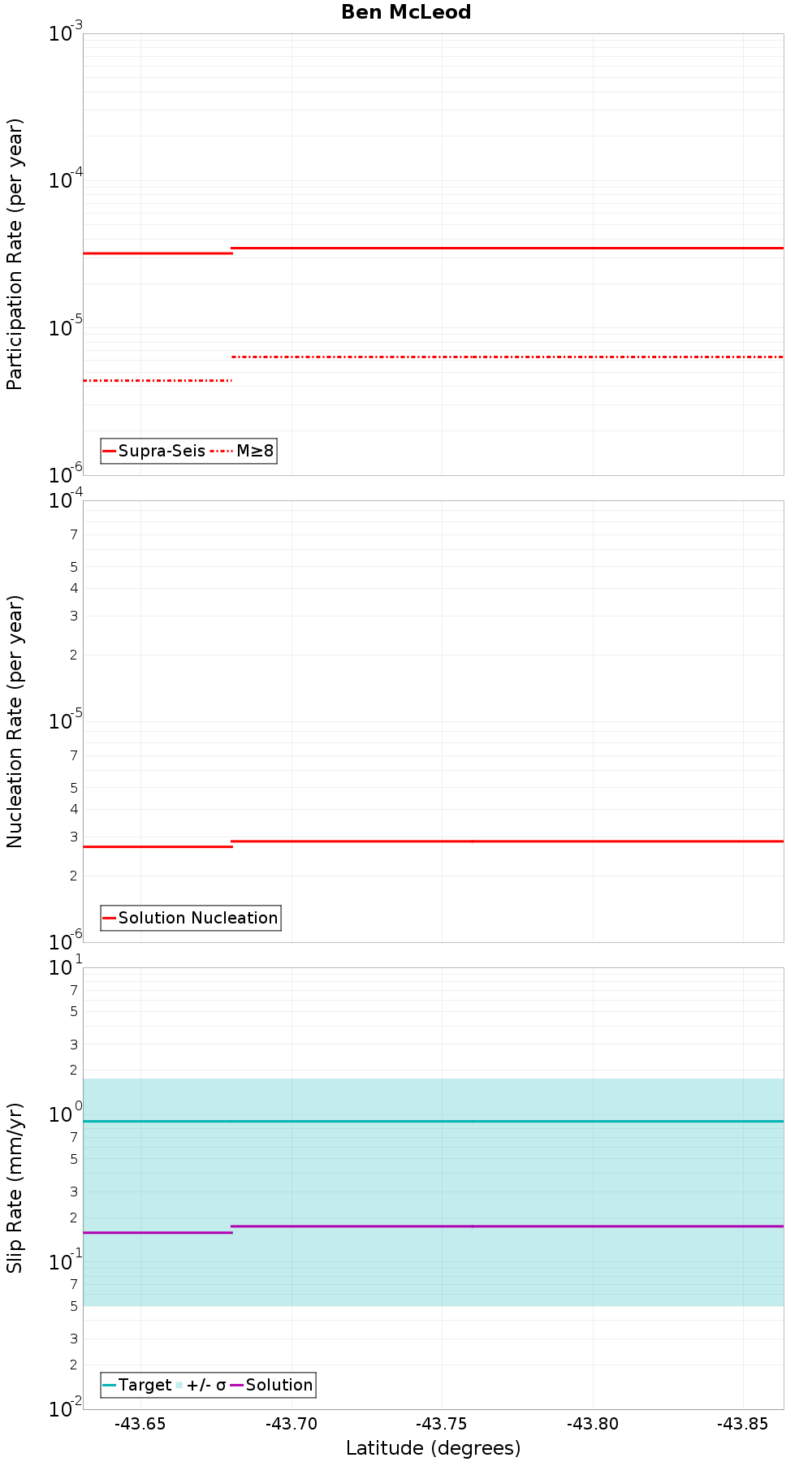

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Hutt Peel, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 110 |
| Co-rupture Rate | 3.480055E-5 |
Klondyke Moor, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Edith, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Catherine, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Fox Peak, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lake Heron, 0.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 3.0428216E-6 |
Sugarloaf, 4.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Brothers, 8.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Irishman Creek, 14.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
North Branch, 16.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Opawa, 19.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NDguMFFOVFl2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
