Motunau Details

Property	Value
Rupture Count	249
Ruptures Above Sect Min Mag	244
Ruptures w/ Nonzero Rates	39
Magnitude Range	[6.57, 7.78]
Length Range	[13, 196] km
Total Rate	4.9417988E-5 /yr
Multi-Fault Rate	4.9415474E-5 /yr (99.99%)
Directly-Connected Faults	7
All Co-Rupturing Faults	14

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

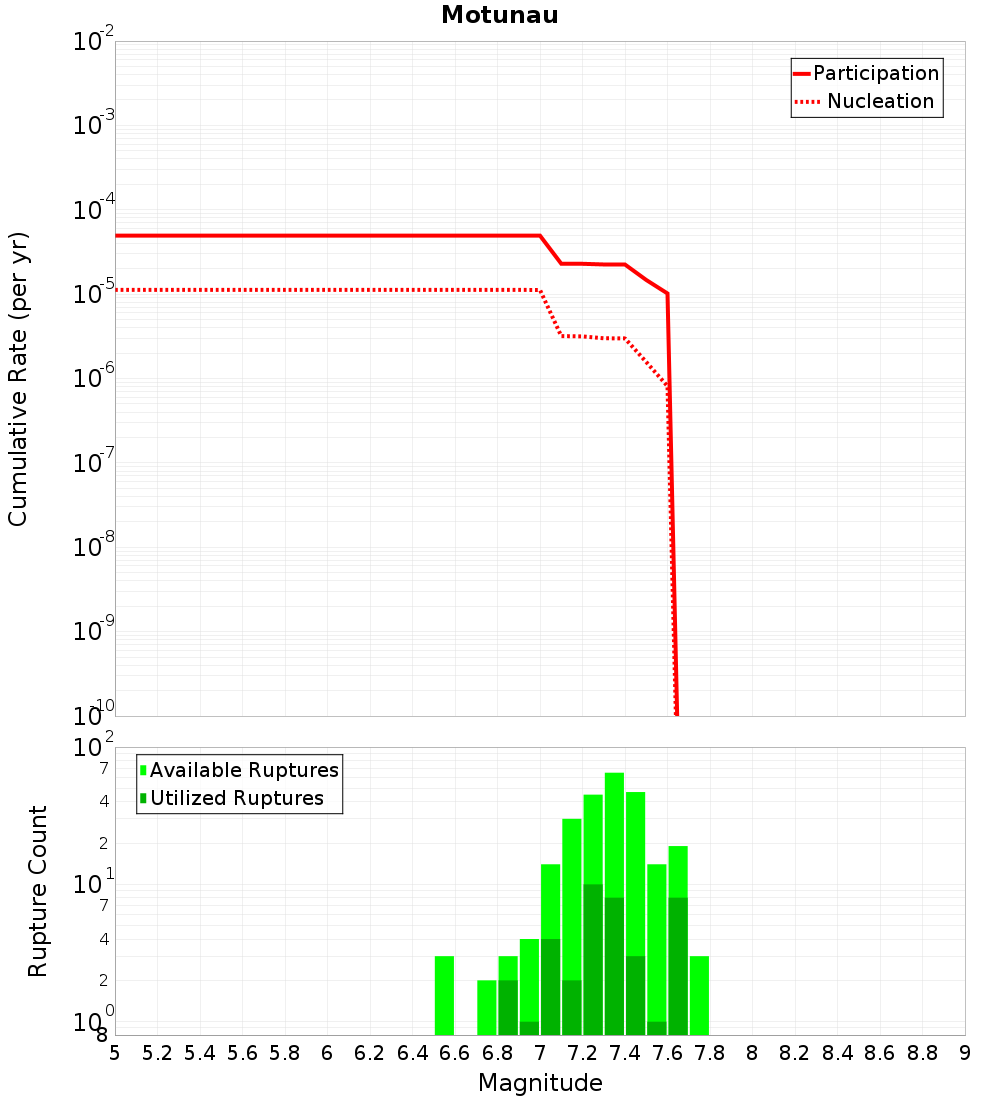

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

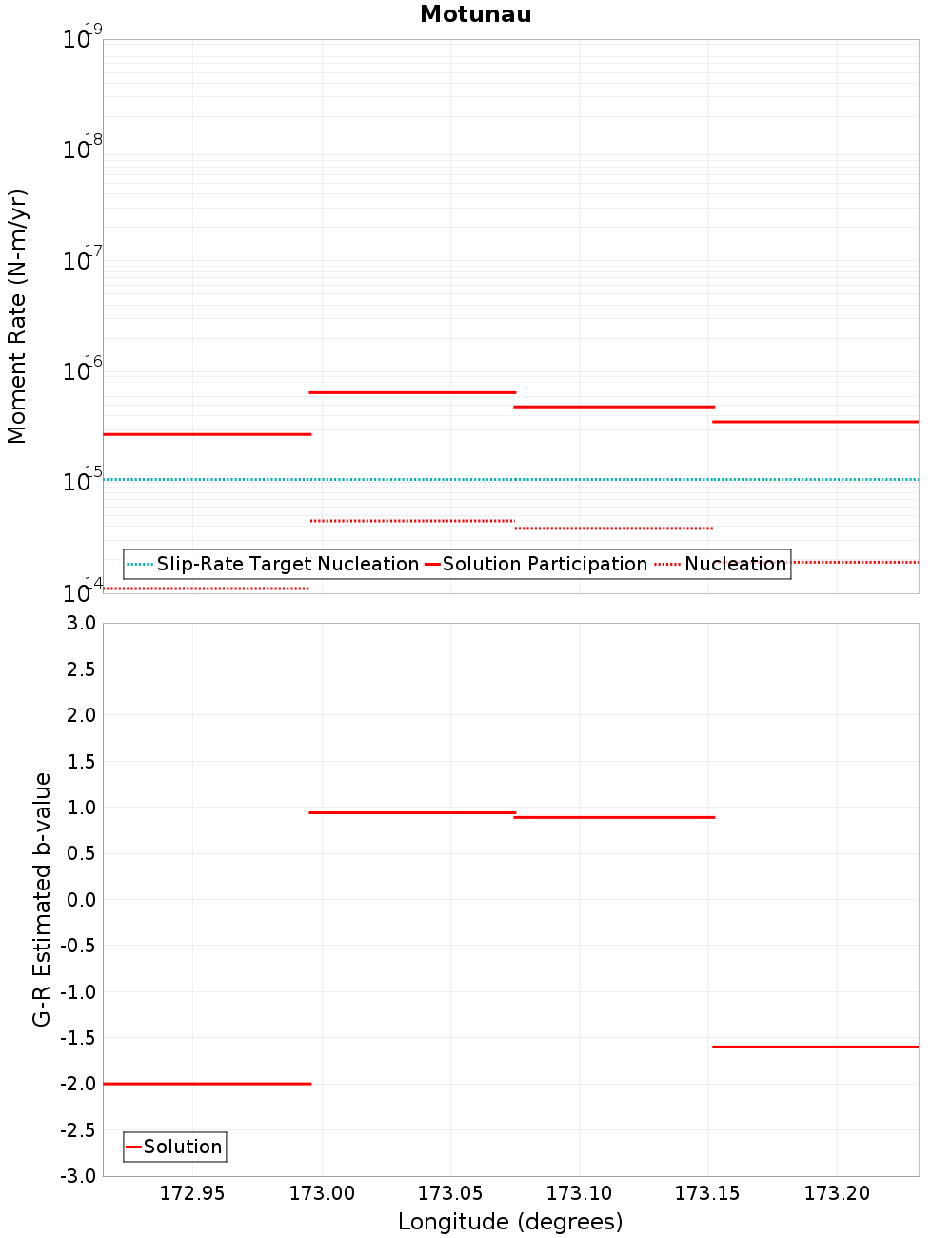

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
North Canterbury Shelf 11, 0.14 km away
North Canterbury Shelf 2, 0.72 km away
Leithfield - NCVI - NCVII, 1.34 km away
AmberBlyth, 2.59 km away
Point Gibson, 4.6 km away
North Canterbury Shelf 4, 6 km away
OmihiLwrHuru, 8.85 km away
Waikuku, 9.01 km away
Pegasus Bay, 11.59 km away
Boby Stream, 13.14 km away
Kaiwara South, 15.82 km away
Alexander, 19.72 km away

North Canterbury Shelf 11, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	true
Co-rupture Count	43
Co-rupture Rate	3.4378506E-6

North Canterbury Shelf 2, 0.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	true
Co-rupture Count	34
Co-rupture Rate	2.842681E-6

Leithfield - NCVI - NCVII, 1.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	true
Co-rupture Count	47
Co-rupture Rate	2.6385016E-5

AmberBlyth, 2.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	true
Co-rupture Count	116
Co-rupture Rate	2.2445427E-5

Point Gibson, 4.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	true
Co-rupture Count	125
Co-rupture Rate	1.2292885E-5

North Canterbury Shelf 4, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	2.638045E-5

OmihiLwrHuru, 8.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	2.842681E-6

Waikuku, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	7.856365E-12

Pegasus Bay, 11.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	true
Directly Connected?	true
Co-rupture Count	111
Co-rupture Rate	7.823381E-6

Boby Stream, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaiwara South, 15.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alexander, 19.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTUuMFVzc1lE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
