Barrier Range Details

PropertyValue
Rupture Count396
Ruptures Above Sect Min Mag394
Ruptures w/ Nonzero Rates337
Magnitude Range[6.99, 8.26]
Length Range[23, 351] km
Total Rate4.5181843E-4 /yr
Multi-Fault Rate4.5158883E-4 /yr (99.95%)
Directly-Connected Faults5
All Co-Rupturing Faults30

Table Of Contents

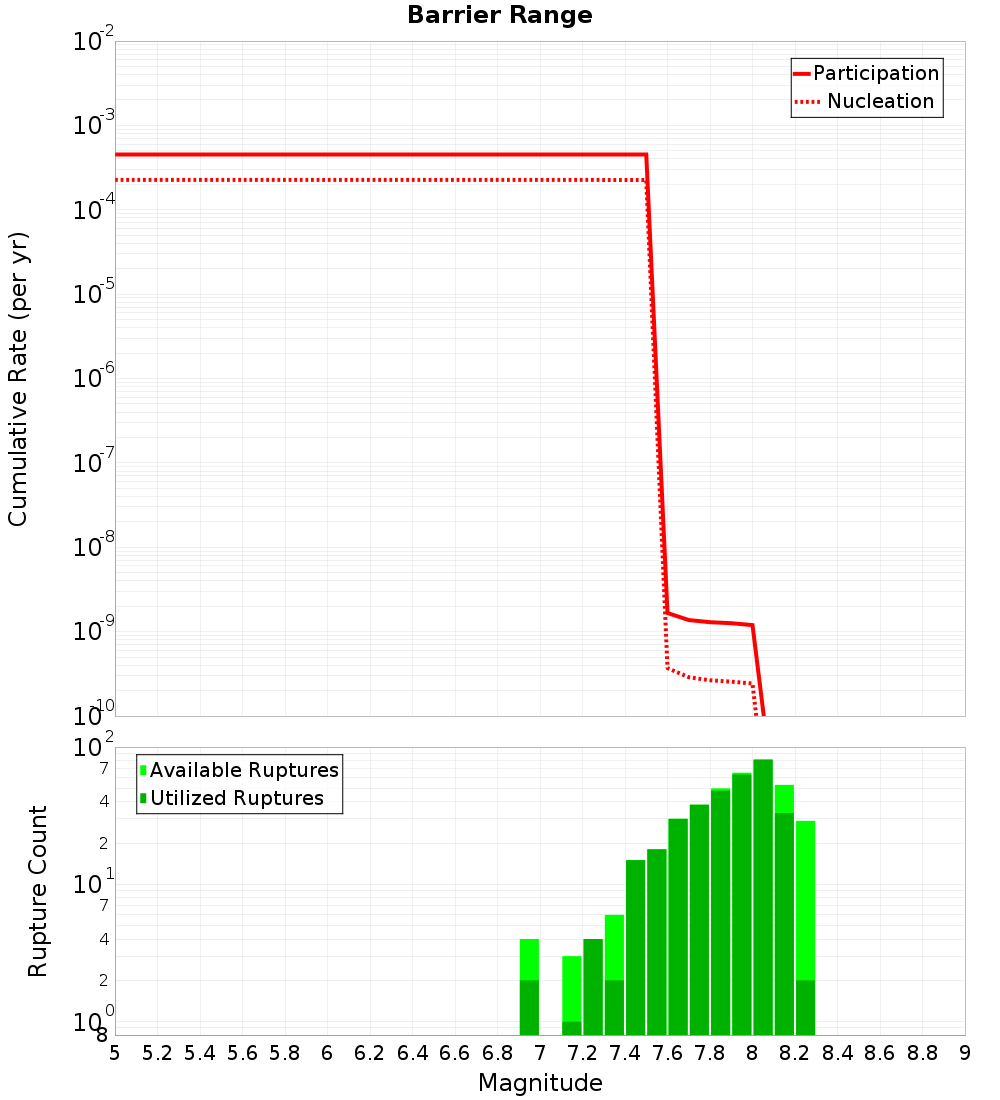

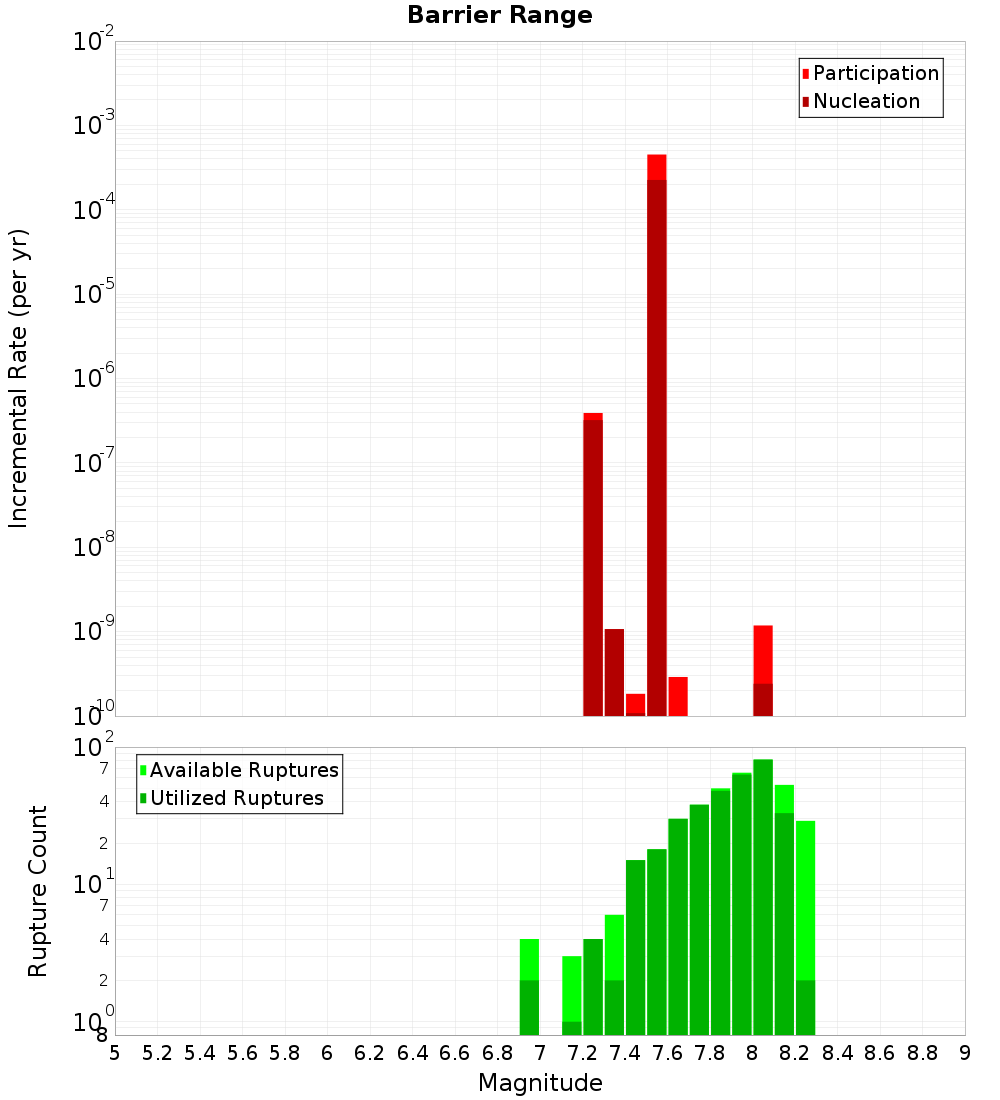

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

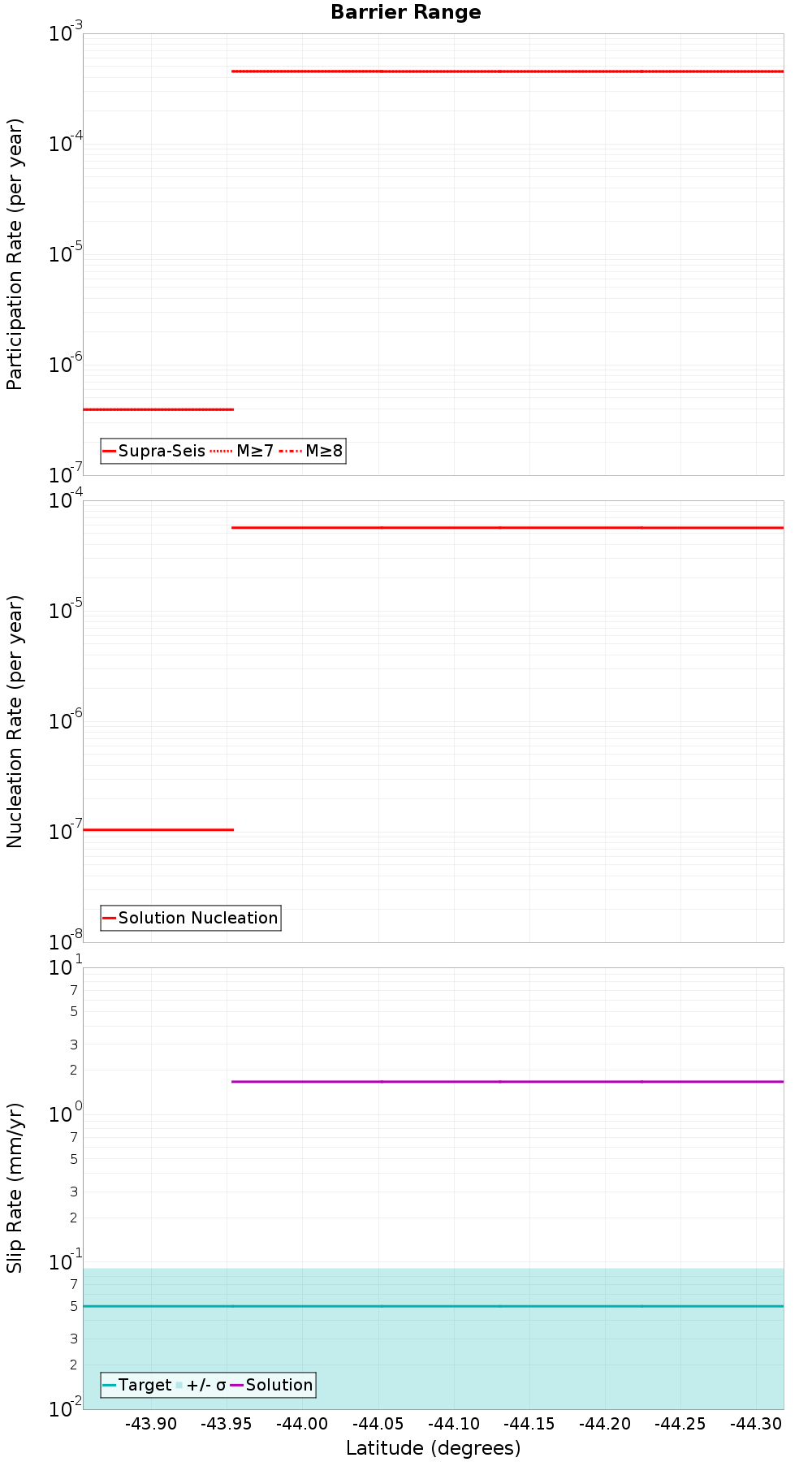

Along-Strike Values

(top)

Along-strike plot

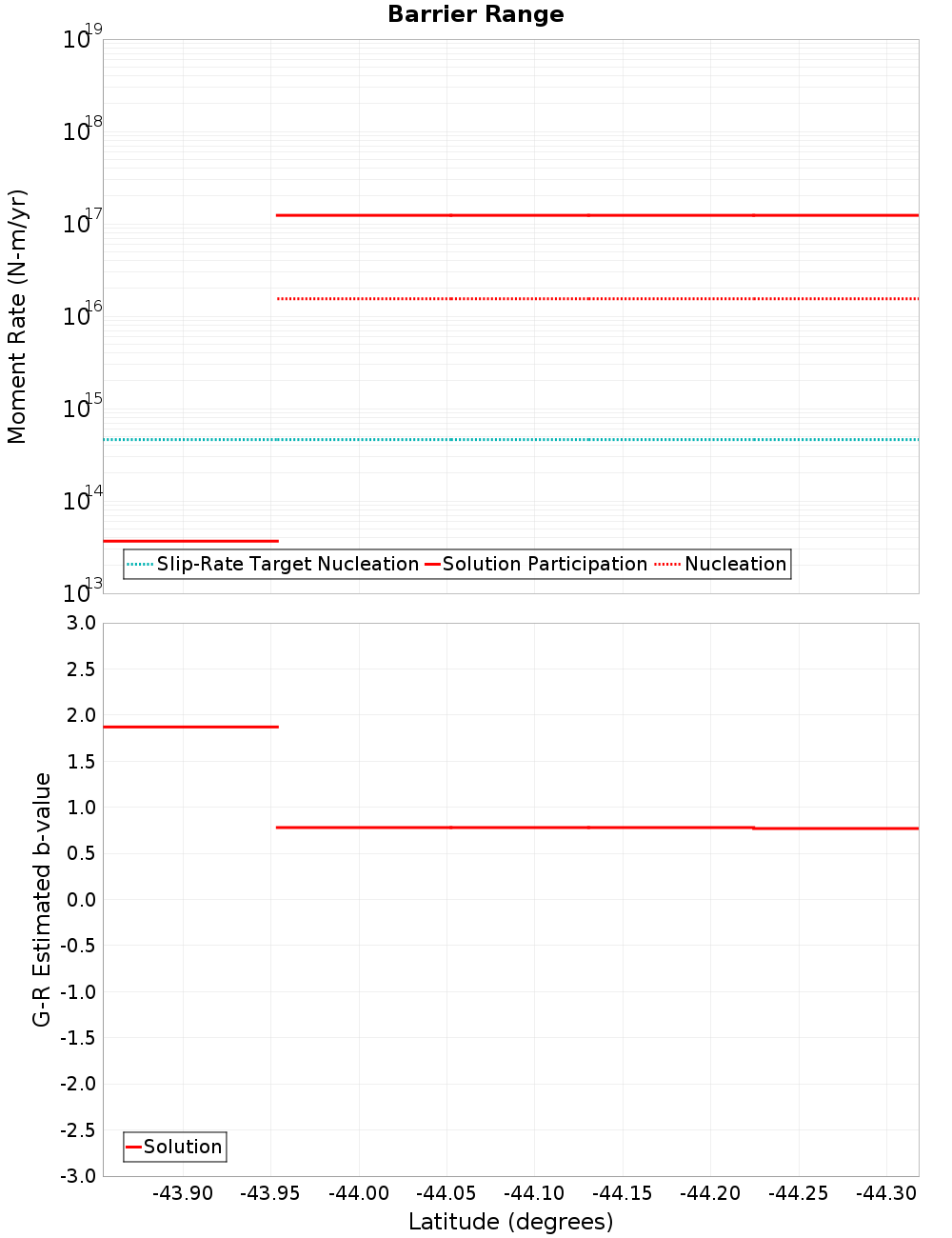

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dromedary, 1.72 km away
Hopkins, 1.83 km away
Ostler North, 2.09 km away
Huxley, 5.8 km away
Dingle, 7.44 km away
Wanaka, 8.72 km away
Timaru Creek, 9.19 km away
Alpine: Jacksons to Kaniere, 9.21 km away
Ostler South, 12.24 km away
Hunter Valley, 14.29 km away

Dromedary, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate7.388861E-11

Hopkins, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler North, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate4.028141E-12

Huxley, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate1.6174128E-7

Dingle, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate1.0426589E-11

Wanaka, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate3.9365794E-12

Timaru Creek, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?true
Co-rupture Count201
Co-rupture Rate4.5142707E-4

Alpine: Jacksons to Kaniere, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate9.692585E-12

Hunter Valley, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
